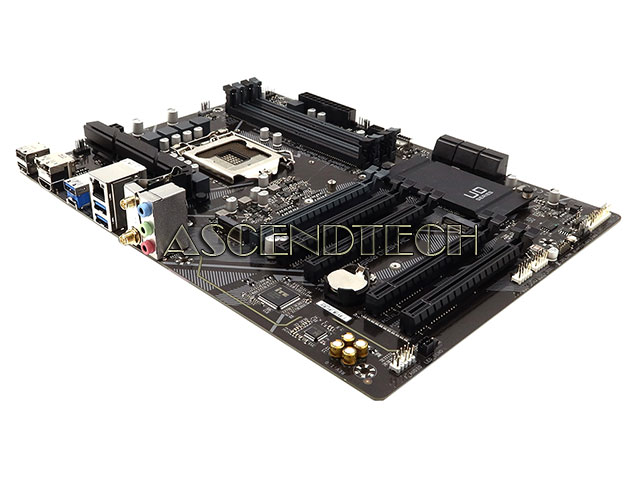

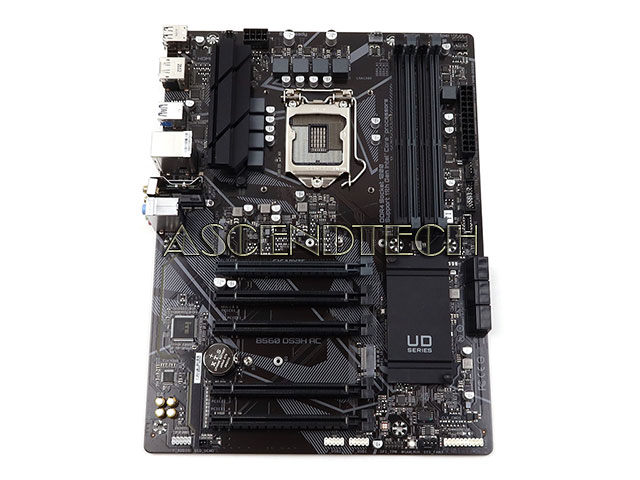

GIGABYTE B560 DS3H AC Motherboard No I/O
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MBDSKB560DS3HIO
Brand Gigabyte
Model B560 DS3H AC
Category Intel Lga1200 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard does not include an I/O Shield, cables, or any other accessories!
Description
GIGABYTE B560 DS3H AC Intel Chipset B560 Socket LGA1200 DDR4 USB-C SATA 3 6Gb/s HDMI DisplayPort ATX Desktop Motherboard.
Chipset: Intel B560
Socket: Intel LGA1200
Compatible/Supported CPU: 10th 11th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 3200MHz/3000MHz/2933MHz/2667MHz/2400MHz/2133MHz
Storage Interface: SATA 3 6.0Gb/s
Bluetooth Standard: Bluetooth 4.2
Wireless Lan Support: AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE), 802.11a/b/g/n/ac supporting 2.4/5 GHz Dual-Band
Network/Communications: Realtek GbE LAN chip (1 Gbps/100 Mbps)
Audio: Realtek Audio CODEC
Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x CPU fan header, 3x system fan headers, 1x addressable LED strip header, 1x RGB LED strip header, 2x M.2 Socket 3 connectors, 6x SATA 6Gb/s connectors, 1x front panel header, 1x front panel audio header, 1x USB 3.2 Gen 1 header, 1x USB Type-C header, with USB 3.2 Gen 1 support, 2x USB 2.0/1.1 headers, 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1x Clear CMOS jumper, 1x Q-Flash Plus button
Input/Output Ports: 2x USB 2.0/1.1 ports, 1x DisplayPort, 1x HDMI port, 3x USB 3.2 Gen 1 ports, 1x USB Type-C Port, 1x RJ-45 port, 2x SMA antenna connectors (1T1R), 3x audio jacks
Expansion Slots: 1x PCI Express x16 slot, running at x16 (PCIEX16), 4x PCI Express x16 slots, running at x1 (PCIEX1_1~4), 1x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support), 1x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support), 6x SATA 6Gb/s connectors
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit
Additional Specifications:
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1.1x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Support for DisplayPort 1.2 version and HDCP 2.3
2.1x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Support for HDMI 1.4 version and HDCP 2.3.
Graphics specifications may vary depending on CPU support.
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
1.Voltage detection
2.Temperature detection
3.Fan speed detection
4.Fan fail warning
5.Fan speed control
Whether the fan speed control function is supported will depend on the fan you install
BIOS
1x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1.Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
2.Support for Q-Flash Plus
3.Support for Q-Flash
4.Support for Xpress Install
CPU Support:
| Socket LGA1200 | |||||||
|---|---|---|---|---|---|---|---|
| Vendor | CPU Model | GPU Frequency | L3 Cache | GPU Info. | Core Name | Stepping | Wattage |
| Intel | Core i9-11900K | 3.50GHz | 16MB | Intel Iris Xe Graphics | Rocket Lake | B0 | 125W |
| Intel | Core i9-11900KF | 3.50GHz | 16MB | N/A | Rocket Lake | B0 | 125W |
| Intel | Core i9-11900 | 2.50GHz | 16MB | Intel Iris Xe Graphics | Rocket Lake | B0 | 65W |
| Intel | Core i9-11900F | 2.50GHz | 16MB | N/A | Rocket Lake | B0 | 65W |
| Intel | Core i9-11900T | 1.50GHz | 16MB | Intel Iris Xe Graphics | Rocket Lake | B0 | 35W |
| Intel | Core i9-10900K | 3.70GHz | 20MB | Intel UHD Graphics 630 | Comet Lake | Q0 | 125W |
| Intel | Core i9-10900KF | 3.70GHz | 20MB | N/A | Comet Lake | Q0 | 125W |
| Intel | Core i9-10900 | 2.80GHz | 20MB | Intel UHD Graphics 630 | Comet Lake | Q0 | 65W |
| Intel | Core i9-10900F | 2.80GHz | 20MB | N/A | Comet Lake | Q0 | 65W |
| Intel | Core i9-10900T | 1.90GHz | 20MB | Intel UHD Graphics 630 | Comet Lake | Q0 | 35W |
| Intel | Core i9-10850K | 3.60GHz | 20MB | Intel UHD Graphics 630 | Comet Lake | Q0 | 125W |
| Intel | Core i7-11700K | 3.60GHz | 16MB | Intel Iris Xe Graphics | Rocket Lake | B0 | 125W |
| Intel | Core i7-11700KF | 3.60GHz | 16MB | N/A | Rocket Lake | B0 | 125W |
| Intel | Core i7-11700 | 2.50GHz | 16MB | Intel Iris Xe Graphics | Rocket Lake | B0 | 65W |
| Intel | Core i7-11700F | 2.50GHz | 16MB | N/A | Rocket Lake | B0 | 65W |
| Intel | Core i7-11700T | 1.40GHz | 16MB | Intel Iris Xe Graphics | Rocket Lake | B0 | 35W |
| Intel | Core i7-10700K | 3.80GHz | 16MB | Intel UHD Graphics 630 | Comet Lake | Q0 | 125W |
| Intel | Core i7-10700KF | 3.80GHz | 16MB | N/A | Comet Lake | Q0 | 125W |
| Intel | Core i7-10700 | 2.90GHz | 16MB | Intel UHD Graphics 630 | Comet Lake | Q0 | 65W |
| Intel | Core i7-10700F | 2.90GHz | 16MB | N/A | Comet Lake | Q0 | 65W |
| Intel | Core i7-10700T | 2.00GHz | 16MB | Intel UHD Graphics 630 | Comet Lake | Q0 | 35W |
| Intel | Core i5-11600K | 3.90GHz | 12MB | Intel Iris Xe Graphics | Rocket Lake | B0 | 125W |
| Intel | Core i5-11600KF | 3.90GHz | 12MB | N/A | Rocket Lake | B0 | 125W |
| Intel | Core i5-11600 | 2.80GHz | 12MB | Intel Iris Xe Graphics | Rocket Lake | B0 | 65W |
| Intel | Core i5-11600T | 1.70GHz | 12MB | Intel Iris Xe Graphics | Rocket Lake | B0 | 35W |
| Intel | Core i5-11500 | 2.70GHz | 12MB | Intel Iris Xe Graphics | Rocket Lake | B0 | 65W |
| Intel | Core i5-11500T | 1.50GHz | 12MB | Intel Iris Xe Graphics | Rocket Lake | B0 | 35W |
| Intel | Core i5-11400 | 2.60GHz | 12MB | Intel Iris Xe Graphics | Rocket Lake | B0 | 65W |
| Intel | Core i5-11400F | 2.60GHz | 12MB | N/A | Rocket Lake | B0 | 65W |
| Intel | Core i5-11400T | 1.30GHz | 12MB | Intel Iris Xe Graphics | Rocket Lake | B0 | 35W |
| Intel | Core i5-10600K | 4.10GHz | 12MB | Intel UHD Graphics 630 | Comet Lake | Q0 | 125W |
| Intel | Core i5-10600KF | 4.10GHz | 12MB | N/A | Comet Lake | Q0 | 125W |
| Intel | Core i5-10600 | 3.30GHz | 12MB | Intel UHD Graphics 630 | Comet Lake | G1 | 65W |
| Intel | Core i5-10600T | 2.40GHz | 12MB | Intel UHD Graphics 630 | Comet Lake | G1 | 35W |
| Intel | Core i5-10500 | 3.10GHz | 12MB | Intel UHD Graphics 630 | Comet Lake | G1 | 65W |
| Intel | Core i5-10500T | 2.30GHz | 12MB | Intel UHD Graphics 630 | Comet Lake | G1 | 35W |
| Intel | Core i5-10400 | 2.90GHz | 12MB | Intel UHD Graphics 630 | Comet Lake | G1 | 65W |
| Intel | Core i5-10400F | 2.90GHz | 12MB | N/A | Comet Lake | Q0 | 65W |
| Intel | Core i5-10400T | 2.00GHz | 12MB | Intel UHD Graphics 630 | Comet Lake | G1 | 35W |
| Intel | Core i3-10325 | 3.90GHz | 8MB | Intel Iris Xe Graphics | Comet Lake | G1 | 65W |
| Intel | Core i3-10305 | 3.80GHz | 8MB | Intel Iris Xe Graphics | Comet Lake | G1 | 65W |
| Intel | Core i3-10305T | 3.00GHz | 8MB | Intel Iris Xe Graphics | Comet Lake | G1 | 35W |
| Intel | Core i3-10105 | 3.70GHz | 6MB | Intel Iris Xe Graphics | Comet Lake | G1 | 65W |
| Intel | Core i3-10105F | 3.70GHz | 6MB | N/A | Comet Lake | G1 | 65W |
| Intel | Core i3-10105T | 3.00GHz | 8MB | Intel Iris Xe Graphics | Comet Lake | G1 | 35W |
| Intel | Core i3-10320 | 3.80GHz | 8MB | Intel UHD Graphics 630 | Comet Lake | G1 | 65W |
| Intel | Core i3-10300 | 3.70GHz | 8MB | Intel UHD Graphics 630 | Comet Lake | G1 | 65W |
| Intel | Core i3-10300T | 3.00GHz | 8MB | Intel UHD Graphics 630 | Comet Lake | G1 | 35W |
| Intel | Core i3-10100 | 3.60GHz | 8MB | Intel UHD Graphics 630 | Comet Lake | G1 | 65W |
| Intel | Core i3-10100F | 3.60GHz | 8MB | N/A | Comet Lake | G1 | 65W |
| Intel | Core i3-10100T | 3.00GHz | 8MB | Intel UHD Graphics 630 | Comet Lake | G1 | 35W |
| Intel | Pentium G6605 | 4.30GHz | 4MB | Intel Iris Xe Graphics | Comet Lake | G1 | 58W |
| Intel | Pentium G6505 | 4.20GHz | 4MB | Intel Iris Xe Graphics | Comet Lake | G1 | 58W |
| Intel | Pentium G6505T | 3.60GHz | 4MB | Intel Iris Xe Graphics | Comet Lake | G1 | 35W |
| Intel | Pentium G6405 | 4.10GHz | 4MB | Intel Iris Xe Graphics | Comet Lake | G1 | 58W |
| Intel | Pentium G6405T | 3.50GHz | 4MB | Intel Iris Xe Graphics | Comet Lake | G1 | 35W |
| Intel | Pentium G6600 | 4.20GHz | 4MB | Intel UHD Graphics 630 | Comet Lake | G1 | 58W |
| Intel | Pentium G6500 | 4.10GHz | 4MB | Intel UHD Graphics 630 | Comet Lake | G1 | 58W |
| Intel | Pentium G6500T | 3.50GHz | 4MB | Intel UHD Graphics 630 | Comet Lake | G1 | 35W |
| Intel | Pentium G6400 | 4.00GHz | 4MB | Intel UHD Graphics 630 | Comet Lake | G1 | 58W |
| Intel | Pentium G6400T | 3.40GHz | 4MB | Intel UHD Graphics 610 | Comet Lake | G1 | 35W |
| Intel | Celeron G5925 | 3.60GHz | 4MB | Intel UHD Graphics 610 | Comet Lake | G1 | 58W |
| Intel | Celeron G5905 | 3.50GHz | 4MB | Intel UHD Graphics 610 | Comet Lake | G1 | 58W |
| Intel | Celeron G5905T | 3.30GHz | 4MB | Intel UHD Graphics 610 | Comet Lake | G1 | 35W |
