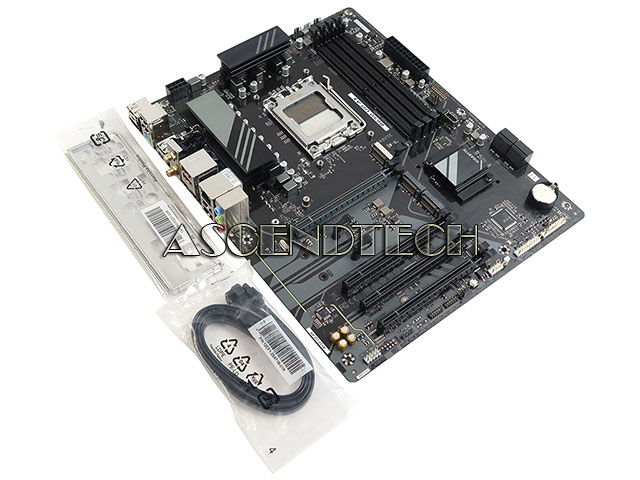

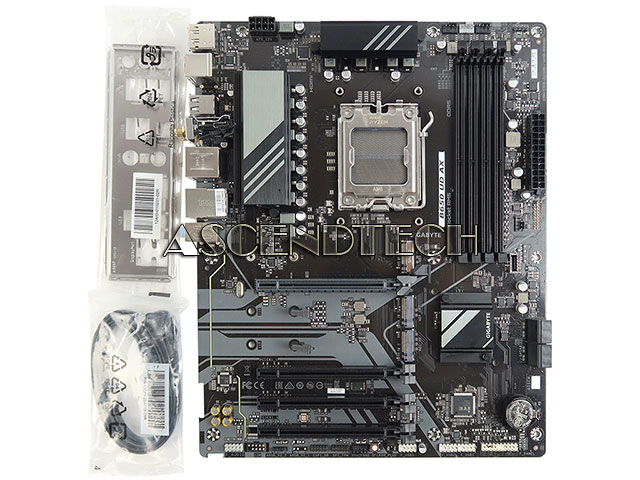

Gigabyte B650 UD AX AMD Chipset B650 Socket AM5 DDR5 SATA 6Gb/s DisplayPort HDMI ATX Desktop Motherboard.
Chipset: AMD B650
Socket: AMD AM5
Compatible/Supported CPU: Supports Ryzen 9000, 8000 and 7000 Series Processors
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800MHz
Storage Interface: SATA 6Gb/s
RAID Support: SATA: 0, 1, 10; NVMe: 0, 1, 10
Bluetooth Standard: Bluetooth 5.0
Wireless Lan Support: Realtek RTL8851 WIFI 6
Network/Communications: Realtek RTL8111H GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Audio: Realtek Audio CODEC ALC897
Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x CPU fan header, 1x CPU fan/water cooling pump header, 2x system fan headers, 1x system fan/water cooling pump header, 1x addressable RGB Gen2 LED strip header, 1x RGB LED strip header, 3x M.2 Socket 3 connectors, 4x SATA 6Gb/s connectors, 1x front panel header, 1x front panel audio header, 1x USB Type-C header, with USB 3.2 Gen 1 support, 1x USB 3.2 Gen 1 header, 3x USB 2.0/1.1 headers, 1x Trusted Platform Module header, 1x Q-Flash Plus button, 1x Clear CMOS jumper
Input/Output Ports: 1x DisplayPort, 1x HDMI port, 1x PS/2 keyboard/mouse port, 2x SMA antenna connectors (1T1R), 1x USB Type-C port, with USB 3.2 Gen 1 support, 2x USB 3.2 Gen 2 Type-A ports (red), 6x USB 2.0/1.1 ports, 1x RJ-45 port, 3x audio jacks
Expansion Slots: 1x PCIe 4.0 x16 (x8/x4 with Ryzen 8000 series), 3x PCIe 3.0 x16 (x1 mode), 1x M.2 PCIe Gen5x4/x2, 1x M.2 PCIe Gen4x2, 1x M.2 PCIe Gen4x4/x2, 4x SATA3 6.0 Gb/s
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit
Additional Specifications:
Onboard Graphics
Integrated Graphics Processor:
DisplayPort, supporting a maximum resolution of 3840x2160 144 Hz
HDMI port, supporting a maximum resolution of 4096x2160 60 Hz
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
