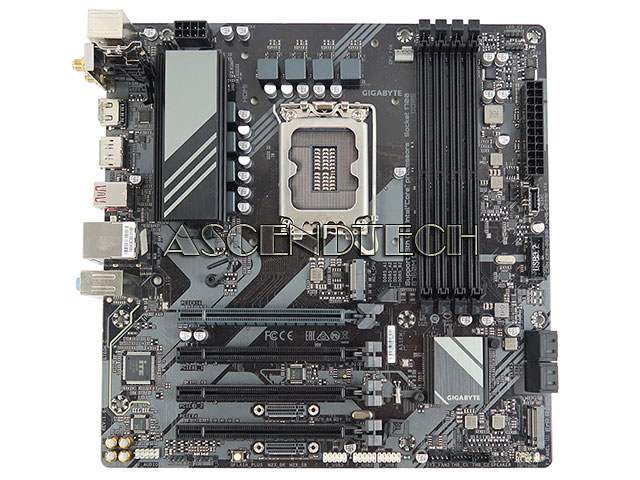

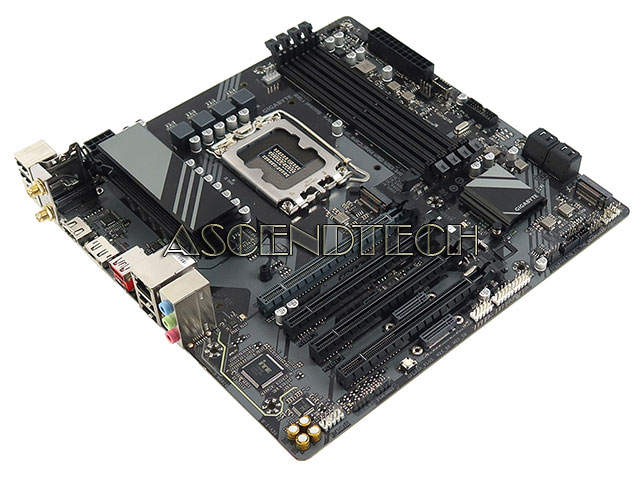

Gigabyte B760M C Intel Chipset B760 Socket LGA1700 DDR5 SATA 6Gb/s HDMI DisplayPort Micro ATX Desktop Motherboard.
Chipset: Intel B760
Socket: Intel LGA1700
Compatible/Supported CPU: Intel Core 14th & 13th Gen, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 7600(O.C.)/7400(O.C.)/7200(O.C.)/7000(O.C.)/6800(O.C.)/6600(O.C.)/6400(O.C.)/6200(O.C.)/ 6000(O.C.)/ 5800(O.C.)/5600/5400/5200/5000/4800MHz
Storage Interface: SATA 6Gb/s
RAID Support: 0, 1, 5, 10
Bluetooth Standard: Bluetooth 5.2
Wireless Lan Support: Realtek Wi-Fi RTL8821CE 802.11n
Network/Communications: Realtek GbE LAN chip (1 Gbps/100 Mbps)
Audio: Realtek Audio CODEC High Definition Audio
Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x CPU fan header, 3x system fan headers, 2x addressable LED strip headers, 2x RGB LED strip headers, 4x M.2 Socket 3 connectors, 4x SATA 6Gb/s connectors, 1x front panel header, 1x front panel audio header, 1x speaker header, 1x USB Type-C header, with USB 3.2 Gen 1 support, 1x USB 3.2 Gen 1 header, 3x USB 2.0/1.1 headers, 2x Thunderbolt add-in card connectors, 1x Q-Flash Plus button, 1x reset jumper, 1x Clear CMOS jumper, 1x chassis intrusion header
Input/Output Ports: 1x PS/2 keyboard/mouse port, 2x SMA antenna connectors (1T1R), 1x HDMI port, 1x DisplayPort, 1x USB Type-C port, with USB 3.2 Gen 2x2 support, 1x USB 3.2 Gen 2 Type-A port (red), 4x USB 2.0/1.1 ports, 1x RJ-45 port, 3x audio jacks
Expansion Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4 mode), 2x PCIe 3.0 x16 (x1 mode), 2x M.2 PCIe Gen4x4/x2, 2x M.2 PCIe Gen3x1, 4x SATA3 6.0 Gb/s
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit
Additional Specifications:
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160 60 Hz
Support for HDMI 2.1 version and HDCP 2.3.
Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 4096x2304 60 Hz
Support for DisplayPort 1.2 version and HDCP 2.3
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
