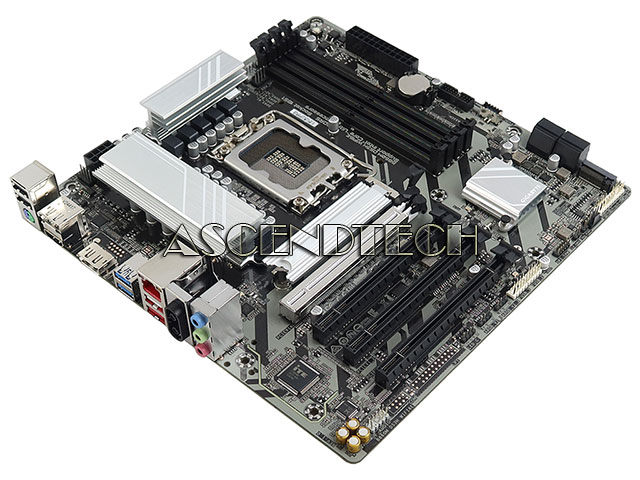

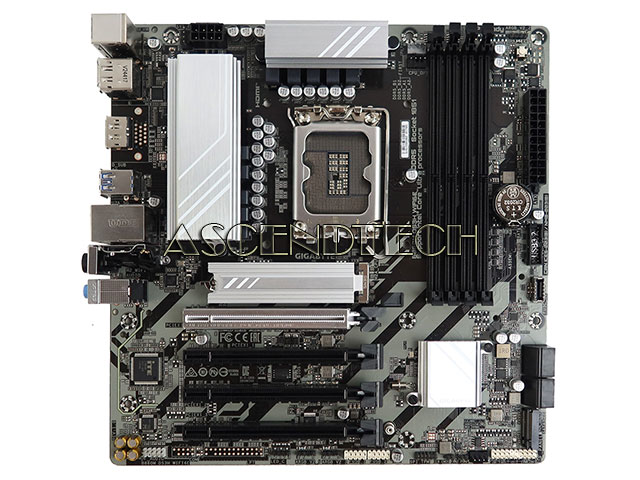

Gigabyte B860M DS3H WIFI6E Intel Chipset B860 Socket LGA1851 DDR5 SATA DisplayPort HDMI Micro ATX Desktop Motherboard.
Chipset: Intel B860
Socket: Intel LGA1851
Compatible/Supported CPU: Intel Core Ultra 200S Series
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600MHz
Storage Interface: SATA 6Gb/s
RAID Support: 0, 1, 5, 10
Bluetooth Standard: Bluetooth 5.3
Wireless Lan Support: Intel Wi-Fi 6E AX211
Network/Communications: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Audio: Realtek CODEC High Definition Audio 2/4/5.1/7.1-channel
Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x CPU fan header, 1x CPU fan/water cooling pump header, 1x system fan header, 1x system fan/water cooling pump header, 3x addressable RGB Gen2 LED strip headers, 1x RGB LED strip header, 2x M.2 Socket 3 connectors, 4x SATA 6Gb/s connectors, 1x front panel header, 1x front panel audio header, 1x USB Type-C header, with USB 3.2 Gen 1 support, 1x USB 3.2 Gen 1 header, 2x USB 2.0/1.1 headers, 1x Trusted Platform Module header, 1x Q-Flash Plus button, 1x reset jumper, 1x Clear CMOS jumper
Input/Output Ports: 1x PS/2 keyboard/mouse port, 1x HDMI port, 2x DisplayPorts, 1x USB 3.2 Gen 2 Type-A port, 2x USB 3.2 Gen 1 ports, 3x USB 2.0/1.1 ports, 2x antenna connectors (2T2R), 1x RJ-45 port, 3x audio jacks
Expansion Slots: 1x PCIe 5.0 x16, 3x PCIe 4.0 x16 (x1 mode), 1x M.2 PCIe Gen5x4/x2, 1x M.2 PCIe Gen4x4/x2, 4x SATA3 6.0 Gb/s
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit
Additional Specifications:
Onboard Graphics
Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.1 version and HDCP 2.3.
Support native HDMI 2.1 TMDS compatible ports.
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
