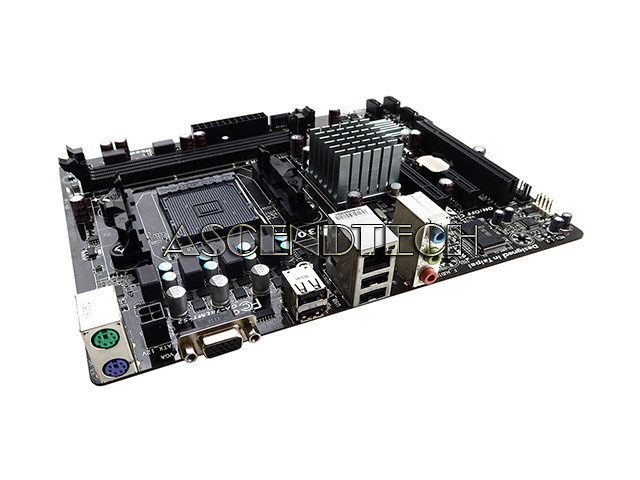

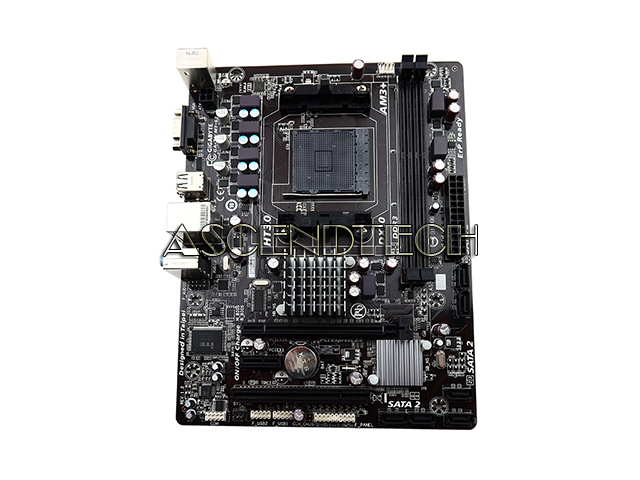

GA-78LMT-S2 Rev.1.2 | Gigabyte Ga-78Lmt-S2 Rev.1.2 Mb No I/O

Gigabyte GA-78LMT-S2 Rev.1.2 AMD Chipset 760G Socket AM3/AM3+ DDR3 VGA USB SATA 3Gb/s Micro ATX Desktop Motherboard. The 78LMT-S2 motherboard is designed to offer a stable, high-speed platform for delivering amazingly fast data transfer via revolutionary GIGABYTE Ultra Durable technology. Based on AMD 760G chipset, the 78LMT-S2 supports the latest 45nm AMD AM3 Phenom II/ Athlon II processors, integrated DDR3 memory controller, HyperTransport 3.0 technology links and PCI Express 2.0 graphics interfaces for ATI Hybrid CrossFireX support. The 78LMT-S2 is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time.

Chipset: AMD 760G/SB710

Socket: AMD AM3+

Compatible/Supported CPU: AMD AM3+ processor; AMD AM3 Phenom II processor / AMD Athlon II processor

Max Supported Memory: Up to 16GB

Number of Memory Slots: 2

Memory Type: DDR3 SDRAM

Storage Interface: SATA 3Gb/s

RAID Support: RAID 0, RAID 1, RAID 10, and JBOD

Wireless Lan Support: Realtek GbE LAN chip (10/100/1000 Mbit)

Audio: Realtek ALC887 audio codec

Connectors: 1x 24-pin ATX main power connector, 1x 4-pin ATX 12V power connector, 6x SATA 3Gb/s connectors, 1x CPU fan header, 1x system fan header, 1x front panel header, 1x front panel audio header, 2x USB 2.0/1.1 headers, 1x serial port header, 1x Clear CMOS jumper

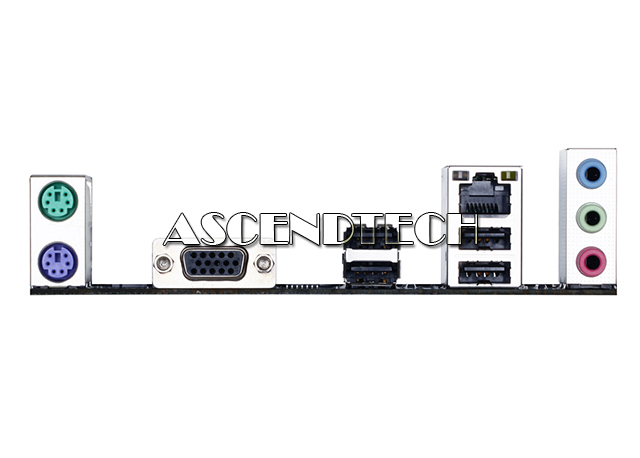

Input/Output Ports: 1x PS/2 keyboard port, 1x PS/2 mouse port, 1x D-Sub port, 4x USB 2.0/1.1 ports, 1x RJ-45 port, 3x audio jacks (Line In/Line Out/Microphone)

Expansion Slots: 1x PCI Express x16 slot, running at x16, 1x PCI Express x1 slot, 1x PCI slot

Form Factor: Micro ATX

Type: Desktop Motherboard

Supported Operating System: Microsoft Windows 7/ Vista/ XP

Features: Supports AMD AM3+ FX / AM3 Phenom II, Athlon II series Processors; GIGABYTE Ultra Durable 4 Classic Technology; Integrated ATI Radeon HD 3000 graphics (DirectX10); PCI-E 2.0 x16 interface for ultimate graphics support; Hybrid EFI technology with 3TB HDD support; GIGABYTE On/Off Charge for USB devices.

Additional Specifications:

Onboard Graphics
North Bridge:
1 x D-Sub port

USB
South Bridge:
Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

I/O Controller
iTE I/O Controller Chip

BIOS
1x 16 Mbit flash
Use of licensed AWARD BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features
Support for @BIOS
Support for Q-Flash
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune
Support for Smart Recovery
Support for Auto Green
Support for On/Off Charge
Support 3TB+ Unlock
Support for Q-Share

CPU Support:

Socket AM3+
Motherboard
Vendor	CPU Model	Frequency	L2 Cache	L3 Cache	Core Name	Process	Wattage	System Bus(MT/s)
AMD	FX-8370E	3300MHz	1MBx8	8MB	Vishera	32nm	95W	5200
AMD	FX-8320E	3200MHz	1MBx8	8MB	Vishera	32nm	95W	5200
AMD	FX-8300	3300MHz	1MBx8	8MB	Vishera	32nm	95W	5200
AMD	FX-8100	2800MHz	1MBx8	8MB	Bulldozer	32nm	95W	5200
AMD	FX-6300	3500MHz	1MBx6	8MB	Vishera	32nm	95W	5200
AMD	FX-6120	3500MHz	1MBx6	8MB	Bulldozer	32nm	95W	5200
AMD	FX-6100	3300MHz	1MBx6	8MB	Bulldozer	32nm	95W	5200
AMD	FX-4330	4000MHz	1MBx4	8MB	Vishera	32nm	95W	5200
AMD	FX-4320	4000MHz	1MBx4	4MB	Vishera	32nm	95W	5200
AMD	FX-4300	3800MHz	1MBx4	4MB	Vishera	32nm	95W	5200
AMD	FX-4150	3900MHz	1MBx4	8MB	Bulldozer	32nm	95W	5200
AMD	FX-4100	3600MHz	1MBx4	8MB	Bulldozer	32nm	95W	5200
Socket AM3
Motherboard
Vendor	CPU Model	Frequency	L2 Cache	L3 Cache	Core Name	Process	Wattage	System Bus(MT/s)
AMD	Phenom II X6 1065T	2900MHz	512KBx6	6MB	Thuban	45nm	95W	4000
AMD	Phenom II X6 1055T	2800MHz	512KBx6	6MB	Thuban	45nm	95W	4000
AMD	Phenom II X6 1045T	2700MHz	512KBx6	6MB	Thuban	45nm	95W	4000
AMD	Phenom II X6 1035T	2600MHz	512KBx6	6MB	Thuban	45nm	95W	4000
AMD	Phenom II X4 960T	3000MHz	512KBx4	6MB	Zosma	45nm	95W	4000
AMD	Phenom II X4 955	3200MHz	512KBx4	6MB	Deneb	45nm	95W	4000
AMD	Phenom II X4 945	3000MHz	512KBx4	6MB	Deneb	45nm	95W	4000
AMD	Phenom II X4 945	3000MHz	512KBx4	6MB	Deneb	45nm	95W	4000
AMD	Phenom II X4 925	2800MHz	512KBx4	6MB	Deneb	45nm	95W	4000
AMD	Phenom II X4 925	2800MHz	512KBx4	6MB	Deneb	45nm	95W	4000
AMD	Phenom II X4 910	2600MHz	512KBx4	6MB	Deneb	45nm	95W	4000
AMD	Phenom II X4 910e	2600MHz	512KBx4	6MB	Deneb	45nm	65W	4000
AMD	Phenom II X4 905e	2500MHz	512KBx4	6MB	Deneb	45nm	65W	4000
AMD	Phenom II X4 900e	2400MHz	512KBx4	6MB	Deneb	45nm	65W	4000
AMD	Phenom II X4 840	3200MHz	512KBx4	N/A	Deneb	45nm	95W	4000
AMD	Phenom II X4 820	2800MHz	512KBx4	6MB	Deneb	45nm	95W	4000
AMD	Phenom II X4 810	2600MHz	512KBx4	4MB	Deneb	45nm	95W	4000
AMD	Phenom II X4 805	2500MHz	512KBx4	4MB	Deneb	45nm	95W	4000
AMD	Phenom II X3 740	3000MHz	512KBx3	6MB	Heka	45nm	95W	4000
AMD	Phenom II X3 720	2800MHz	512KBx3	6MB	Heka	45nm	95W	4000
AMD	Phenom II X3 710	2600MHz	512KBx3	6MB	Heka	45nm	95W	4000
AMD	Phenom II X3 705e	2500MHz	512KBx3	6MB	Heka	45nm	65W	4000
AMD	Phenom II X3 700e	2400MHz	512KBx3	6MB	Heka	45nm	65W	4000
AMD	Phenom II X2 565	3400MHz	512KBx2	6MB	Callisto	45nm	80W	4000
AMD	Phenom II X2 560	3300MHz	512KBx2	6MB	Callisto	45nm	80W	4000
AMD	Phenom II X2 555	3200MHz	512KBx2	6MB	Callisto	45nm	80W	4000
AMD	Phenom II X2 550	3100MHz	512KBx2	6MB	Callisto	45nm	80W	4000
AMD	Phenom II X2 550	3100MHz	512KBx2	6MB	Callisto	45nm	80W	4000
AMD	Phenom II X2 545	3000MHz	512KBx2	6MB	Callisto	45nm	80W	4000
AMD	Phenom II X2 545	3000MHz	512KBx2	6MB	Callisto	45nm	80W	4000
AMD	Athlon II X4 650	3200MHz	512KBx4	N/A	Propus	45nm	95W	4000
AMD	Athlon II X4 645	3100MHz	512KBx4	N/A	Propus	45nm	95W	4000
AMD	Athlon II X4 640	3000MHz	512KBx4	N/A	Propus	45nm	95W	4000
AMD	Athlon II X4 635	2900MHz	512KBx4	N/A	Propus	45nm	95W	4000
AMD	Athlon II X4 635	2900MHz	512KBx4	N/A	Propus	45nm	95W	4000
AMD	Athlon II X4 630	2800MHz	512KBx4	N/A	Propus	45nm	95W	4000
AMD	Athlon II X4 630	2800MHz	512KBx4	N/A	Propus	45nm	95W	4000
AMD	Athlon II X4 620	2600MHz	512KBx4	N/A	Propus	45nm	95W	4000
AMD	Athlon II X4 615e	2500MHz	512KBx4	N/A	Propus	45nm	45W	4000
AMD	Athlon II X4 610e	2400MHz	512KBx4	N/A	Propus	45nm	45W	4000
AMD	Athlon II X4 605e	2300MHz	512KBx4	N/A	Propus	45nm	45W	4000
AMD	Athlon II X4 605e	2300MHz	512KBx4	N/A	Propus	45nm	45W	4000
AMD	Athlon II X4 600e	2200MHz	512KBx4	N/A	Propus	45nm	45W	4000
AMD	Athlon II X3 455	3300MHz	512KBx3	N/A	Rena	45nm	95W	4000
AMD	Athlon II X3 450	3200MHz	512KBx3	N/A	Rena	45nm	95W	4000
AMD	Athlon II X3 445	3100MHz	512KBx3	N/A	Rena	45nm	95W	4000
AMD	Athlon II X3 440	3000MHz	512KBx3	N/A	Rena	45nm	95W	4000
AMD	Athlon II X3 440	3000MHz	512KBx3	N/A	Rena	45nm	95W	4000
AMD	Athlon II X3 435	2900MHz	512KBx3	N/A	Rena	45nm	95W	4000
AMD	Athlon II X3 435	2900MHz	512KBx3	N/A	Rena	45nm	95W	4000
AMD	Athlon II X3 425	2700MHz	512KBx3	N/A	Rena	45nm	95W	4000
AMD	Athlon II X3 420e	2600MHz	512KBx3	N/A	Rena	45nm	45W	4000
AMD	Athlon II X3 415e	2500MHz	512KBx3	N/A	Rena	45nm	45W	4000
AMD	Athlon II X3 405e	2300MHz	512KBx3	N/A	Rena	45nm	45W	4000
AMD	Athlon II X3 405e	2300MHz	512KBx3	N/A	Rena	45nm	45W	4000
AMD	Athlon II X3 400e	2200MHz	512KBx3	N/A	Rena	45nm	45W	4000
AMD	Athlon II X2 280	3600MHz	1MBx2	N/A	Regor	45nm	65W	4000
AMD	Athlon II X2 270	3400MHz	1MBx2	N/A	Regor	45nm	65W	4000
AMD	Athlon II X2 265	3300MHz	1MBx2	N/A	Regor	45nm	65W	4000
AMD	Athlon II X2 260	3200MHz	1MBx2	N/A	Regor	45nm	65W	4000
AMD	Athlon II X2 255	3100MHz	1MBx2	N/A	Regor	45nm	65W	4000
AMD	Athlon II X2 255	3100MHz	1MBx2	N/A	Regor	45nm	65W	4000
AMD	Athlon II X2 250	3000MHz	1MBx2	N/A	Regor	45nm	65W	4000
AMD	Athlon II X2 250	3000MHz	1MBx2	N/A	Regor	45nm	65W	4000
AMD	Athlon II X2 250e	3000MHz	1MBx2	N/A	Regor	45nm	45W	4000
AMD	Athlon II X2 245	2900MHz	1MBx2	N/A	Regor	45nm	65W	4000
AMD	Athlon II X2 245	2900MHz	1MBx2	N/A	Regor	45nm	65W	4000
AMD	Athlon II X2 245e	2900MHz	1MBx2	N/A	Regor	45nm	45W	4000
AMD	Athlon II X2 240	2800MHz	1MBx2	N/A	Regor	45nm	65W	4000
AMD	Athlon II X2 240e	2800MHz	1MBx2	N/A	Regor	45nm	45W	4000
AMD	Athlon II X2 240e	2800MHz	1MBx2	N/A	Regor	45nm	45W	4000
AMD	Athlon II X2 235e	2700MHz	1MBx2	N/A	Regor	45nm	45W	4000
AMD	Athlon II X2 225	2900MHz	512KBx2	N/A	Regor	45nm	65W	4000
AMD	Athlon II X2 220	2800MHz	512KBx2	N/A	Regor	45nm	65W	4000
AMD	Athlon II X2 215	2700MHz	512KBx2	N/A	Regor	45nm	65W	4000
AMD	Athlon II X2 215	2700MHz	512KBx2	N/A	Regor	45nm	65W	4000
AMD	Athlon II X2 260u	1800MHz	1MBx2	N/A	Regor	45nm	25W	3600
AMD	Athlon II X2 260u	1800MHz	1MBx2	N/A	Regor	45nm	25W	3600
AMD	Athlon II 170u	1800MHz	1MB	N/A	Sargas	45nm	20W	3600
AMD	Athlon II 160u	1800MHz	1MB	N/A	Sargas	45nm	20W	3600
AMD	Sempron 190	2500MHz	512KBx2	N/A	Sargas	45nm	45W	4000
AMD	Sempron 145	2800MHz	1MB	N/A	Sargas	45nm	45W	4000
AMD	Sempron 140	2700MHz	1MB	N/A	Sargas	45nm	45W	4000

Gigabyte GA-78LMT-S2 Rev.1.2 MB No I/O

Description
