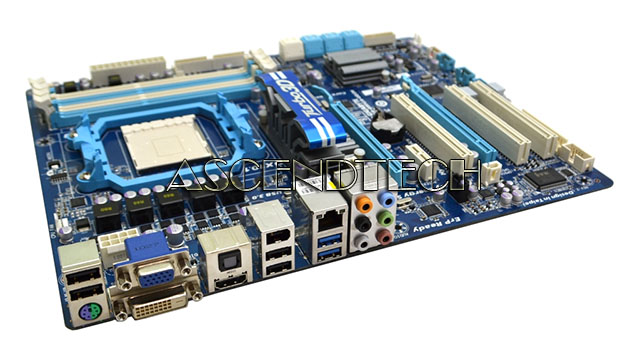

Gigabyte GA-880GA-UD3H rev.2.1 AMD Chipset 880G Socket AM3 DDR3 ATX Motherboard. Yet another onboard feature of GIGABYTE AMD 800A series motherboards are integrated the latest AMD SB850 chip for high-speed SATA Revision 3.0 compatibility, delivering 6 ports native superfast 6Gbps link speeds for twice the data transfer rates of SATA Revision 2.0 (3 Gbps) and RAID 0, 1, 5, 10 support. When used in RAID 0 (Stripe) mode, GIGABYTE AMD 800A series motherboards offer even faster data transfer rates of up to 4x the speed of current SATA interfaces.

Features:

• Supports new generation of AMD Phenom II X6 processors
• AMD SB850 provides 6 native SATA3 storage interfaces with superfast 6Gbps link speed and RAID 0, 1, 5, 10 support
• Supports newest NEC SuperSpeed USB 3.0 with superfast transfer rates of up to 5 Gbps
• 3X USB power delivery for greater compatibility and extra power for USB devices
• Exclusive Auto Unlock technology provides hardware-based solution for unleash CPU performance
• Ultra Durable 3 Classic Technology with copper cooled quality for lower working temperature
• Revolution energy saving design with Easy Energy Saver technology
• Supports AMD AM3 Phenom II/ Athlon II processors
• Dual Channel DDR3 1866+ for remarkable system performance
• Integrated ATI Radeon HD 4250 graphics (DirectX10.1)
• Innovative Turbo 3D technology to unleash extra levels of 2D/3D graphics performance
• 2 PCI-E 2.0 x16 interface with ATI Hybrid CrossFireX support for ultimate graphics performance
• Blu-ray playback supported by high quality ALC892 HD audio
• Supports Dolby Home Theater audio to enjoy a rich surround sound experience
• Integrated HDMI/ DVI interface for Full HD 1080 Blu-ray playback with HDCP
• Compatible with Window 7 to deliver the best operation experience
• Meet European Union ErP(Energy-related-Products) requirement










Specifications:

CPU
AM3 Socket:
Support for AMD AM3 Phenom II processor / AMD Athlon II processor
Hyper Transport Bus
5200 MT/s
Chipset
North Bridge: AMD 880G
South Bridge: AMD SB850
Memory
4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
Dual channel memory architecture
Support for DDR3 2000(OC)/1333/1066 MHz memory modules
Onboard Graphics
North Bridge:
1 x D-Sub port
1 x DVI-D port (Note 2)(Note 3)
1 x HDMI port (Note 3)
Audio
Realtek ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for Dolby Home Theater
Support for S/PDIF In/Out
Support for CD In
LAN
1 x Realtek 8111D chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slot (The PCIEX1_2 slot shares bandwidth with the PCIEX4 slot.) (Note 4)
(All PCI Express slots conform to PCI Express 2.0 standard.)
3 x PCI slots
Storage Interface
South Bridge:
6 x SATA 6Gb/s connectors 6 supporting up to 6 SATA 6Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 5, RAID 10, and JBOD
* SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.
GIGABYTE SATA2 chip:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2 x SATA 3Gb/s connectors supporting up to 2 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, and JBOD
iTE IT8720 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive
Multi-Graphics Technology
Support for ATI Hybrid CrossFireX technology
USB
South Bridge:
Up to 12USB 2.0/1.1 ports (4 on the back panel, 8 via the USB brackets connected to the internal USB headers)
NEC D720200F1 chip:
Up to 2 USB 3.0 ports on the back panel
IEEE 1394
T.I. TSB43AB23 chip:
Up to 3 IEEE 1394a ports (1 on the back panel, 2 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
6 x SATA 6Gb/s connectors
2 x SATA 3Gb/s connectors
1 x CPU fan header
2 x system fan header
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
2 x IEEE 1394a header
4 x USB 2.0/1.1 headers
1 x serial port header
1 x clearing CMOS jumper

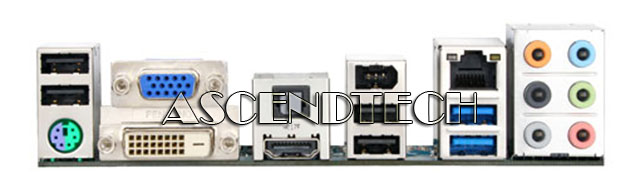

Back Panel Connectors
1 x PS/2 keyboard port or PS/2 mouse port
1 x D-Sub port
1 x DVI-D port (Note 2)(Note 3)
1 x HDMI port (Note 3)
1 x optical S/PDIF Out connector
4 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports
1 x IEEE 1394a port
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
ITE IT8720 chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU/System fan speed control (Note 5)
BIOS
2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
Support for BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune (Note 6)
Support for Easy Energy Saver
Support for Smart Recovery
Support for Auto Green
Support for On/Off Charge
Support for Q-Share
Operating System
Support for Microsoft Windows 7/ Vista/ XP
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
