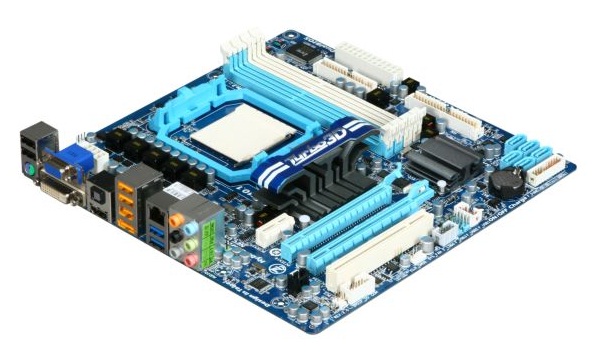

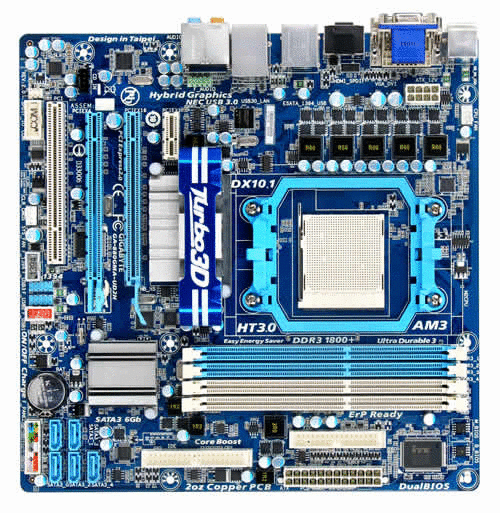

Gigabyte GA-880GMA-UD2H AM3 Motherboard

  Gigabyte GA-880GMA-UD2H AM3 AMD Phenom II Motherboard. Gigabyte motherboards meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.

Specifications:

CPU
Socket AM3 Support AMD Phenom II/ Athlon II processor
FSB up to 5200 MT/s
Support Auto Unlock technology

Chipset
AMD 880G & SB85

Memory
4 x 240pin DDR3-1800(O.C.)/ 1333/ 1066 DIMMs
Dual Channel
Max Capacity up to 16GB

Slots
2 x PCI-Express 2.0 x16 Slots (Support ATI Hybrid CrossFireX Technology)
1 x PCI-Express 2.0 x1 Slot
1 x PCI Slot

IDE/SATA
1 x ATA-133 Channel
5 x SATA3 Ports
Support RAID 0, 1, 5, 10 and JBOD
1 x eSATA3 Port

Audio
Realtek ALC892 7.1-channel High Definition Audio CODEC

Video
Intergrated ATI Radeon HD4250 Graphics controller

LAN
Realtek 8111D Gigabit Ethernet Controller

Ports
10 x USB 2.0 Ports(4 rear, 6 by headers)
2 x USB 3.0 Ports
1 x eSATA3 Port
2 x IEEE 1394a Ports(1 rear, 1 by header)
1 x PS/2 Ports
1 x VGA Port
1 x DVI Port
1 x HDMI Port
1 x Optical S/PDIF-Out
1 x RJ45 LAN Port
Audio I/O Jacks

Power Connector
1 x 24pin main power
1 x 8pin CPU power

Form Factor
Micro ATX
24.4 x 24.4 cm
