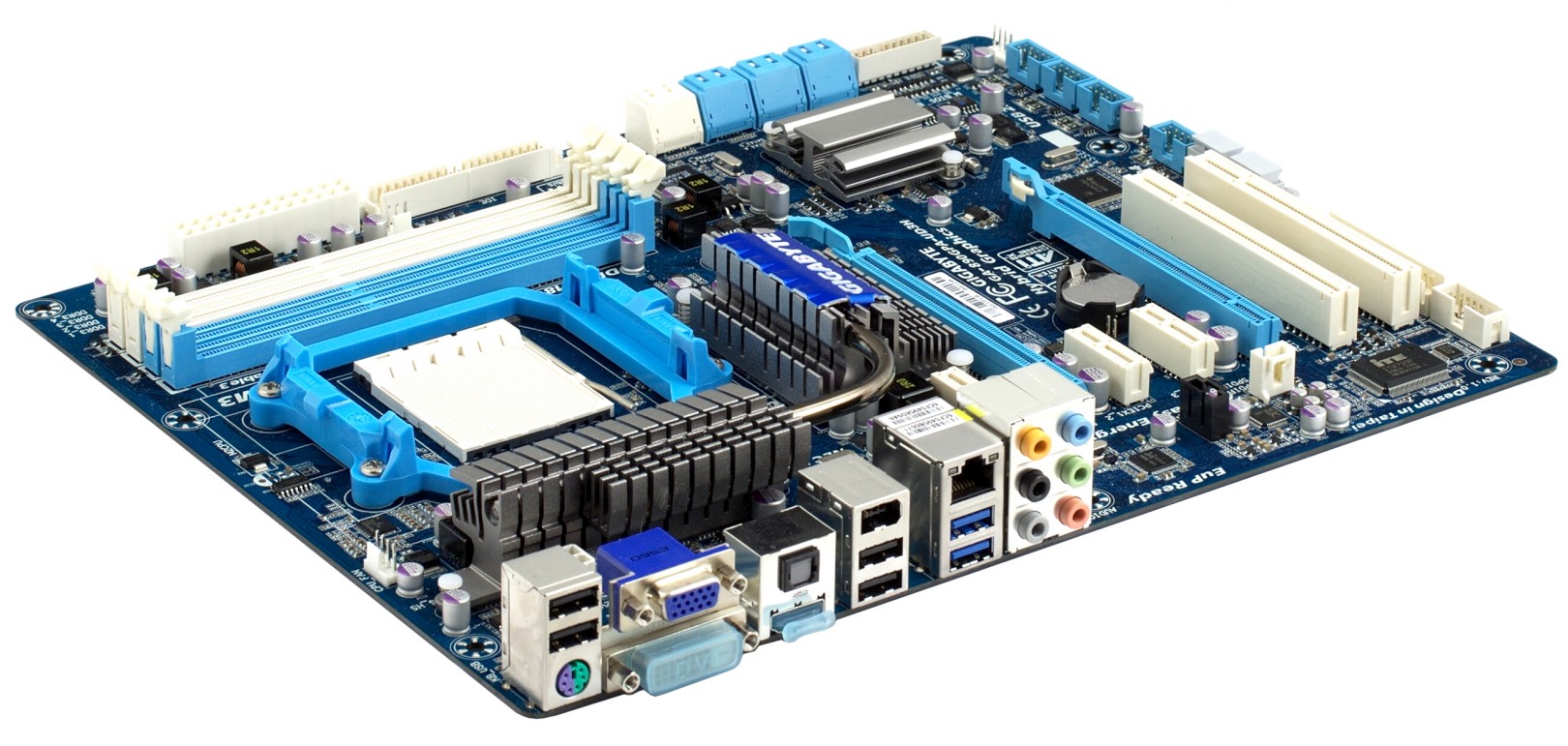

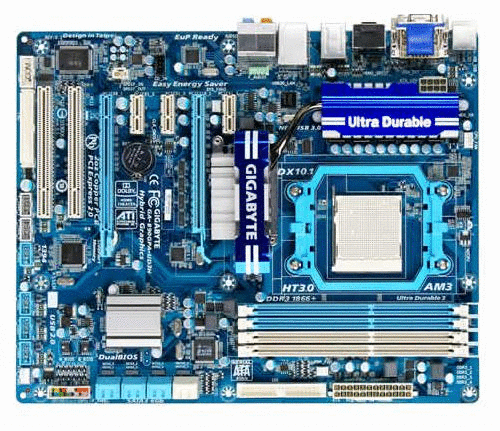

Gigabyte GA-890GPA-UD3H AM3 Motherboard

  Gigabyte GA-890GPA-UD3H AM3 AMD Phenom II Motherboard. Gigabyte motherboards meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.

Specifications:

CPU

Socket AM3 Support AMD Phenom II / AMD Athlon II processor
FSB 5200 MT/s

Chipset

AMD 890GX & SB850

Memory

4x 240pin DDR3-1866(OC)/1333/1066 DIMMs
Dual Channel
Non-ECC, up to 16GB

Slots

2x PCI-Express 2.0 x16 Slots (Support ATI CrossFireX / Hybrid CrossFireX Technologies)
3x PCI-Express x1 Slots
2x PCI Slots

IDE/SATA

1x ATA-133 Channel
6x SATA3 Ports
Support RAID 0, 1, 5, 10 and JBOD
2x SATA2 Ports, Support RAID 0, 1 and JBOD

Audio

Realtek ALC892 7.1-Channel High Definition Audio CODEC

Video

Integrated ATI Radeon HD 4290 graphics Controller

LAN

Realtek 8111D Gigabit Ethernet Controller

Ports

12x USB 2.0 Ports (4 rear, 8 by headers)
2x USB 3.0 Ports
3x IEEE 1394a Ports (1 rear, 2 by header)
1x PS/2 Port
1x VGA Port
1x DVI Port
1x HDMI Port
1x Optical S/PDIF-Out
1x RJ45 LAN Port
Audio I/O Jacks

Power Connector

1x 24pin main power
1x 8pin CPU power

Form Factor

ATX
30.5 x 24.4 cm
