Gigabyte GA-A320M-S2H Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge

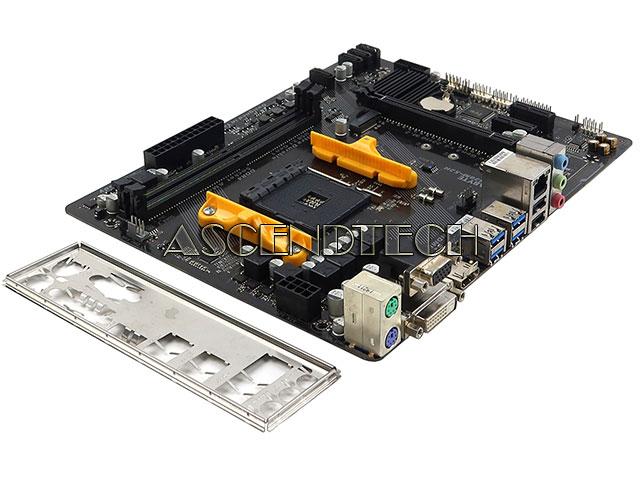

Gigabyte Ga-A320m-S2h Motherboard
Gigabyte Ga-A320m-S2h Motherboard
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeMBDSKGAA320MSI2
BrandGigabyte
ModelGA-A320M-S2H
CategoryAmd Socket Am4 Motherboard
ConditionLike New Grade A
Condition DescriptionPlease note, this motherboard comes with I/O Shield, fan bracket, and fan backplate! No cables, or any other accessories!

Description

Gigabyte GA-A320M-S2H AMD Chipset A320 Socket AM4 DDR4 HDMI DVI-D D-Sub USB SATA 6Gb/s Micro ATX Desktop Motherboard.

Chipset: AMD A320
Socket: AMD AM4
Compatible/Supported CPU: AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
Max Supported Memory: 64GB
Number of Memory Slots: 2
Memory Type: DDR4 SDRAM
Speed: 3200MHz
Storage Interface: SATA 6Gb/s
RAID Support: RAID 0, RAID 1 and RAID 10
Wireless Lan Support: Realtek GbE LAN chip (10/100/1000 Mbit)
Audio: Realtek High Definition Audio Codec
Connectors: 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x CPU fan header; 1x system fan header; 1x M.2 Socket 3 connector; 4x SATA 6Gb/s connectors; 1x front panel header; 1x front panel audio header; 1x S/PDIF Out header; 1x USB 3.1 Gen 1 header; 2x USB 2.0/1.1 headers; 1x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only); 1x speaker header; 1x Clear CMOS jumper; 1x chassis intrusion header.
Input/Output Ports: 1x PS/2 keyboard port; 1x PS/2 mouse port; 1x D-Sub port; 1x DVI-D port; 1x HDMI port; 4x USB 3.1 Gen 1 ports; 2x USB 2.0/1.1 ports; 1x RJ-45 port; 3x audio jacks (Line In, Line Out, Mic In).
Expansion Slots: 1x PCI Express x16 slot, running at x16 (PCIEX16); 2x PCI Express x1 slots.
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Support for Windows 10 64-bit, Windows 7 64-bit (To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge, Summit Ridge and Bristol Ridge CPU).
Features: Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors; Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs; Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support; High Quality Audio Capacitors and Audio Noise Guard; Realtek Gigabit LAN with cFosSpeed Internet Accelerator Software; Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers; GIGABYTE UEFI BIOS; All New GIGABYTE APP Center, Simple and Easy Use.

Additional Specifications:

Onboard Graphics
Integrated Graphics Processor:
1x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
1x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
Maximum shared memory of 2 GB

USB
Chipset:
2x USB 3.1 Gen 1 ports available through the internal USB header
6x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
4x USB 3.1 Gen 1 ports on the back panel

I/O Controller
iTE I/O Controller Chip

BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install

CPU Support:

Socket AM4

VendorCPU ModelFrequencyL2 CacheL3 CacheGPU FrequencyCore NameProcessWattage
AMDRyzen 9 3950X3‎.5GHz / 4.7GHz8‎MB6‎4MBN/AMatisse7‎nm1‎05W
AMDRyzen 9 3900XT3‎.8GHz / 4.7GHz6‎MB6‎4MBN/AMatisse7‎nm1‎05W
AMDRyzen 9 3900X3‎.8GHz / 4.6GHz6‎MB6‎4MBN/AMatisse7‎nm1‎05W
AMDRyzen 9 39003‎.1GHz / 4.3GHz6‎MB6‎4MBN/AMatisse7‎nm6‎5W
AMDRyzen 9 PRO 39003‎.1GHz / 4.3GHz6‎MB6‎4MBN/AMatisse7‎nm6‎5W
AMDRyzen 7 3800XT3‎.9GHz / 4.7GHz4‎MB3‎2MBN/AMatisse7‎nm1‎05W
AMDRyzen 7 3800X3‎.9GHz / 4.5GHz4‎MB3‎2MBN/AMatisse7‎nm1‎05W
AMDRyzen 7 3700X3‎.6GHz / 4.4GHz4‎MB3‎2MBN/AMatisse7‎nm6‎5W
AMDRyzen 7 PRO 37003‎.6GHz / 4.4GHz4‎MB3‎2MBN/AMatisse7‎nm6‎5W
AMDRyzen 7 2700X3‎.7GHz / 4.35GHz4‎MB1‎6MBN/APinnacle Ridge1‎2nm1‎05W
AMDRyzen 7 PRO 2700X3‎.6GHz / 4.1GHz4‎MB1‎6MBN/APinnacle Ridge1‎2nm9‎5W
AMDRyzen 7 27003‎.2GHz / 4.1GHz4‎MB1‎6MBN/APinnacle Ridge1‎2nm6‎5W
AMDRyzen 7 PRO 27003‎.2GHz / 4.1GHz4‎MB1‎6MBN/APinnacle Ridge1‎2nm6‎5W
AMDRyzen 7 2700E2‎.8GHz / 4.0GHz4‎MB1‎6MBN/APinnacle Ridge1‎2nm4‎5W
AMDRyzen 7 1800X3‎.6GHz / 4.0GHz4‎MB1‎6MBN/ASummit Ridge1‎4nm9‎5W
AMDRyzen 7 1700X3‎.4GHz / 3.8GHz4‎MB1‎6MBN/ASummit Ridge1‎4nm9‎5W
AMDRyzen 7 PRO 1700X3‎.4GHz / 3.8GHz4‎MB1‎6MBN/ASummit Ridge1‎4nm9‎5W
AMDRyzen 7 17003‎.0GHz / 3.7GHz4‎MB1‎6MBN/ASummit Ridge1‎4nm6‎5W
AMDRyzen 7 PRO 17003‎.0GHz / 3.7GHz4‎MB1‎6MBN/ASummit Ridge1‎4nm6‎5W
AMDRyzen 5 3600X3‎.8GHz / 4.4GHz3‎MB3‎2MBN/AMatisse7‎nm9‎5W
AMDRyzen 5 3600XT3‎.8GHz / 4.5GHz3‎MB3‎2MBN/AMatisse7‎nm9‎5W
AMDRyzen 5 36003‎.6GHz / 4.2GHz3‎MB3‎2MBN/AMatisse7‎nm6‎5W
AMDRyzen 5 PRO 36003‎.6GHz / 4.2GHz3‎MB3‎2MBN/AMatisse7‎nm6‎5W
AMDRyzen 5 3500X3‎.6GHz / 4.1GHz3‎MB3‎2MBN/AMatisse7‎nm6‎5W
AMDRyzen 5 35003‎.6GHz / 4.1GHz3‎MB1‎6MBN/AMatisse7‎nm6‎5W
AMDRyzen 5 3400G3‎.7GHz / 4.2GHz2‎MB4‎MB1‎400 MHzPicasso1‎2nm4‎5-65W
AMDRyzen 5 PRO 3400G3‎.7GHz / 4.2GHz2‎MB4‎MB1‎400 MHzPicasso1‎2nm4‎5-65W
AMDRyzen 5 3400GE3‎.3GHz / 4.0GHz2‎MB4‎MB1‎300 MHzPicasso1‎2nm3‎5W
AMDRyzen 5 PRO 3400GE3‎.3GHz / 4.0GHz2‎MB4‎MB1‎300 MHzPicasso1‎2nm3‎5W
AMDRyzen 5 2600X3‎.6GHz / 4.2GHz3‎MB1‎6MBN/APinnacle Ridge1‎2nm9‎5W
AMDRyzen 5 26003‎.4GHz / 3.9GHz3‎MB1‎6MBN/APinnacle Ridge1‎2nm6‎5W
AMDRyzen 5 PRO 26003‎.4GHz / 3.9GHz3‎MB1‎6MBN/APinnacle Ridge1‎2nm6‎5W
AMDRyzen 5 2600E3‎.1GHz / 4.0GHz3‎MB1‎6MBN/APinnacle Ridge1‎2nm4‎5W
AMDRyzen 5 2500X3‎.6GHz / 4.0GHz3‎MB1‎6MBN/APinnacle Ridge1‎2nm6‎5W
AMDRyzen 5 2400G3‎.6GHz / 3.9GHz2‎MB4‎MB1‎250 MHzRaven Ridge1‎4nm4‎5-65W
AMDRyzen 5 PRO 2400G3‎.6GHz / 3.9GHz2‎MB4‎MB1‎250 MHzRaven Ridge1‎4nm4‎5-65W
AMDRyzen 5 2400GE3‎.2GHz / 3.8GHz2‎MB4‎MB1‎250 MHzRaven Ridge1‎4nm3‎5W
AMDRyzen 5 PRO 2400GE3‎.2GHz / 3.8GHz2‎MB4‎MB1‎250 MHzRaven Ridge1‎4nm3‎5W
AMDRyzen 5 1600X3‎.6GHz / 4.0GHz3‎MB1‎6MBN/ASummit Ridge1‎4nm9‎5W
AMDRyzen 5 1600 (YD1600BBM6IAF)3‎.2GHz / 3.6GHz3‎MB1‎6MBN/APinnacle Ridge1‎2nm6‎5W
AMDRyzen 5 1600 (YD1600BBM6IAE)3‎.2GHz / 3.6GHz3‎MB1‎6MBN/ASummit Ridge1‎4nm6‎5W
AMDRyzen 5 PRO 16003‎.2GHz / 3.6GHz3‎MB1‎6MBN/ASummit Ridge1‎4nm6‎5W
AMDRyzen 5 1500X3‎.5GHz / 3.7GHz2‎MB1‎6MBN/ASummit Ridge1‎4nm6‎5W
AMDRyzen 5 PRO 15003‎.5GHz / 3.7GHz2‎MB1‎6MBN/ASummit Ridge1‎4nm6‎5W
AMDRyzen 5 14003‎.2GHz / 3.4GHz2‎MB8‎MBN/ASummit Ridge1‎4nm6‎5W
AMDRyzen 3 3300X3‎.8GHz / 4.3GHz3‎MB1‎6MBN/AMatisse7‎nm6‎5W
AMDRyzen 3 3200G3‎.6GHz / 4.0GHz2‎MB4‎MB1‎250 MHzPicasso1‎2nm4‎5-65W
AMDRyzen 3 PRO 3200G3‎.6GHz / 4.0GHz2‎MB4‎MB1‎250 MHzPicasso1‎2nm4‎5-65W
AMDRyzen 3 3200GE3‎.3GHz / 3.8GHz2‎MB4‎MB1‎200 MHzPicasso1‎2nm3‎5W
AMDRyzen 3 PRO 3200GE3‎.3GHz / 3.8GHz2‎MB4‎MB1‎200 MHzPicasso1‎2nm3‎5W
AMDRyzen 3 31003‎.6GHz / 3.9GHz3‎MB1‎6MBN/AMatisse7‎nm6‎5W
AMDRyzen 3 2300X3‎.5GHz / 4.0GHz2‎MB8‎MBN/APinnacle Ridge1‎2nm6‎5W
AMDRyzen 3 2200G3‎.5GHz / 3.7GHz2‎MB4‎MB1‎100 MHzRaven Ridge1‎4nm4‎5-65W
AMDRyzen 3 PRO 2200G3‎.5GHz / 3.7GHz2‎MB4‎MB1‎100 MHzRaven Ridge1‎4nm4‎5-65W
AMDRyzen 3 2200GE3‎.2GHz / 3.6GHz2‎MB4‎MB1‎100 MHzRaven Ridge1‎4nm3‎5W
AMDRyzen 3 PRO 2200GE3‎.2GHz / 3.6GHz2‎MB4‎MB1‎100 MHzRaven Ridge1‎4nm3‎5W
AMDRyzen 3 1300X3‎.5GHz / 3.7GHz2‎MB8‎MBN/ASummit Ridge1‎4nm6‎5W
AMDRyzen 3 PRO 13003‎.5GHz / 3.7GHz2‎MB8‎MBN/ASummit Ridge1‎4nm6‎5W
AMDRyzen 3 1200 (YD1200BBM4KAF)3‎.1GHz / 3.4GHz2‎MB8‎MBN/APinnacle Ridge1‎2nm6‎5W
AMDRyzen 3 1200 (YD1200BBM4KAE)3‎.1GHz / 3.4GHz2‎MB8‎MBN/ASummit Ridge1‎4nm6‎5W
AMDRyzen 3 PRO 12003‎.1GHz / 3.4GHz2‎MB8‎MBN/ASummit Ridge1‎4nm6‎5W
AMDAthlon 3000G3‎.5GHz / 3.5GHz1‎MB4‎MB1‎100 MHzPicasso1‎4nm3‎5W
AMDAthlon PRO 300GE3‎.4GHz / 3.4GHz1‎MB4‎MB1‎100 MHzPicasso1‎2nm3‎5W
AMDAthlon 240GE3‎.5GHz / 3.5GHz1‎MB4‎MB1‎000MHzRaven Ridge1‎4nm3‎5W
AMDAthlon 220GE3‎.4GHz / 3.4GHz1‎MB4‎MB1‎000MHzRaven Ridge1‎4nm3‎5W
AMDAthlon 200GE3‎.2GHz / 3.2GHz1‎MB4‎MB1‎000MHzRaven Ridge1‎4nm3‎5W
AMDAthlon PRO 200GE3‎.2GHz / 3.2GHz1‎MB4‎MB1‎000MHzRaven Ridge1‎4nm3‎5W
AMDA12-98003‎.8GHz / 4.2GHz2‎MBN/A1‎108 MHzBristol Ridge2‎8nm6‎5W
AMDA12-9800E3‎.1GHz / 3.8GHz2‎MBN/A9‎00 MHzBristol Ridge2‎8nm3‎5W
AMDA10-97003‎.5GHz / 3.8GHz2‎MBN/A1‎029 MHzBristol Ridge2‎8nm6‎5W
AMDA10-9700E3‎.0GHz / 3.5GHz2‎MBN/A8‎47 MHzBristol Ridge2‎8nm3‎5W
AMDA8-96003‎.1GHz / 3.4GHz2‎MBN/A9‎00 MHzBristol Ridge2‎8nm6‎5W
AMDA6-95003‎.5GHz / 3.8GHz1‎MBN/A1‎029 MHzBristol Ridge2‎8nm6‎5W
AMDA6-9500E3‎.0GHz / 3.4GHz1‎MBN/A8‎00 MHzBristol Ridge2‎8nm3‎5W
AMDAthlon X4 9503‎.5GHz / 3.8GHz2‎MBN/AN/ABristol Ridge2‎8nm6‎5W
