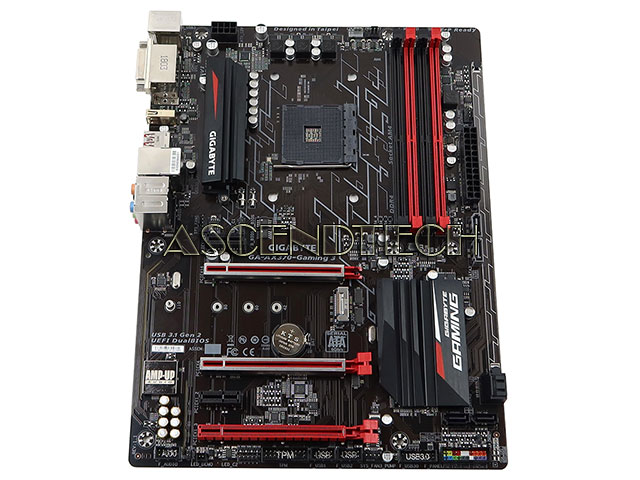

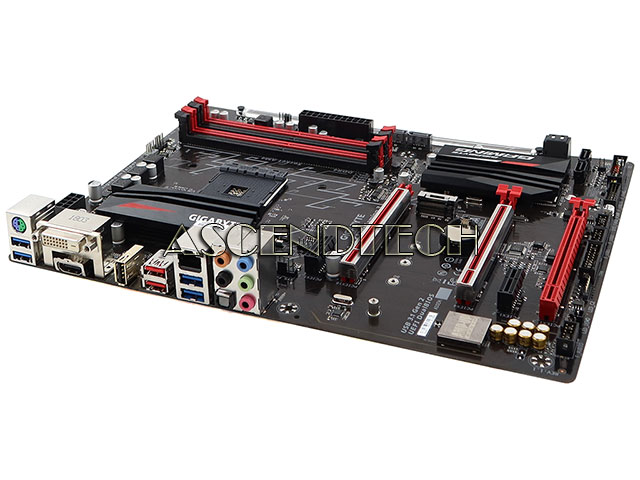

Gigabyte GA-AX370-Gaming 3 AMD Chipset X370 Socket AM4 DDR4 DVI-D HDMI SATA 6Gb/s ATX Desktop Motherboard.
Chipset: AMD X370
Socket: AMD AM4
Compatible/Supported CPU: AMD 5000 Series/5000 G-Series/4000 G-Series/3rd Gen Ryzen/2nd Gen Ryzen/1st Gen Ryzen/2nd Gen Ryzen/1st Gen Ryzen/Athlon Processors
Max Supported Memory: 64GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 3200MHz/2933MHz/2667MHz/2400MHz/2133MHz
Storage Interface: SATA 6Gb/s
RAID Support: 0, 1, 10
Network/Communications: Realtek GbE LAN chip (10/100/1000 Mbit)
Audio: Realtek ALC1220 codec
Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x M.2 Socket 3 connector, 6x SATA 6Gb/s connectors, 1x CPU fan header, 1x water cooling CPU fan header, 2x system fan headers, 1x system fan/water cooling pump header, 1x front panel header, 1x front panel audio header, 1x S/PDIF Out header, 1x USB 3.1 Gen 1 header, 2x USB 2.0/1.1 headers, 1x Trusted Platform Module (TPM) header, 1x CPU cooler LED strip/RGB LED strip extension cable header, 1x RGB (RGBW) LED strip extension cable header, 1x Clear CMOS jumper
Input/Output Ports: 1x PS/2 keyboard/mouse port, 1x DVI-D port, 1x HDMI port, 4x USB 3.1 Gen 1 ports, 2x USB 3.1 Gen 2 Type-A ports (red), 1x USB 2.0/1.1 port, 1x RJ-45 port, 1x optical S/PDIF Out connector, 5x audio jacks
Expansion Slots: 1x PCI Express x16 slot run at x16, 1x PCI Express x16 slot run at x4, 1x PCI Express x16 slot run at x1, 2x PCI Express x1 slots, 1x M.2 (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD), 6x SATA 6Gb/s connectors
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Microsot Windows 7 64-bit / 10 64-bit
Additional Specifications:
Onboard Graphics
Integrated Graphics Processor:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
Support for HDMI 1.4 version.
I/O Controller
iTE I/O Controller Chip
BIOS
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
AutoGreen
BIOS Setup
Cloud Station
Color Temperature
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
USB DAC UP 2
V-Tuner
Support for Q-Flash
Support for Xpress Install
