Gigabyte GA-AX370M-DS3H Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

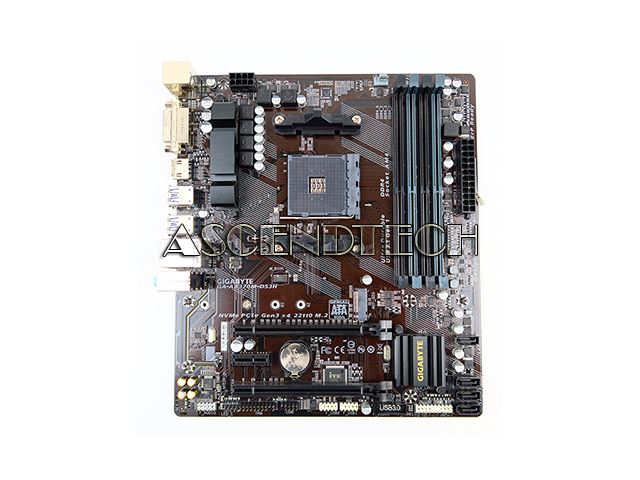

Gigabyte Ga-Ax370m-Ds3h Motherboard
  Enlarge
Gigabyte Ga-Ax370m-Ds3h Motherboard
Gigabyte Ga-Ax370m-Ds3h Motherboard
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBDSKGAAX370MIO
Brand Gigabyte
Model GA-AX370M-DS3H
Category Amd Socket Am4 Motherboard
Condition Like New Grade A

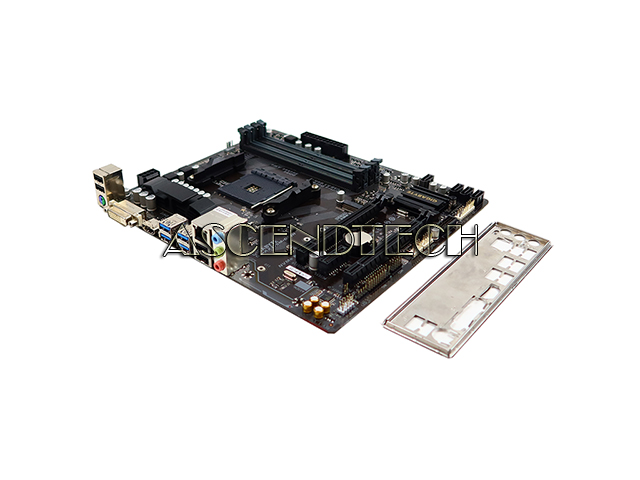

Condition Description Please note, this motherboard comes with I/O Shield only! No cables or any other accessories!

Description

Gigabyte GA-AX370M-DS3H AMD Chipset X370 Socket AM4 DDR4 HDMI DVI-D USB SATA 6Gb/s Micro ATX Desktop Motherboard.

Chipset: AMD X370
Socket: AMD AM4
Compatible/Supported CPU: AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Max Supported Memory: 64GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Storage Interface: SATA 6Gb/s
RAID Support: RAID 0, RAID 1 and RAID 10
Wireless Lan Support: Realtek GbE LAN chip (10/100/1000 Mbit)
Audio: Realtek ALC887 codec
Connectors: 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x CPU fan header; 1x system fan header; 1x M.2 Socket 3 connector; 4x SATA 6Gb/s connectors; 1x front panel header; 1x front panel audio header; 1x S/PDIF Out header; 1x RGB LED strip header; 1x USB 3.1 Gen 1 header; 2x USB 2.0/1.1 headers; 1x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only); 1x serial port header; 1x Clear CMOS jumper.
Input/Output Ports: 1x PS/2 keyboard/mouse port; 1x DVI-D port; 1x HDMI port; 4x USB 3.1 Gen 1 ports; 4x USB 2.0/1.1 ports; 1x RJ-45 port; 3x audio jacks.
Expansion Slots: 1x PCI Express x16 slot, running at x16 (PCIEX16); 1x PCI Express x16 slot, running at x4 (PCIEX4); 1x PCI Express x1 slot.
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Support for Windows 10 64-bit, Windows 7 64-bit (To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU).
Features: Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors; Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs; Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support; High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting; RGB FUSION supports RGB LED strips in 7 colors; Realtek Gigabit LAN with cFosSpeed Internet Accelerator Software; Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers; GIGABYTE UEFI BIOS; APP Center Including EasyTune and Cloud Station Utilities.

Additional Specifications:

Onboard Graphics
Integrated Graphics Processor:
1x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
1x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
Maximum shared memory of 2 GB

USB
Chipset:
2x USB 3.1 Gen 1 ports available through the internal USB header
8x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
4x USB 3.1 Gen 1 ports on the back panel

I/O Controller
iTE I/O Controller Chip

BIOS
1x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
3D OSD
AutoGreen
BIOS Setup
Cloud Station
Color Temperature
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install

CPU Support:

Socket AM4

VendorCPU ModelFrequencyL2 CacheL3 CacheGPU FrequencyCore NameProcessWattage
AMDRyzen 9 3950X3.5GHz / 4.7GHz8MB64MBN/AMatisse7nm105W
AMDRyzen 9 3900XT3.8GHz / 4.7GHz6MB64MBN/AMatisse7nm105W
AMDRyzen 9 3900X3.8GHz / 4.6GHz6MB64MBN/AMatisse7nm105W
AMDRyzen 9 39003.1GHz / 4.3GHz6MB64MBN/AMatisse7nm65W
AMDRyzen 9 PRO 39003.1GHz / 4.3GHz6MB64MBN/AMatisse7nm65W
AMDRyzen 7 3800XT3.9GHz / 4.7GHz4MB32MBN/AMatisse7nm105W
AMDRyzen 7 3800X3.9GHz / 4.5GHz4MB32MBN/AMatisse7nm105W
AMDRyzen 7 3700X3.6GHz / 4.4GHz4MB32MBN/AMatisse7nm65W
AMDRyzen 7 PRO 37003.6GHz / 4.4GHz4MB32MBN/AMatisse7nm65W
AMDRyzen 7 2700X3.7GHz / 4.35GHz4MB16MBN/APinnacle Ridge12nm105W
AMDRyzen 7 PRO 2700X3.6GHz / 4.1GHz4MB16MBN/APinnacle Ridge12nm95W
AMDRyzen 7 27003.2GHz / 4.1GHz4MB16MBN/APinnacle Ridge12nm65W
AMDRyzen 7 PRO 27003.2GHz / 4.1GHz4MB16MBN/APinnacle Ridge12nm65W
AMDRyzen 7 2700E2.8GHz / 4.0GHz4MB16MBN/APinnacle Ridge12nm45W
AMDRyzen 7 1800X3.6GHz / 4.0GHz4MB16MBN/ASummit Ridge14nm95W
AMDRyzen 7 1700X3.4GHz / 3.8GHz4MB16MBN/ASummit Ridge14nm95W
AMDRyzen 7 PRO 1700X3.4GHz / 3.8GHz4MB16MBN/ASummit Ridge14nm95W
AMDRyzen 7 17003.0GHz / 3.7GHz4MB16MBN/ASummit Ridge14nm65W
AMDRyzen 7 PRO 17003.0GHz / 3.7GHz4MB16MBN/ASummit Ridge14nm65W
AMDRyzen 5 3600X3.8GHz / 4.4GHz3MB32MBN/AMatisse7nm95W
AMDRyzen 5 3600XT3.8GHz / 4.5GHz3MB32MBN/AMatisse7nm95W
AMDRyzen 5 36003.6GHz / 4.2GHz3MB32MBN/AMatisse7nm65W
AMDRyzen 5 PRO 36003.6GHz / 4.2GHz3MB32MBN/AMatisse7nm65W
AMDRyzen 5 3500X3.6GHz / 4.1GHz3MB32MBN/AMatisse7nm65W
AMDRyzen 5 35003.6GHz / 4.1GHz3MB16MBN/AMatisse7nm65W
AMDRyzen 5 3400G3.7GHz / 4.2GHz2MB4MB1400 MHzPicasso12nm45-65W
AMDRyzen 5 PRO 3400G3.7GHz / 4.2GHz2MB4MB1400 MHzPicasso12nm45-65W
AMDRyzen 5 3400GE3.3GHz / 4.0GHz2MB4MB1300 MHzPicasso12nm35W
AMDRyzen 5 PRO 3400GE3.3GHz / 4.0GHz2MB4MB1300 MHzPicasso12nm35W
AMDRyzen 5 2600X3.6GHz / 4.2GHz3MB16MBN/APinnacle Ridge12nm95W
AMDRyzen 5 26003.4GHz / 3.9GHz3MB16MBN/APinnacle Ridge12nm65W
AMDRyzen 5 PRO 26003.4GHz / 3.9GHz3MB16MBN/APinnacle Ridge12nm65W
AMDRyzen 5 2600E3.1GHz / 4.0GHz3MB16MBN/APinnacle Ridge12nm45W
AMDRyzen 5 2500X3.6GHz / 4.0GHz3MB16MBN/APinnacle Ridge12nm65W
AMDRyzen 5 2400G3.6GHz / 3.9GHz2MB4MB1250 MHzRaven Ridge14nm45-65W
AMDRyzen 5 PRO 2400G3.6GHz / 3.9GHz2MB4MB1250 MHzRaven Ridge14nm45-65W
AMDRyzen 5 2400GE3.2GHz / 3.8GHz2MB4MB1250 MHzRaven Ridge14nm35W
AMDRyzen 5 PRO 2400GE3.2GHz / 3.8GHz2MB4MB1250 MHzRaven Ridge14nm35W
AMDRyzen 5 1600X3.6GHz / 4.0GHz3MB16MBN/ASummit Ridge14nm95W
AMDRyzen 5 1600 (YD1600BBM6IAF)3.2GHz / 3.6GHz3MB16MBN/APinnacle Ridge12nm65W
AMDRyzen 5 1600 (YD1600BBM6IAE)3.2GHz / 3.6GHz3MB16MBN/ASummit Ridge14nm65W
AMDRyzen 5 PRO 16003.2GHz / 3.6GHz3MB16MBN/ASummit Ridge14nm65W
AMDRyzen 5 1500X3.5GHz / 3.7GHz2MB16MBN/ASummit Ridge14nm65W
AMDRyzen 5 PRO 15003.5GHz / 3.7GHz2MB16MBN/ASummit Ridge14nm65W
AMDRyzen 5 14003.2GHz / 3.4GHz2MB8MBN/ASummit Ridge14nm65W
AMDRyzen 3 3300X3.8GHz / 4.3GHz3MB16MBN/AMatisse7nm65W
AMDRyzen 3 3200G3.6GHz / 4.0GHz2MB4MB1250 MHzPicasso12nm45-65W
AMDRyzen 3 PRO 3200G3.6GHz / 4.0GHz2MB4MB1250 MHzPicasso12nm45-65W
AMDRyzen 3 3200GE3.3GHz / 3.8GHz2MB4MB1200 MHzPicasso12nm35W
AMDRyzen 3 PRO 3200GE3.3GHz / 3.8GHz2MB4MB1200 MHzPicasso12nm35W
AMDRyzen 3 31003.6GHz / 3.9GHz3MB16MBN/AMatisse7nm65W
AMDRyzen 3 2300X3.5GHz / 4.0GHz2MB8MBN/APinnacle Ridge12nm65W
AMDRyzen 3 2200G3.5GHz / 3.7GHz2MB4MB1100 MHzRaven Ridge14nm45-65W
AMDRyzen 3 PRO 2200G3.5GHz / 3.7GHz2MB4MB1100 MHzRaven Ridge14nm45-65W
AMDRyzen 3 2200GE3.2GHz / 3.6GHz2MB4MB1100 MHzRaven Ridge14nm35W
AMDRyzen 3 PRO 2200GE3.2GHz / 3.6GHz2MB4MB1100 MHzRaven Ridge14nm35W
AMDRyzen 3 1300X3.5GHz / 3.7GHz2MB8MBN/ASummit Ridge14nm65W
AMDRyzen 3 PRO 13003.5GHz / 3.7GHz2MB8MBN/ASummit Ridge14nm65W
AMDRyzen 3 1200 (YD1200BBM4KAF)3.1GHz / 3.4GHz2MB8MBN/APinnacle Ridge12nm65W
AMDRyzen 3 1200 (YD1200BBM4KAE)3.1GHz / 3.4GHz2MB8MBN/ASummit Ridge14nm65W
AMDRyzen 3 PRO 12003.1GHz / 3.4GHz2MB8MBN/ASummit Ridge14nm65W
AMDAthlon 3000G3.5GHz / 3.5GHz1MB4MB1100 MHzPicasso14nm35W
AMDAthlon PRO 300GE3.4GHz / 3.4GHz1MB4MB1100 MHzPicasso12nm35W
AMDAthlon 240GE3.5GHz / 3.5GHz1MB4MB1000MHzRaven Ridge14nm35W
AMDAthlon 220GE3.4GHz / 3.4GHz1MB4MB1000MHzRaven Ridge14nm35W
AMDAthlon 200GE3.2GHz / 3.2GHz1MB4MB1000MHzRaven Ridge14nm35W
AMDAthlon PRO 200GE3.2GHz / 3.2GHz1MB4MB1000MHzRaven Ridge14nm35W
AMDA12-98003.8GHz / 4.2GHz2MBN/A1108 MHzBristol Ridge28nm65W
AMDA12-9800E3.1GHz / 3.8GHz2MBN/A900 MHzBristol Ridge28nm35W
AMDA10-97003.5GHz / 3.8GHz2MBN/A1029 MHzBristol Ridge28nm65W
AMDA10-9700E3.0GHz / 3.5GHz2MBN/A847 MHzBristol Ridge28nm35W
AMDA8-96003.1GHz / 3.4GHz2MBN/A900 MHzBristol Ridge28nm65W
AMDA6-95003.5GHz / 3.8GHz1MBN/A1029 MHzBristol Ridge28nm65W
AMDA6-9500E3.0GHz / 3.4GHz1MBN/A800 MHzBristol Ridge28nm35W
AMDAthlon X4 9503.5GHz / 3.8GHz2MBN/AN/ABristol Ridge28nm65W
