Gigabyte GA-B75N rev. 1.0 Intel Express Chipset B75 Socket LGA1155 DDR3 Mini-ITX Motherboard.

Features:

- GIGABYTE 3D BIOS (Dual UEFI)
- All new design of Ultra Durable 4 classic
- Supports 3rd and 2nd Gen. Intel Core CPUs (LGA1155 socket)
- Dual LAN for networking flexibility
- PCI Express Gen 3.0 support
- Industry's Leading All Japanese Solid Capacitor Design
- GIGABYTE 333 Onboard Acceleration (USB 3.0, SATA 3.0 & 3x USB Power)
- DVI-I and Dual HDMI interface for smoother HD video playback
- GIGABYTE On/Off Charge for USB devices

Specifications:

CPU
- Support for Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1155 package
- L3 cache varies with CPU
Chipset
- Intel B75 Express Chipset
Memory
- 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
- Dual channel memory architecture
- Support for DDR3 2200(OC)/1600/1333/1066/800 MHz memory modules
* To support DDR3 1600 MHz, you must install an Intel 22nm (Ivy Bridge) CPU that supports DDR3 1600 MHz.
- Support for non-ECC memory modules
- Support for Extreme Memory Profile (XMP) memory modules
- To support XMP memory, you must install an Intel 22nm (Ivy Bridge) CPU that supports DDR3 1600 MHz.
Onboard Graphics
Integrated Graphics Processor:
- 1 x DVI-I port, supporting a maximum resolution of 1920x1200
- 2 x HDMI ports, supporting a maximum resolution of 1920x1200
Audio
- Realtek ALC892 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
LAN
- 2 x Realtek GbE LAN chips (10/100/1000 Mbit)
Expansion Slots
- 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
* Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility.
- 1 x Mini PCI Express x1 slot (For Mini-PCIE card/no mSATA card)
Storage Interface
Chipset:
- 1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device
- 3 x SATA 3Gb/s connectors (SATA2 1/2/3) supporting up to 3 SATA 3Gb/s devices
USB
Chipset:
- Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- Up to 6 USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 1 x serial port header
- 1 x Mini-PCIE slot
- 1 x SATA 6Gb/s connector
- 3 x SATA 3Gb/s connectors
- 1 x USB 3.0/2.0 header
- 1 x USB 2.0/1.1 header
- 1 x CPU fan header
- 1 x system fan header
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x Clear CMOS jumper
Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 2 x HDMI ports
- 1 x DVI-I port
- 2 x USB 3.0/2.0 ports
- 4 x USB 2.0/1.1 ports
- 2 x RJ-45 ports
- 1 x optical S/PDIF Out connector
- 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller
- iTE I/O Controller Chip
H/W Monitoring
- System voltage detection
- CPU/System temperature detection
- CPU/System fan speed detection
- CPU fan speed control
* Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
BIOS
- 2 x 64 Mbit flash
- Use of licensed AMI EFI BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for @BIOS
- Support for Q-Flash
- Support for Xpress Install
- Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
- Support for Auto Green
- Support for ON/OFF Charge
- Support for Q-Share
- Support for EZ Setup
Operating System
- Support for Microsoft Windows 8/7/XP
Form Factor
- Mini-ITX Form Factor; 17.0cm x 17.0cm
Remark
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
- This model does not support Intel SBA.

CPU Support:

Socket 1155
Motherboard
Vendor	CPU Model	Frequency	L3 Cache	GPU Frequency	Core Name	Process	Wattage
Intel	Core i7-3770K	3.50GHz	8MB	720 MHz	Ivy Bridge	22nm	77W
Intel	Core i7-3770	3.40GHz	8MB	720 MHz	Ivy Bridge	22nm	77W
Intel	Core i7-3770S	3.10GHz	8MB	720 MHz	Ivy Bridge	22nm	65W
Intel	Core i7-3770T	2.50GHz	8MB	720 MHz	Ivy Bridge	22nm	45W
Intel	Core i5-3570	3.40GHz	6MB	720 MHz	Ivy Bridge	22nm	77W
Intel	Core i5-3570K	3.40GHz	6MB	720 MHz	Ivy Bridge	22nm	77W
Intel	Core i5-3570S	3.10GHz	6MB	720 MHz	Ivy Bridge	22nm	65W
Intel	Core i5-3570T	2.30GHz	6MB	720 MHz	Ivy Bridge	22nm	45W
Intel	Core i5-3550S	3.00GHz	6MB	720 MHz	Ivy Bridge	22nm	65W
Intel	Core i5-3550	3.30GHz	6MB	720 MHz	Ivy Bridge	22nm	77W
Intel	Core i5-3475S	2.90GHz	6MB	720 MHz	Ivy Bridge	22nm	65W
Intel	Core i5-3470	3.20GHz	6MB	720 MHz	Ivy Bridge	22nm	77W
Intel	Core i5-3470S	2.90GHz	6MB	720 MHz	Ivy Bridge	22nm	65W
Intel	Core i5-3470T	2.90GHz	3MB	720 MHz	Ivy Bridge	22nm	35W
Intel	Core i5-3450	3.10GHz	6MB	720 MHz	Ivy Bridge	22nm	77W
Intel	Core i5-3450S	2.80GHz	6MB	720 MHz	Ivy Bridge	22nm	65W
Intel	Core i5-3350P	3.10GHz	6MB	N/A	Ivy Bridge	22nm	69W
Intel	Core i5-3350P	3.10GHz	6MB	N/A	Ivy Bridge	22nm	69W
Intel	Core i5-3340	3.10GHz	6MB	720 MHz	Ivy Bridge	22nm	77W
Intel	Core i5-3340	3.10GHz	6MB	720 MHz	Ivy Bridge	22nm	77W
Intel	Core i5-3340S	2.80GHz	6MB	720 MHz	Ivy Bridge	22nm	65W
Intel	Core i5-3330	3.00GHz	6MB	720 MHz	Ivy Bridge	22nm	77W
Intel	Core i5-3330	3.00GHz	6MB	720 MHz	Ivy Bridge	22nm	77W
Intel	Core i5-3330S	2.70GHz	6MB	720 MHz	Ivy Bridge	22nm	65W
Intel	Core i3-3250	3.50GHz	3MB	720 MHz	Ivy Bridge	22nm	55W
Intel	Core i3-3250T	3.00GHz	3MB	720 MHz	Ivy Bridge	22nm	35W
Intel	Core i3-3245	3.40GHz	3MB	720 MHz	Ivy Bridge	22nm	55W
Intel	Core i3-3240	3.40GHz	3MB	720 MHz	Ivy Bridge	22nm	55W
Intel	Core i3-3240	3.40GHz	3MB	720 MHz	Ivy Bridge	22nm	55W
Intel	Core i3-3240T	2.90GHz	3MB	720 MHz	Ivy Bridge	22nm	35W
Intel	Core i3-3240T	2.90GHz	3MB	720 MHz	Ivy Bridge	22nm	35W
Intel	Core i3-3225	3.30GHz	3MB	720 MHz	Ivy Bridge	22nm	55W
Intel	Core i3-3220	3.30GHz	3MB	720 MHz	Ivy Bridge	22nm	55W
Intel	Core i3-3220	3.30GHz	3MB	720 MHz	Ivy Bridge	22nm	55W
Intel	Core i3-3220	3.30GHz	3MB	720 MHz	Ivy Bridge	22nm	55W
Intel	Core i3-3220	3.30GHz	3MB	720 MHz	Ivy Bridge	22nm	55W
Intel	Core i3-3220T	2.80GHz	3MB	720 MHz	Ivy Bridge	22nm	35W
Intel	Core i3-3220T	2.80GHz	3MB	720 MHz	Ivy Bridge	22nm	35W
Intel	Core i3-3210	3.20GHz	3MB	720 MHz	Ivy Bridge	22nm	55W
Intel	Core i7-2700K	3.50GHz	8MB	1050 MHz	Sandy Bridge	32nm	95W
Intel	Core i7-2600	3.40GHz	8MB	1050 MHz	Sandy Bridge	32nm	95W
Intel	Core i7-2600K	3.40GHz	8MB	1050 MHz	Sandy Bridge	32nm	95W
Intel	Core i7-2600S	2.80GHz	8MB	1050 MHz	Sandy Bridge	32nm	65W
Intel	Core i5-2550K	3.40GHz	6MB	N/A	Sandy Bridge	32nm	95W
Intel	Core i5-2500	3.30GHz	6MB	1050 MHz	Sandy Bridge	32nm	95W
Intel	Core i5-2500K	3.30GHz	6MB	1050 MHz	Sandy Bridge	32nm	95W
Intel	Core i5-2500S	2.70GHz	6MB	1050 MHz	Sandy Bridge	32nm	65W
Intel	Core i5-2500T	2.30GHz	6MB	720 MHz	Sandy Bridge	32nm	45W
Intel	Core i5-2450P	3.20GHz	6MB	N/A	Sandy Bridge	32nm	95W
Intel	Core i5-2405S	2.50GHz	6MB	1050 MHz	Sandy Bridge	32nm	65W
Intel	Core i5-2400	3.10GHz	6MB	1050 MHz	Sandy Bridge	32nm	95W
Intel	Core i5-2400S	2.50GHz	6MB	1050 MHz	Sandy Bridge	32nm	65W
Intel	Core i5-2390T	2.70GHz	3MB	720 MHz	Sandy Bridge	32nm	35W
Intel	Core i5-2380P	3.10GHz	6MB	N/A	Sandy Bridge	32nm	95W
Intel	Core i5-2320	3.00GHz	6MB	1050 MHz	Sandy Bridge	32nm	95W
Intel	Core i5-2310	2.90GHz	6MB	1050 MHz	Sandy Bridge	32nm	95W
Intel	Core i5-2300	2.80GHz	6MB	1050 MHz	Sandy Bridge	32nm	95W
Intel	Core i3-2130	3.40GHz	3MB	1050 MHz	Sandy Bridge	32nm	65W
Intel	Core i3-2125	3.30GHz	3MB	1050 MHz	Sandy Bridge	32nm	65W
Intel	Core i3-2120	3.30GHz	3MB	1050 MHz	Sandy Bridge	32nm	65W
Intel	Core i3-2120T	2.60GHz	3MB	720 MHz	Sandy Bridge	32nm	35W
Intel	Core i3-2105	3.10GHz	3MB	1050 MHz	Sandy Bridge	32nm	65W
Intel	Core i3-2100T	2.50GHz	3MB	720 MHz	Sandy Bridge	32nm	35W
Intel	Core i3-2100	3.10GHz	3MB	1050 MHz	Sandy Bridge	32nm	65W
Intel	Pentium G2140	3.30GHz	3MB	720 MHz	Ivy Bridge	22nm	55W
Intel	Pentium G2130	3.20GHz	3MB	720 MHz	Ivy Bridge	22nm	55W
Intel	Pentium G2120	3.10GHz	3MB	720 MHz	Ivy Bridge	22nm	55W
Intel	Pentium G2120T	2.70GHz	3MB	720 MHz	Ivy Bridge	22nm	35W
Intel	Pentium G2030	3.00GHz	3MB	720 MHz	Ivy Bridge	22nm	55W
Intel	Pentium G2030T	2.60GHz	3MB	720 MHz	Ivy Bridge	22nm	35W
Intel	Pentium G2100T	2.60GHz	3MB	720 MHz	Ivy Bridge	22nm	35W
Intel	Pentium G2020	2.90GHz	3MB	720 MHz	Ivy Bridge	22nm	55W
Intel	Pentium G2020	2.90GHz	3MB	720 MHz	Ivy Bridge	22nm	55W
Intel	Pentium G2020	2.90GHz	3MB	720 MHz	Ivy Bridge	22nm	55W
Intel	Pentium G2020	2.90GHz	3MB	720 MHz	Ivy Bridge	22nm	55W
Intel	Pentium G2020T	2.50GHz	3MB	720 MHz	Ivy Bridge	22nm	35W
Intel	Pentium G2010	2.80GHz	3MB	720 MHz	Ivy Bridge	22nm	55W
Intel	Pentium G2010	2.80GHz	3MB	720 MHz	Ivy Bridge	22nm	55W
Intel	Pentium G870	3.10GHz	3MB	1050 MHz	Sandy Bridge	32nm	65W
Intel	Pentium G860	3.00GHz	3MB	1050 MHz	Sandy Bridge	32nm	65W
Intel	Pentium G860T	2.60GHz	3MB	720 MHz	Sandy Bridge	32nm	35W
Intel	Pentium G850	2.90GHz	3MB	1050 MHz	Sandy Bridge	32nm	65W
Intel	Pentium G840	2.80GHz	3MB	1050 MHz	Sandy Bridge	32nm	65W
Intel	Pentium G640	2.80GHz	3MB	1050 MHz	Sandy Bridge	32nm	65W
Intel	Pentium G640T	2.40GHz	3MB	720 MHz	Sandy Bridge	32nm	35W
Intel	Pentium G630	2.70GHz	3MB	1050 MHz	Sandy Bridge	32nm	65W
Intel	Pentium G630T	2.30GHz	3MB	720 MHz	Sandy Bridge	32nm	35W
Intel	Pentium G620	2.60GHz	3MB	1050 MHz	Sandy Bridge	32nm	65W
Intel	Pentium G620T	2.20GHz	3MB	720 MHz	Sandy Bridge	32nm	35W
Intel	Pentium G645	2.90GHz	3MB	1050 MHz	Sandy Bridge	32nm	65W
Intel	Pentium G645T	2.50GHz	3MB	720 MHz	Sandy Bridge	32nm	35W
Intel	Celeron G1630	2.80GHz	2MB	720 MHz	Ivy Bridge	22nm	55W
Intel	Celeron G1620	2.70GHz	2MB	720 MHz	Ivy Bridge	22nm	55W
Intel	Celeron G1620T	2.40GHz	2MB	720 MHz	Ivy Bridge	22nm	35W
Intel	Celeron G1610	2.60GHz	2MB	720 MHz	Ivy Bridge	22nm	55W
Intel	Celeron G1610T	2.30GHz	2MB	720 MHz	Ivy Bridge	22nm	35W
Intel	Celeron G555	2.70GHz	2MB	1050 MHz	Sandy Bridge	32nm	65W
Intel	Celeron G550T	2.20GHz	2MB	720 MHz	Sandy Bridge	32nm	35W
Intel	Celeron G550	2.60GHz	2MB	1050 MHz	Sandy Bridge	32nm	65W
Intel	Celeron G540	2.50GHz	2MB	1050 MHz	Sandy Bridge	32nm	65W
Intel	Celeron G530	2.40GHz	2MB	1050 MHz	Sandy Bridge	32nm	65W
Intel	Celeron G530T	2.00GHz	2MB	720 MHz	Sandy Bridge	32nm	35W
Intel	Celeron G470	2.00GHz	1.5MB	720 MHz	Sandy Bridge	32nm	35W
Intel	Celeron G465	1.90GHz	1.5MB	720 MHz	Sandy Bridge	32nm	35W
Intel	Celeron G460	1.80GHz	1.5MB	720 MHz	Sandy Bridge	32nm	35W
Intel	Celeron G440	1.60GHz	1MB	720 MHz	Sandy Bridge	32nm	35W
Intel	Xeon E3-1290v2	3.70GHz	8MB	N/A	Ivy Bridge	22nm	87W
Intel	Xeon E3-1280v2	3.60GHz	8MB	N/A	Ivy Bridge	22nm	69W
Intel	Xeon E3-1275v2	3.50GHz	8MB	720 MHz	Ivy Bridge	22nm	77W
Intel	Xeon E3-1270v2	3.50GHz	8MB	N/A	Ivy Bridge	22nm	69W
Intel	Xeon E3-1265Lv2	2.50GHz	8MB	720 MHz	Ivy Bridge	22nm	45W
Intel	Xeon E3-1245v2	3.40GHz	8MB	720 MHz	Ivy Bridge	22nm	77W
Intel	Xeon E3-1240v2	3.40GHz	8MB	N/A	Ivy Bridge	22nm	69W
Intel	Xeon E3-1230v2	3.30GHz	8MB	N/A	Ivy Bridge	22nm	69W
Intel	Xeon E3-1225v2	3.20GHz	8MB	720 MHz	Ivy Bridge	22nm	77W
Intel	Xeon E3-1220Lv2	2.30GHz	3MB	N/A	Ivy Bridge	22nm	17W
Intel	Xeon E3-1220v2	3.10GHz	8MB	N/A	Ivy Bridge	22nm	69W
Intel	Xeon E3-1275	3.40GHz	8MB	1050 MHz	Sandy Bridge	32nm	95W
Intel	Xeon E3-1245	3.30GHz	8MB	1050 MHz	Sandy Bridge	32nm	95W
Intel	Xeon E3-1235	3.20GHz	8MB	1050 MHz	Sandy Bridge	32nm	95W
Intel	Xeon E3-1225	3.10GHz	6MB	1050 MHz	Sandy Bridge	32nm	95W
Intel	Xeon E3-1290	3.60GHz	8MB	N/A	Sandy Bridge	32nm	95W
Intel	Xeon E3-1280	3.50GHz	8MB	N/A	Sandy Bridge	32nm	95W
Intel	Xeon E3-1270	3.40GHz	8MB	N/A	Sandy Bridge	32nm	80W
Intel	Xeon E3-1240	3.30GHz	8MB	N/A	Sandy Bridge	32nm	80W
Intel	Xeon E3-1230	3.20GHz	8MB	N/A	Sandy Bridge	32nm	80W
Intel	Xeon E3-1220L	2.20GHz	3MB	N/A	Sandy Bridge	32nm	20W
Intel	Xeon E3-1220	3.10GHz	8MB	N/A	Sandy Bridge	32nm	80W

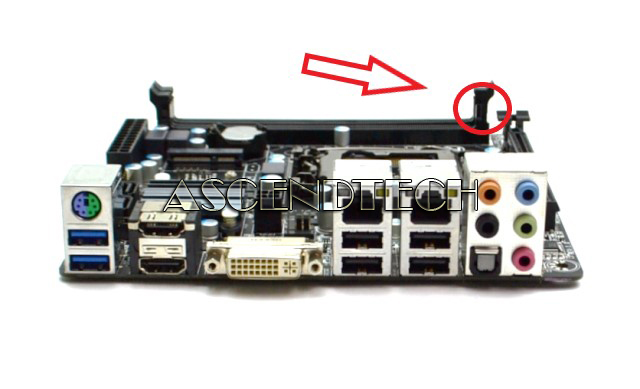

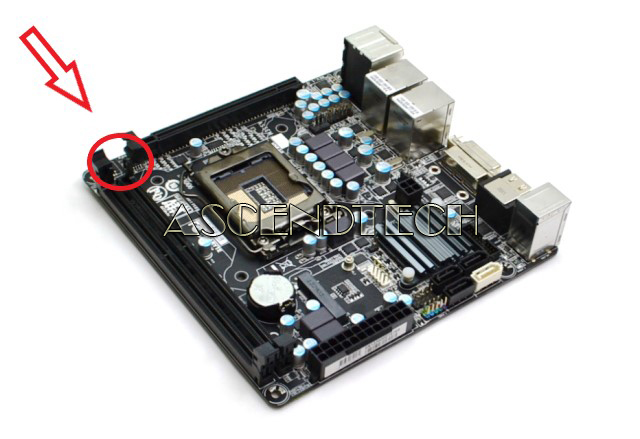

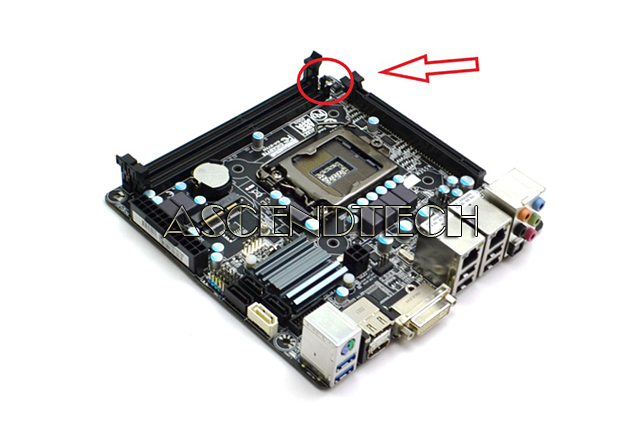

Gigabyte GA-B75N rev. 1.0 Memory Slot!

Description
