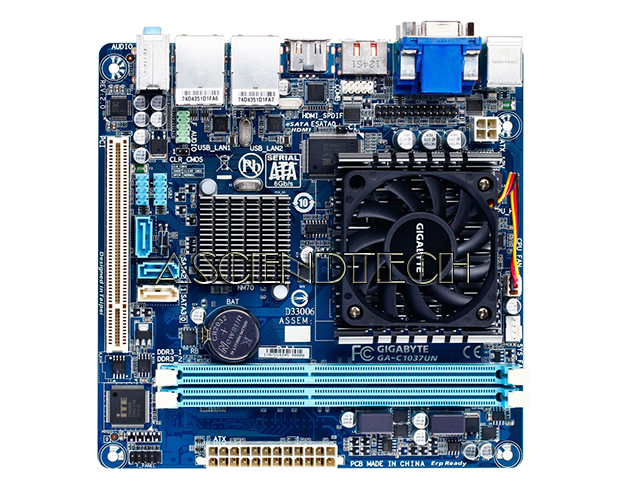

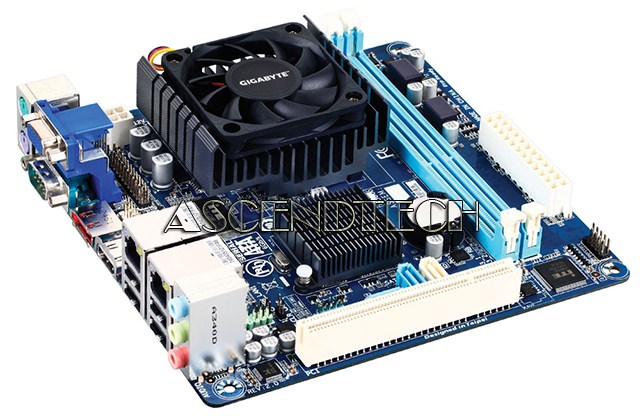

Gigabyte GA-C1037UN rev.2.0 No I/O

Gigabyte GA-C1037UN rev.2.0 Intel Dual-Core Celeron 1037U 1.8GHz Processor DDR3 Mini-ITX Motherboard. GIGABYTE Ultra Durable 4 Classic motherboards embrace a range of exclusive features that guarantee DIY PC builders the absolute best protection for their PC, with built-in features that prevent common malfunction threats users encounter on a day-to-day basis.

Features:

• GIGABYTE Dual UEFI BIOS
• All new design of Ultra Durable 4 classic
• Industry's Leading All Solid Capacitor Design
• Dual LAN for networking flexibility
• HDMI interface for smoother HD video playback
• GIGABYTE On/Off Charge for USB devices











Specifications:

CPU
Built in with an Intel Dual-core Celeron 1037U processor (1.8 GHz)
* Do not disassemble the onboard CPU/chipset and the heatsinks by yourself to avoid damage to these components.
2 MB L3 cache
Chipset
Intel NM70 Chipset
Memory
2 x DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 1600/1333 MHz memory modules
Onboard Graphics
Integrated Graphics Processor:
1 x D-Sub port
1 x HDMI port, supporting a maximum resolution of 1920x1200
* Support for HDMI 1.4 version.
Maximum shared memory of 1 GB
Audio
Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
2 x Realtek GbE LAN chips (10/100/1000 Mbit)
* Teaming is not supported.
Expansion Slots
1 x PCI slot
Storage Interface
Chipset:
1 x SATA 6Gb/s connector (SATA3 0)
2 x SATA 3Gb/s connectors (SATA2 1~2)
1 x eSATA 3Gb/s connector on the back panel
USB
Chipset:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x SATA 6Gb/s connector
2 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x parallel port header
1 x serial port header
1 x Clear CMOS jumper
1 x chassis intrusion header

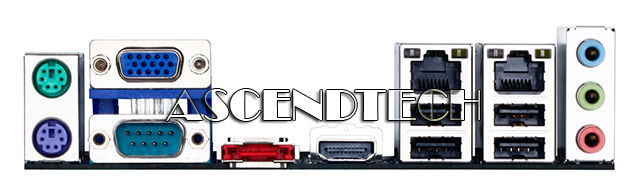

Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x serial port
1 x HDMI port
4 x USB 2.0/1.1 ports
1 x eSATA 3Gb/s connector
2 x RJ-45 ports
3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
* Whether the fan speed detect function is supported will depend on the cooler you install.
System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 x 32 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for BIOS
Support for Q-Flash
Support for Xpress Install
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
Support for Smart Recovery 2
Support for Auto Green
Support for ON/OFF Charge
Operating System
Support for Windows 8.1/8/7/XP
Form Factor
Mini-ITX Form Factor; 17.0cm x 17.0cm
