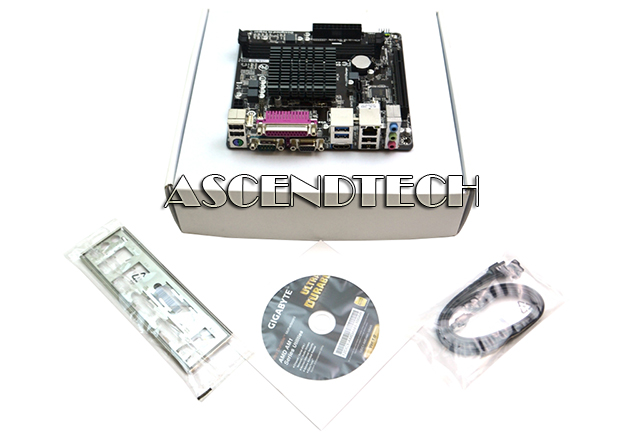

GIGABYTE GA-E2100N Rev.1.0 White Box

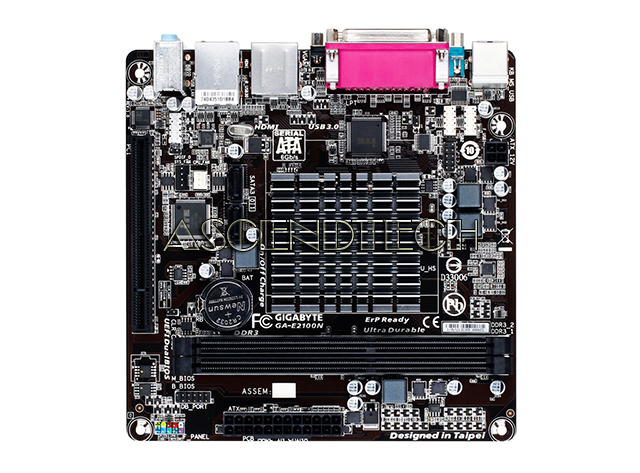

GIGABYTE GA-E2100N Rev.1.0 AMD E1-2100 1.0GHz APU DDR3 Mini-ITX Motherboard. The GIGABYTE E2100N Mini-ITX motherboard is a fully integrated PC motherboard featuring the AMD® Dual Core E1-Series APU with Radeon™ HD 8210 graphics (DX11). Designed for compact, small form factor PC systems and devices, the GIGABYTE E2100N is entirely fanless, making it ideal for always-on, mission critical systems, as well as noise-sensitive digital entertainment systems. Connectivity includes digital and analog display outputs via HDMI and VGA ports, while the HDMI port offers native support for 4K resolution displays.

Features:

- Built-in AMD® E1-2100 dual-core APU with Radeon™ HD 8210 graphics SoC
- GIGABYTE Ultra Durable™ 4 Plus Technology
- All Solid Capacitors with Humidity Protection New Glass Fabric PCB design
- GbE LAN with high ESD Protection
- GIGABYTE UEFI DualBIOS™
- HDMI, D-SUB ports on rear panel
- USB 3.0 port with GIGABYTE 3x USB power
- GIGABYTE On/Off Charge™ for USB devices
- PCI interface for wide-range expansion card selections











Specifications:

APU
Built in with an AMD® E1-2100 (1.0 GHz) APU with Radeon™ HD 8210 SoC
* Do not disassemble the onboard SoC and the heatsink by yourself to avoid damage to these components.
1MB L2 cache
Memory
2 x DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
* The maximum 32 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.
Support for DDR3 1333 MHz memory modules
Onboard Graphics
Integrated in the SoC:
1 x D-Sub port, supporting a maximum resolution of 1920x1200
1 x HDMI port, supporting a maximum resolution of 4096x2160
* Support for HDMI 1.4a version.
Maximum shared memory of 2 GB
Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI slot
Storage Interface
Integrated in the SoC:
2 x SATA 6Gb/s connectors
USB Integrated in the SoC:
2 x USB 3.0/2.0 ports on the back panel
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
1 x APU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x chassis intrusion header
1 x Clear CMOS jumper

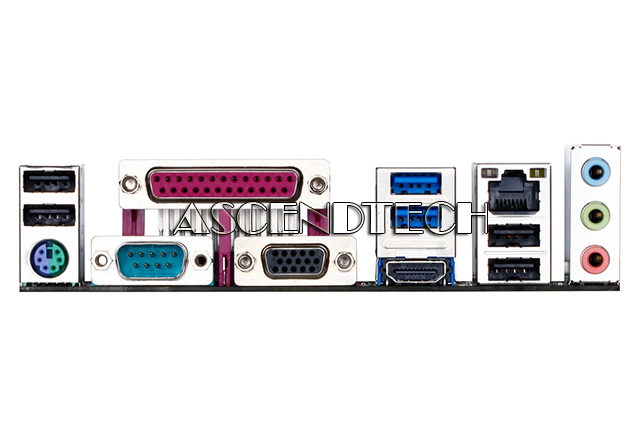

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x parallel port
1 x serial port
1 x D-Sub port
1 x HDMI port
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
System voltage detection
APU/System temperature detection
APU/System fan speed detection
APU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 x 32 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for @BIOS
Support for Q-Flash
Support for Xpress Install
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
Support for Smart Recovery 2
Support for ON/OFF Charge
Operating System
Support for Windows 8.1/8/7 32-bit/64-bit
Support for Windows XP 32-bit
* Only support SATA IDE mode.
Form Factor
Mini-ITX Form Factor; 17.0cm x 17.0cm
