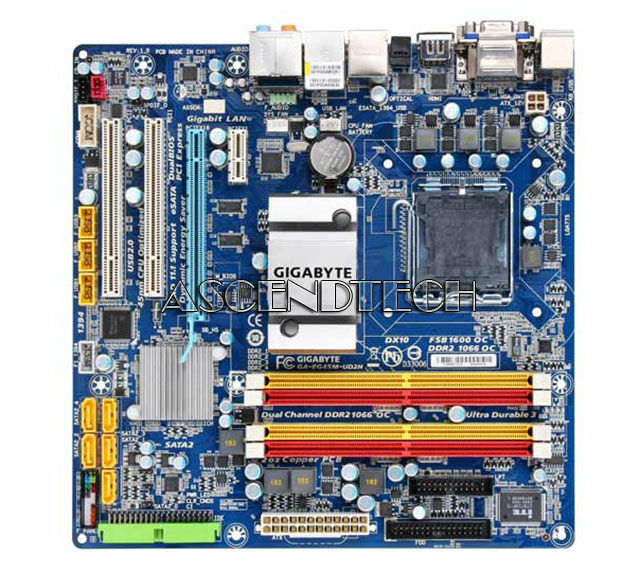

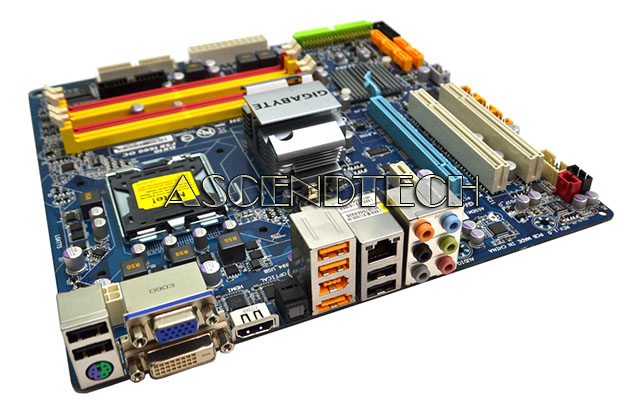

Gigabyte GA-EG45M-UD2H rev.1.0 No I/O

Gigabyte GA-EG45M-UD2H rev.1.0 Intel Chipset G45 Socket LGA775 DDR2 Micro ATX Motherboard. The GA-EG45M-UD2H based on the Intel G45 chipset supports the latest Intel 45nm CPUs and integrates support for HDMI, DVI and HDCP, creating a powerful multi-media platform which allows users to do more at once. At the heart of the Intel G45 Express chipset is the Intel X4500HD graphics media accelerator, which features several unique innovations including more Execution Units for enhanced 3D performance and Intel Clear Video Technology for sharper images and precise color control. The G45 chipset also supports smoother HD video playback, and includes support for Blu-ray and HD-DVD formats, thanks to built-in hardware video decode acceleration. The GA-EG45M-UD2H introduces revolutionary GIGABYTE Ultra Durable 3 technology featuring a 2 oz copper PCB to help reduce system temperature and dramatically enhance performance.

Features:

• Ultra Durable 3 Technology with copper cooled quality for lower working temperature
• Revolution energy saving design with DES advanced technology featuring hardware based Dynamic 4-Gear switching.
• Supports 45nm Intel Core 2 multi-core processors with FSB 1600 by O.C. MHz
• Dual channel DDR2 1066 by O.C. for remarkable system performance
• Ultimate graphics performance with PCI-E x16 2.0 interface
• Integrated Intel Graphics Media Accelerator X4500HD (Intel GMA X4500HD)
• Features high speed Gigabit Ethernet and IEEE1394 connection
• High quality 106dB SNR ALC889A HD audio.
• Supports Dolby Home Theater audio to create a stunning surround sound listening experience
• Chipset built-in hardware video decode acceleration for smoother HD video playback and Blu-ray/ HD DVD support
• Integrated HDMI interface for high Definition video (1080) playback with HDCP support










Specifications:

CPU
Support for an Intel Core 2 Extreme processor/ Intel Core 2 Quad processor/Intel Core 2 Duo processor/Intel Pentium Dual-Core processo/Intel Celeron processor in the LGA 775 package
(Go to GIGABYTE's website for the latest CPU support list.)
L2 cache varies with CPU
Front Side Bus
1600(O.C.)/1333/1066/800 MHz FSB
Chipset
North Bridge: Intel G45 Chipset
South Bridge: Intel ICH10R
Memory
4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory
Dual channel memory architecture
Support for DDR2 1066(O.C.)/800/667 MHz memory modules
Onboard Graphics
North Bridge:
1 x D-Sub port
1 x DVI-D port (Note 1)
1 x HDMI port (Note 2)
Audio
Realtek ALC889A codec
High Definition Audio
2/4/5.1/7.1-channel
Support for Dolby Home Theater
Support for S/PDIF In/Out
Support for CD In
LAN
Realtek 8111DL chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
1 x PCI Express x1 slot
2 x PCI slots
Storage Interface
South Bridge:
5 x SATA 3Gb/s connectors supporting up to 5 SATA 3Gb/s devices
1 x eSATA 3Gb/s port on the back panel supporting up to 1 SATA 3Gb/s device
Support for SATA RAID 0, RAID 1, RAID 5 and RAID 10
JMicron 368 chip:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
iTE IT8718 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB
Integrated in the South Bridge
Up to 12 USB 2.0/1.1 ports (6 on the back panel, 6 via the USB brackets connected to the internal USB headers)
IEEE 1394
T.I. TSB43AB23 chip
Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394 bracket connected to the internal IEEE 1394 header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
5 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
3 x USB 2.0/1.1 headers
1 x IEEE 1394a header
1 x parallel port header
1 x serial port header
1 x power LED header
1 x chassis intrusion header

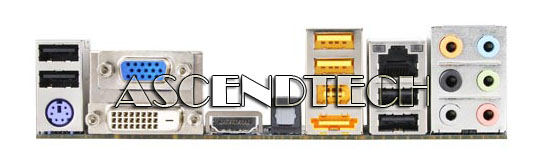

Back Panel Connectors
1 x PS/2 keyboard or PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
1 x optical S/PDIF Out connector
1 x eSATA 3Gb/s port
1 x IEEE 1394a port
6 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line out/Microphone)
I/O Controller
iTE IT8718 chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU fan speed control
BIOS
2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
Support for BIOS
Support for Q-Flash
Support for Virtual Dual BIOS
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune
Support for Dynamic Energy Saver Advanced
Support for Time Repair
Support for Q-Share
Operating System
Support for Microsoft Windows Vista/XP
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
