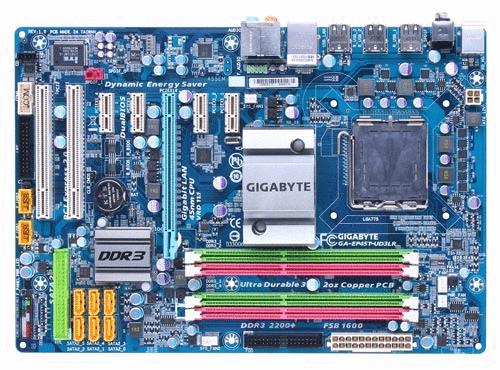

GIGABYTE GA-EP45T-UD3LR P45 LGA775 DDR3

Gigabyte GA-EP45T-UD3LR Socket 775 / Intel P45 / DDR3 / A&GbE / ATX Motherboard

Specifications:

CPU: Socket 775 Support Intel Core 2 Extreme/ Core 2 Quad/ Core 2 Duo/ Intel Pentium Dual-Core processor/ Intel Celeron Processor; FSB 1600/1333/1066/800 MHz
Chipset: Intel P45 Express & Intel ICH10R
Memory: 4x DDR3-2200+/1333/1066/800 DIMMs, Dual Channel, Max Capacity 8GB
Slots: 1x PCI-Express x16 Slot( Supports PCI-EXpress 2.0); 4x PCI-Express x1 Slot; 2x PCI Slots
IDE/SATA: 1x ATA-133 Channel; 6x SATA2 Ports, Support RAID 0, 1, 5, 10
Audio: Realtek ALC888 7.1-channel High Definition Audio CODEC
LAN: Realtek 8111C 10/100/1000 Mbps Ethernet Controller
Ports: 12x USB 2.0 Ports (8 rear, 4 by headers); 2x PS/2 Ports; 1x Optical S/PDIF Out Connector; 1x Coaxial S/PDIF Out Connector; 1x RJ45 LAN Port; Audio I/O Jacks
Power Connector: 1x 24pin Main Power, 1x 4pin CPU Power
Form Factor: ATX, 30.5 x 21.0 cm
