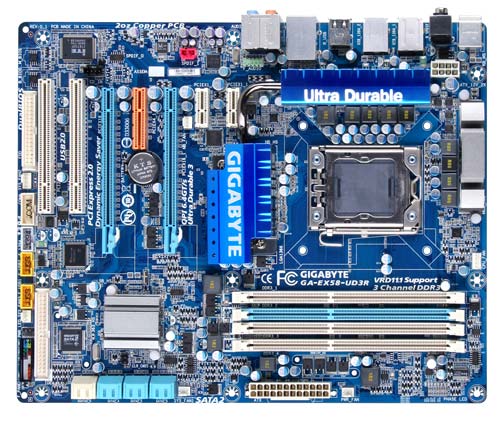

GIGABYTE GA-EX58-UD3R LGA1366 Core i7 MB

GIGABYTE GA-EX58-UD3R Intel X58 ChipSet, Socket LGA1366 Core i7 ATX Motherboard. The EX58-UD3R is the latest X58 Series motherboards of GIGABYTE, designed from the ground up to unleash the awesome power of Intel’s new Core i7 processors. Equipped with a host of new features including the new QPI interface, 3 channel DDR3 support, CrossFireX™ support, Ultra Durable 3 (Classic) technology and the industry’s most extensive range of overclocking features, the EX58-UD3R is bringing excitement back into the high performance motherboard industry.

Specifications:

CPU:
Supports Intel Core i7 series processor in the LGA 1366 package

CHIPSET:
Intel® X58 & ICH10R
North Bridge: Intel X58
South Bridge: Intel ICH10R

MEMORY:
4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
Dual/3 channel memory architecture
Support for DDR3 2000+/1333/1066/800 MHz memory modules

EXPANSION SLOT:
2 x PCI Express x16 slots, running at x16 x16
1 x PCI Express x4 slot
2 x PCI Express x1 slot
2 x PCI slots

STORAGE:
South Bridge:
6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
GIGABYTE SATA2 chip:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2x SATA 3Gb/s connectors (GSATA2_0, GSATA2_1) supporting up to 2 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1 and JBOD
iTE IT8720 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive

AUDIO:
Realtek ALC888 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF In/Out
Support for CD In

Dual Giga LAN:
Realtek 8111D chips (10/100/1000 Mbit)

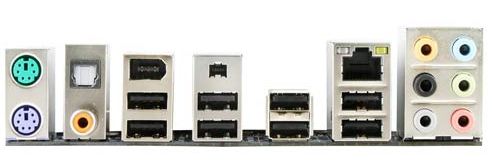

REAR PANEL I/O:
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x coaxial S/PDIF Out connector
1 x optical S/PDIF Out connector
2 x IEEE 1394a port
8 x USB 2.0/1.1 ports
1 x RJ-45 ports
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

INTERNAL I/O CONNECTORS & HEADERS:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
8 x SATA 3Gb/s connectors
1 x CPU fan header
3 x system fan headers
1 x power fan header
1 x North Bridge fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x IEEE 1394a headers
1 x serial port header
1 x power LED header
1 x chassis intrusion header
1 x clearing CMOS jumper

SYSTEM BIOS: 2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

FORM FACTOR: ATX Form Factor; 30.5cm x 24.4cm
