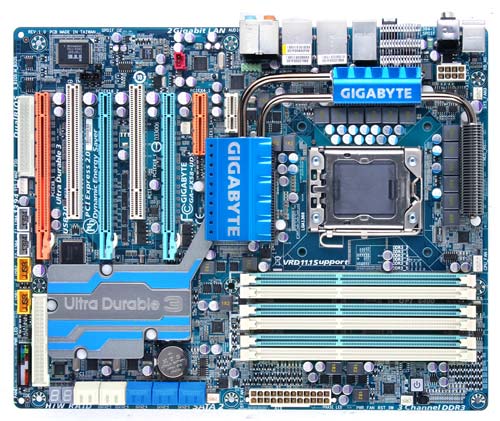

GIGABYTE GA-EX58-UD5 LGA1366 Core i7 ATX

GIGABYTE GA-EX58-UD5 Intel X58 ChipSet Socket LGA1366 Core i7 ATI CrossFire Technology DDR3 OC1600 eSATA ATX Motherboard.


Specifications:

CPU: LGA1366 socket for latest Intel new Core i7 high-end desktop processors
FSB: 6.40GT/s

CHIPSET: Intel® X58 & ICH10R
North Bridge: Intel® X58
South Bridge: Intel® ICH10R

MEMORY: Triple-channel DDR3 memory architecture
6 x 240-pin DDR3 DIMM socket support up to 24GB
Support OC1600/1333/1066/800 DDR3 SDRAM

EXPANSION SLOT: 3 x PCI Express Gen 2.0 x16 slots (x16, x16, x8)
1 x PCI Express x4 slot
1 x PCI Express x1 slots
2 x PCI slot

STORAGE: Support by Intel® ICH10R
6 x Serial ATAII 3Bb/s devices
supports RAID 0/1/5/10
Support by JMicron® JMB322

AUDIO: Realtek ALC889A 8-channel HD audio
2/4/5.1/7.1-channel
Support for Dolby® Home Theater (Note 2)
Support for S/PDIF In/Out
Support for CD In

Dual Giga LAN: Dual Realtek 8111D chips (10/100/1000 Mbit)

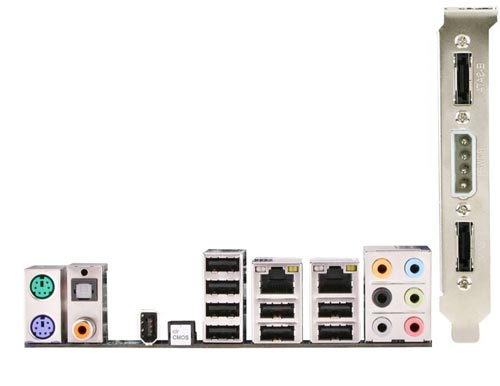

REAR PANEL I/O:
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x coaxial S/PDIF Out connector
1 x optical S/PDIF Out connector
1 x IEEE 1394a port
1 x clearing CMOS switch
8 x USB 2.0/1.1 ports
2 x RJ-45 ports
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

INTERNAL I/O CONNECTORS & HEADERS:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
10 x SATA 3Gb/s connectors
1 x CPU fan header
3 x system fan headers
1 x power fan header
1 x North Bridge fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
2 x IEEE 1394a headers
1 x power LED header
1 x chassis intrusion header
1 x power switch
1 x reset switch


SYSTEM BIOS: 2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

FORM FACTOR: ATX Size 12 inches by 9.6 inches
