GIGABYTE GA-F2A68HM-H Rev.1.0 White Box

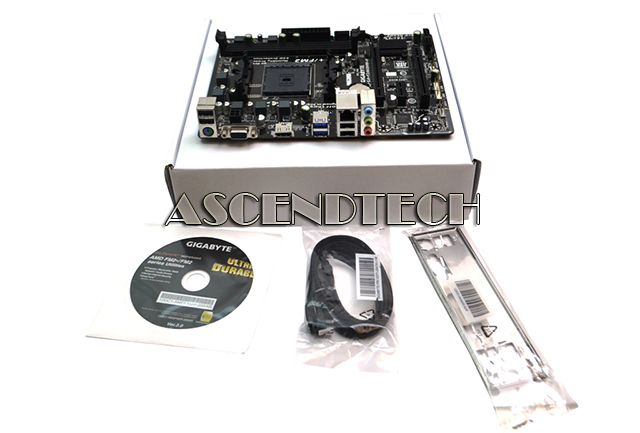

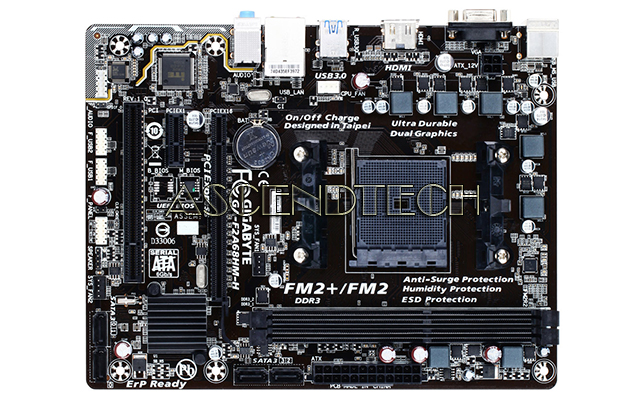

GIGABYTE GA-F2A68HM-H Rev.1.0 AMD A68H Socket FM2+ DDR3 Micro ATX Motherboard. GIGABYTE FM2+ series motherboards feature AMD the latest FM2+ socket, and are designed to get the most from forthcoming AMD Kaveri APUs, while preserving compatibility for current AMD FM2 APUs. AMD FM2+ APUs offer native support for 8 GT/s PCI Express gen 3.0 as well as DX11.1 support integrating the high performance ‘Steamroller’ core. Based on AMD A68H chipset, native USB3.0 and SATA3 ports support up to 5Gbps and 6Gbps of data transfer speeds, delivering the GIGABYTE FM2+ series motherboards most stable and high efficiency working experience via the GIGABYTE Ultra Durable™ technologies.

Features:

- Socket FM2+ supports AMD FM2+/FM2 A-series APU
- GIGABYTE Ultra Durable™ Technology
- Dedicated audio hardware zone with Audio Noise Guard design
- HDMI 1.4, D-sub ports for multi-display support
- Native USB 3.0 and SATA3 ports with RAID support
- GIGABYTE UEFI BIOS
- GIGABYTE On/Off Charge™ for USB devices
- Solid capacitors for APU VRM design







APU
FM2+ Socket:
- AMD A series processors
- AMD Athlon™ series processors

Chipset
AMD A68H

Memory
- 2 x DDR3 DIMM sockets supporting up to 64 GB of system memory
  * The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.
  * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
- Dual channel memory architecture
- Support for DDR3 2400(OC)/2133/1866/1600/1333 MHz memory modules
- Support for AMD Memory Profile (AMP)/ Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200
- 1 x HDMI port, supporting a maximum resolution of 4096x2160
  * The resolution of 4096x2160 can be supported when using an FM2+ APU; the maximum resolution supported is 1920x1200 when using an FM2 APU.
  * Support for HDMI 1.4a version.
- Maximum shared memory of 2 GB

Audio
- Realtek® ALC887 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
- Support for S/PDIF Out

LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots
- 1 x PCI Express x16 slot, running at x16
  (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
  * To support PCI Express 3.0, you must install an FM2+ APU.
- 1 x PCI Express x1 slot
  (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
- 1 x PCI slot

Storage Interface
Chipset:
- 4 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 10, and JBOD

Multi-Graphics Technology
- Support for AMD Dual Graphics technology
  * Only A series APUs support AMD Dual Graphics.
- Support for AMD Eyefinity technology

USB
Chipset:
- 2 x USB 3.0/2.0 ports on the back panel
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 1 x APU fan header
- 2 x system fan headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 2 x USB 2.0/1.1 headers
- 1 x speaker header
- 1 x Clear CMOS jumper
- 1 x chassis intrusion header

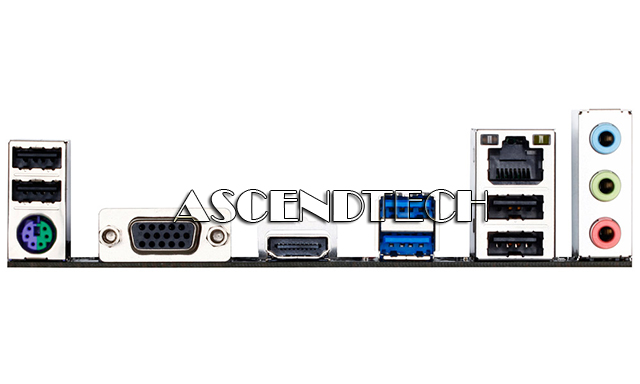

Back Panel Connectors
 - 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x HDMI port
- 2 x USB 3.0/2.0 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller
iTE® I/O Controller Chip

H/W Monitoring
- System voltage detection
- System voltage detection
- APU/System temperature detection
- APU/System fan speed detection
- APU overheating warning
- APU/System fan fail warning
- APU/System fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install

BIOS
- 1 x 64 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
- Support for @BIOS
- Support for Q-Flash
- Support for Xpress Install
- Support for EasyTune
  * Available functions in EasyTune may differ by motherboard model.
- Support for Smart Recovery 2
- Support for ON/OFF Charge

Operating System
- Support for Windows 8.1/7 32-bit/64-bit
- Support for Windows XP 32-bit
  * To support Windows XP 32-bit, you must install an AMD FM2+ Kaveri APU
  * It requires Service Pack 3 to support Windows XP driver installation

Form Factor
Micro ATX Form Factor; 22.6cm x 17.4cm
