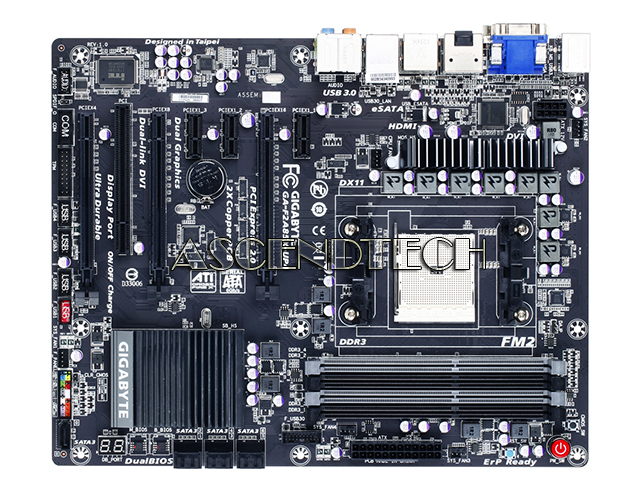

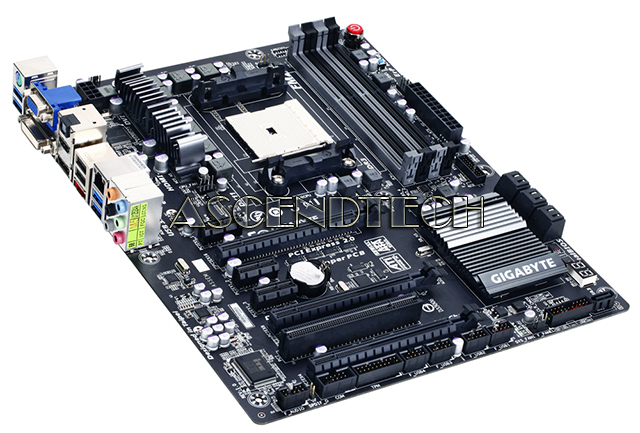

Gigabyte GA-F2A85X-UP4 rev.1.0 No I/O

Gigabyte GA-F2A85X-UP4 rev.1.0 AMD Chipset A85X Socket FM2 DDR3 ATX Motherboard. GIGABYTE Ultra Durable 5 motherboards take advantage of an exclusive Digital PWM controller array, to deliver power to new generation of AMD FM2 A-series processor. Using digital controllers means that more precise power delivery to the motherboard's most power hungry and energy sensitive components is possible. These components include the CPU and processor graphics, without doubt the most important components on the motherboard. This Digital Power system, with Precise Auto Voltage Compensation to make real-time adjustments and deliver a steady flow of power to the system, no matter the loading. This all new, digital power system provides enthusiast users with exceptional control over the over-clocking potential of their GIGABYTE motherboard.

Features:

• GIGABYTE Digital Power design with GIGABYTE Ultra Durable 5 technology
• GIGABYTE 3D BIOS technology with UEFI DualBIOS design
• Supports socket FM2 AMD A-series/ Athlon-series processors
• Enhanced AMD Radeon HD 8000/7000-series graphics (DX11) integrated with the APU
• 3 PCI-E 2.0 x16 interfaces with AMD Dual Graphics, Eyefinity and CrossFire support
• Features Display port/ HDMI/ Dual-link DVI/ D-sub ports for Triple-Monitor support
• Lucid Virtu Universal MVP GPU virtualization support
• 6 USB 3.0 ports with transfer rates of up to 5Gbps
• 8 SATA3 ports with up to 6Gbps link speed and RAID 0,1,5,10 support
• GIGABYTE On/Off Charge technology with 3x USB power design










Specifications:

APU
FM2 Socket:
AMD A series processors
AMD Athlon series processors
Chipset
AMD A85X
Memory
4 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory
* The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 2400(OC)/1866/1600/1333/1066 MHz memory modules
Support for AMD Memory Profile (AMP)/ Extreme Memory Profile (XMP) memory modules
*Memory support is dependent on memory module compatibility and system OS.
Onboard Graphics
APU with integrated AMD Radeon HD 8000/7000 series graphics:
* To use the onboard graphics ports, you must install an AMD APU with integrated graphics.
1 x D-Sub port
1 x DVI-D port, supporting a maximum resolution of 2560x1600
* Support for 2560x1600 resolution requires both a monitor and cable that support Dual Link DVI.
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 1920x1200
1 x DisplayPort, supporting a maximum resolution of 4096x2160
Audio
Realtek ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
Realtek GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX1_3 slot shares bandwidth with the PCIEX4 slot. When the PCIEX1_3 slot is populated, the PCIEX4 slot will operate at up to x1 mode.
3 x PCI Express x1 slots
(All PCI Express slots conform to PCI Express 2.0 standard.)
1 x PCI slot
Storage Interface
Chipset:
7 x SATA 6Gb/s connectors (SATA3 0~6) supporting up to 7 SATA 6Gb/s devices
1 x eSATA 6Gb/s connector on the back panel supporting up to 1 SATA 6Gb/s device
* Actual transfer rate is dependent on the device being connected.
Support for RAID 0, RAID 1, RAID 5, RAID 10, and JBOD
Multi-Graphics Technology
Support for AMD CrossFire technology
Support for AMD Dual Graphics technology
* Only A series APUs support AMD Dual Graphics.
USB
Chipset:
Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Up to 10 USB 2.0/1.1 ports (2 ports on the back panel, 8 ports available through the internal USB headers)
Etron EJ168 chip:
Up to 2 USB 3.0/2.0 ports on the back panel
* Be sure to connect your USB device(s) to the USB 2.0/1.1 ports before the USB 3.0 driver is installed.
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
7 x SATA 6Gb/s connectors
1 x APU fan header
4 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
4 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
1 x Trusted Platform Module (TPM) header
1 x power button
1 x reset button
1 x Clear CMOS button

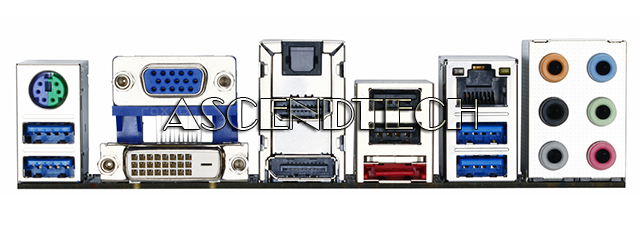

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x optical S/PDIF Out connector
1 x HDMI port
1 x DisplayPort
4 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x eSATA 6Gb/s connector
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
System voltage detection
APU/System temperature detection
APU/System fan speed detection
APU overheating warning
APU/System fan fail warning
APU/System fan speed control
* Whether the APU/system fan speed control function is supported will depend on the APU/system cooler you install.
BIOS
2 x 64 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for BIOS
Support for Q-Flash
Support for Xpress Install
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
Support for Smart Recovery 2
Support for Auto Green
Support for ON/OFF Charge
Support for 3TB+ Unlock
Support for Q-Share
Operating System
Support for Windows 8/7/Vista/XP
* Windows Vista/XP supported only with AMD FM2 Trinity APU.
* It requires Service Pack 3 to support Windows XP driver installation.
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
