Gigabyte GA-F2A85XM-HD3 rev.1.0 No I/O

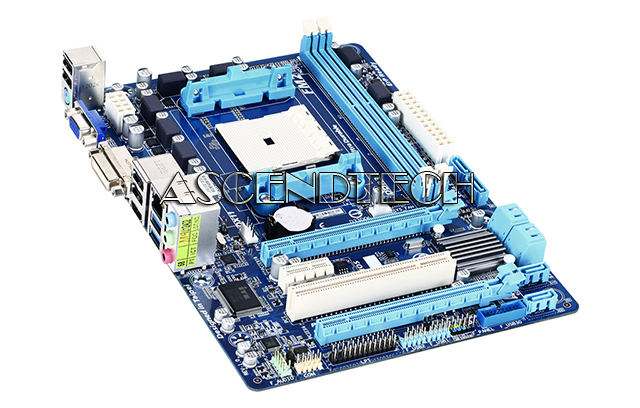

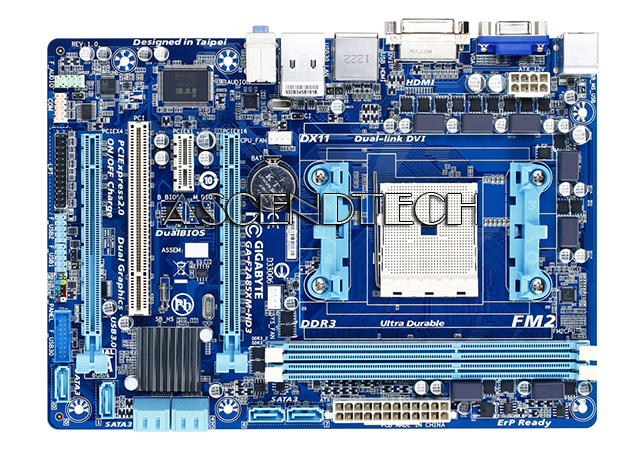

Gigabyte GA-F2A85XM-HD3 rev.1.0 AMD A85X Socket FM2 DDR3 Micro ATX Motherboard. GIGABYTE FM2 motherboards are the latest range of next-generation desktop motherboards based on the AMD A85X chipset, supporting a new generation socket FM2 of 32nm AMD A-series APUs with DirectX11 graphics integrated. Not only delivering AMD’s industry-leading performance and advanced graphics capabilities, GIGABYTE motherboards are equipped with a comprehensive range of unique features that offer mainstream PC users the most compelling platform on the market today.

Features:

- GIGABYTE 3D BIOS technology with UEFI DualBIOS™ design
- GIGABYTE Ultra Durable™4 Classic technology
- Supports socket FM2 AMD A-series/ Athlon-series processors
- Enhanced AMD Radeon HD 8000/7000-series graphics (DX11) integrated with the APU
- 2 PCI-E 2.0 x16 interfaces with AMD Dual Graphics, Eyefinity and CrossFire support
- Features HDMI/ Dual-link DVI/ D-sub ports for Triple-Monitor support
- 4 native USB 3.0 ports with transfer rates of up to 5Gbps
- 8 USB2.0 and 8 native SATA3 ports with up to 6Gbps link speed and RAID 0, 1, 5, 10 support
- GIGABYTE On/Off Charge technology with 3x USB power design











Specifications:

APU
FM2 Socket:
AMD A series processors
AMD Athlon™ series processors
Chipset
AMD A85X
Memory
2 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory
* The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 2400(OC)/1866/1600/1333/1066 MHz memory modules
Support for AMD Memory Profile (AMP)/ Extreme Memory Profile (XMP) memory modules
“Memory support is dependent on memory module compatibility and system OS”.
Onboard Graphics
APU with integrated AMD Radeon™ HD 8000/7000 series graphics:
* To use the onboard graphics ports, you must install an AMD APU with integrated graphics.
1 x D-Sub port
1 x DVI-D port, supporting a maximum resolution of 2560x1600
* Support for 2560x1600 resolution requires both a monitor and cable that support Dual Link DVI.
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 1920x1200
Audio
Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
LAN
Realtek GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(All PCI Express slots conform to PCI Express 2.0 standard.)
1 x PCI slot
Storage Interface
Chipset:
8 x SATA 6Gb/s connectors supporting up to 8 SATA 6Gb/s devices
Support for RAID 0, RAID 1, RAID 5, RAID 10, and JBOD
Multi-Graphics Technology
Support for AMD CrossFire™ technology
Support for AMD Dual Graphics technology
* Only A series APUs support AMD Dual Graphics.
USB
Chipset:
Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
8 x SATA 6Gb/s connectors
1 x APU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
1 x chassis intrusion header

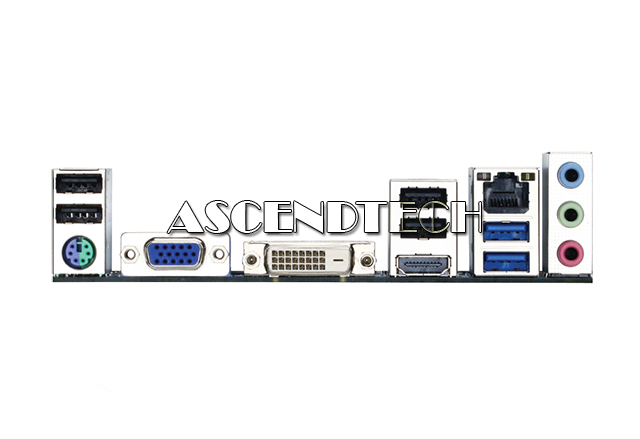

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
System voltage detection
APU/System temperature detection
APU/System fan speed detection
APU overheating warning
APU/System fan fail warning
APU/System fan speed control
* Whether the APU/system fan speed control function is supported will depend on the APU/system cooler you install.
BIOS
2 x 64 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for @BIOS
Support for Q-Flash
Support for Xpress Install
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
Support for Smart Recovery 2
Support for Auto Green
Support for ON/OFF Charge
Support for 3TB+ Unlock
Support for Q-Share
Operating System
Support for Windows 8/7/Vista/XP
* Windows Vista/XP supported only with AMD FM2 Trinity APU.
* It requires Service Pack 3 to support Windows XP driver installation.
Form Factor
Micro ATX Form Factor; 24.4cm x 17.4cm
