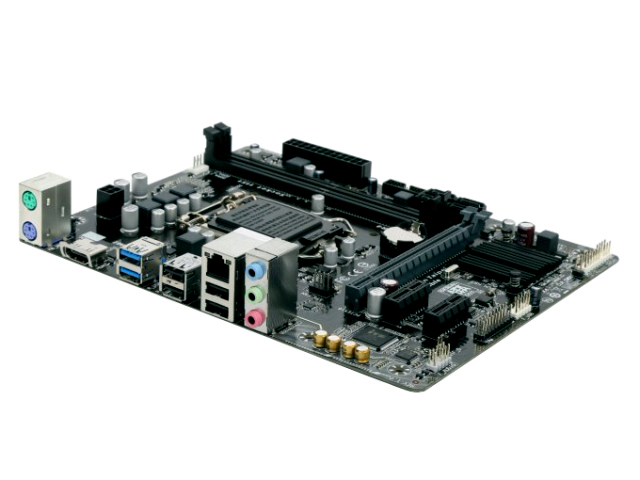

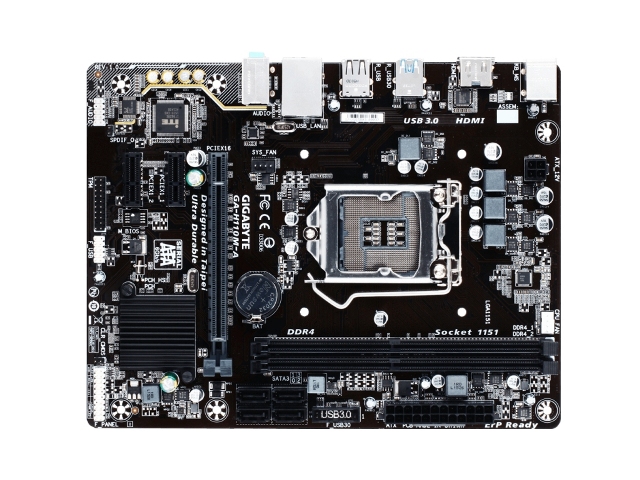

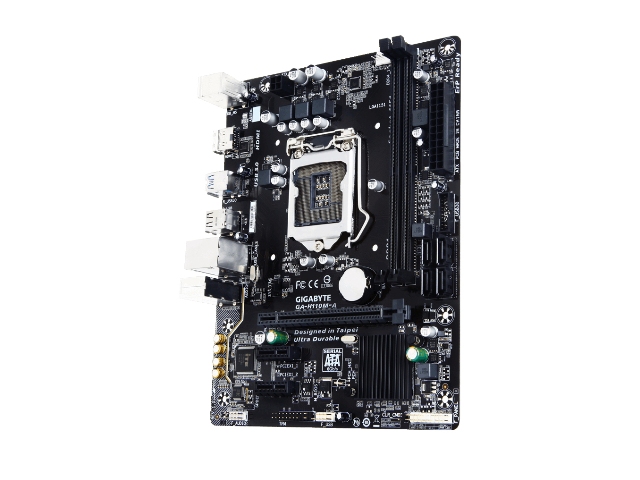

GA-H110M-A Rev. 1.0 | Gigabyte Ga-H110m-A Motherboard No I/O

Gigabyte GA-H110M-A Rev.1.0 Intel H110 Socket LGA1151 DDR4 HDMI USB SATA 6Gb/s Micro ATX Desktop Motherboard.

Chipset: Intel H110

Socket: Intel LGA1151

Compatible/Supported CPU: 7th/6th Generation Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors

Max Supported Memory: 32GB

Number of Memory Slots: 2

Memory Type: DDR4 SDRAM

Speed: 2133MHz

Storage Interface: SATA 6Gb/s

Wireless Lan Support: Realtek GbE LAN chip (10/100/1000 Mbit)

Audio: Realtek ALC887 Codec

Connectors: 1x 24-pin ATX main power connector; 1x 4-pin ATX 12V power connector; 4x SATA 6Gb/s connectors; 1x CPU fan header; 1x system fan header; 1x front panel header; 1x front panel audio header; 1x S/PDIF Out header; 1x USB 3.0/2.0 header; 1x USB 2.0/1.1 header; 1x Trusted Platform Module (TPM) header; 1x Clear CMOS jumper.

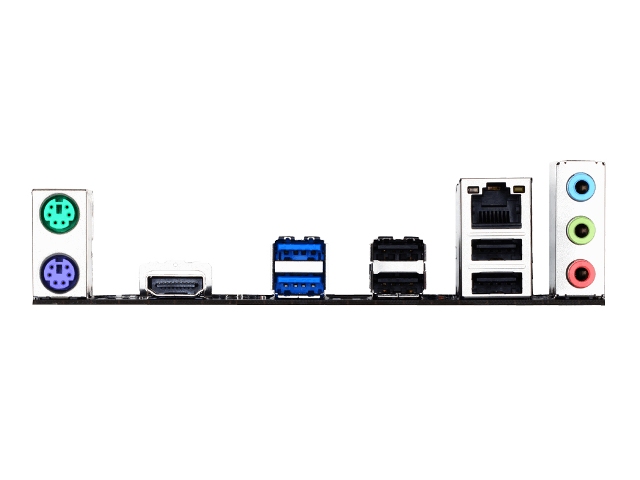

Input/Output Ports: 1x PS/2 mouse port; 1x PS/2 Keyboard port; 1x HDMI port; 2x USB 3.0/2.0 ports; 4x USB 2.0/1.1 ports; 1x RJ-45 port; 3x audio jacks (Line In, Line Out, Mic In).

Expansion Slots: 1x PCI Express x16 slot, running at x16 (PCIEX16); 2x PCI Express x1 slots.

Form Factor: Micro ATX

Type: Desktop Motherboard

Supported Operating System: Windows 10 64-bit (for 7th Generation Intel Processors); Windows 10 64-bit / Windows 8.1 64-bit / Windows 7 32-bit / 64-bits (for 6th Generation Intel Processors).

Additional Specifications:

Onboard Graphics
Integrated Graphics Processor - Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160 24 Hz
Support for HDMI 1.4 version.
Maximum shared memory of 1024 MB
BIOS
1x 64 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
Smart Recovery 2
Support for Q-Flash
Support for Smart Switch
Support for Xpress Install

CPU Support:

Socket LGA 1151
Vendor	CPU Model	Frequency	L3 Cache	GPU Frequency	Core Name	Process	Stepping	Wattage
Intel	Core i7-7700K	4.20GHz	8MB	350 MHz / 1150 MHz	KabyLake	14nm	B0	91W
Intel	Core i7-7700	3.60GHz	8MB	350 MHz / 1150 MHz	KabyLake	14nm	B0	65W
Intel	Core i7-7700T	2.90GHz	8MB	350 MHz / 1150 MHz	KabyLake	14nm	B0	35W
Intel	Core i5-7600K	3.80GHz	6MB	350 MHz / 1150 MHz	KabyLake	14nm	B0	91W
Intel	Core i5-7600	3.50GHz	6MB	350 MHz / 1150 MHz	KabyLake	14nm	B0	65W
Intel	Core i5-7600T	2.80GHz	6MB	350 MHz / 1100 MHz	KabyLake	14nm	B0	35W
Intel	Core i5-7500	3.40GHz	6MB	350 MHz / 1100 MHz	KabyLake	14nm	B0	65W
Intel	Core i5-7500T	2.70GHz	6MB	350 MHz / 1100 MHz	KabyLake	14nm	B0	35W
Intel	Core i5-7400	3.00GHz	6MB	350 MHz / 1000 MHz	KabyLake	14nm	B0	65W
Intel	Core i5-7400T	2.40GHz	6MB	350 MHz / 1000 MHz	KabyLake	14nm	B0	35W
Intel	Core i3-7350K	4.20GHz	4MB	350 MHz / 1150 MHz	KabyLake	14nm	S0	60W
Intel	Core i3-7320	4.10GHz	4MB	350 MHz / 1150 MHz	KabyLake	14nm	S0	51W
Intel	Core i3-7300	4.00GHz	4MB	350 MHz / 1150 MHz	KabyLake	14nm	S0	51W
Intel	Core i3-7300T	3.50GHz	4MB	350 MHz / 1100 MHz	KabyLake	14nm	S0	35W
Intel	Core i3-7100	3.90GHz	3MB	350 MHz / 1100 MHz	KabyLake	14nm	S0	51W
Intel	Core i3-7100T	3.40GHz	3MB	350 MHz / 1100 MHz	KabyLake	14nm	S0	35W
Intel	Pentium G4620	3.70GHz	3MB	350 MHz / 1100 MHz	KabyLake	14nm	S0	51W
Intel	Pentium G4600	3.60GHz	3MB	350 MHz / 1100 MHz	KabyLake	14nm	S0	51W
Intel	Pentium G4600T	3.00GHz	3MB	350 MHz / 1050 MHz	KabyLake	14nm	S0	35W
Intel	Pentium G4560	3.50GHz	3MB	350 MHz / 1050 MHz	KabyLake	14nm	B0	54W
Intel	Pentium G4560T	2.90GHz	3MB	350 MHz / 1050 MHz	KabyLake	14nm	S0	35W
Intel	Celeron G3950	3.00GHz	2MB	350 MHz / 1050 MHz	KabyLake	14nm	S0	51W
Intel	Celeron G3930	2.90GHz	2MB	350 MHz / 1050 MHz	KabyLake	14nm	S0	51W
Intel	Celeron G3930T	2.70GHz	2MB	350 MHz / 1000 MHz	KabyLake	14nm	S0	35W
Intel	Core i7-6700K	4.00GHz	8MB	350 MHz / 1200 MHz	Skylake	14nm	R0	91W
Intel	Core i7-6700	3.40GHz	8MB	350 MHz / 1200 MHz	Skylake	14nm	R0	65W
Intel	Core i7-6700T	2.80GHz	8MB	350 MHz / 1150 MHz	Skylake	14nm	R0	35W
Intel	Core i5-6600K	3.50GHz	6MB	350 MHz / 1200 MHz	Skylake	14nm	R0	91W
Intel	Core i5-6600	3.30GHz	6MB	350 MHz / 1200 MHz	Skylake	14nm	R0	65W
Intel	Core i5-6600T	2.70GHz	6MB	350 MHz / 1150 MHz	Skylake	14nm	R0	35W
Intel	Core i5-6500	3.20GHz	6MB	350 MHz / 1200 MHz	Skylake	14nm	R0	65W
Intel	Core i5-6500T	2.50GHz	6MB	350 MHz / 1150 MHz	Skylake	14nm	R0	35W
Intel	Core i5-6402P	2.80GHz	6MB	350 MHz / 950 MHz	Skylake	14nm	R0	65W
Intel	Core i5-6400	2.70GHz	6MB	350 MHz / 1200 MHz	Skylake	14nm	R0	65W
Intel	Core i5-6400T	2.20GHz	6MB	350 MHz / 1150 MHz	Skylake	14nm	R0	35W
Intel	Core i3-6320	3.90GHz	4MB	350 MHz / 1150 MHz	Skylake	14nm	S0	47W
Intel	Core i3-6300	3.80GHz	4MB	350 MHz / 1150 MHz	Skylake	14nm	S0	47W
Intel	Core i3-6300T	3.30GHz	4MB	350 MHz / 950 MHz	Skylake	14nm	S0	35W
Intel	Core i3-6100	3.70GHz	3MB	350 MHz / 1050 MHz	Skylake	14nm	S0	47W
Intel	Core i3-6100T	3.20GHz	3MB	350 MHz / 950 MHz	Skylake	14nm	S0	35W
Intel	Core i3-6098P	3.60GHz	3MB	350 MHz / 1050 MHz	Skylake	14nm	R0	54W
Intel	Pentium G4520	3.60GHz	3MB	350 MHz / 1050 MHz	Skylake	14nm	S0	47W
Intel	Pentium G4500	3.50GHz	3MB	350 MHz / 1050 MHz	Skylake	14nm	S0	47W
Intel	Pentium G4500T	3.00GHz	3MB	350 MHz / 950 MHz	Skylake	14nm	S0	35W
Intel	Pentium G4400	3.30GHz	3MB	350 MHz / 1000 MHz	Skylake	14nm	R0	65W
Intel	Pentium G4400	3.30GHz	3MB	350 MHz / 1050 MHz	Skylake	14nm	S0	47W
Intel	Pentium G4400T	2.90GHz	3MB	350 MHz / 950 MHz	Skylake	14nm	S0	35W
Intel	Celeron G3920	2.90GHz	2MB	350 MHz / 950 MHz	Skylake	14nm	S0	47W
Intel	Celeron G3900	2.80GHz	2MB	350 MHz / 950 MHz	Skylake	14nm	S0	47W
Intel	Celeron G3900T	2.60GHz	2MB	350 MHz / 950 MHz	Skylake	14nm	S0	35W
