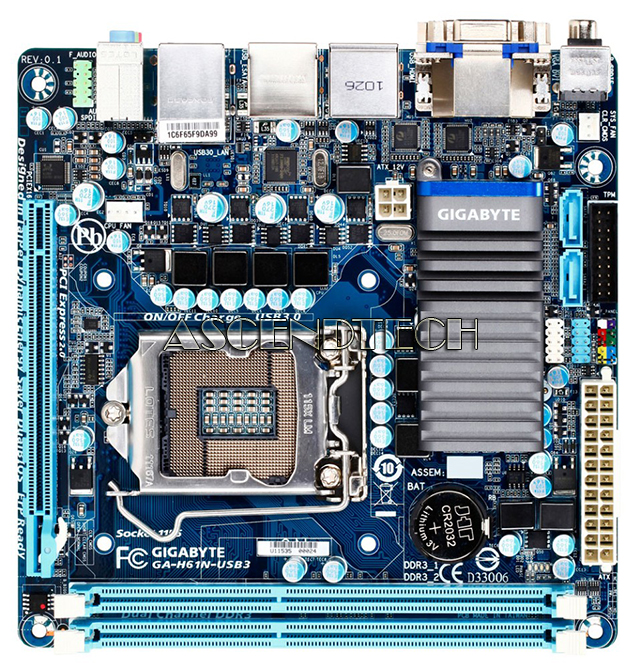

Gigabyte GA-H61N-USB3 rev.1.0 Intel Chipset H61 Socket LGA1155 DDR3 Mini-ITX Motherboard. GIGABYTE Super4 motherboards are the latest range of next-generation desktop motherboards based on the Intel H61 Express Chipset with support for 2nd generation 'Sandy Bridge' Intel Core CPUs. Not only delivering Intel's industry-leading performance and advanced integrated graphics capabilities, GIGABYTE Super4 motherboards are equipped with a comprehensive range of unique features that offer mainstream PC users the most compelling platform on the market today.

Features:

• Supports for LGA1155 2nd Generation Intel Core Processors
• Next Gen. Quality Components and 4 Phase CPU Power design
• GIGABYTE 3x USB Power with On/Off Charge USB ports
• Supports USB 3.0 with superfast transfer rates of up to 5 Gbps
• HDMI/DVI interface for smoother HD video playback
• Enhanced Intel HD Graphics 2000/3000 integrated with the processor
• Innovative Smart 6 technology for smarter PC management
• Hi-def 108dB Signal-to-noise ratio Blu-ray DVD audio playback
• DualBIOS protection with 3TB+ HDD boot up capability











Specifications:

CPU
Support for an Intel Core i7 series processor/Intel Core i5 series processor/Intel Core i3 series processor/Intel Pentium processors/Intel Celeron processors in the LGA1155 package
L3 cache varies with CPU
Chipset
Intel H61 Express Chipset
Memory
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
Dual channel memory architecture
Support for DDR3 1333/1066/800 MHz memory modules
Support for non-ECC memory modules
Onboard Graphics
Integrated Graphics Processor:
1 x D-Sub port
1 x DVI-D port, supporting a maximum resolution of 1920x1200
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 1920x1200
Audio
Realtek ALC889 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
LAN
1 x Realtek RTL8111E chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 2.0 standard.)
Storage Interface
Chipset:
2 x SATA 3Gb/s connectors (SATA2_0, SATA2_1) supporting up to 2 SATA 3Gb/s devices
1 x eSATA 3Gb/s connector on the back panel supporting up to 1 SATA 3Gb/s device
USB
Chipset:
Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Fresco FL1009 chip:
Up to 2 USB 3.0/2.0 ports on the back panel
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x clearing CMOS jumper

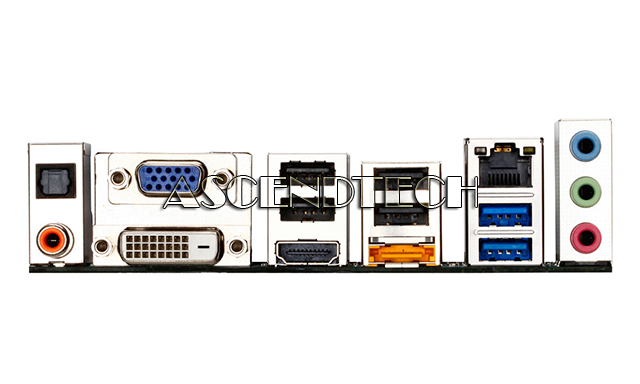

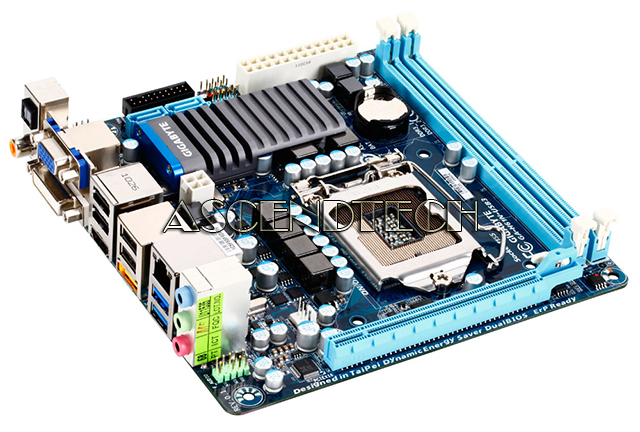

Back Panel Connectors
1 x optical S/PDIF Out connector
1 x coaxial S/PDIF Out connector
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports
1 x eSATA 3Gb/s connector
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
I/O Controller
iTE IT8728 chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU fan speed control
* Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
BIOS
2 x 32 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
Support for Dynamic Energy Saver 2
Support for Smart 6
Support for Auto Green
Support for ON/OFF Charge
Support for 3TB+ Unlock
Support for Cloud OC
Support for Q-Share
Operating System
Support for Microsoft Windows 8/7/Vista/XP
Form Factor
Mini-ITX Form Factor; 17.0cm x 17.0cm
