Gigabyte GA-H77N-WIFI rev.1.0 Intel H77 Socket LGA1155 DDR3 Mini-ITX Motherboard. At the heart of this exciting 3D BIOS technology is a pair of physical BIOS ROMs containing GIGABYTE's exclusive in-house designed UEFI BIOS technology. With a superior graphical interface capable of 32-bit color imaging and fluid user-friendly mouse navigation, UEFI DualBIOS makes BIOS configuration a new and exciting experience for novice and experienced users alike. UEFI BIOS also brings native support for large hard drives on 64-bit operating systems.

Features:

• GIGABYTE 3D BIOS (Dual UEFI)
• Supports Intel WiFi/ WIDI technology
• Integrated Bluetooth 4.0 and Intel Wi-Fi module
• All new design of Ultra Durable 4 classic
• Supports 3rd and 2nd Gen. Intel Core CPUs (LGA1155 socket)
• Dual LAN for networking flexibility
• PCI Express Gen 3.0 support
• Industry's Leading All Japanese Solid Capacitor Design
• GIGABYTE 333 Onboard Acceleration (USB 3.0, SATA 3.0 & 3x USB Power)
• DVI and Dual HDMI interface for smoother HD video playback
• GIGABYTE On/Off Charge for USB devices









Specifications:

CPU
Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1155 package
L3 cache varies with CPU
Chipset
Intel H77 Express Chipset
Memory
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 2200(OC)/1600/1333/1066/800 MHz memory modules
* To support DDR3 1600 MHz, you must install an Intel 22nm (Ivy Bridge) CPU.
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor:
1 x DVI-I port, supporting a maximum resolution of 1920x1200
2 x HDMI ports, supporting a maximum resolution of 1920x1200
Audio
Realtek ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
2 x Realtek GbE LAN chip (10/100/1000 Mbit)
Wireless Communication Module
Wi-Fi 802.11 b/g/n, Supports Intel Wireless Display (WiDi)
Bluetooth 4.0, 3.0+HS, 2.1+EDR
Expansion Slots
1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
* Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility.
Storage Interface
Chipset:
2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices
2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
USB
Chipset:
Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
* In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.
Up to 6 USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

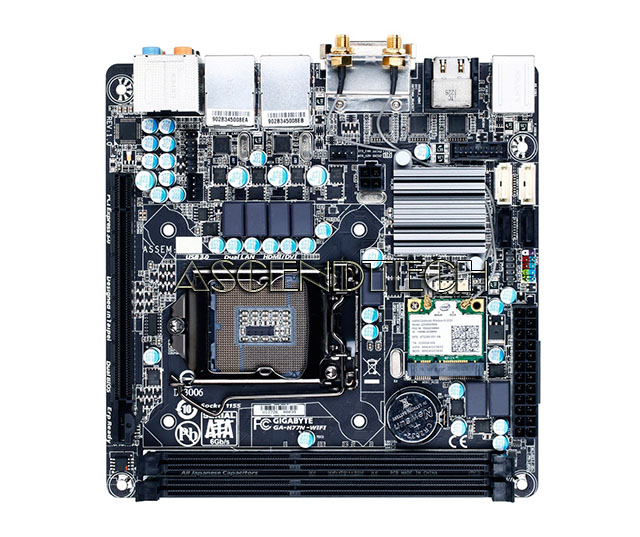

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x serial port header
2 x SATA 6Gb/s connectors
2 x SATA 3Gb/s connectors
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Clear CMOS jumper

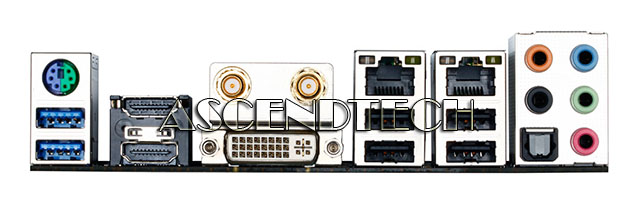

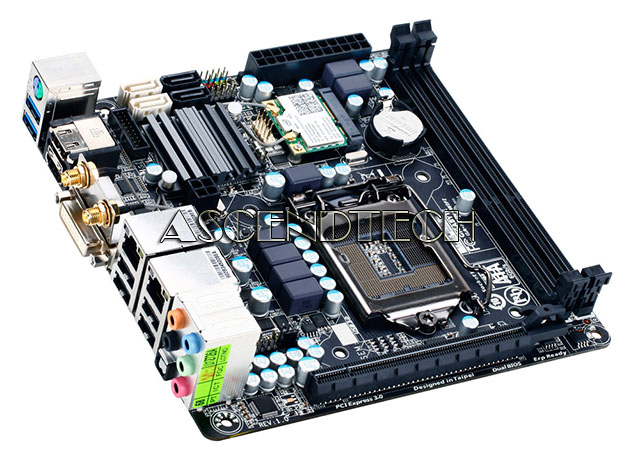

Back Panel Connectors
1 x PS/2 keyboard/mouse port
2 x HDMI ports
2 x antenna connectors
1 x DVI-I port
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU fan speed control
* Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
BIOS
2 x 64 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for BIOS
Support for Q-Flash
Support for Xpress Install
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
Support for eXtreme Hard Drive (X.H.D)
Support for Auto Green
Support for ON/OFF Charge
Support for Q-Share
Support for EZ Setup
Support for Intel Wireless Display (Intel WiDi)
Exclusive Bluetooth 4.0/WiFi module
Operating System
Support for Microsoft Windows 8/7/XP
Form Factor
Mini-ITX Form Factor; 17.0cm x 17.0cm
