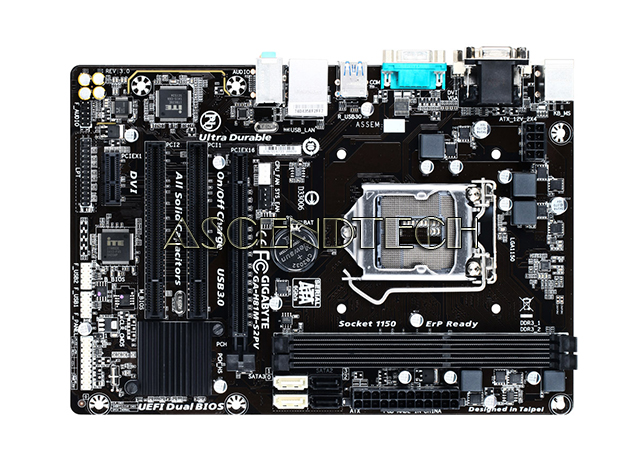

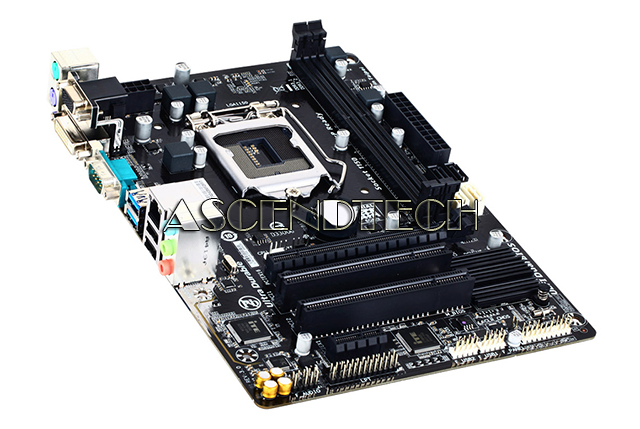

Gigabyte GA-H81M-S2PV rev.3.0 Intel Chipset H81 Socket LGA1150 DDR3 Micro ATX Motherboard. GIGABYTE 8 Series motherboards support the latest 4th Generation Intel Core processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, GIGABYTE 8 series motherboards are in a class of their own.

Features:

• Supports 4th Generation Intel Core processors
• GIGABYTE Ultra Durable 4 Plus Technology
• Audio Noise Guard with High Quality Audio Capacitors
• GIGABYTE UEFI DualBIOS
• GIGABYTE On/Off Charge for USB devices
• LAN with high ESD Protection
• DVI-D, D-SUB, COM port on rear panel
• All solid capacitors design

Specifications:

CPU
Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package
L3 cache varies with CPU
Chipset
Intel H81 Express Chipset
Memory
1. 2 x DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR3 1600/1333 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor - Intel HD Graphics support:
1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
* The DVI-D port does not support D-Sub connection by adapter.
3. Maximum shared memory of 1 GB
Audio
1. Realtek ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
Realtek GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16
2. 1 x PCI Express x1 slot
(The PCI Express slots conform to PCI Express 2.0 standard.)
3. 2 x PCI slots
Storage Interface
Chipset:
1. 2 x SATA 6Gb/s connectors (SATA3 0~SATA3 1)
2. 2 x SATA 3Gb/s connectors (SATA2 2~ SATA2 3)
USB
Chipset:
2 x USB 3.0/2.0 ports on the back panel
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
2 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x parallel port header
1 x Clear CMOS jumper

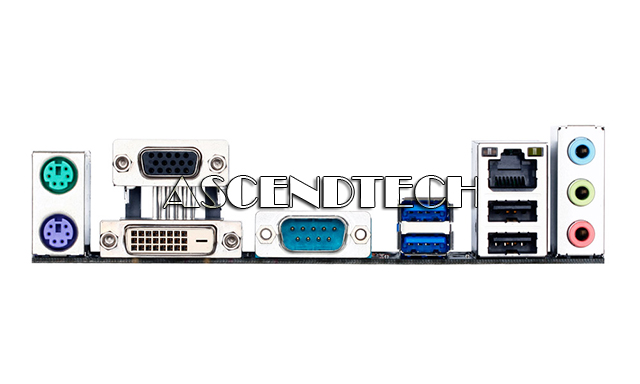

Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
1 x serial port
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 x 32 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for Q-Flash
2. Support for Xpress Install
3. Support for APP Center
* Available applications in APP Center may differ by motherboard model.
Supported functions of each application may also differ depending on motherboard specifications.
BIOS
EasyTune
EZ Setup
USB Blocker
4. Support for ON/OFF Charge
Operating System
Support for Windows 10/8.1/8/7
Form Factor
Micro ATX Form Factor; 24.4cm x 17.0cm

CPU Support

Socket 1150
Motherboard
Vendor	CPU Model	Frequency	L3 Cache	GPU Frequency	Core Name	Process	Stepping	Wattage
Intel	Core i7-4790K	4.00GHz	8MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	C0	88W
Intel	Core i7-4790	3.60GHz	8MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	C0	84W
Intel	Core i7-4790S	3.20GHz	8MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	C0	65W
Intel	Core i7-4790T	2.70GHz	8MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	C0	45W
Intel	Core i7-4785T	2.20GHz	8MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	C0	35W
Intel	Core i7-4771	3.50GHz	8MB	350 MHz / 1300 MHz	Haswell	22nm	C0	84W
Intel	Core i7-4770	3.40GHz	8MB	350 MHz / 1300 MHz	Haswell	22nm	C0	84W
Intel	Core i7-4770K	3.50GHz	8MB	350 MHz / 1300 MHz	Haswell	22nm	C0	84W
Intel	Core i7-4770S	3.10GHz	8MB	350 MHz / 1300 MHz	Haswell	22nm	C0	65W
Intel	Core i7-4770T	2.50GHz	8MB	350 MHz / 1300 MHz	Haswell	22nm	C0	45W
Intel	Core i7-4765T	2.00GHz	8MB	350 MHz / 1300 MHz	Haswell	22nm	C0	35W
Intel	Core i5-4690	3.50GHz	6MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	C0	84W
Intel	Core i5-4690K	3.50GHz	6MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	C0	88W
Intel	Core i5-4690S	3.20GHz	6MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	C0	65W
Intel	Core i5-4690T	2.50GHz	6MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	C0	45W
Intel	Core i5-4670	3.40GHz	6MB	350 MHz / 1300 MHz	Haswell	22nm	C0	84W
Intel	Core i5-4670K	3.40GHz	6MB	350 MHz / 1300 MHz	Haswell	22nm	C0	84W
Intel	Core i5-4670S	3.10GHz	6MB	350 MHz / 1300 MHz	Haswell	22nm	C0	65W
Intel	Core i5-4670T	2.30GHz	6MB	350 MHz / 1300 MHz	Haswell	22nm	C0	45W
Intel	Core i5-4590	3.30GHz	6MB	350 MHz / 1250 MHz	Haswell Refresh	22nm	C0	84W
Intel	Core i5-4590S	3.00GHz	6MB	350 MHz / 1250 MHz	Haswell Refresh	22nm	C0	65W
Intel	Core i5-4590T	2.00GHz	6MB	350 MHz / 1250 MHz	Haswell Refresh	22nm	C0	35W
Intel	Core i5-4570	3.20GHz	6MB	350 MHz / 1250 MHz	Haswell	22nm	C0	84W
Intel	Core i5-4570S	2.90GHz	6MB	350 MHz / 1250 MHz	Haswell	22nm	C0	65W
Intel	Core i5-4570T	2.90GHz	4MB	350 MHz / 1100 MHz	Haswell	22nm	C0	35W
Intel	Core i5-4460	3.20GHz	6MB	350 MHz / 1200 MHz	Haswell Refresh	22nm	C0	84W
Intel	Core i5-4460S	2.90GHz	6MB	350 MHz / 1200 MHz	Haswell Refresh	22nm	C0	65W
Intel	Core i5-4460T	1.90GHz	6MB	350 MHz / 1200 MHz	Haswell Refresh	22nm	C0	35W
Intel	Core i5-4440	3.10GHz	6MB	350 MHz / 1200 MHz	Haswell	22nm	C0	84W
Intel	Core i5-4440S	2.80GHz	6MB	350 MHz / 1200 MHz	Haswell	22nm	C0	65W
Intel	Core i5-4430	3.00GHz	6MB	350 MHz / 1200 MHz	Haswell	22nm	C0	84W
Intel	Core i5-4430S	2.70GHz	6MB	350 MHz / 1200 MHz	Haswell	22nm	C0	65W
Intel	Core i3-4370	3.80GHz	4MB	350 MHz / 1250 MHz	Haswell Refresh	22nm	C0	54W
Intel	Core i3-4360	3.70GHz	4MB	350 MHz / 1250 MHz	Haswell Refresh	22nm	C0	54W
Intel	Core i3-4360T	3.20GHz	4MB	350 MHz / 1100 MHz	Haswell Refresh	22nm	C0	35W
Intel	Core i3-4350	3.60GHz	4MB	350 MHz / 1250 MHz	Haswell Refresh	22nm	C0	54W
Intel	Core i3-4350T	3.10GHz	4MB	350 MHz / 1100 MHz	Haswell Refresh	22nm	C0	35W
Intel	Core i3-4340	3.60GHz	4MB	350 MHz / 1250 MHz	Haswell	22nm	C0	54W
Intel	Core i3-4330	3.50GHz	4MB	350 MHz / 1250 MHz	Haswell	22nm	C0	54W
Intel	Core i3-4330T	3.00GHz	4MB	350 MHz / 1100 MHz	Haswell	22nm	C0	35W
Intel	Core i3-4160	3.60GHz	3MB	350 MHz / 1250 MHz	Haswell Refresh	22nm	C0	54W
Intel	Core i3-4160T	3.10GHz	3MB	350 MHz / 1100 MHz	Haswell Refresh	22nm	C0	35W
Intel	Core i3-4150	3.50GHz	3MB	350 MHz / 1250 MHz	Haswell Refresh	22nm	C0	54W
Intel	Core i3-4150T	3.00GHz	3MB	350 MHz / 1100 MHz	Haswell Refresh	22nm	C0	35W
Intel	Core i3-4130	3.40GHz	3MB	350 MHz / 1250 MHz	Haswell	22nm	C0	54W
Intel	Core i3-4130T	2.90GHz	3MB	350 MHz / 1100 MHz	Haswell	22nm	C0	35W
Intel	Pentium G3460	3.50GHz	3MB	350 MHz / 1200 MHz	Haswell Refresh	22nm	C0	53W
Intel	Pentium G3450	3.40GHz	3MB	350 MHz / 1200 MHz	Haswell Refresh	22nm	C0	53W
Intel	Pentium G3450T	2.90GHz	3MB	300 MHz / 1100 MHz	Haswell Refresh	22nm	C0	35W
Intel	Pentium G3440	3.30GHz	3MB	350 MHz / 1200 MHz	Haswell Refresh	22nm	C0	53W
Intel	Pentium G3440T	2.80GHz	3MB	300 MHz / 1100 MHz	Haswell Refresh	22nm	C0	35W
Intel	Pentium G3430	3.30GHz	3MB	350 MHz / 1200 MHz	Haswell	22nm	C0	54W
Intel	Pentium G3420	3.20GHz	3MB	350 MHz / 1200 MHz	Haswell	22nm	C0	54W
Intel	Pentium G3420T	2.70GHz	3MB	300 MHz / 1100 MHz	Haswell	22nm	C0	35W
Intel	Pentium G3258	3.20GHz	3MB	350 MHz / 1200 MHz	Haswell Refresh	22nm	C0	53W
Intel	Pentium G3250	3.20GHz	3MB	350 MHz / 1200 MHz	Haswell Refresh	22nm	C0	53W
Intel	Pentium G3250T	2.80GHz	3MB	300 MHz / 1100 MHz	Haswell Refresh	22nm	C0	35W
Intel	Pentium G3240	3.10GHz	3MB	350 MHz / 1200 MHz	Haswell Refresh	22nm	C0	53W
Intel	Pentium G3240T	2.70GHz	3MB	300 MHz / 1100 MHz	Haswell Refresh	22nm	C0	35W
Intel	Pentium G3220	3.00GHz	3MB	350 MHz / 1200 MHz	Haswell	22nm	C0	54W
Intel	Pentium G3220T	2.60GHz	3MB	300 MHz / 1100 MHz	Haswell	22nm	C0	35W
Intel	Celeron G1850	2.90GHz	2MB	350 MHz / 1150 MHz	Haswell Refresh	22nm	C0	53W
Intel	Celeron G1840	2.80GHz	2MB	350 MHz / 1150 MHz	Haswell Refresh	22nm	C0	53W
Intel	Celeron G1840T	2.40GHz	2MB	200 MHz / 1150 MHz	Haswell Refresh	22nm	C0	35W
Intel	Celeron G1830	2.80GHz	2MB	350 MHz / 1150 MHz	Haswell	22nm	C0	53W
Intel	Celeron G1820	2.70GHz	2MB	350 MHz / 1150 MHz	Haswell	22nm	C0	53W
Intel	Celeron G1820T	2.40GHz	2MB	200 MHz / 1150 MHz	Haswell	22nm	C0	35W
Intel	Xeon E3-1286 V3	3.70GHz	8MB	300 MHz / 1150 MHz	Haswell Refresh	22nm	C0	84W
Intel	Xeon E3-1286L V3	3.20GHz	8MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	C0	65W
Intel	Xeon E3-1285v3	3.60GHz	8MB	300 MHz / 1150 MHz	Haswell	22nm	C0	84W
Intel	Xeon E3-1285Lv3	3.10GHz	8MB	350 MHz / 1300 MHz	Haswell	22nm	C0	65W
Intel	Xeon E3-1276 V3	3.60GHz	8MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	C0	84W
Intel	Xeon E3-1275v3	3.50GHz	8MB	350 MHz / 1300 MHz	Haswell	22nm	C0	84W
Intel	Xeon E3-1275L V3	2.70GHz	4MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	C0	45W
Intel	Xeon E3-1265Lv3	2.50GHz	8MB	350 MHz / 1300 MHz	Haswell	22nm	C0	45W
Intel	Xeon E3-1246 V3	3.50GHz	8MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	C0	84W
Intel	Xeon E3-1245v3	3.40GHz	8MB	350 MHz / 1300 MHz	Haswell	22nm	C0	84W
Intel	Xeon E3-1226 V3	3.30GHz	8MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	C0	84W
Intel	Xeon E3-1225v3	3.20GHz	8MB	350 MHz / 1300 MHz	Haswell	22nm	C0	84W
Intel	Xeon E3-1281 V3	3.70GHz	8MB	N/A	Haswell Refresh	22nm	C0	80W
Intel	Xeon E3-1280v3	3.60GHz	8MB	N/A	Haswell	22nm	C0	80W
Intel	Xeon E3-1271 V3	3.60GHz	8MB	N/A	Haswell Refresh	22nm	C0	80W
Intel	Xeon E3-1270v3	3.50GHz	8MB	N/A	Haswell	22nm	C0	80W
Intel	Xeon E3-1241 V3	3.50GHz	8MB	N/A	Haswell Refresh	22nm	C0	80W
Intel	Xeon E3-1240v3	3.40GHz	8MB	N/A	Haswell	22nm	C0	80W
Intel	Xeon E3-1240L V3	2.00GHz	8MB	N/A	Haswell Refresh	22nm	C0	25W
Intel	Xeon E3-1231 V3	3.40GHz	8MB	N/A	Haswell Refresh	22nm	C0	80W
Intel	Xeon E3-1230v3	3.30GHz	8MB	N/A	Haswell	22nm	C0	80W
Intel	Xeon E3-1230Lv3	1.80GHz	8MB	N/A	Haswell	22nm	C0	25W
Intel	Xeon E3-1220v3	3.10GHz	8MB	N/A	Haswell	22nm	C0	80W
