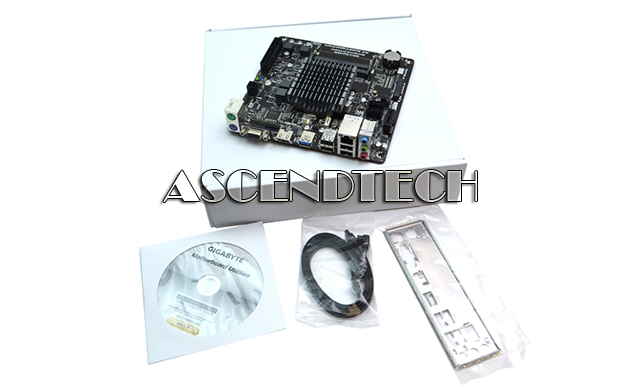

GIGABYTE GA-J1800N-D2H Rev.1.0 White Box

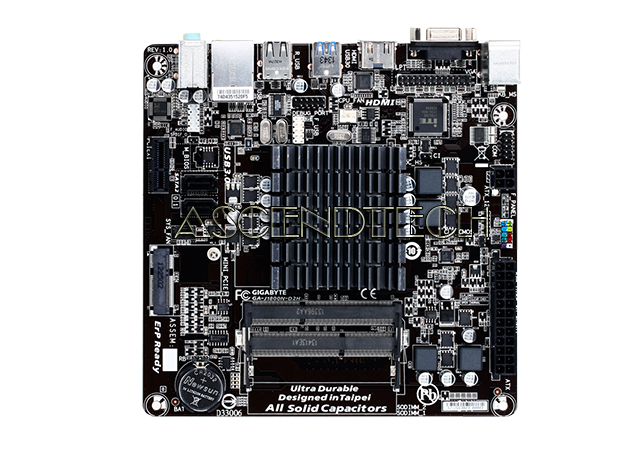

GIGABYTE GA-J1800N-D2H Rev.1.0 Intel Celeron J1800 2.41 GHz Dual-Core Processor DDR3 SATA 3Gb/s Mini-ITX Ultra Durable Motherboard. The GIGABYTE J1800N Mini-ITX motherboard is a fully integrated PC motherboard featuring the Intel® Celeron™ J1800 dual-core processor. Designed for compact, small form factor PC systems and devices, the GIGABYTE J1800N is entirely fanless, making it ideal for always-on, mission critical systems, as well as noise-sensitive digital entertainment systems. Connectivity includes digital and analog display outputs via VGA and HDMI ports, while a Mini-PCIe slot provides flexible Wi-Fi option.

Features:

- Built-in Intel® Celeron™ J1800 (2.41 GHz) Dual-Core processor
- GIGABYTE Ultra Durable™ Technology
- All Solid Capacitors with Humidity Protection New Glass Fabric PCB design
- LAN with high ESD Protection
- HDMI, D-SUB ports on rear panel
- USB 3.0 port with GIGABYTE 3x USB power
- GIGABYTE On/Off Charge™ for USB devices
- Mini PCI-E expansion slot supports wireless networking cards

Specifications:

CPU
- Built in with an Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz)
  * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.
- 1 MB Cache

Memory
- 2 x DDR3/-L SO-DIMM sockets supporting up to 8 GB of system memory
  * If only one DDR3/-L memory module is to be installed, be sure to install it in the SODIMM_1 socket.
- Dual channel memory architecture
- Support for DDR3/-L 1333 MHz memory modules
- Support for non-ECC memory modules

Onboard Graphics
Integrated in the SoC:
- 1 x D-Sub port, supporting a maximum resolution of 2560x1600
- 1 x HDMI port, supporting a maximum resolution of 1920x1080

Audio
- Realtek® ALC887 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
- Support for S/PDIF Out

LAN
- Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots
- 1 x PCI Express x1 slot
- 1 x Mini PCI Express x1 slot
  * This socket does not support USB Bluetooth signals.
  (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
  (For Mini-PCIE card/no mSATA card)

Storage Interface
SoC:
- 2 x SATA 3Gb/s connectors

USB
SoC:
- 1 x USB 3.0/2.0 port on the back panel
SoC + GL850S USB 2.0 Hub:
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 2 x SATA 3Gb/s connectors
- 1 x USB 2.0/1.1 header
- 1 x CPU fan header
- 1 x system fan header
- 1 x front panel header
- 1 x front panel audio header
- 1 x serial port header
- 1 x parallel port header
- 1 x S/PDIF Out header
- 1 x debug card header
- 1 x Clear CMOS jumper
- 1 x chassis intrusion header

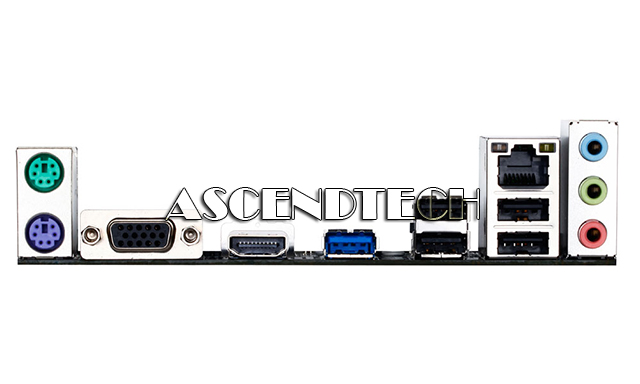

Back Panel Connectors
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x D-Sub port
- 1 x HDMI port
- 1 x USB 3.0/2.0 port
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller
- iTE® I/O Controller Chip

H/W Monitoring
- System voltage detection
- CPU/System temperature detection
- CPU/System fan speed detection
- CPU/System fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install

BIOS
- 1 x 64 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
- Support for @BIOS
- Support for Xpress Install
- Support for APP Center
  * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
- Support for ON/OFF Charge

Operating System
- Support for Windows 10/8.1/8/7

Form Factor
- Mini-ITX Form Factor; 17.0cm x 17.0cm
