Gigabyte GA-J1800N-D2PH R.1.1 MB No I/O

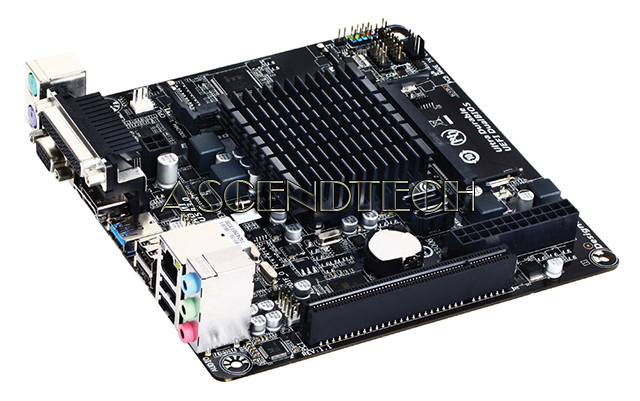

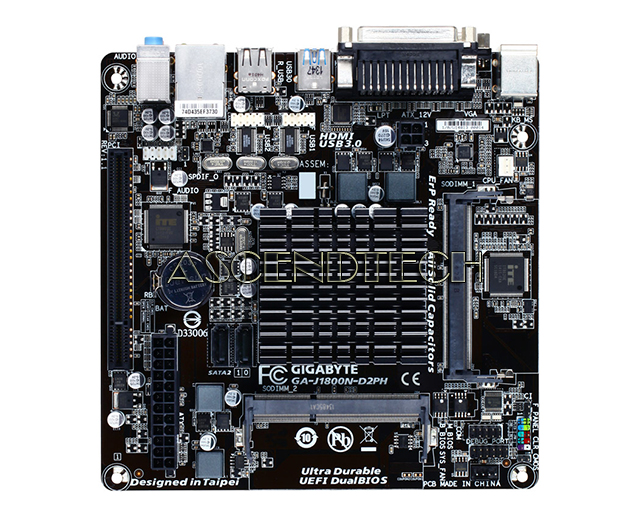

Gigabyte GA-J1800N-D2PH rev.1.1 Intel Celeron Dual-Core J1800 2.41GHz Processor DDR3 SO-DIMM Mini-ITX Motherboard. The GIGABYTE J1800N Mini-ITX motherboard is a fully integrated PC motherboard featuring the Intel Celeron J1800 dual-core processor. Designed for compact, small form factor PC systems and devices, the GIGABYTE J1800N is entirely fanless, making it ideal for always-on, mission critical systems, as well as noise-sensitive digital entertainment systems. Connectivity includes digital and analog display outputs via VGA and HDMI ports, while a PCI slot provides wide-range expansion card selections.

Features:

• Built-in Intel Celeron J1800 (2.41 GHz) dual-core processor
• GIGABYTE Ultra Durable 4 Plus Technology
• All Solid Capacitors with Humidity Protection New Glass Fabric PCB design
• LAN with high ESD Protection
• GIGABYTE UEFI DualBIOS
• HDMI, D-SUB ports on rear panel
• USB 3.0 port with GIGABYTE 3x USB power
• GIGABYTE On/Off Charge for USB devices
• PCI interface for wide-range expansion card selections










Specifications:

CPU
Built in with an Intel Dual-Core Celeron J1800 SoC (2.41 GHz)
* Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.
1 MB Cache
Memory
2 x DDR3/-L SO-DIMM sockets supporting up to 8 GB of system memory
* If only one DDR3/-L memory module is to be installed, be sure to install it in the SODIMM_1 socket.
Dual channel memory architecture
Support for DDR3/-L 1333 MHz memory modules
Support for non-ECC memory modules
Onboard Graphics
Integrated in the SoC:
1 x D-Sub port, supporting a maximum resolution of 2560x1600
1 x HDMI port, supporting a maximum resolution of 1920x1080
Audio
Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
LAN
Realtek GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI slot
Storage Interface
Integrated in the SoC:
2 x SATA 3Gb/s connectors
USB
Integrated in the SoC:
1 x USB 3.0/2.0 port on the back panel
?? 2 x GL850S chips:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x SATA 3Gb/s connectors
2 x USB 2.0/1.1 headers
1 x serial port header
1 x S/PDIF Out header
1 x chassis intrusion header
1 x Clear CMOS jumper

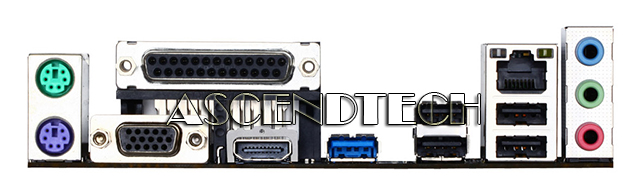

Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x HDMI port
1 x parallel port
1 x USB 3.0/2.0 port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for Xpress Install
Support for BIOS
Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
Support for ON/OFF Charge
Operating System
Support for Windows 10/8.1/8
Form Factor
Mini-ITX Form Factor; 17.0cm x 17.0cm
