Gigabyte GA-K8N Pro SLI S.939 MBoard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

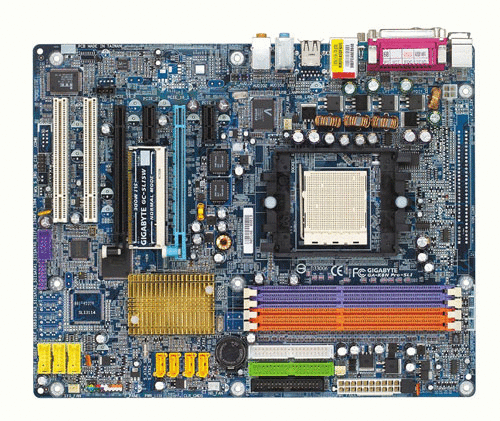

  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeMB64GBK8NUSLIRH
BrandGigabyte
ModelGA-K8NUSLI-RH
CategoryAmd Socket Am2+ Am3 Motherboards

Description

Gigabyte GA-K8N Pro SLI Socket 939 Dual PCI-Express X16 SATA-2 OEM Recertified Motherboard For AMD Athlon64 X2 / 64 FX / Athlon 64 Processors.

Specifications:

Download Your Drivers By Clicking Here!

Processor:
  1. Socket 939 supports AMD Athlon64 X2/ 64 FX/ 64
Chipset:
  1. NVIDIA nForce4 SLI MCPs (media and communication processors)
  2. Super I/O: ITE IT8712 chip
  3. Integrated peripherals
    1. Silicon Image sil 3114 controller
    2. T.I. IEEE1394b controller
    3. Marvell 8053 Gigabit Ethernet controller
    4. CICADA8201 Gigabit LAN PHY chip
    5. Realtek ALC850 Audio AC'97 Codec
Memory:
  1. Type: Dual channel DDR400/ 333/ 266 -184pin
  2. Max capacity: Up to 4GB by 4 DIMM slots
Internal I/O Connectors:
  1. 4 x Serial ATA connector
  2. 2 x UDMA ATA 133/100/66 Bus Master IDE connectors
  3. 1 x FDD connector
  4. 3 x USB 2.0/1.1 connectors (supports 6 ports)
  5. 2 x IEEE 1394b connectors (supports 3 ports)
  6. 3 x cooling fan pin headers
  7. CD in
Expansion Slots:
  1. 2 x PCI-Express X 16 slot, supports two PCI-Express interface Graphics cards with SLI mode
  2. 2 x PCI-Express X 1 slots
  3. 2 x PCI slots (PCI 2.3 compliant)
Rear Panel I/O:
  1. 4 x USB 2.0/1.1 ports
  2. 1 x RJ45 ports
  3. Audio (4 x Line-out/ 1 x Line-in/ 1 x MIC) connector
  4. Coaxial S/PDIF input/ output function
  5. PS/2 Keyboard/ Mouse
  6. 1 x LPT
CPU/AGP/DIMM setting:
  1. CPU HT / Multiplier / Vcore Voltage adjustable via BIOS
  2. PCI-ExpessX16 Voltage / Clock adjustable via BIOS
  3. DIMM Voltage / Clock adjustable via BIOS
Power:
  1. ATX power connector and ATX 12V connector
  2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
Form Factor:
  1. ATX form factor
  2. 30.5 x 24.4 cm
H/W Monitoring:
  1. System voltage detection
  2. CPU temperature detection
  3. CPU / System / Power fan speed detection
  4. CPU warning temperature
  5. CPU fan failure warning
BIOS:
  1. Award BIOS

CPU Support List:

VenderModelFSB2000
AMD Athlon 64x2 4800+(E6,Toledo,90nm,1MBx2)2000F4
AMD Athlon 64x2 4400+(E6,Toledo,90nm,1MBx2)2000F4
AMD Athlon 64x2 4600+(E4&E6,Manchester,90nm,512KBx2)2000F4
AMD Athlon 64x2 4200+(E4&E6,Manchester,90nm,512KBx2)2000F4
AMD Athlon 64x2 3800+(E4&E6,Manchester,90nm,512KBx2)2000F4
AMD Athlon 64 4000+(E4,San Diego,90nm,1MB)2000F2
AMD Athlon 64 3700+(E4,San Diego,90nm,1MB)2000F2
AMD Athlon 64 4000+(CG,ClawHammer,130nm,1MB)2000F2
AMD Athlon 64 3600+(CG,ClawHammer,130nm,1MB)2000F2
AMD Athlon 64 4000+(E6,San Diego,90nm,1M)2000F5
AMD Athlon 64 3700+(E6,San Diego,90nm,1M)2000F5
AMD Athlon 64 3200+(E4,Venice,90nm,512KB)2000F5
AMD Athlon 64 3800+(E3,E6,Venice,90nm,512KB)2000F4
AMD Athlon 64 3500+(E3&E4&E6,Venice,90nm,512KB)2000F5
AMD Athlon 64 3200+(E3&E6,Venice,90nm,512KB)2000F4
AMD Athlon 64 3000+(E3&E6,Venice,90nm,512KB)2000F4
AMD Athlon 64 3500+(D0,Winchester,90nm,512KB)2000F3
AMD Athlon 64 3200+(D0,Winchester,90nm,512KB)2000F2
AMD Athlon 64 3000+(D0,Winchester,90nm,512KB)2000F2
AMD Athlon 64 4000+(CG,Newcastle,130nm,1MB)2000F3
AMD Athlon 64 3800+(CG,Newcastle,130nm,512KB)2000F2
AMD Athlon 64 3500+(CG,Newcastle,130nm,512KB)2000F2
AMD Athlon 64 3400+(CG,Newcastle,130nm,512KB)1600F2
AMD Athlon 64 3200+(CG,Newcastle,130nm,512KB)2000F2
AMD Athlon 64 3000+(CG,Newcastle,130nm,512KB)2000F2
AMD Athlon 64 Sempron 3400+(E6,Palermo,90nm,128KB)1600F4
AMD Athlon 64 Sempron 3200+(E6,Palermo,90nm,256KB)1600F4
AMD Athlon 64 Sempron 3000+(E6,Palermo,90nm,128KB)1600F4
AMD Athlon 64 Sempron 3200+(E3,Palermo,90nm,256KB)2000F2
AMD Athlon 64 Sempron 3000+(E3,Palermo,90nm,128KB)2000F2
AMD Athlon 64 Sempron 3200+(D0,Paris,90nm,256KB)1600F2
AMD Athlon 64 FX60(E6,Toledo,90nm,2MB)2000F6
AMD Athlon 64 FX57(E4,San Diego,90nm,1MB)2000F3
AMD Athlon 64 FX55(E4,San Diego,90nm,1MB)2000F3
AMD Athlon 64 FX55(CG,ClawHammer,130nm,1MB)2000F2
AMD Athlon 64 FX53(CG,ClawHammer,130nm,1MB)2000F2
AMD Opteron x2 175(2.2GHz,1MB)2000N/A
AMD Opteron x2 170(2.0GHz,1MB)2000F5
AMD Opteron x2 165(E6,90nm,1MB)1800F6
AMD Opteron 185(Dual,2.6GHz,2MB)2000N/A
AMD Opteron 154(E4,90nm,2.8GHz,1MB)2000N/A
AMD Opteron 152(E4,90nm,2.6GHz,1MB)2000F5
AMD Opteron 150(E4,90nm,2.4GHz,1MB)2000N/A
AMD Opteron 148(E4,90nm,2.2GHz,1MB)2000N/A
AMD Opteron 146(E4,90nm,2.0GHz,1MB)2000F5
AMD Opteron 144(E4,90nm,1.8GHz,1MB)2000F5
