GIGABYTE GA-K8VM800M S.754 1600FSB Board

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

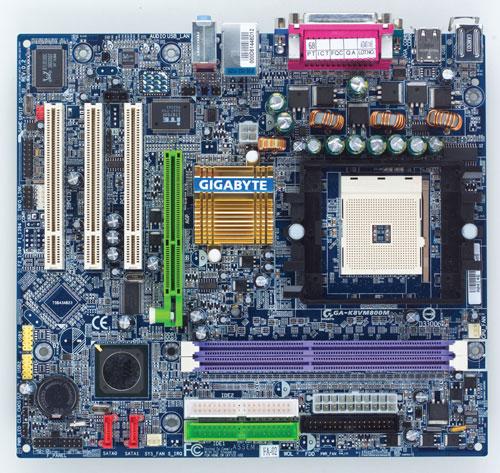

Gigabyte Ga-K8vm800m S.754 1600Fsb Board. Model: Ga-K8vm800mnf
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBAGBK8VM800
Brand Gigabyte
Model GA-K8VM800MNF
Category Amd Socket Am2+ Am3 Motherboards

Description

Gigabyte GA-K8VM800M Socket 754 Serial ATA 1600Mhz FSB 1 AGP 8X, 3-PCI Slots OEM Motherboard For AMD Sempron / Athlon / Athlon 64 Processors In Socket 754. Supporting the revolutionary AMD AthlonTM64 processor, GA-K8VM800M (Rev 1.x) delivers the most cost effective platform and brings new levels of performance and features to the desktop systems. The brand new AMD AthlonTM64 processor is furnished with unprecedented framework consisted of AMD’s 64-bit computing platform, HyperTransport Technology, and the CPU-integrated memory controller to boost the overall performance. Accompanied with the innovative designs of AthlonTM64, the VIA K8M800 features an Integrated Graphics Processor (IGP) as well as an unparalleled range of cutting edge I/O and multimedia features, allowing both consumer and business users to enjoy an exceptional graphics experience. The high speed Fast Ethernet interface is equipped for establishing the efficient broadband connection to the internet. With up to 150MB/s data transfer rate, the Serial ATA interface provides superior input/output performance and data protection. GA-K8VM800M (Rev 1.x) is the best choice for multi-functional system used in home and office environment.

*Please note that this model does not come with the backplate!

Specifications:

Processor:
  1. Socket 754 for AMD Athlon64
Chipset:
  1. VIA K8M800 Chipset
  2. VIA VT8237 Chipset
  3. Super I/O: ITE IT8705 chip
  4. Integrated peripherials
    1. Realtek 8100C Ethernet controller
    2. Realtek ALC655 Audio AC'97 Codec
Memory:
  1. Type: DDR400/ 333/ 266- 184pin
  2. Max capacity: Up to 2GB by 2 DIMM slots
Internal I/O Connectors:
  1. 2 x Serial ATA connector
  2. 2 x UDMA ATA 133/100/66 Bus Master IDE connectors
  3. 1 x FDD connector
  4. 2 x USB 2.0/1.1 connectors (supports 4 ports)
  5. S/P DIF input/output pin header
  6. 2 x cooling fan pin headers
  7. CD/AUX in
  8. 1 x Game/Midi connector
Expansion Slots:
  1. 1 x AGP slot (8x/4x-AGP 3.0 compliant), supports 1.5v display card only.
  2. 3 x PCI slots (PCI 2.2 compliant)
Rear Panel I/O:
  1. PS/2 Keyboard / Mouse
  2. 4 x USB 2.0/1.1 ports
  3. 1 x RJ45 port
  4. 1 x COM port
  5. 1 x LPT
  6. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
  7. 1 x VGA port
CPU/AGP/DIMM setting:
  1. CPU FSB adjustable via BIOS
Power:
  1. ATX power connector and ATX 12V connector
  2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
Form Factor:
  1. Micro ATX form factor
  2. 24.4 x 22.0 cm
H/W Monitoring:
  1. System health status auto-detect and report by BIOS
  2. Hardware detecting and reporting for case open, CPU voltage, and fan speed.
BIOS:
  1. 2M bit flash ROM, Phoenix BIOS

For Drivers Download Click Here!

CPU Support List:

AMD Athlon 64 3700+(CG,Newcastle,130nm,1MB)1600OK
AMD Athlon 64 3400+(CG,Newcastle,130nm,512KB)1600OK
AMD Athlon 64 3200+(CG,Newcastle,130nm,512KB)1600OK
AMD Athlon 64 3000+(CG,Newcastle,130nm,512KB)1600OK
AMD Athlon 64 2800+(CG,Newcastle,130nm,512KB)1600OK
AMD Athlon 64 3400+(CG&C0,SledgeHammer,130nm,1MB)1600OK
AMD Athlon 64 3200+(CG&C0,Newcastle,130nm,1MB)1600OK
AMD Athlon 64 2800+(CG&C0,SledgeHammer,130nm,512KB)1600OK
AMD Athlon 64 3400+(CG,SledgeHammer,130nm,512KB)1600OK
AMD Athlon 64 3200+(CG,SledgeHammer,130nm,512KB)1600OK
AMD Athlon 64 3000+(CG&C0,SledgeHammer,130nm,512KB)1600OK
AMD Athlon 64 3200+(E6,Venice,90nm,512KB)1600F8
AMD Athlon 64 3000+(E6,Venice,90nm,512KB)1600OK
AMD Sempron 3100+(CG,Paris,130nm,256KB)1600OK
AMD Sempron 3400+(E6,Palermo,90nm,256KB)1600OK
AMD Sempron 3300+(E6,Palermo,90nm,128KB)1600OK
AMD Sempron 3100+(E6,Palermo,90,256KB)1600OK
AMD Sempron 3000+(E6,Palermo,90nm,128KB)1600OK
AMD Sempron 2800+(E6,Palermo,90nm,256KB)1600OK
AMD Sempron 2600+(E6,Palermo,90nm,128KB)1600OK
AMD Sempron 2500+(E6,Palermo,90nm,256KB)1600OK
AMD Sempron 3300+(E3,Palermo,90nm,128KB)1600OK
AMD Sempron 3100+(E3,Palermo,90nm,256KB)1600OK
AMD Sempron 3000+(E3,Palermo,90nm,128KB)1600OK
AMD Sempron 2800+(E3,Palermo,90nm,256KB)1600OK
AMD Sempron 2600+(E3,Palermo,90nm,128KB)1600OK
AMD Sempron 3300+(D0,Paris,90nm,128KB)1600OK
AMD Sempron 3100+(D0,Paris,90nm,256KB)1600OK
AMD Sempron 3000+(CG&D0,Paris,90nm,128KB)1600OK
AMD Sempron 2800+(D0,Paris,90nm,256KB)1600OK
AMD Sempron 2600+(D0,Paris,90nm,128KB)1600OK
