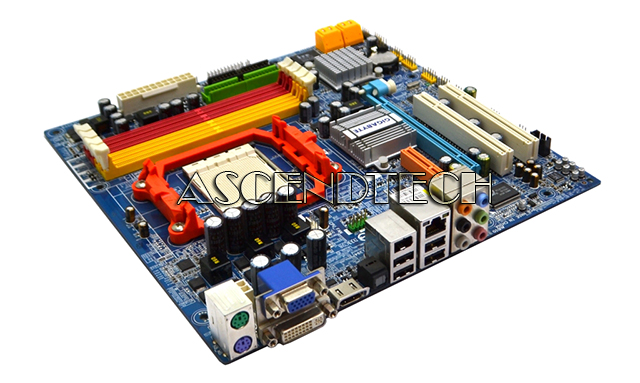

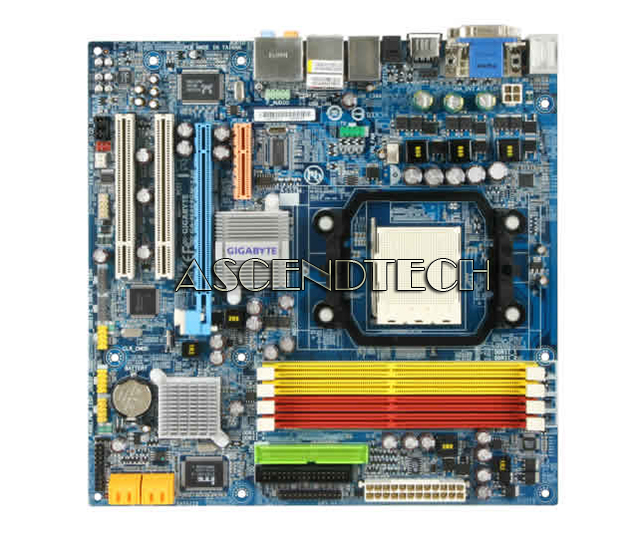

Gigabyte GA-MA69GM-S2H rev.1.0 AMD Chipset 690G Socket AM3/AM2+/AM2 DDR2 Micro ATX Motherboard. GIGABYTE Technology latest S series motherboards for AMD socket AM2 platform, featuring with innovative features- Safe, Smart Technologies. The new S series motherboards GA-MA69GM-S2H; supporting AMD new generation AM2 processor with dual channel DDR2 800MHz high frequency memories, providing reliable and user friendly computing and reaching the maximum system performance easily via personalized software settings. GIGABYTE S series motherboards, the champion's choice for AMD Socket AM2 platform!

Features:

• Supports AMD Athlon/ Sempron processors*
• Dual-Channel DDR2 800 for outstanding system performance
• Integrated ATI Radeon X1250-based graphics
• Ultimate graphics performance with PCI-E x16 interface
• Integrated SATA 3Gb/s with RAID function
• Features high speed Gigabit Ethernet and IEEE 1394
• Integrated ALC889A 8-Channel High Definition audio with 106 dB Signal to Noise ratio, fully support Blu-ray/ HD DVD playback
• Integrated DVI/ HDMI interface with HDCP
• TV out cable with S-video/ YPbPr interface










Specifications:

CPU
Support for Socket AM2+/ AM2 processors: AMD PhenomFX processor/ AMD Phenom processor/ AMD Athlon 64 FX processor/AMD Athlon 64 X2 Dual-Core processor/AMD Athlon 64 processor/AMD Sempron processor.
Chipset
North Bridge Chipset: AMD 690G
South Bridge Chipset: ATI SB600
Super I/O chip: ITE IT8716
Integrated Peripherals
Realtek RTL8110 Gigabit Ethernet
Realtek ALC889A Audio Codec
Memory
4 DDR2 DIMM memory slots (supports up to 16GB memory)(Note 1)
Supports dual channel DDR2 800/667/533/400 DIMMs
Supports 1.8V DDR2 DIMMs
Expansion Slots
1 PCI Express x 16 slot
1 PCI Express x 4 slot
2 PCI slot
Internal I/O Connectors
1 24-pin ATX power connector
1 4-pin ATX 12V power connector
1 floppy connector
1 IDE connector
4 SATA 3Gb/s connector
1 CPU fan header
1 system fan header
1 front panel header
1 front audio header r
1 CD In connector
1 SPDIF In/Out header
1 TV Out header
2 IEEE 1394a header
3 USB 2.0/1.1 header for additional 6 USB 2.0/1.1 ports by cables
1 Parallel port header
1 Serial port header
1 Power LED header
1 Chassis Intrusion header

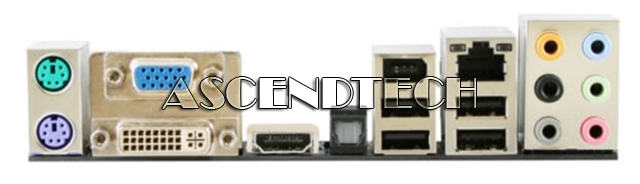

Back Panel Connectors
1 PS/2 keyboard port
1 PS/2 mouse port
1 D-Sub port
1 DVI-D port (Note 2)
1 HDMI port
1 Optical SPDIF Out port
1 IEEE 1394a port
4 USB 2.0/1.1 port
1 RJ-45 LAN port
6 audio jacks (Line In / Line Out / MIC In/Surround Speaker Out (Rear Speaker Out)/Center/Subwoofer Speaker Out/Side Speaker Out)
H/W Monitoring
System voltage detection
CPU / System temperature detection
CPU / System fan speed detection
CPU / System warning temperature
CPU fan failure warning
Supports CPU Smart Fan function (Note 3)
BIOS
1 4Mbit flash ROM
Use of licensed AWARD BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Other Features
Supports BIOS
Supports Download Center
Supports Q-Flash
Supports EasyTune (only supports Hardware Monitor function) (Note 4)
Supports Xpress Install
Supports Xpress Recovery2
Supports Xpress BIOS Rescue
Power
ATX power connector and ATX 12V connector
