Gigabyte GA-MA790GPT-UD3H rev.1.0 No I/O

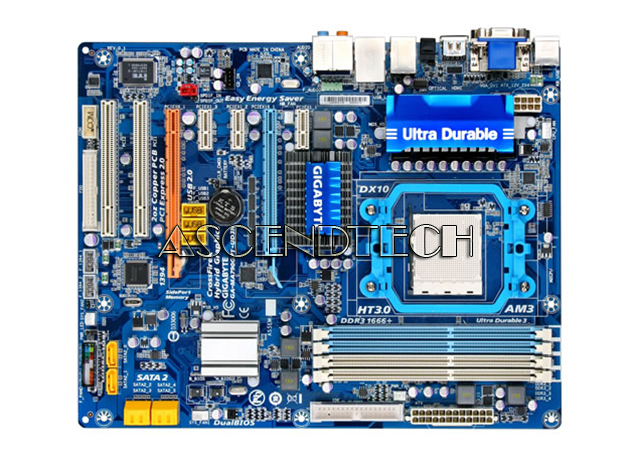

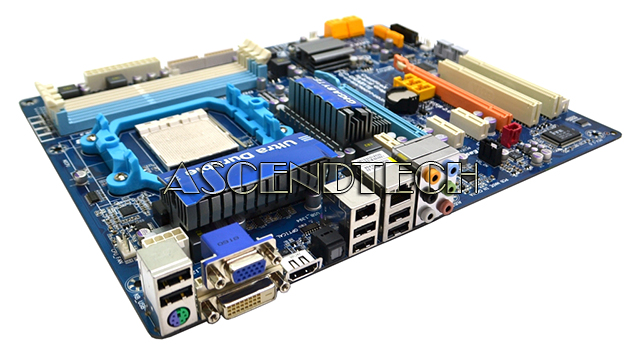

Gigabyte GA-MA790GPT-UD3H rev.1.0 AMD Chipset 790GX Socket AM3 DDR3 ATX Motherboard. The GA-MA790GPT-UD3H introduces revolutionary GIGABYTE Ultra Durable 3 technology on AMD platform with featuring 2 oz copper PCB and further helps to reduce the system temperature and dramatically enhance the performance. Based on AMD 790GX chipset, the GA-MA790GPT-UD3H supports the latest 45nm AMD AM3 Phenom II / Athlon II processors, integrated DDR3 memory controller, HyperTransport 3.0 technology links and dual PCI Express 2.0 graphics interfaces (running at x8 and x8) for ATI CrossFireX / ATI Hybrid CrossFireX support. With the innovative GIGABYTE Easy Energy Saver technology, the MA790GPT-UD3H is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time.

Features:

• Supports new generation of AMD Phenom II X6 processors
• Ultra Durable 3 Classic Technology with copper cooled quality for lower working temperature
• Revolution energy saving design with Easy Energy Saver technology
• Supports AMD AM3 Phenom II/ Athlon II processors
• Dual Channel DDR3 1666+ for remarkable system performance
• Built-in 128MB DDR3 1333MHz SidePort Memory
• Integrated ATI Radeon HD 3300 graphics (DirectX10)
• 2 PCI-E 2.0 x16 interface with ATI CrossFireX/ Hybrid CrossFireX support for ultimate graphics performance
• Features high speed Gigabit Ethernet and IEEE1394
• Blu-ray playback supported by high quality 106dB SNR ALC889A HD audio
• Supports Dolby Home Theater audio to enjoy a rich surround sound experience
• Integrated HDMI/ DVI interface for Full HD 1080 Blu-ray playback with HDCP
• Patented DualBIOS with dual hardware BIOS protection
• 100% 50,000 hours lifespan of Japanese solid capacitors design











Specifications:

CPU
Support for AM3 processors: AMD Phenom II processor/ AMD Athlon II processor
Hyper Transport Bus
5200 MT/s
Chipset
North Bridge: AMD 790GX
South Bridge: AMD SB750
Memory
4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
Dual channel memory architecture
Support for DDR3 1666(O.C.)/1333/1066 MHz memory modules
Integrated Memory
128MB DDR3 SidePort memory
Onboard Graphics
Integrated in the North Bridge:
1 x D-Sub port
1 x DVI-D port (Note 2)(Note 3)
1 x HDMI port (Note 3)
Audio
Realtek ALC889A codec
High Definition Audio
2/4/5.1/7.1-channel
Support for Dolby Home Theater
Support for S/PDIF In/Out
Support for CD In
LAN
Realtek 8111C chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16_1) (Note 4)
1 x PCI Express x16 slot, running at x8 (PCIEX8_1) (Note 4)
(The PCIEX16_1 and PCIEX8_1 slots support ATI Hybrid CrossFireX technology and ATI CrossFireX technology, and conform to PCI Express 2.0 standard.)
3 x PCI Express x1 slots
2 x PCI slots
Storage Interface
South Bridge:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID5, RAID 10 and JBOD
iTE IT8718 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB
Integrated in the South Bridge
Up to 12 USB 2.0/1.1 ports (6 on the back panel, 6 via the USB brackets connected to the internal USB headers)
IEEE 1394
T.I. TSB43AB23 chip
Up to 3 IEEE 1394a ports (1 on the back panel, 2 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
6 x SATA 3Gb/s connectors
1 x CPU fan header
2 x system fan header
1 x power fan header
1 x North Bridge fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
2 x IEEE 1394a header
3 x USB 2.0/1.1 headers
1 x serial port header
1 x chassis intrusion header
1 x power LED header
1 x Clearing CMOS jumper

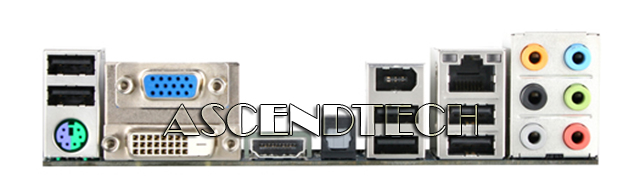

Back Panel Connectors
1 x PS/2 keyboard port or PS/2 mouse port
1 x D-Sub port
1 x DVI-D port (Note 2) (Note 3)
1 x HDMI port (Note 3)
1 x optical S/PDIF Out connector
1 x IEEE 1394a port
6 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
ITE IT8718 chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control (Note 5)
BIOS
2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
Support for BIOS
Support for Q-Flash
Support for Virtual Dual BIOS
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune (Note 6)
Support for Easy Energy Saver
Support for Time Repair
Support for Q-Share
Operating System
Support for Microsoft Windows Vista/ XP
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
