GIGABYTE GA-P55M-UD2 1156 P55 CROSSFIREX

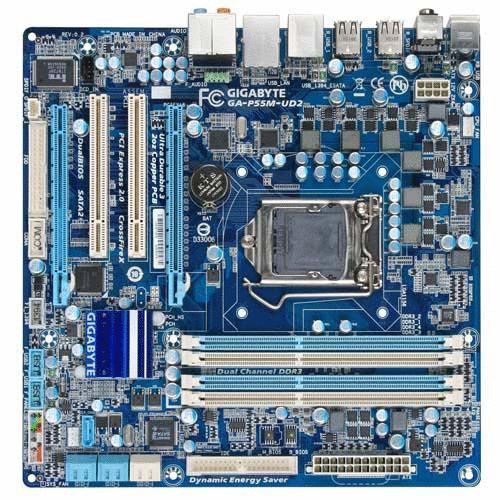

GIGABYTE GA-P55M-UD2 Socket 1156 Intel P55 DDR3 CrossFireX Audio Video and LAN MATX Motherboard

Specifications:

• Mfr Part Number: GA-P55M-UD2
• CPU: Socket 1156 Support Intel Core i5 and i7 multi-core processors
• Chipset: Intel P55
• Memory: 4x 240pin DDR3-2200/1600/1333/1066/800 DIMMs, Dual Channel, Capacity Upto 16GB
• Slots: 2x PCI-Express x16 Slot (Support PCI-Express 2.0; Support for ATI CrossFireX); 2x PCI Slots
• IDE/SATA: 1x ATA-133 Channel; 1x eSATA2 Port, 5x SATA2 Ports, Support RAID 0, 1, 5, 10; 2x SATA2 by Marvell 88SE9123
• Audio: Realtek ALC888B 7.1-Channel High Definition Audio CODEC
• LAN: Realtek RTL8111D 10/100/1000Mbps Gigabit Ethernet Controller
• Ports: 14x USB 2.0 Ports (10 rear, 4 by headers); 2x IEEE 1394a Ports (1 rear, 1 by header); 1x PS/2 Comb Ports; 1x eSATA Port; 1x optical S/PDIF-out Port; 1x coaxial S/PDIF-out Port; 1x RJ45 LAN Port; Audio I/O Jacks
• Power Connector: 1x 24pin main power; 1x 8-pin ATX 12V power connector
• Form Factor: Micro ATX, 24.4 x 24.4 cm
• RoHS Compliant
