GA-P75-D3 | Gigabyte Ga-P75-D3 Motherboard No I/O

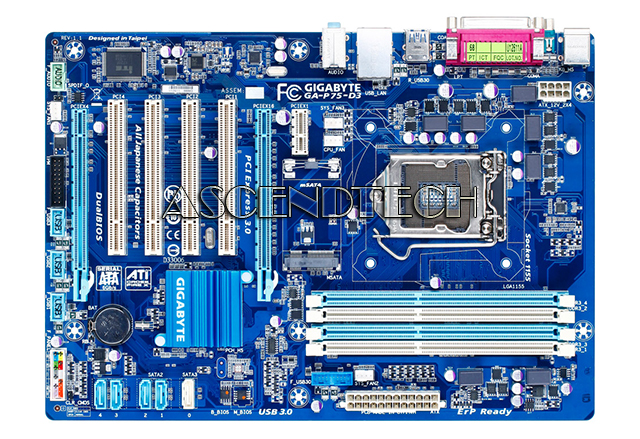

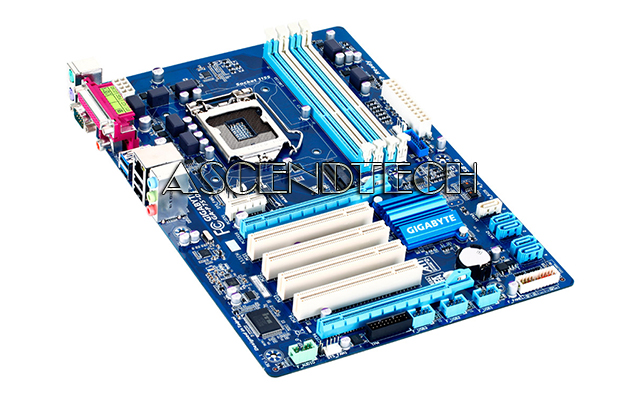

Gigabyte GA-P75-D3 Intel B75 Socket LGA1155 DDR3 ATX Motherboard.

Features:

- All new design of Ultra Durable 4 classic
- Supports 3rd Gen. Intel® 22nm CPUs and 2nd Gen. Intel® Core™ CPUs (LGA1155 socket)
- Dual UEFI BIOS protection with 3TB+ HDD boot up capability
- PCI Express Gen 3.0 support
- Onboard mSATA slot for mSATA SSDs
- Industry's Leading All Japanese Solid Capacitor Design
- GIGABYTE 333™ Onboard Acceleration (USB 3.0, SATA 3.0 & 3x USB Power)
- 2-way CrossFireX™ multi-GPU support
- GIGABYTE On/Off Charge™ for USB devices

Specifications:

CPU
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
L3 cache varies with CPU
Chipset
Intel® B75 Express Chipset
Memory
4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 2200(OC)/1600/1333/1066 MHz memory modules
* To support DDR3 1600 MHz, you must install an Intel® 22nm (Ivy Bridge) CPU that supports DDR3 1600 MHz.
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support XMP memory, you must install an Intel® 22nm (Ivy Bridge) CPU that supports DDR3 1600 MHz.
Audio
Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
LAN
1 x Realtek GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
(PCIEX16 slot conforms to PCI Express 3.0 standard.)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(PCIEX4/PCIEX1 slots conform to PCI Express 2.0 standard.)
4 x PCI slots
Storage Interface
Chipset:
1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device
4 x SATA 3Gb/s connectors (SATA2 1~4) supporting up to 4 SATA 3Gb/s devices
1 x mSATA connector
Multi-Graphics Technology
Support for AMD CrossFireX™ technology
USB
Chipset:
Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
* In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.
Up to 8 USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x SATA 6Gb/s connector
4 x SATA 3Gb/s connectors
1 x mSATA connector
1 x CPU fan header
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
3 x USB 2.0/1.1 headers
1 x Clear CMOS jumper
1 x Trusted Platform Module (TPM) header

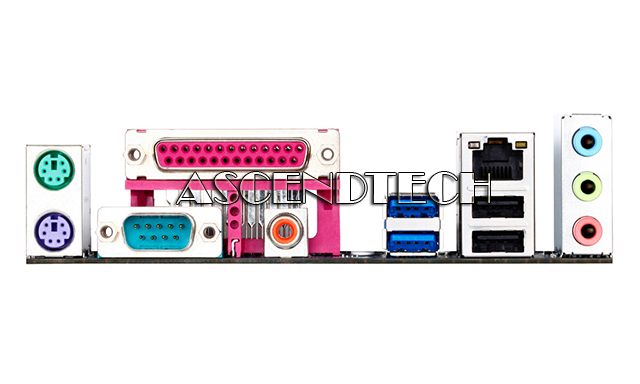

Back Panel Connectors
1 x PS/2 Keyboard port
1 x PS/2 mouse port
1 x parallel port
1 x serial port
1 x coaxial S/PDIF Out connector
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
BIOS
2 x 64 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for BIOS
Support for Q-Flash
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
Support for Auto Green
Support for ON/OFF Charge
Support for Q-Share
Support for EZ Setup
Operating System
Support for Microsoft® Windows 8/7/XP
Form Factor
ATX Form Factor; 30.5cm x 21.5cm

CPU Support

Socket 1155
Motherboard
Vendor	CPU Model	Frequency	L3 Cache	GPU Frequency	Core Name	Process	Stepping	Wattage
Intel	Core i7-3770K	3.50GHz	8MB	720 MHz	Ivy Bridge	22nm	E1	77W
Intel	Core i7-3770	3.40GHz	8MB	720 MHz	Ivy Bridge	22nm	E1	77W
Intel	Core i7-3770S	3.10GHz	8MB	720 MHz	Ivy Bridge	22nm	E1	65W
Intel	Core i7-3770T	2.50GHz	8MB	720 MHz	Ivy Bridge	22nm	E1	45W
Intel	Core i5-3570	3.40GHz	6MB	720 MHz	Ivy Bridge	22nm	N0	77W
Intel	Core i5-3570K	3.40GHz	6MB	720 MHz	Ivy Bridge	22nm	E1	77W
Intel	Core i5-3570S	3.10GHz	6MB	720 MHz	Ivy Bridge	22nm	N0	65W
Intel	Core i5-3570T	2.30GHz	6MB	720 MHz	Ivy Bridge	22nm	E1	45W
Intel	Core i5-3550S	3.00GHz	6MB	720 MHz	Ivy Bridge	22nm	E1	65W
Intel	Core i5-3550	3.30GHz	6MB	720 MHz	Ivy Bridge	22nm	E1	77W
Intel	Core i5-3475S	2.90GHz	6MB	720 MHz	Ivy Bridge	22nm	E1	65W
Intel	Core i5-3470	3.20GHz	6MB	720 MHz	Ivy Bridge	22nm	N0	77W
Intel	Core i5-3470S	2.90GHz	6MB	720 MHz	Ivy Bridge	22nm	N0	65W
Intel	Core i5-3470T	2.90GHz	3MB	720 MHz	Ivy Bridge	22nm	L1	35W
Intel	Core i5-3450	3.10GHz	6MB	720 MHz	Ivy Bridge	22nm	E1	77W
Intel	Core i5-3450S	2.80GHz	6MB	720 MHz	Ivy Bridge	22nm	E1	65W
Intel	Core i5-3350P	3.10GHz	6MB	N/A	Ivy Bridge	22nm	N0	69W
Intel	Core i5-3350P	3.10GHz	6MB	N/A	Ivy Bridge	22nm	E1	69W
Intel	Core i5-3340	3.10GHz	6MB	720 MHz	Ivy Bridge	22nm	N0	77W
Intel	Core i5-3340	3.10GHz	6MB	720 MHz	Ivy Bridge	22nm	E1	77W
Intel	Core i5-3340S	2.80GHz	6MB	720 MHz	Ivy Bridge	22nm	E1	65W
Intel	Core i5-3330	3.00GHz	6MB	720 MHz	Ivy Bridge	22nm	N0	77W
Intel	Core i5-3330	3.00GHz	6MB	720 MHz	Ivy Bridge	22nm	E1	77W
Intel	Core i5-3330S	2.70GHz	6MB	720 MHz	Ivy Bridge	22nm	E1	65W
Intel	Core i3-3240	3.40GHz	3MB	720 MHz	Ivy Bridge	22nm	P0	55W
Intel	Core i3-3240	3.40GHz	3MB	720 MHz	Ivy Bridge	22nm	L1	55W
Intel	Core i3-3240T	2.90GHz	3MB	720 MHz	Ivy Bridge	22nm	P0	35W
Intel	Core i3-3240T	2.90GHz	3MB	720 MHz	Ivy Bridge	22nm	L1	35W
Intel	Core i3-3225	3.30GHz	3MB	720 MHz	Ivy Bridge	22nm	L1	55W
Intel	Core i3-3220	3.30GHz	3MB	720 MHz	Ivy Bridge	22nm	N0	55W
Intel	Core i3-3220	3.30GHz	3MB	720 MHz	Ivy Bridge	22nm	P0	55W
Intel	Core i3-3220	3.30GHz	3MB	720 MHz	Ivy Bridge	22nm	E1	55W
Intel	Core i3-3220	3.30GHz	3MB	720 MHz	Ivy Bridge	22nm	L1	55W
Intel	Core i3-3220T	2.80GHz	3MB	720 MHz	Ivy Bridge	22nm	L1	35W
Intel	Core i3-3220T	2.80GHz	3MB	720 MHz	Ivy Bridge	22nm	P0	35W
Intel	Core i3-3210	3.20GHz	3MB	720 MHz	Ivy Bridge	22nm	P0	55W
Intel	Core i7-2700K	3.50GHz	8MB	1050 MHz	Sandy Bridge	32nm	D2	95W
Intel	Core i7-2600	3.40GHz	8MB	1050 MHz	Sandy Bridge	32nm	D2	95W
Intel	Core i7-2600K	3.40GHz	8MB	1050 MHz	Sandy Bridge	32nm	D2	95W
Intel	Core i7-2600S	2.80GHz	8MB	1050 MHz	Sandy Bridge	32nm	D2	65W
Intel	Core i5-2550K	3.40GHz	6MB	N/A	Sandy Bridge	32nm	D2	95W
Intel	Core i5-2500	3.30GHz	6MB	1050 MHz	Sandy Bridge	32nm	D2	95W
Intel	Core i5-2500K	3.30GHz	6MB	1050 MHz	Sandy Bridge	32nm	D2	95W
Intel	Core i5-2500S	2.70GHz	6MB	1050 MHz	Sandy Bridge	32nm	D2	65W
Intel	Core i5-2500T	2.30GHz	6MB	720 MHz	Sandy Bridge	32nm	D2	45W
Intel	Core i5-2450P	3.20GHz	6MB	N/A	Sandy Bridge	32nm	D2	95W
Intel	Core i5-2405S	2.50GHz	6MB	1050 MHz	Sandy Bridge	32nm	D2	65W
Intel	Core i5-2400	3.10GHz	6MB	1050 MHz	Sandy Bridge	32nm	D2	95W
Intel	Core i5-2400S	2.50GHz	6MB	1050 MHz	Sandy Bridge	32nm	D2	65W
Intel	Core i5-2390T	2.70GHz	3MB	720 MHz	Sandy Bridge	32nm	Q0	35W
Intel	Core i5-2380P	3.10GHz	6MB	N/A	Sandy Bridge	32nm	D2	95W
Intel	Core i5-2320	3.00GHz	6MB	1050 MHz	Sandy Bridge	32nm	D2	95W
Intel	Core i5-2310	2.90GHz	6MB	1050 MHz	Sandy Bridge	32nm	D2	95W
Intel	Core i5-2300	2.80GHz	6MB	1050 MHz	Sandy Bridge	32nm	D2	95W
Intel	Core i3-2130	3.40GHz	3MB	1050 MHz	Sandy Bridge	32nm	D2	65W
Intel	Core i3-2125	3.30GHz	3MB	1050 MHz	Sandy Bridge	32nm	D2	65W
Intel	Core i3-2120	3.30GHz	3MB	1050 MHz	Sandy Bridge	32nm	Q0	65W
Intel	Core i3-2120T	2.60GHz	3MB	720 MHz	Sandy Bridge	32nm	Q0	35W
Intel	Core i3-2105	3.10GHz	3MB	1050 MHz	Sandy Bridge	32nm	D2	65W
Intel	Core i3-2100T	2.50GHz	3MB	720 MHz	Sandy Bridge	32nm	Q0	35W
Intel	Core i3-2100	3.10GHz	3MB	1050 MHz	Sandy Bridge	32nm	Q0	65W
Intel	Pentium G2140	3.30GHz	3MB	720 MHz	Ivy Bridge	22nm	P0	55W
Intel	Pentium G2130	3.20GHz	3MB	720 MHz	Ivy Bridge	22nm	P0	55W
Intel	Pentium G2120	3.10GHz	3MB	720 MHz	Ivy Bridge	22nm	P0	55W
Intel	Pentium G2120T	2.70GHz	3MB	720 MHz	Ivy Bridge	22nm	P0	35W
Intel	Pentium G2030	3.00GHz	3MB	720 MHz	Ivy Bridge	22nm	P0	55W
Intel	Pentium G2030T	2.60GHz	3MB	720 MHz	Ivy Bridge	22nm	P0	35W
Intel	Pentium G2100T	2.60GHz	3MB	720 MHz	Ivy Bridge	22nm	P0	35W
Intel	Pentium G2020	2.90GHz	3MB	720 MHz	Ivy Bridge	22nm	E1	55W
Intel	Pentium G2020	2.90GHz	3MB	720 MHz	Ivy Bridge	22nm	N0	55W
Intel	Pentium G2020	2.90GHz	3MB	720 MHz	Ivy Bridge	22nm	L1	55W
Intel	Pentium G2020	2.90GHz	3MB	720 MHz	Ivy Bridge	22nm	P0	55W
Intel	Pentium G2020T	2.50GHz	3MB	720 MHz	Ivy Bridge	22nm	P0	35W
Intel	Pentium G2010	2.80GHz	3MB	720 MHz	Ivy Bridge	22nm	P0	55W
Intel	Pentium G2010	2.80GHz	3MB	720 MHz	Ivy Bridge	22nm	N0	55W
Intel	Pentium G870	3.10GHz	3MB	1050 MHz	Sandy Bridge	32nm	Q0	65W
Intel	Pentium G860	3.00GHz	3MB	1050 MHz	Sandy Bridge	32nm	Q0	65W
Intel	Pentium G860T	2.60GHz	3MB	720 MHz	Sandy Bridge	32nm	Q0	35W
Intel	Pentium G850	2.90GHz	3MB	1050 MHz	Sandy Bridge	32nm	Q0	65W
Intel	Pentium G840	2.80GHz	3MB	1050 MHz	Sandy Bridge	32nm	Q0	65W
Intel	Pentium G640	2.80GHz	3MB	1050 MHz	Sandy Bridge	32nm	Q0	65W
Intel	Pentium G640T	2.40GHz	3MB	720 MHz	Sandy Bridge	32nm	Q0	35W
Intel	Pentium G630	2.70GHz	3MB	1050 MHz	Sandy Bridge	32nm	Q0	65W
Intel	Pentium G630T	2.30GHz	3MB	720 MHz	Sandy Bridge	32nm	Q0	35W
Intel	Pentium G620	2.60GHz	3MB	1050 MHz	Sandy Bridge	32nm	Q0	65W
Intel	Pentium G620T	2.20GHz	3MB	720 MHz	Sandy Bridge	32nm	Q0	35W
Intel	Pentium G645	2.90GHz	3MB	1050 MHz	Sandy Bridge	32nm	Q0	65W
Intel	Pentium G645T	2.50GHz	3MB	720 MHz	Sandy Bridge	32nm	Q0	35W
Intel	Celeron G1630	2.80GHz	2MB	720 MHz	Ivy Bridge	22nm	P0	55W
Intel	Celeron G1620	2.70GHz	2MB	720 MHz	Ivy Bridge	22nm	P0	55W
Intel	Celeron G1620T	2.40GHz	2MB	720 MHz	Ivy Bridge	22nm	P0	35W
Intel	Celeron G1610	2.60GHz	2MB	720 MHz	Ivy Bridge	22nm	P0	55W
Intel	Celeron G1610T	2.30GHz	2MB	720 MHz	Ivy Bridge	22nm	P0	35W
Intel	Celeron G555	2.70GHz	2MB	1050 MHz	Sandy Bridge	32nm	Q0	65W
Intel	Celeron G550T	2.20GHz	2MB	720 MHz	Sandy Bridge	32nm	Q0	35W
Intel	Celeron G550	2.60GHz	2MB	1050 MHz	Sandy Bridge	32nm	Q0	65W
Intel	Celeron G540	2.50GHz	2MB	1050 MHz	Sandy Bridge	32nm	Q0	65W
Intel	Celeron G530	2.40GHz	2MB	1050 MHz	Sandy Bridge	32nm	Q0	65W
Intel	Celeron G530T	2.00GHz	2MB	720 MHz	Sandy Bridge	32nm	Q0	35W
Intel	Celeron G465	1.90GHz	1.5MB	720 MHz	Sandy Bridge	32nm	Q0	35W
Intel	Celeron G460	1.80GHz	1.5MB	720 MHz	Sandy Bridge	32nm	Q0	35W
Intel	Celeron G440	1.60GHz	1MB	720 MHz	Sandy Bridge	32nm	Q0	35W
Intel	Xeon E3-1290v2	3.70GHz	8MB	N/A	Ivy Bridge	22nm	E1	87W
Intel	Xeon E3-1280v2	3.60GHz	8MB	N/A	Ivy Bridge	22nm	E1	69W
Intel	Xeon E3-1275v2	3.50GHz	8MB	720 MHz	Ivy Bridge	22nm	E1	77W
Intel	Xeon E3-1270v2	3.50GHz	8MB	N/A	Ivy Bridge	22nm	E1	69W
Intel	Xeon E3-1265Lv2	2.50GHz	8MB	720 MHz	Ivy Bridge	22nm	E1	45W
Intel	Xeon E3-1245v2	3.40GHz	8MB	720 MHz	Ivy Bridge	22nm	E1	77W
Intel	Xeon E3-1240v2	3.40GHz	8MB	N/A	Ivy Bridge	22nm	E1	69W
Intel	Xeon E3-1230v2	3.30GHz	8MB	N/A	Ivy Bridge	22nm	E1	69W
Intel	Xeon E3-1225v2	3.20GHz	8MB	720 MHz	Ivy Bridge	22nm	E1	77W
Intel	Xeon E3-1220Lv2	2.30GHz	3MB	N/A	Ivy Bridge	22nm	L1	17W
Intel	Xeon E3-1220v2	3.10GHz	8MB	N/A	Ivy Bridge	22nm	E1	69W
Intel	Xeon E3-1275	3.40GHz	8MB	1050 MHz	Sandy Bridge	32nm	D2	95W
Intel	Xeon E3-1245	3.30GHz	8MB	1050 MHz	Sandy Bridge	32nm	D2	95W
Intel	Xeon E3-1235	3.20GHz	8MB	1050 MHz	Sandy Bridge	32nm	D2	95W
Intel	Xeon E3-1225	3.10GHz	6MB	1050 MHz	Sandy Bridge	32nm	D2	95W
Intel	Xeon E3-1290	3.60GHz	8MB	N/A	Sandy Bridge	32nm	D2	95W
Intel	Xeon E3-1280	3.50GHz	8MB	N/A	Sandy Bridge	32nm	D2	95W
Intel	Xeon E3-1270	3.40GHz	8MB	N/A	Sandy Bridge	32nm	D2	80W
Intel	Xeon E3-1240	3.30GHz	8MB	N/A	Sandy Bridge	32nm	D2	80W
Intel	Xeon E3-1230	3.20GHz	8MB	N/A	Sandy Bridge	32nm	D2	80W
Intel	Xeon E3-1220L	2.20GHz	3MB	N/A	Sandy Bridge	32nm	D2	20W
Intel	Xeon E3-1220	3.10GHz	8MB	N/A	Sandy Bridge	32nm	D2	80W

Gigabyte GA-P75-D3 Motherboard No I/O

Description
