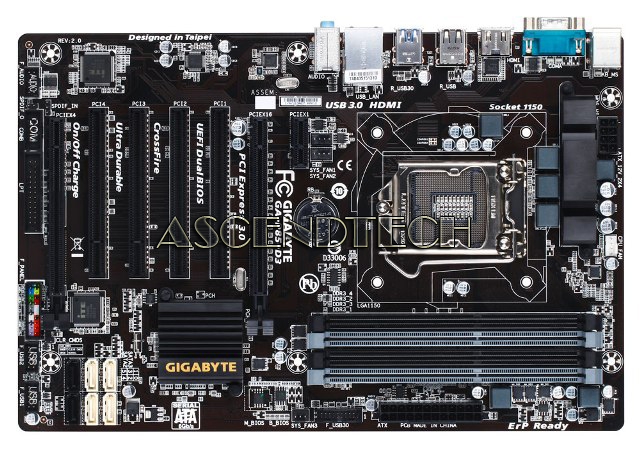

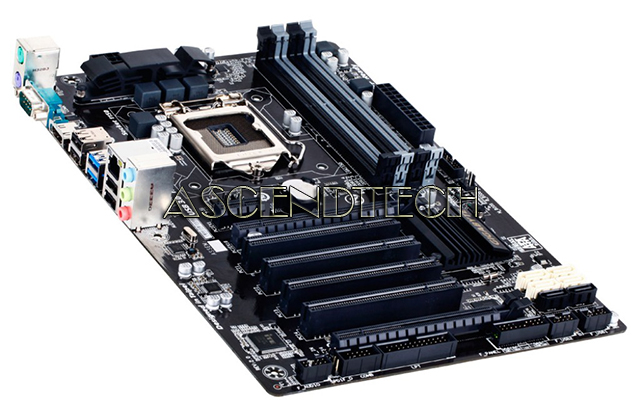

GA-P85-D3 rev.2.0 | Gigabyte Ga-P85-D3 Rev.2.0 Mboard No I/O

Gigabyte GA-P85-D3 rev.2.0 Intel Chipset B85 Socket LGA1150 DDR3 USB SATA ATX Motherboard. GIGABYTE 8 Series motherboards support the latest 4th Generation Intel Core processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable digital power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, gold plated hardware connectors and of course, killer good looks, GIGABYTE 8 series motherboards are in a class of their own.

Features:

• Supports 4th Generation Intel Core processors
• GIGABYTE Ultra Durable 4 Plus Technology
• GIGABYTE UEFI DualBIOS
• Multi-GPU Support
• GIGABYTE 333 Onboard Acceleration (USB 3.0, SATA 3.0 & 3x USB Power)
• GIGABYTE On/Off Charge for USB devices
• LAN with high ESD Protection
• HDMI 1.4
• Intel Small Business Advantage

Specifications:

CPU
Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package
L3 cache varies with CPU
Chipset
Intel B85 Express Chipset
Memory
4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 1600/1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor - Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
* Support for HDMI 1.4a version.
Maximum shared memory of 1 GB
Audio
Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF In/Out
LAN
Realtek GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
4 x PCI slots
Storage Interface
Chipset:
4 x SATA 6Gb/s connectors (SATA3 0~SATA3 3)
2 x SATA 3Gb/s connectors (SATA2 4~SATA2 5)
Multi-Graphics Technology
Support for AMD CrossFire technology
USB
Chipset:
4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
2 x SATA 3Gb/s connectors
1 x CPU fan header
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x S/PDIF In header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper

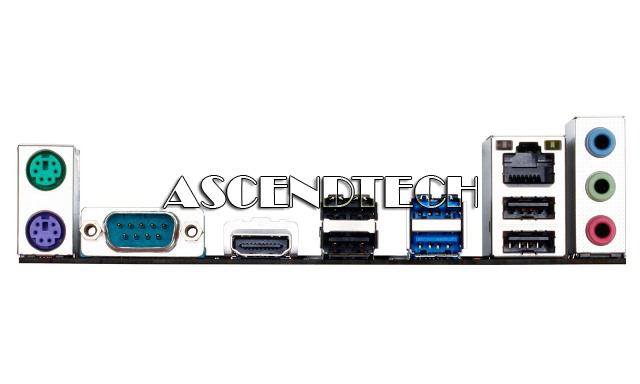

Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x serial port
1 x HDMI port
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 x 64 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for Q-Flash
Support for Xpress Install
Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
@BIOS
EasyTune
EZ Setup
USB Blocker
Smart TimeLock
Smart Recovery 2
Support for ON/OFF Charge
Operating System
Support for Windows 10/8.1/8/7
Form Factor
ATX Form Factor; 30.5cm x 20.0cm

CPU Support

Socket 1150
Motherboard
Vendor	CPU Model	Frequency	L3 Cache	GPU Frequency	Core Name	Process	Wattage
Intel	Core i7-4790K	4.00GHz	8MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	88W
Intel	Core i7-4790	3.60GHz	8MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	84W
Intel	Core i7-4790S	3.20GHz	8MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	65W
Intel	Core i7-4790T	2.70GHz	8MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	45W
Intel	Core i7-4785T	2.20GHz	8MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	35W
Intel	Core i7-4771	3.50GHz	8MB	350 MHz / 1300 MHz	Haswell	22nm	84W
Intel	Core i7-4770	3.40GHz	8MB	350 MHz / 1300 MHz	Haswell	22nm	84W
Intel	Core i7-4770K	3.50GHz	8MB	350 MHz / 1300 MHz	Haswell	22nm	84W
Intel	Core i7-4770S	3.10GHz	8MB	350 MHz / 1300 MHz	Haswell	22nm	65W
Intel	Core i7-4770T	2.50GHz	8MB	350 MHz / 1300 MHz	Haswell	22nm	45W
Intel	Core i7-4765T	2.00GHz	8MB	350 MHz / 1300 MHz	Haswell	22nm	35W
Intel	Core i5-4690	3.50GHz	6MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	84W
Intel	Core i5-4690K	3.50GHz	6MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	88W
Intel	Core i5-4690S	3.20GHz	6MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	65W
Intel	Core i5-4690T	2.50GHz	6MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	45W
Intel	Core i5-4670	3.40GHz	6MB	350 MHz / 1300 MHz	Haswell	22nm	84W
Intel	Core i5-4670K	3.40GHz	6MB	350 MHz / 1300 MHz	Haswell	22nm	84W
Intel	Core i5-4670S	3.10GHz	6MB	350 MHz / 1300 MHz	Haswell	22nm	65W
Intel	Core i5-4670T	2.30GHz	6MB	350 MHz / 1300 MHz	Haswell	22nm	45W
Intel	Core i5-4590	3.30GHz	6MB	350 MHz / 1250 MHz	Haswell Refresh	22nm	84W
Intel	Core i5-4590S	3.00GHz	6MB	350 MHz / 1250 MHz	Haswell Refresh	22nm	65W
Intel	Core i5-4590T	2.00GHz	6MB	350 MHz / 1250 MHz	Haswell Refresh	22nm	35W
Intel	Core i5-4570	3.20GHz	6MB	350 MHz / 1250 MHz	Haswell	22nm	84W
Intel	Core i5-4570S	2.90GHz	6MB	350 MHz / 1250 MHz	Haswell	22nm	65W
Intel	Core i5-4570T	2.90GHz	4MB	350 MHz / 1100 MHz	Haswell	22nm	35W
Intel	Core i5-4460	3.20GHz	6MB	350 MHz / 1200 MHz	Haswell Refresh	22nm	84W
Intel	Core i5-4460S	2.90GHz	6MB	350 MHz / 1200 MHz	Haswell Refresh	22nm	65W
Intel	Core i5-4460T	1.90GHz	6MB	350 MHz / 1200 MHz	Haswell Refresh	22nm	35W
Intel	Core i5-4440	3.10GHz	6MB	350 MHz / 1200 MHz	Haswell	22nm	84W
Intel	Core i5-4440S	2.80GHz	6MB	350 MHz / 1200 MHz	Haswell	22nm	65W
Intel	Core i5-4430	3.00GHz	6MB	350 MHz / 1200 MHz	Haswell	22nm	84W
Intel	Core i5-4430S	2.70GHz	6MB	350 MHz / 1200 MHz	Haswell	22nm	65W
Intel	Core i3-4370	3.80GHz	4MB	350 MHz / 1250 MHz	Haswell Refresh	22nm	54W
Intel	Core i3-4370T	3.30GHz	4MB	350 MHz / 1250 MHz	Haswell Refresh	22nm	35W
Intel	Core i3-4360	3.70GHz	4MB	350 MHz / 1250 MHz	Haswell Refresh	22nm	54W
Intel	Core i3-4360T	3.20GHz	4MB	350 MHz / 1100 MHz	Haswell Refresh	22nm	35W
Intel	Core i3-4350	3.60GHz	4MB	350 MHz / 1250 MHz	Haswell Refresh	22nm	54W
Intel	Core i3-4350T	3.10GHz	4MB	350 MHz / 1100 MHz	Haswell Refresh	22nm	35W
Intel	Core i3-4340	3.60GHz	4MB	350 MHz / 1250 MHz	Haswell	22nm	54W
Intel	Core i3-4330	3.50GHz	4MB	350 MHz / 1250 MHz	Haswell	22nm	54W
Intel	Core i3-4330T	3.00GHz	4MB	350 MHz / 1100 MHz	Haswell	22nm	35W
Intel	Core i3-4170	3.70GHz	3MB	350 MHz / 1250 MHz	Haswell Refresh	22nm	54W
Intel	Core i3-4170T	3.20GHz	3MB	350 MHz / 1100 MHz	Haswell Refresh	22nm	35W
Intel	Core i3-4160	3.60GHz	3MB	350 MHz / 1250 MHz	Haswell Refresh	22nm	54W
Intel	Core i3-4160T	3.10GHz	3MB	350 MHz / 1100 MHz	Haswell Refresh	22nm	35W
Intel	Core i3-4150	3.50GHz	3MB	350 MHz / 1250 MHz	Haswell Refresh	22nm	54W
Intel	Core i3-4150T	3.00GHz	3MB	350 MHz / 1100 MHz	Haswell Refresh	22nm	35W
Intel	Core i3-4130	3.40GHz	3MB	350 MHz / 1250 MHz	Haswell	22nm	54W
Intel	Core i3-4130T	2.90GHz	3MB	350 MHz / 1100 MHz	Haswell	22nm	35W
Intel	Pentium G3470	3.60GHz	3MB	350 MHz / 1200 MHz	Haswell Refresh	22nm	53W
Intel	Pentium G3460	3.50GHz	3MB	350 MHz / 1200 MHz	Haswell Refresh	22nm	53W
Intel	Pentium G3460T	3.00GHz	3MB	350 MHz / 1200 MHz	Haswell Refresh	22nm	35W
Intel	Pentium G3450	3.40GHz	3MB	350 MHz / 1200 MHz	Haswell Refresh	22nm	53W
Intel	Pentium G3450T	2.90GHz	3MB	300 MHz / 1100 MHz	Haswell Refresh	22nm	35W
Intel	Pentium G3440	3.30GHz	3MB	350 MHz / 1200 MHz	Haswell Refresh	22nm	53W
Intel	Pentium G3440T	2.80GHz	3MB	300 MHz / 1100 MHz	Haswell Refresh	22nm	35W
Intel	Pentium G3430	3.30GHz	3MB	350 MHz / 1200 MHz	Haswell	22nm	54W
Intel	Pentium G3420	3.20GHz	3MB	350 MHz / 1200 MHz	Haswell	22nm	54W
Intel	Pentium G3420T	2.70GHz	3MB	300 MHz / 1100 MHz	Haswell	22nm	35W
Intel	Pentium G3260	3.30GHz	3MB	350 MHz / 1200 MHz	Haswell	22nm	53W
Intel	Pentium G3260T	2.90GHz	3MB	300 MHz / 1100 MHz	Haswell	22nm	35W
Intel	Pentium G3258	3.20GHz	3MB	350 MHz / 1200 MHz	Haswell Refresh	22nm	53W
Intel	Pentium G3250	3.20GHz	3MB	350 MHz / 1200 MHz	Haswell Refresh	22nm	53W
Intel	Pentium G3250T	2.80GHz	3MB	300 MHz / 1100 MHz	Haswell Refresh	22nm	35W
Intel	Pentium G3240	3.10GHz	3MB	350 MHz / 1200 MHz	Haswell Refresh	22nm	53W
Intel	Pentium G3240T	2.70GHz	3MB	300 MHz / 1100 MHz	Haswell Refresh	22nm	35W
Intel	Pentium G3220	3.00GHz	3MB	350 MHz / 1200 MHz	Haswell	22nm	54W
Intel	Pentium G3220T	2.60GHz	3MB	300 MHz / 1100 MHz	Haswell	22nm	35W
Intel	Celeron G1850	2.90GHz	2MB	350 MHz / 1150 MHz	Haswell Refresh	22nm	53W
Intel	Celeron G1840	2.80GHz	2MB	350 MHz / 1150 MHz	Haswell Refresh	22nm	53W
Intel	Celeron G1840T	2.40GHz	2MB	200 MHz / 1150 MHz	Haswell Refresh	22nm	35W
Intel	Celeron G1830	2.80GHz	2MB	350 MHz / 1150 MHz	Haswell	22nm	53W
Intel	Celeron G1820	2.70GHz	2MB	350 MHz / 1150 MHz	Haswell	22nm	53W
Intel	Celeron G1820T	2.40GHz	2MB	200 MHz / 1150 MHz	Haswell	22nm	35W
Intel	Xeon E3-1286 V3	3.70GHz	8MB	300 MHz / 1150 MHz	Haswell Refresh	22nm	84W
Intel	Xeon E3-1286L V3	3.20GHz	8MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	65W
Intel	Xeon E3-1285v3	3.60GHz	8MB	300 MHz / 1150 MHz	Haswell	22nm	84W
Intel	Xeon E3-1285Lv3	3.10GHz	8MB	350 MHz / 1300 MHz	Haswell	22nm	65W
Intel	Xeon E3-1276 V3	3.60GHz	8MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	84W
Intel	Xeon E3-1275v3	3.50GHz	8MB	350 MHz / 1300 MHz	Haswell	22nm	84W
Intel	Xeon E3-1275L V3	2.70GHz	4MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	45W
Intel	Xeon E3-1265Lv3	2.50GHz	8MB	350 MHz / 1300 MHz	Haswell	22nm	45W
Intel	Xeon E3-1246 V3	3.50GHz	8MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	84W
Intel	Xeon E3-1245v3	3.40GHz	8MB	350 MHz / 1300 MHz	Haswell	22nm	84W
Intel	Xeon E3-1226 V3	3.30GHz	8MB	350 MHz / 1300 MHz	Haswell Refresh	22nm	84W
Intel	Xeon E3-1225v3	3.20GHz	8MB	350 MHz / 1300 MHz	Haswell	22nm	84W
Intel	Xeon E3-1281 V3	3.70GHz	8MB	N/A	Haswell Refresh	22nm	80W
Intel	Xeon E3-1280v3	3.60GHz	8MB	N/A	Haswell	22nm	80W
Intel	Xeon E3-1271 V3	3.60GHz	8MB	N/A	Haswell Refresh	22nm	80W
Intel	Xeon E3-1270v3	3.50GHz	8MB	N/A	Haswell	22nm	80W
Intel	Xeon E3-1241 V3	3.50GHz	8MB	N/A	Haswell Refresh	22nm	80W
Intel	Xeon E3-1240v3	3.40GHz	8MB	N/A	Haswell	22nm	80W
Intel	Xeon E3-1240L V3	2.00GHz	8MB	N/A	Haswell Refresh	22nm	25W
Intel	Xeon E3-1231 V3	3.40GHz	8MB	N/A	Haswell Refresh	22nm	80W
Intel	Xeon E3-1230v3	3.30GHz	8MB	N/A	Haswell	22nm	80W
Intel	Xeon E3-1230Lv3	1.80GHz	8MB	N/A	Haswell	22nm	25W
Intel	Xeon E3-1220v3	3.10GHz	8MB	N/A	Haswell	22nm	80W
