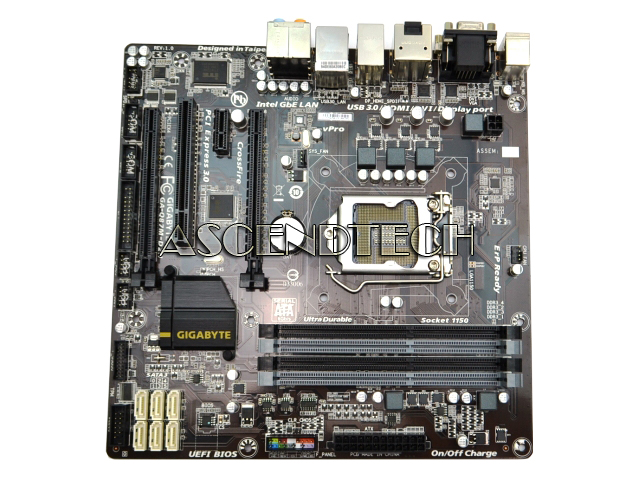

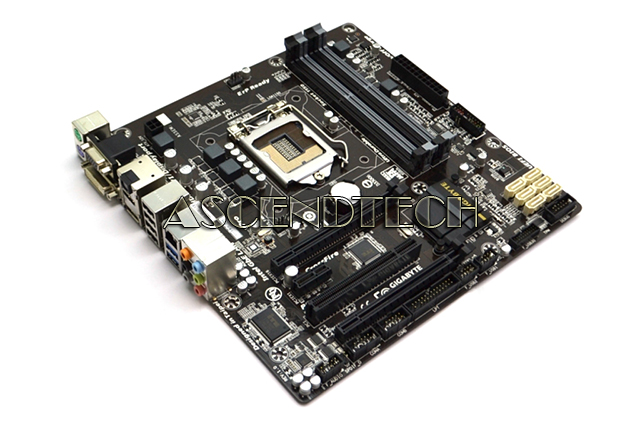

Gigabyte GA-Q87M-D2H R.1.0 - No LAN, I/O

Gigabyte GA-Q87M-D2H rev.1.0 Intel Chipset Q87 Express Socket LGA1150 DDR3 Micro ATX Motherboard. GIGABYTE 8 Series motherboards support the latest 4th Generation Intel Core processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable digital power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, gold plated hardware connectors and of course, killer good looks, GIGABYTE 8 series motherboards are in a class of their own.







Features:

• Supports 4th Generation Intel Core processors
• GIGABYTE Ultra Durable 4 Plus Technology
• GIGABYTE UEFI BIOS
• Multi-GPU Support
• GIGABYTE 333 Onboard Acceleration (USB 3.0, SATA 3.0 & 3x USB Power)
• GIGABYTE On/Off Charge for USB devices
• Intel LAN with high ESD Protection
• DisplayPort 1.2, HDMI 1.4, DVI, D-SUB
• Intel Small Business Advantage
• Intel vPro technology







Specifications:

CPU
Support for Intel Core i7 processors/Intel® Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package
L3 cache varies with CPU
Chipset
Intel Q87 Express Chipset
Memory
4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 1600/1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor - Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200
1 x DVI-D port, supporting a maximum resolution of 1920x1200
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
* Support for HDMI 1.4a version.
1 x DisplayPort, supporting a maximum resolution of 3840 x 2160 @ 60 Hz / 2560 x 1600 @ 60 Hz
* The DisplayPort does not support other types of display connections by adapter.
* Support for DisplayPort 1.2 version.
Maximum shared memory of 1 GB
Audio
Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
Intel GbE LAN chip (10/100/1000 Mbit)
TPM
Infineon TPM controller on board
Expansion Slots
1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
1 x PCI slot
Storage Interface
Chipset:
6 x SATA 6Gb/s connectors (SATA3 0~SATA3 5) supporting up to 6 SATA 6Gb/s devices
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Multi-Graphics Technology
Support for AMD CrossFire technology
USB
Chipset:
Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
2 x serial port headers
1 x parallel port header
1 x debug card header
1 x Clear CMOS jumper

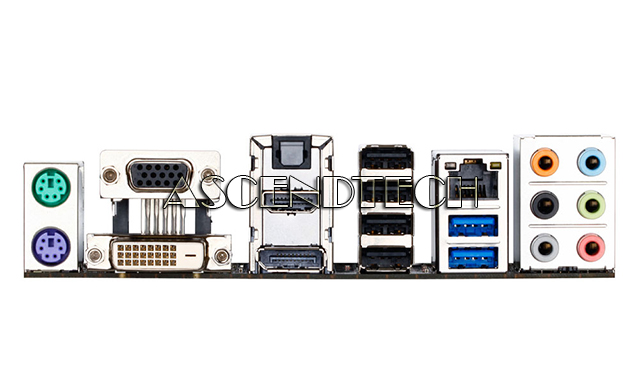

Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
1 x optical S/PDIF Out connector
1 x HDMI port
1 x DisplayPort
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 64 Mbit flash
Use of licensed AMI EFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for Xpress Install
Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
EZ Setup
USB Blocker
Support for ON/OFF Charge
Operating System
Support for Windows 10/8.1/8/7
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
