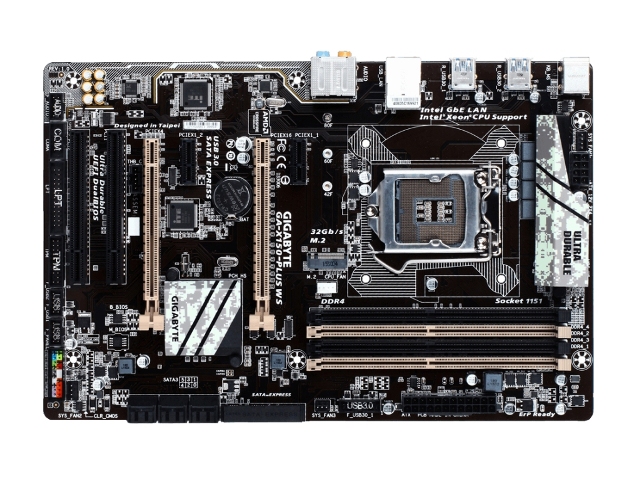

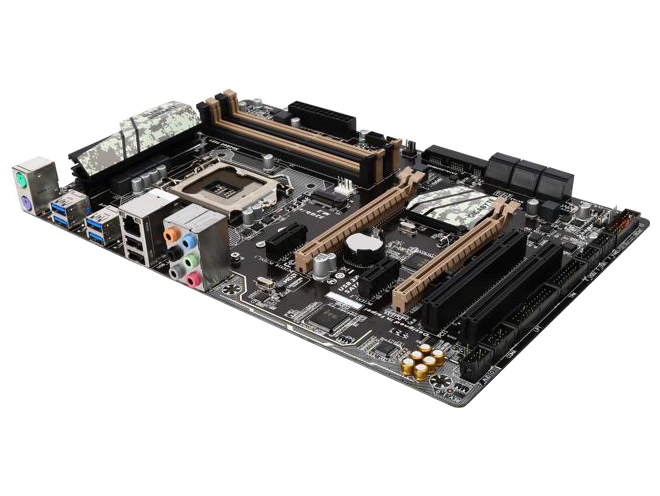

GIGABYTE GA-X150-Plus WS Rev.1.0 Intel C232 Socket LGA1151 DDR4 ATX Motherboard. GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process..

- Supports the Intel® Xeon® E3-1200 v5/E3-1200 v6 processor and 7th/6th Gen. Intel® Core™/Pentium®/ Celeron® Processor
- Dual Channel DDR4, 4 DIMMs
- 2-Way Graphics with Premium PCIe Lane
- PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe & SATA SSD support)
- SATA Express Connector for up to 16Gb/s Data Transfer
- 8-channel HD Audio with High Quality Audio Capacitors
- Audio Noise Guard with LED Trace Path Lighting
- Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- GIGABYTE UEFI DualBIOS™ Technology

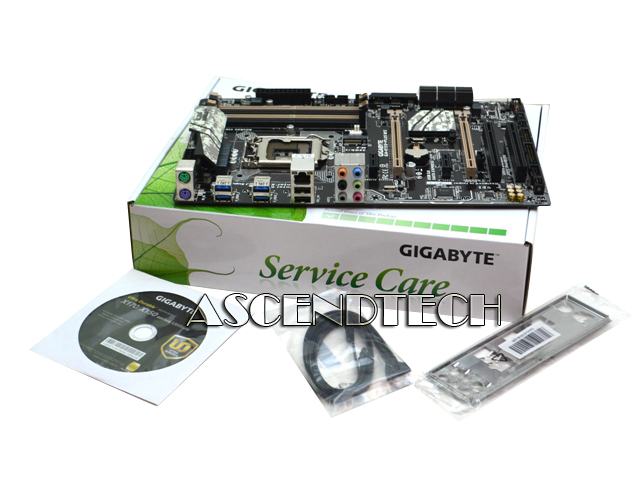

New OEM / White Box Packaging! Includes Backplate, SATA Cable & Drivers CD Only. No Other Accessories Included!

CPU
Support for Intel Xeon E3-1200 v5
E3-1200 v6 processors
Intel Core processors
Intel Pentium processors
Intel Celeron processors in the LGA1151 package
* For Intel Xeon E3-1200 v6 / 7th Generation Intel Core™ processors support need to update the latest BIOS.
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
Intel C232 Chipset
Memory
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed,
the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR4 2133 MHz memory modules
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
(Please refer "Memory Support List" for more information.)
Audio
Realtek ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
Intel GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the PCI Express slots.
The PCIEX4 slot operates at up to x1 mode when a PCI Express x1 slot is populated.
2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
2 x PCI slots
Storage Interface Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2/x1 SSD support)
1 x SATA Express connector
* The SATA Express connector is not compatible with regular SATA devices.
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.
Multi-Graphics Technology
Support for 2-Way AMD CrossFire™ technology
USB Chipset:
6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
1 x SATA Express connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x Thunderbolt™ add-in card connector
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper

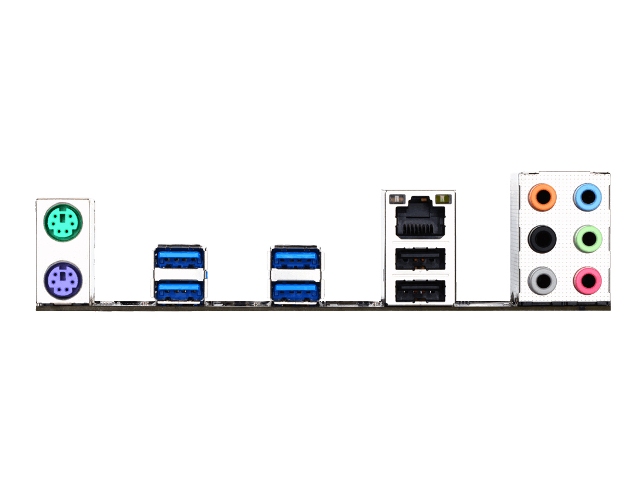

Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
2 x USB 2.0/1.1 ports
4 x USB 3.0/2.0 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model.
Supported functions of each application may also vary depending on motherboard specifications.
BIOS
Support for Q-Flash
Support for Smart Switch
Support for Xpress Install
Operating System
Windows 10 64-bit (for 7th Generation Intel Processors)
Windows 10 64-bit / Windows 8.1 64-bit / Windows 7 32-bit / 64-bits (for 6th Generation Intel Processors)
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
ATX Form Factor; 30.5cm x 20.0cm

CPU Support

Socket 1151
Motherboard
Motherboard
Vendor	CPU Model	Frequency	L3 Cache	GPU Frequency	Core Name	Process	Stepping	Wattage	BCLK
Intel	Core i7-7700K	4.20GHz	8MB	350 MHz / 1150 MHz	KabyLake	14nm	B0	91W	100
Intel	Core i7-7700	3.60GHz	8MB	350 MHz / 1150 MHz	KabyLake	14nm	B0	65W	100
Intel	Core i7-7700T	2.90GHz	8MB	350 MHz / 1150 MHz	KabyLake	14nm	B0	35W	100
Intel	Core i5-7600K	3.80GHz	6MB	350 MHz / 1150 MHz	KabyLake	14nm	B0	91W	100
Intel	Core i5-7600	3.50GHz	6MB	350 MHz / 1150 MHz	KabyLake	14nm	B0	65W	100
Intel	Core i5-7600T	2.80GHz	6MB	350 MHz / 1100 MHz	KabyLake	14nm	B0	35W	100
Intel	Core i5-7500	3.40GHz	6MB	350 MHz / 1100 MHz	KabyLake	14nm	B0	65W	100
Intel	Core i5-7500T	2.70GHz	6MB	350 MHz / 1100 MHz	KabyLake	14nm	B0	35W	100
Intel	Core i5-7400	3.00GHz	6MB	350 MHz / 1000 MHz	KabyLake	14nm	B0	65W	100
Intel	Core i5-7400T	2.40GHz	6MB	350 MHz / 1000 MHz	KabyLake	14nm	B0	35W	100
Intel	Core i3-7350K	4.20GHz	4MB	350 MHz / 1150 MHz	KabyLake	14nm	S0	60W	100
Intel	Core i3-7320	4.10GHz	4MB	350 MHz / 1150 MHz	KabyLake	14nm	S0	51W	100
Intel	Core i3-7300	4.00GHz	4MB	350 MHz / 1150 MHz	KabyLake	14nm	S0	51W	100
Intel	Core i3-7300T	3.50GHz	4MB	350 MHz / 1100 MHz	KabyLake	14nm	S0	35W	100
Intel	Core i3-7100	3.90GHz	3MB	350 MHz / 1100 MHz	KabyLake	14nm	S0	51W	100
Intel	Core i3-7100T	3.40GHz	3MB	350 MHz / 1100 MHz	KabyLake	14nm	S0	35W	100
Intel	Pentium G4620	3.70GHz	3MB	350 MHz / 1100 MHz	KabyLake	14nm	S0	51W	100
Intel	Pentium G4600	3.60GHz	3MB	350 MHz / 1100 MHz	KabyLake	14nm	S0	51W	100
Intel	Pentium G4600T	3.00GHz	3MB	350 MHz / 1050 MHz	KabyLake	14nm	S0	35W	100
Intel	Pentium G4560	3.50GHz	3MB	350 MHz / 1050 MHz	KabyLake	14nm	B0	54W	100
Intel	Pentium G4560T	2.90GHz	3MB	350 MHz / 1050 MHz	KabyLake	14nm	S0	35W	100
Intel	Celeron G3950	3.00GHz	2MB	350 MHz / 1050 MHz	KabyLake	14nm	S0	51W	100
Intel	Celeron G3930	2.90GHz	2MB	350 MHz / 1050 MHz	KabyLake	14nm	S0	51W	100
Intel	Celeron G3930T	2.70GHz	2MB	350 MHz / 1000 MHz	KabyLake	14nm	S0	35W	100
Intel	Core i7-6700K	4.00GHz	8MB	350 MHz / 1200 MHz	Skylake	14nm	R0	91W	100
Intel	Core i7-6700	3.40GHz	8MB	350 MHz / 1200 MHz	Skylake	14nm	R0	65W	100
Intel	Core i7-6700T	2.80GHz	8MB	350 MHz / 1150 MHz	Skylake	14nm	R0	35W	100
Intel	Core i5-6600K	3.50GHz	6MB	350 MHz / 1200 MHz	Skylake	14nm	R0	91W	100
Intel	Core i5-6600	3.30GHz	6MB	350 MHz / 1200 MHz	Skylake	14nm	R0	65W	100
Intel	Core i5-6600T	2.70GHz	6MB	350 MHz / 1150 MHz	Skylake	14nm	R0	35W	100
Intel	Core i5-6500	3.20GHz	6MB	350 MHz / 1200 MHz	Skylake	14nm	R0	65W	100
Intel	Core i5-6500T	2.50GHz	6MB	350 MHz / 1150 MHz	Skylake	14nm	R0	35W	100
Intel	Core i5-6402P	2.80GHz	6MB	350 MHz / 950 MHz	Skylake	14nm	R0	65W	100
Intel	Core i5-6400	2.70GHz	6MB	350 MHz / 1200 MHz	Skylake	14nm	R0	65W	100
Intel	Core i5-6400T	2.20GHz	6MB	350 MHz / 1150 MHz	Skylake	14nm	R0	35W	100
Intel	Core i3-6320	3.90GHz	4MB	350 MHz / 1150 MHz	Skylake	14nm	S0	47W	100
Intel	Core i3-6300	3.80GHz	4MB	350 MHz / 1150 MHz	Skylake	14nm	S0	47W	100
Intel	Core i3-6300T	3.30GHz	4MB	350 MHz / 950 MHz	Skylake	14nm	S0	35W	100
Intel	Core i3-6100	3.70GHz	3MB	350 MHz / 1050 MHz	Skylake	14nm	S0	47W	100
Intel	Core i3-6100T	3.20GHz	3MB	350 MHz / 950 MHz	Skylake	14nm	S0	35W	100
Intel	Core i3-6098P	3.60GHz	3MB	350 MHz / 1050 MHz	Skylake	14nm	R0	54W	100
Intel	Pentium G4520	3.60GHz	3MB	350 MHz / 1050 MHz	Skylake	14nm	S0	47W	100
Intel	Pentium G4500	3.50GHz	3MB	350 MHz / 1050 MHz	Skylake	14nm	S0	47W	100
Intel	Pentium G4500T	3.00GHz	3MB	350 MHz / 950 MHz	Skylake	14nm	S0	35W	100
Intel	Pentium G4400	3.30GHz	3MB	350 MHz / 1000 MHz	Skylake	14nm	R0	65W	100
Intel	Pentium G4400	3.30GHz	3MB	350 MHz / 1050 MHz	Skylake	14nm	S0	47W	100
Intel	Pentium G4400T	2.90GHz	3MB	350 MHz / 950 MHz	Skylake	14nm	S0	35W	100
Intel	Celeron G3920	2.90GHz	2MB	350 MHz / 950 MHz	Skylake	14nm	S0	47W	100
Intel	Celeron G3900	2.80GHz	2MB	350 MHz / 950 MHz	Skylake	14nm	S0	47W	100
Intel	Celeron G3900T	2.60GHz	2MB	350 MHz / 950 MHz	Skylake	14nm	S0	35W	100
Intel	Xeon E3-1280 v5	3.70GHz	8MB	N/A	Skylake-s	14nm	R0	80W	100
Intel	Xeon E3-1270 v5	3.60GHz	8MB	N/A	Skylake-s	14nm	R0	80W	100
Intel	Xeon E3-1260L v5	2.90GHz	8MB	N/A	Skylake-s	14nm	R0	45W	100
Intel	Xeon E3-1240 v5	3.50GHz	8MB	N/A	Skylake-s	14nm	R0	80W	100
Intel	Xeon E3-1240L v5	2.10GHz	8MB	N/A	Skylake-s	14nm	R0	25W	100
Intel	Xeon E3-1230 v5	3.40GHz	8MB	N/A	Skylake-s	14nm	R0	80W	100
Intel	Xeon E3-1220 v5	3.00GHz	8MB	N/A	Skylake-s	14nm	R0	80W	100
Intel	Xeon E3-1275 v5	3.60GHz	8MB	400 MHz / 1150 MHz	Skylake-s	14nm	R0	80W	100
Intel	Xeon E3-1245 v5	3.50GHz	8MB	400 MHz / 1150 MHz	Skylake-s	14nm	R0	80W	100
Intel	Xeon E3-1235L v5	2.00GHz	8MB	400 MHz / 1100 MHz	Skylake-s	14nm	R0	25W	100
Intel	Xeon E3-1225 v5	3.30GHz	8MB	400 MHz / 1150 MHz	Skylake-s	14nm	R0	80W	100
Intel	Xeon E3-1280 v6	3.90GHz	6MB	N/A	KabyLake	14nm	B0	80W	100
Intel	Xeon E3-1270 v6	3.80GHz	6MB	N/A	KabyLake	14nm	B0	80W	100
Intel	Xeon E3-1240 v6	3.70GHz	6MB	N/A	KabyLake	14nm	B0	80W	100
Intel	Xeon E3-1230 v6	3.50GHz	6MB	N/A	KabyLake	14nm	B0	80W	100
Intel	Xeon E3-1220 v6	3.00GHz	6MB	N/A	KabyLake	14nm	B0	80W	100
Intel	Xeon E3-1275 v6	3.80GHz	6MB	350 MHz / 1150 MHz	KabyLake	14nm	B0	80W	100
Intel	Xeon E3-1245 v6	3.70GHz	6MB	350 MHz / 1150 MHz	KabyLake	14nm	B0	80W	100
Intel	Xeon E3-1225 v6	3.30GHz	6MB	350 MHz / 1150 MHz	KabyLake	14nm	B0	80W	100
