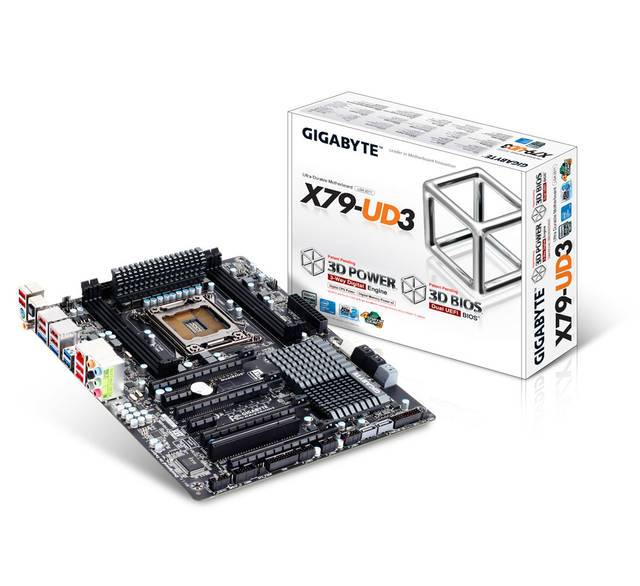

GIGABYTE GA-X79-UD3 LGA2011 X79 DDR3 ATX

Gigabyte GA-X79-UD3 LGA2011 DDR3 4-Way CrossFireX and SLI SATA3 USB3.0 Motherboard. Install the latest computer components in your computer when you use the GIGABYTE GA-X79-UD3 Intel X79 Motherboard. This ATX motherboard features its LGA2011 interface for you to integrate powerful processors, including the latest 2nd Generation Intel® Core i7 processor, which provides you with ample power to handle your heavy computing needs with ease. Gigabyte X79 series motherboards are designed to unite unrivalled desktop PC performance with a new level of flexibility and hardware control. Based on the latest Intel® X79 Express Chipset, supporting the new LGA 2011 Intel® Core™ i7 processors, Gigabyte X79 series motherboards bring DIY builders to a new area of performance-oriented computing.

Manufacturer: Gigabyte
Part Number: GA-X79-UD3

Specifications:

CPU Socket Type:
Socket 2011 Supports 2nd Generation Intel Core i7 processors
CPU Type:
Intel Core i7 (LGA2011)
Chipset:
Intel X79 Chipset
Memory:
4 x DDR3-2133/1866/1600/1333/1066
Quad-Channel
Non-ECC
Max Capacity up to 32GB
Expansion Slots:
4 x PCI-Express 3.0 x 16 Slots (two run at x8, Support 4-Way/3-Way/2-Way AMD CrossFireX & NVIDIA SLI)
2 x PCI-Express 2.0 x 1 Slots
1 x PCI Slot
Storage Devices:
6 x SATA3 Ports (two Support RAID 0/ 1/ 5/ 10, four Support RAID 0/ 1)
4 x SATA2 Ports
2 x eSATA3 Port
Support RAID 0/ 1/ 5/ 10
Audio:
Realtek ALC898 7.1-Channel High Definition Audio CODEC
Support for Dolby Home Theater & S/PDIF Out
LAN: Integrated Intel Gigabit Ethernet Controller

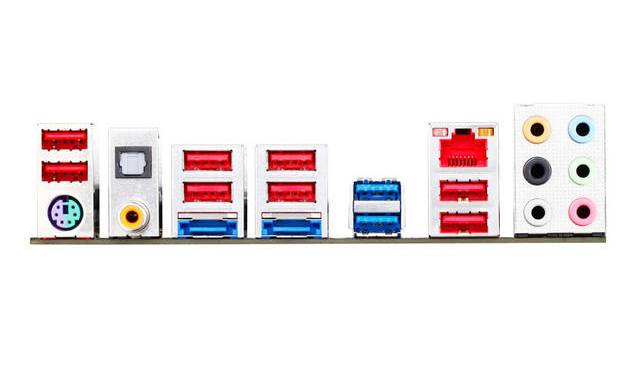

Interfaces:
4 x USB 3.0 Ports (2 rear, 2 by headers)
14 x USB 2.0 Ports (8 rear, 6 by headers)
1 x PS/2 Port; 2x eSATA3 Port
1 x Optical S/PDIF Out
1 x Coaxial S/PDIF Out
1 x RJ45 LAN Port
Audio I/O Jacks
Power Connector:
1 x 24pin Main Power
1 x 8pin CPU Power
Form Factor:
ATX
Dimensions:
30.5 x 24.4 cm
