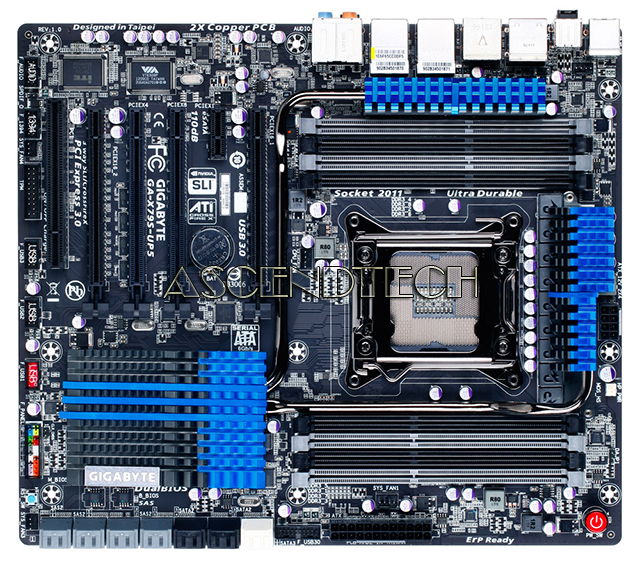

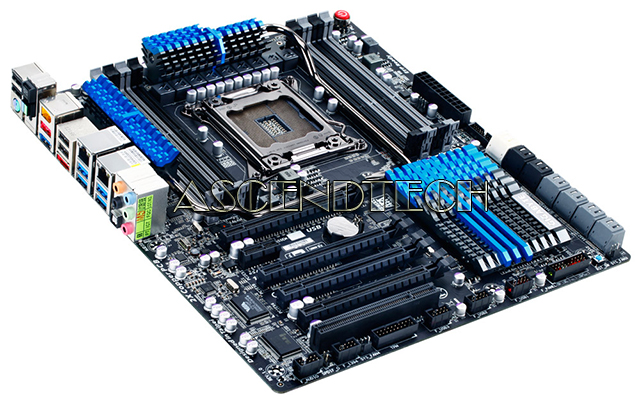

Gigabyte GA-X79S-UP5-WIFI rev.1.0 Intel Chipset C606 Socket LGA2011 DDR3 E-ATX Motherboard. GIGABYTE X79 series motherboards are the first to take advantage of the exclusive GIGABYTE 3D Power, an all new hardware and software-based Digital Power Engine for both the PWM and Memory that delivers unprecedented power delivery control.

Features:

• Supports New Intel Core i7 processor Extreme Edition
• GIGABYTE All Digital Power with GIGABYTE 3D Power
• GIGABYTE Ultra Durable5 technology
• GIGABYTE Bluetooth 4.0 and Wi-Fi Card
• 8 SAS connectors support
• ECC (error-code correction) support
• 4 Channel Memory Architecture with 8 DIMM slots
• PCI Express Gen 3.0 support
• 3-way CrossFireX and 3-way SLI Support
• GIGABYTE On/Off Charge with 3X USB Power
• High quality 110dB SNR HD audio











Specifications:

CPU
Supports New Intel Core i7 processor Extreme Edition
L3 cache varies with CPU
Chipset
Intel C606 Express Chipset
Memory
8 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
4 channel memory architecture
Support for DDR3 2133/1866/1600/1333/1066 MHz memory modules
Support for unbuffered ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
Audio
Realtek ALC898 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
1 x Intel GbE LAN chip (10/100/1000 Mbit) (LAN1)
1 x Realtek GbE LAN chip (10/100/1000 Mbit) (LAN2)
Wireless Communication Module
Wi-Fi 802.11 a/b/g/n, Supports 2.4/5 GHz Dual-Band
Bluetooth 4.0, 3.0+HS, 2.1+EDR
Expansion Slots
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16_2 slot. When the PCIEX8 slot is populated, the PCIEX16_2 slot will operate at up to x8 mode.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
(The PCIEX16, PCIEX8, and PCIEX4 slots conform to PCI Express 3.0 standard.)
1 x PCI Express x1 slot
(The PCIEX1 slot conforms to PCI Express 2.0 standard.)
1 x PCI slot
Storage Interface
Chipset:
2 x SATA 6Gb/s connectors (SATA3 0~1) supporting up to 2 SATA 6Gb/s devices
4 x SATA 3Gb/s connectors (SATA2 2~5) supporting up to 4 SATA 3Gb/s devices
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
8 x SAS 3Gb/s connectors (SAS2 0~7) supporting up to 8 SAS 3Gb/s devices
* The SAS connectors do not support optical drives.
Support for RAID 0, RAID 1, and RAID 10
Marvell 88SE9172 chip:
2 x eSATA 6Gb/s connectors (including 1 eSATA/USB Combo) on the back panel supporting up to 2 SATA 6Gb/s devices
Support for RAID 0 and RAID 1
Multi-Graphics Technology
Support for 3-Way/2-Way AMD CrossFireX/NVIDIA SLI technology
USB
Chipset:
Up to 12 USB 2.0/1.1 ports (6 ports on the back panel, including 1 eSATA/USB Combo, 6 ports available through the internal USB headers)
VIA VL800 chip:
Up to 4 USB 3.0/2.0 ports on the back panel
* Due to a Windows 7 limitation, please connect your USB device(s) to the USB 2.0/1.1 port(s) before the VIA USB 3.0 controller driver is installed.
Fresco FL1009 chip:
Up to 2 USB 3.0/2.0 ports (available through the internal USB header)
IEEE 1394
VIA VT6308 chip:
Up to 2 IEEE 1394a ports (1 port on the back panel, 1 port available through the internal IEEE 1394a header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
4 x SATA 3Gb/s connectors
8 x SAS 3Gb/s connectors
1 x CPU fan header
4 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
3 x USB 2.0/1.1 headers
1 x IEEE 1394a port
1 x Clear CMOS jumper
1 x Trusted Platform Module (TPM) header
1 x power button
1 x reset button

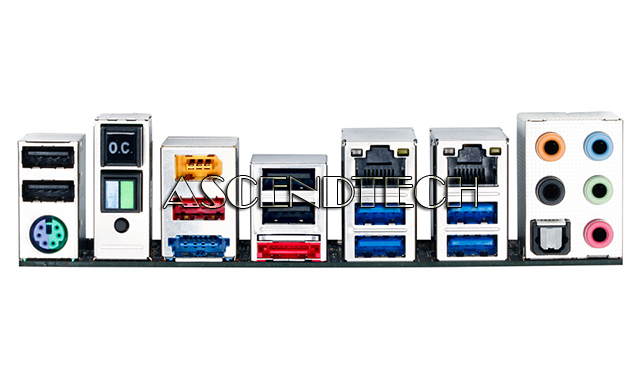

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x CPU overclocking button
1 x BIOS switch button
1 x Clear CMOS button
1 x IEEE 1394a port
4 x USB 3.0/2.0 ports
5 x USB 2.0/1.1 ports
1 x eSATA/USB Combo connector
1 x eSATA 6Gb/s connector
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
BIOS
2 x 64 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for @BIOS
Support for Q-Flash
Support for Xpress Install
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
Support for ON/OFF Charge
Support for 3TB+ Unlock
Support for Q-Share
Support for 3D Power
Operating System
Support for Microsoft Windows 8/7/Vista
Form Factor
E-ATX Form Factor; 30.5cm x 26.4cm
