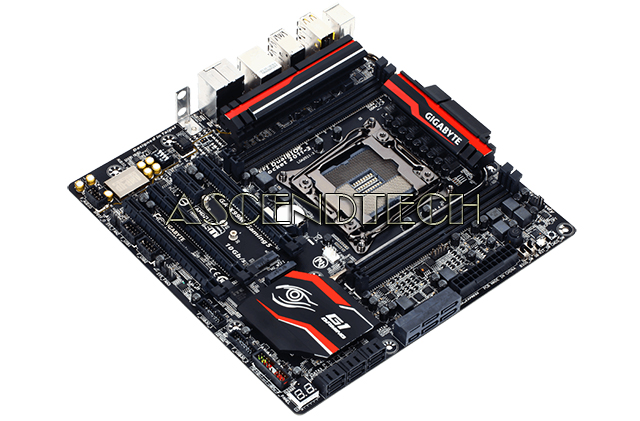

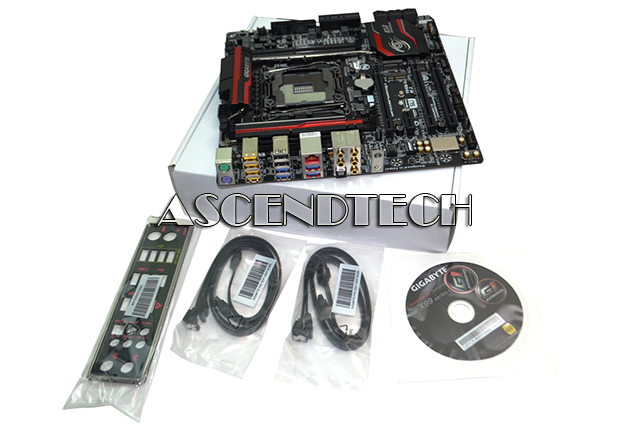

GIGABYTE GA-X99M-GAMING 5 R.1 White Box

GIGABYTE GA-X99M-GAMING 5 Rev.1.0 Intel X99 Socket LGA2011-3 DDR4 SATA 10 Gb/s Micro-ATX Motherboard. GIGABYTE X99 series motherboards use an all digital CPU power design from International Rectifier which includes both 4th Generation digital PWM Controllers and industry-leading 3rd Generation PowIRstage controllers. These 100% digital controllers offer incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from their new Intel Core i7 Extreme Edition CPUs.

- Supports Intel Core i7 6950X Processor Extreme Edition
- Support Intel Turbo Boost Max Technology 3.0
- Supports New Intel Core i7 Processor Extreme Edition
- 4 Channel DDR4, 4 DIMMs
- Genuine All Digital Power Design with IR Digital PWM & IR PowIRstage ICs
- 2-Way Graphics with Premium PCIe Lane
- Dual M.2 Technology for SSD Drive and WIFI card
- 6x(30µ) Gold Plating for CPU socket, Memory DIMMs and PCIe slots
- AMP-UP Audio technology with exclusive Upgradable OP-AMP
- Independent Right and Left Audio Channel PCB Layers
- LED lighting for the audio guard light path
- Quad DAC-UP USB ports
- Gold plated audio ports
- High end Nichicon audio capacitors
- Killer E2200 gaming networking
- SATA Express support for 10 Gb/s data transfer
- Long lifespan Durable Black Solid caps
- APP Center including EasyTune and Cloud Station utilities






CPU
- Support for Intel Core i7 processors in the LGA2011-3 package
- Support for Intel Xeon E5-1600 / E5-2600 / E5-4600 v3 / v4 processors in the LGA2011-3 package
- L3 cache varies with CPU

Chipset
- Intel X99 Express Chipset

Memory
- 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
  * Support for up to 256 GB of system memory when using Registered DIMMs.
  * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
- 4 channel memory architecture
- Support for DDR4 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules
- Support for non-ECC memory modules
- Support for Extreme Memory Profile (XMP) memory modules
- Support for RDIMM 1Rx8 memory modules (operate in non-ECC mode)

Audio
- Realtek ALC1150 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out

LAN
- Qualcomm Atheros Killer E2201 chip (10/100/1000 Mbit)

Expansion Slots
- 2 x PCI Express x16 slots, running at x16 (PCIE_1/PCIE_2)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIE_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIE_1 and PCIE_2 slots.
- 1 x PCI Express x16 slot, running at x8 (PCIE_3)
  * When an 28 lane CPU is installed, the PCIE_2 slot operates at up to x8 mode and the PCIE_3 operates at up to x4 mode
   (All PCI Express x16 slots conform to PCI Express 3.0 standard
- 1 x PCI Express x1 slot
  (The PCI Express x1 slot conforms to PCI Express 2.0 standard)
- 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

Storage Interface
Chipset:
- 1 x M.2 PCIe connector
  (Socket 3, M key, type 2260/2280 SATA & PCIe x2/x1 SSD support)
- 1 x SATA Express connector
- 6 x SATA 6Gb/s connectors (SATA3 0~5)
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
  * Only AHCI mode is supported when an M.2 PCIe SSD or a SATA Express device is installed.
  (M2_10G, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed in the M2_10G connector.)
Chipset:
- 4 x SATA 6Gb/s connectors (sSATA3 0~3), supporting IDE and AHCI modes only
  (An operating system installed on the SATA3 0~5 ports cannot be used on the sSATA3 0~3 ports)

Multi-Graphics Technology
- Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
- Support for AMD Quad-GPU CrossFireX and 2-Way AMD CrossFire technologies

USB
Chipset:
- 4 x USB 3.0/2.0 ports (available through the internal USB headers)
- 10 x USB 2.0/1.1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)
Chipset + Renesas uPD720210 USB 3.0 Hub:
- 4 x USB 3.0/2.0 ports on the back panel

Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x M.2 Socket 3 connector
- 1 x SATA Express connector
- 10 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 1 x water cooling fan header (CPU_OPT)
- 3 x system fan headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 2 x USB 3.0/2.0 headers
- 2 x USB 2.0/1.1 headers
- 1 x Clear CMOS jumper
- 1 x power button
- 1 x reset button
- 1 x Clear CMOS button
- 1 x audio gain control switch
- 2 x BIOS switches

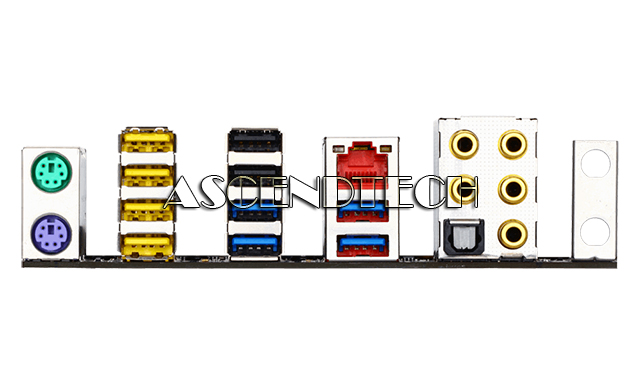

Back Panel Connectors
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 4 x USB 3.0/2.0 ports
- 6 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 1 x optical S/PDIF Out connector
- 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
- 2 x Wi-Fi antenna connector holes

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
- System voltage detection
- PU/System/Chipset temperature detection
- CPU/CPU OPT/System fan speed detection
- CPU/System/Chipset overheating warning
- CPU/CPU OPT/System fan fail warning
- CPU/CPU OPT/System fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install

BIOS
- 2 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
  * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
- BIOS
- Ambient LED
- EasyTune
- EZ Setup
- Fast Boot
- Game Controller
- Cloud Station
- ON/OFF Charge
- Smart TimeLock
- Smart Recovery 2
- System Information Viewer
- USB Blocker
- V-Tuner
- Support for Q-Flash
- Support for Smart Switch
- Support for Xpress Install

Operating System
- Support for Windows 10/8.1/8/7

Form Factor
- Micro-ATX Form Factor; 24.4cm x 24.4cm
