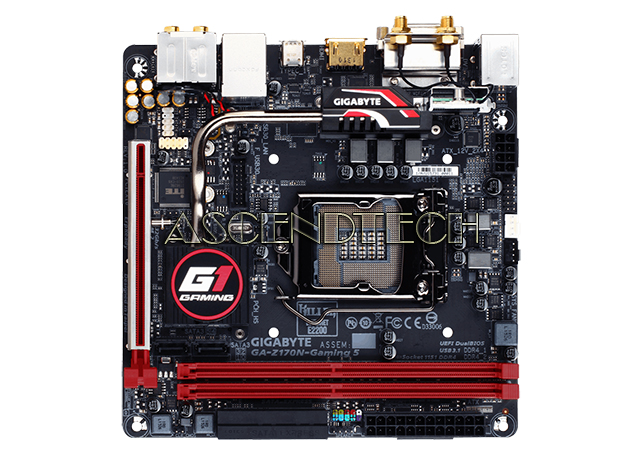

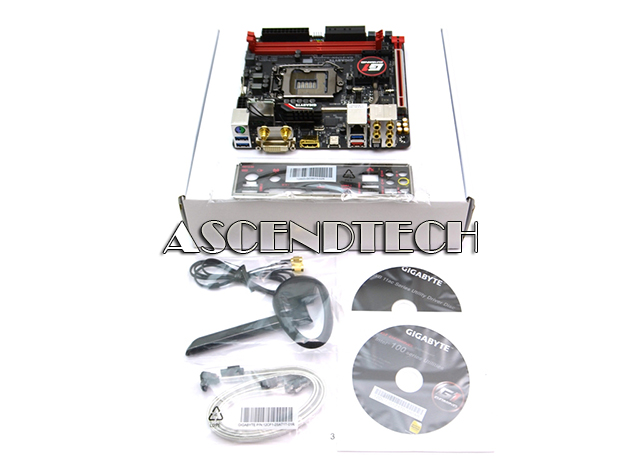

GIGABYTE GA-Z170N-Gaming 5 Rev.1.1 Intel Chipset Z170 Socket LGA1151 DDR4 DIMM SATA Mini-ITX Motherboard.

Chipset: Intel Z170 Express Chipset

Socket: Intel LGA1151

Compatible/Supported CPU: Support for 7th/6th Generation Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/ Intel Celeron processors

Max Supported Memory: up to 32GB

Number of Memory Slots: 2x DIMM

Memory Type: DDR4

RAID Support: 0, 1, 5, 10

Bluetooth Standard: Bluetooth 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR

Wireless Lan Support: Killer E2400 chip (10/100/1000 Mbit)

Network/Communications: Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band

Audio: Realtek ALC1150 codec, Support for Sound Blaster X-Fi MB3, High Definition Audio 2/4/5.1/7.1-channel, Support for S/PDIF Out

Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 6x SATA 6Gb/s connectors, 2x SATA Express connectors, 1x M.2 Socket 3 connector, 1x CPU fan header, 1x system fan header, 1x front panel header, 1x front panel audio header, 1x USB 3.0/2.0 header, 1x USB 2.0/1.1 header, 1x S/PDIF Out header, 1x speaker header, 1x Clear CMOS jumper, 1x chassis intrusion header.

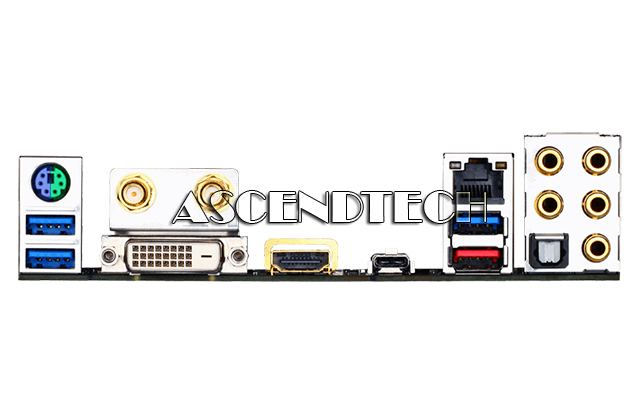

Input/Output Ports: 1x PS/2 keyboard/mouse port, 1x HDMI port, 2x SMA antenna connectors, 1x DVI-D port, 1x USB Type-C port, with USB 3.1 support, 1x USB 3.1 Type-A port (red), 3x USB 3.0/2.0 ports, 1x RJ-45 port, 1x optical S/PDIF Out connector, 5x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In).

Expansion Slots: 1x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.), 1x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

Color: Black

Form Factor: Mini-ITX

Type: Desktop Motherboard

Supported Operating System: Windows 10 64-bit (for 7th Generation Intel Processors), Windows 10 64-bit / Windows 8.1 64-bit / Windows 7 32-bit / 64-bits (for 6th Generation Intel Processors).

Features: - Supports 7th / 6th Generation Intel Core Processors, - Dual Channel DDR4, 2 DIMMs, - Intel USB 3.1 with USB Type-C - The World's Next Universal Connector, - 11ac 867 Mbps dual band wireless connection + BLUETOOTH 4.2, - Exclusive Ultra Durable Metal Shielding over the PCIe Slot, - PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support), - 2 SATA Express Connectors for up to 16Gb/s Data Transfer, - 115dB SNR HD Audio with Built-in Rear Audio Amplifier, - Killer E2400 Gaming Networks, - High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting, - APP Center Including EasyTune and Cloud Station Utilities, - GIGABYTE UEFI DualBIOS Technology.

Additional Specifications:

Memory
Due to a Windows 32-bit operating system limitation, when more than 4GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR4 3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Maximum shared memory of 1024MB
USB
Chipset:
2 x USB 2.0/1.1 ports available through the internal USB headers
5 x USB 3.0/2.0 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+Intel USB 3.1 Controller:
1 x USB Type-C port on the back panel, with USB 3.1 support
1 x USB 3.1 Type-A port (red) on the back panel
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
BIOS
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
Support for Q-Flash
Support for Smart Switch
Support for Xpress Install

CPU Support:

Socket 1151
Motherboard
Vendor	CPU Model	Frequency	L3 Cache	Core Name	Process	Stepping	Wattage	BCLK
Intel	Core i7-7700K	4.20GHz	8MB	KabyLake	14nm	B0	91W	100
Intel	Core i7-7700	3.60GHz	8MB	KabyLake	14nm	B0	65W	100
Intel	Core i7-7700T	2.90GHz	8MB	KabyLake	14nm	B0	35W	100
Intel	Core i7-7600K	3.80GHz	6MB	KabyLake	14nm	B0	91W	100
Intel	Core i5-7600	3.50GHz	6MB	KabyLake	14nm	B0	65W	100
Intel	Core i5-7600T	2.80GHz	6MB	KabyLake	14nm	B0	35W	100
Intel	Core i5-7500	3.40GHz	6MB	KabyLake	14nm	B0	65W	100
Intel	Core i5-7500T	2.70GHz	6MB	KabyLake	14nm	B0	35W	100
Intel	Core i5-7400	3.00GHz	6MB	KabyLake	14nm	B0	65W	100
Intel	Core i5-7400T	2.40GHz	6MB	KabyLake	14nm	B0	35W	100
Intel	Core i5-7350K	4.20GHz	4MB	KabyLake	14nm	S0	60W	100
Intel	Core i5-7320	4.10GHz	4MB	KabyLake	14nm	S0	51W	100
Intel	Core i5-7300	4.00GHz	4MB	KabyLake	14nm	S0	51W	100
Intel	Core i5-7300T	3.50GHz	4MB	KabyLake	14nm	S0	35W	100
Intel	Core i5-7100	3.90GHz	3MB	KabyLake	14nm	S0	51W	100
Intel	Core i5-7100T	3.40GHz	3MB	KabyLake	14nm	S0	35W	100
Intel	Pentium G4620	3.70GHz	3MB	KabyLake	14nm	S0	51W	100
Intel	Pentium G4600	3.60GHz	3MB	KabyLake	14nm	S0	51W	100
Intel	Pentium G4600T	3.00GHz	3MB	KabyLake	14nm	S0	35W	100
Intel	Pentium G4560	3.50GHz	3MB	KabyLake	14nm	B0	54W	100
Intel	Pentium G4560T	2.90GHz	3MB	KabyLake	14nm	S0	35W	100
Intel	Celeron G3950	3.00GHz	2MB	KabyLake	14nm	S0	51W	100
Intel	Celeron G3930	2.90GHz	2MB	KabyLake	14nm	S0	51W	100
Intel	Celeron G3930T	2.70GHz	2MB	KabyLake	14nm	S0	35W	100
Intel	Core i7-6700K	4.00GHz	8MB	Skylake	14nm	R0	91W	100
Intel	Core i7-6700	3.40GHz	8MB	Skylake	14nm	R0	65W	100
Intel	Core i7-6700T	2.80GHz	8MB	Skylake	14nm	R0	35W	100
Intel	Core i5-6600K	3.50GHz	6MB	Skylake	14nm	R0	91W	100
Intel	Core i5-6600	3.30GHz	6MB	Skylake	14nm	R0	65W	100
Intel	Core i5-6600T	2.70GHz	6MB	Skylake	14nm	R0	35W	100
Intel	Core i5-6500	3.20GHz	6MB	Skylake	14nm	R0	65W	100
Intel	Core i5-6500T	2.50GHz	6MB	Skylake	14nm	R0	35W	100
Intel	Core i5-6402P	2.80GHz	6MB	Skylake	14nm	R0	65W	100
Intel	Core i5-6400	2.70GHz	6MB	Skylake	14nm	R0	65W	100
Intel	Core i5-6400T	2.20GHz	6MB	Skylake	14nm	R0	35W	100
Intel	Core i3-6320	3.90GHz	4MB	Skylake	14nm	S0	47W	100
Intel	Core i3-6300	3.80GHz	4MB	Skylake	14nm	S0	47W	100
Intel	Core i3-6300T	3.30GHz	4MB	Skylake	14nm	S0	35W	100
Intel	Core i3-6100	3.70GHz	3MB	Skylake	14nm	S0	47W	100
Intel	Core i3-6100T	3.20GHz	3MB	Skylake	14nm	S0	35W	100
Intel	Core i3-6098P	3.60GHz	3MB	Skylake	14nm	R0	54W	100
Intel	Pentium G4520	3.60GHz	3MB	Skylake	14nm	S0	47W	100
Intel	Pentium G4500	3.50GHz	3MB	Skylake	14nm	S0	47W	100
Intel	Pentium G4500T	3.00GHz	3MB	Skylake	14nm	S0	35W	100
Intel	Pentium G4400	3.30GHz	3MB	Skylake	14nm	R0	65W	100
Intel	Pentium G4400	3.30GHz	3MB	Skylake	14nm	S0	47W	100
Intel	Pentium G4400T	2.90GHz	3MB	Skylake	14nm	S0	35W	100
Intel	Celeron G3920	2.90GHz	2MB	Skylake	14nm	S0	47W	100
Intel	Celeron G3900	2.80GHz	2MB	Skylake	14nm	S0	47W	100
Intel	Celeron G3900T	2.60GHz	2MB	Skylake	14nm	S0	35W	100
