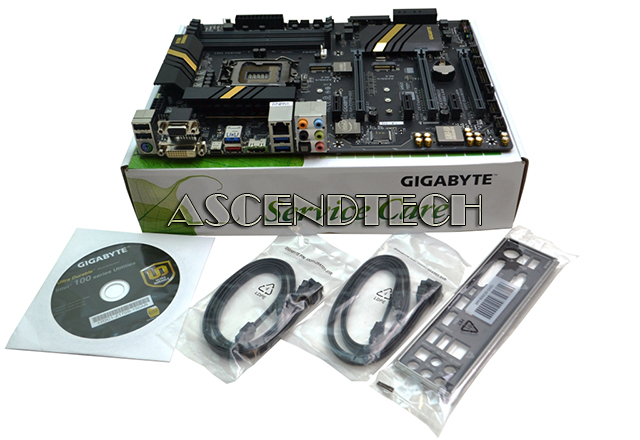

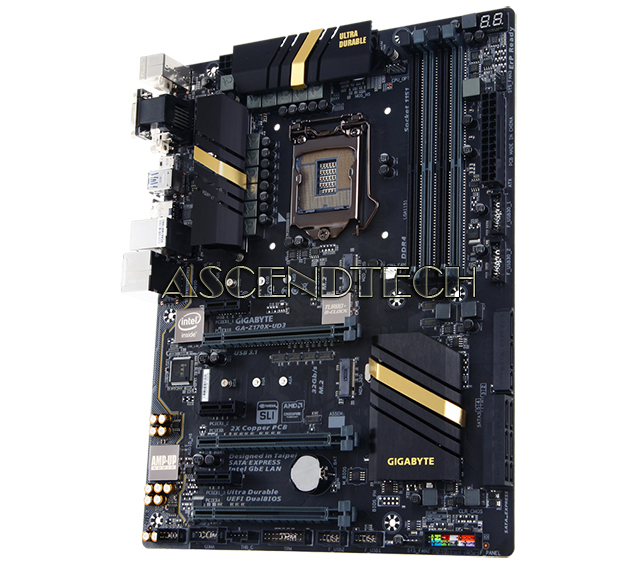

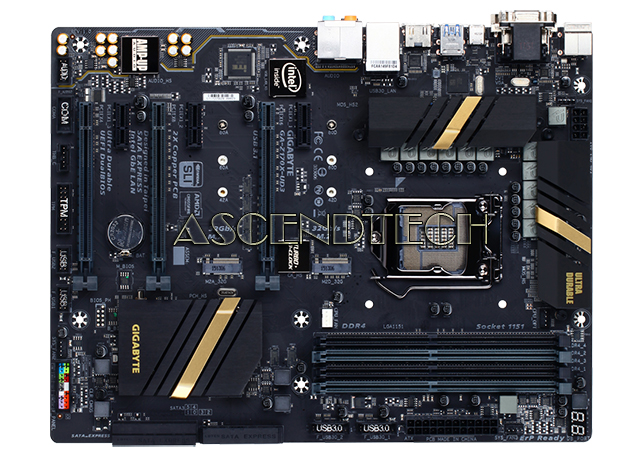

GIGABYTE GA-Z170X-UD3 Rev.1.0 Intel Z170 Socket LGA1151 DDR4 DIMM SATA 6Gb/s ATX Motherboard.

Features:

- Supports 7th / 6th Generation Intel® Core™ Processors
- Dual Channel DDR4, 4 DIMMs
- Intel® USB 3.1 with USB Type-C™ - The World’s Next Universal Connector
- 3-Way Graphics with Premium PCIe Lane
- Dual PCIe Gen3 x4 M.2 Connectors with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
- 3 SATA Express Connectors for up to 16Gb/s Data Transfer
- 115dB SNR HD Audio with Built-in Rear Audio Amplifier
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- Gold Plating for CPU Socket, Memory DIMMs with 2X Copper PCB
- APP Center Including EasyTune™ and Cloud Station™ Utilities
- GIGABYTE UEFI DualBIOS™ Technology

Specifications:

CPU
-Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
* For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
- L3 cache varies with CPU

Chipset
- Intel Z170 Express Chipset

Memory
- 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
- Dual channel memory architecture
- Support for DDR4 3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
- Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
- Support for up to 3 displays at the same time
??Maximum shared memory of 1024 MB

Audio
- Realtek® ALC1150 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out

LAN
- Intel® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- 1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the PCIEX1_3 slot. When the PCIEX1_3 slot is populated, the PCIEX4 slot will operate at up to x1 mode
- 3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard)

Storage Interface
Chipset:
- 2 x M.2 Socket 3 connectors (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
- 3 x SATA Express connectors
- 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-8 Internal Connectors," for the supported configurations of the M.2, SATA Express, and SATA connectors

Multi-Graphics Technology
- Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
- Support for AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ technologies

USB
Chipset:
- 7 x USB 3.0/2.0 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Chipset+Intel® USB 3.1 Controller:
- 1 x USB Type-C™ port on the back panel, with USB 3.1 support
- 1 x USB 3.1 Type-A port (red) on the back panel

Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 2 x M.2 Socket 3 connectors
- 3 x SATA Express connectors
- 6 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 1 x water cooling fan header (CPU_OPT)
- 3 x system fan headers
- 1 x front panel header
- 1 x front panel audio header
- 2 x USB 3.0/2.0 headers
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header
- 1 x Thunderbolt™ add-in card connector
- 1 x serial port header
- 1 x S/PDIF Out header
- 1 x Clear CMOS jumper

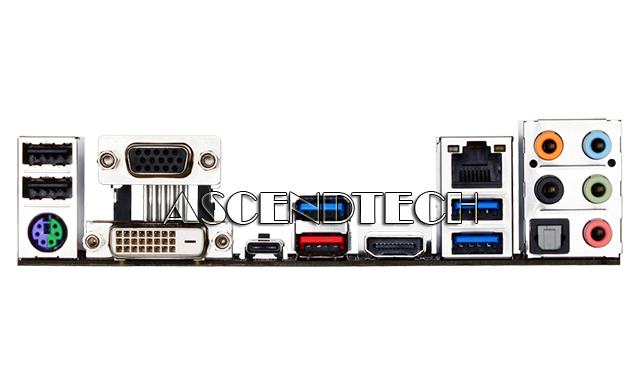

Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x HDMI port
- 1 x USB Type-C™ Port, with USB 3.1 support
- 1 x USB 3.1 Type-A port (red)
- 3 x USB 3.0/2.0 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 1 x optical S/PDIF Out connector
- 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

I/O Controller
- iTE® I/O Controller Chip

H/W Monitoring
- System voltage detection
- CPU/System temperature detection
- CPU/CPU OPT/System fan speed detection
- CPU/System overheating warning
- CPU/CPU OPT/System fan fail warning
- CPU/CPU OPT/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install

BIOS
- 2 x 64 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS™
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- 3D OSD
- BIOS
- Ambient LED
- AutoGreen
- Cloud Station
- EasyTune
- Easy RAID
- Fast Boot
- mart TimeLock
- Smart Keyboard
- Smart Backup
- System Information Viewer
- USB Blocker
Support for Q-Flash
Support for Smart Switch
Support for Xpress Insta

Operating System
- Windows® 10 64-bit (for 7th Generation Intel® Processors)
- Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.ws 7

Form Factor
- ATX Form Factor; 30.5cm x 23.5cm

CPU Support

Socket 1151
Motherboard
Vendor	CPU Model	Frequency	L3 Cache	GPU Frequency	Core Name	Process	Stepping	Wattage	BCLK
Intel	Core i7-7700K	4.20GHz	8MB	350 MHz / 1150 MHz	KabyLake	14nm	B0	91W	100
Intel	Core i7-7700	3.60GHz	8MB	350 MHz / 1150 MHz	KabyLake	14nm	B0	65W	100
Intel	Core i7-7700T	2.90GHz	8MB	350 MHz / 1150 MHz	KabyLake	14nm	B0	35W	100
Intel	Core i5-7600K	3.80GHz	6MB	350 MHz / 1150 MHz	KabyLake	14nm	B0	91W	100
Intel	Core i5-7600	3.50GHz	6MB	350 MHz / 1150 MHz	KabyLake	14nm	B0	65W	100
Intel	Core i5-7600T	2.80GHz	6MB	350 MHz / 1100 MHz	KabyLake	14nm	B0	35W	100
Intel	Core i5-7500	3.40GHz	6MB	350 MHz / 1100 MHz	KabyLake	14nm	B0	65W	100
Intel	Core i5-7500T	2.70GHz	6MB	350 MHz / 1100 MHz	KabyLake	14nm	B0	35W	100
Intel	Core i5-7400	3.00GHz	6MB	350 MHz / 1000 MHz	KabyLake	14nm	B0	65W	100
Intel	Core i5-7400T	2.40GHz	6MB	350 MHz / 1000 MHz	KabyLake	14nm	B0	35W	100
Intel	Core i3-7350K	4.20GHz	4MB	350 MHz / 1150 MHz	KabyLake	14nm	S0	60W	100
Intel	Core i3-7320	4.10GHz	4MB	350 MHz / 1150 MHz	KabyLake	14nm	S0	51W	100
Intel	Core i3-7300	4.00GHz	4MB	350 MHz / 1150 MHz	KabyLake	14nm	S0	51W	100
Intel	Core i3-7300T	3.50GHz	4MB	350 MHz / 1100 MHz	KabyLake	14nm	S0	35W	100
Intel	Core i3-7100	3.90GHz	3MB	350 MHz / 1100 MHz	KabyLake	14nm	S0	51W	100
Intel	Core i3-7100T	3.40GHz	3MB	350 MHz / 1100 MHz	KabyLake	14nm	S0	35W	100
Intel	Pentium G4620	3.70GHz	3MB	350 MHz / 1100 MHz	KabyLake	14nm	S0	51W	100
Intel	Pentium G4600	3.60GHz	3MB	350 MHz / 1100 MHz	KabyLake	14nm	S0	51W	100
Intel	Pentium G4600T	3.00GHz	3MB	350 MHz / 1050 MHz	KabyLake	14nm	S0	35W	100
Intel	Pentium G4560	3.50GHz	3MB	350 MHz / 1050 MHz	KabyLake	14nm	B0	54W	100
Intel	Pentium G4560T	2.90GHz	3MB	350 MHz / 1050 MHz	KabyLake	14nm	S0	35W	100
Intel	Celeron G3950	3.00GHz	2MB	350 MHz / 1050 MHz	KabyLake	14nm	S0	51W	100
Intel	Celeron G3930	2.90GHz	2MB	350 MHz / 1050 MHz	KabyLake	14nm	S0	51W	100
Intel	Celeron G3930T	2.70GHz	2MB	350 MHz / 1000 MHz	KabyLake	14nm	S0	35W	100
Intel	Core i7-6700K	4.00GHz	8MB	350 MHz / 1200 MHz	Skylake	14nm	R0	91W	100
Intel	Core i7-6700	3.40GHz	8MB	350 MHz / 1200 MHz	Skylake	14nm	R0	65W	100
Intel	Core i7-6700T	2.80GHz	8MB	350 MHz / 1150 MHz	Skylake	14nm	R0	35W	100
Intel	Core i5-6600K	3.50GHz	6MB	350 MHz / 1200 MHz	Skylake	14nm	R0	91W	100
Intel	Core i5-6600	3.30GHz	6MB	350 MHz / 1200 MHz	Skylake	14nm	R0	65W	100
Intel	Core i5-6600T	2.70GHz	6MB	350 MHz / 1150 MHz	Skylake	14nm	R0	35W	100
Intel	Core i5-6500	3.20GHz	6MB	350 MHz / 1200 MHz	Skylake	14nm	R0	65W	100
Intel	Core i5-6500T	2.50GHz	6MB	350 MHz / 1150 MHz	Skylake	14nm	R0	35W	100
Intel	Core i5-6402P	2.80GHz	6MB	350 MHz / 950 MHz	Skylake	14nm	R0	65W	100
Intel	Core i5-6400	2.70GHz	6MB	350 MHz / 1200 MHz	Skylake	14nm	R0	65W	100
Intel	Core i5-6400T	2.20GHz	6MB	350 MHz / 1150 MHz	Skylake	14nm	R0	35W	100
Intel	Core i3-6320	3.90GHz	4MB	350 MHz / 1150 MHz	Skylake	14nm	S0	47W	100
Intel	Core i3-6300	3.80GHz	4MB	350 MHz / 1150 MHz	Skylake	14nm	S0	47W	100
Intel	Core i3-6300T	3.30GHz	4MB	350 MHz / 950 MHz	Skylake	14nm	S0	35W	100
Intel	Core i3-6100	3.70GHz	3MB	350 MHz / 1050 MHz	Skylake	14nm	S0	47W	100
Intel	Core i3-6100T	3.20GHz	3MB	350 MHz / 950 MHz	Skylake	14nm	S0	35W	100
Intel	Core i3-6098P	3.60GHz	3MB	350 MHz / 1050 MHz	Skylake	14nm	R0	54W	100
Intel	Pentium G4520	3.60GHz	3MB	350 MHz / 1050 MHz	Skylake	14nm	S0	47W	100
Intel	Pentium G4500	3.50GHz	3MB	350 MHz / 1050 MHz	Skylake	14nm	S0	47W	100
Intel	Pentium G4500T	3.00GHz	3MB	350 MHz / 950 MHz	Skylake	14nm	S0	35W	100
Intel	Pentium G4400	3.30GHz	3MB	350 MHz / 1000 MHz	Skylake	14nm	R0	65W	100
Intel	Pentium G4400	3.30GHz	3MB	350 MHz / 1050 MHz	Skylake	14nm	S0	47W	100
Intel	Pentium G4400T	2.90GHz	3MB	350 MHz / 950 MHz	Skylake	14nm	S0	35W	100
Intel	Celeron G3920	2.90GHz	2MB	350 MHz / 950 MHz	Skylake	14nm	S0	47W	100
Intel	Celeron G3900	2.80GHz	2MB	350 MHz / 950 MHz	Skylake	14nm	S0	47W	100
Intel	Celeron G3900T	2.60GHz	2MB	350 MHz / 950 MHz	Skylake	14nm	S0	35W	100
