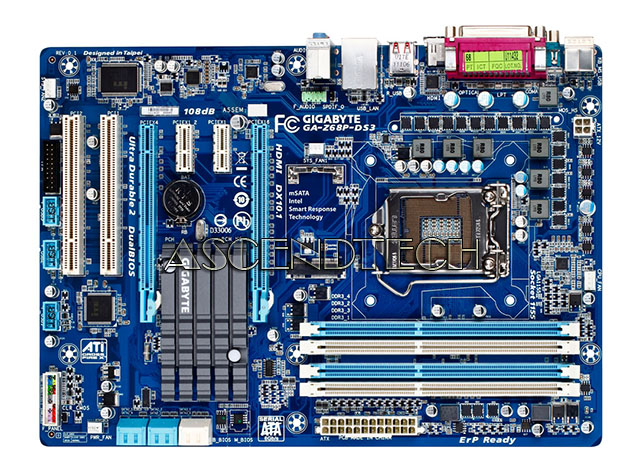

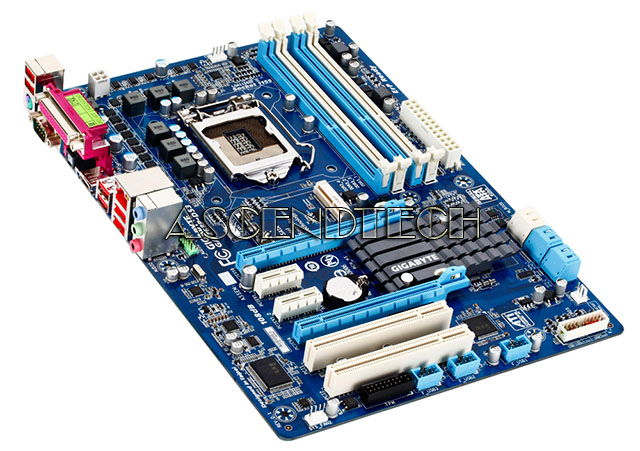

Gigabyte GA-Z68P-DS3 rev.1.0 No I/O

Gigabyte GA-Z68P-DS3 rev.1.0 Intel Chipset Z68 Express Socket LGA1155 DDR3 ATX Motherboard. The GA-Z68P-DS3 motherboard, based on the Intel Z68 Express Chipset and supporting the new 2nd generation Intel Core processors. Delivering the very best that Intel 6 series chipsets have to offer, including a significant performance boost with Intel Smart Response Technology, the first ever mSATA drive connectors on a standard desktop PC motherboard, and GIGABYTE's proprietary Touch BIOS technology, GIGABYTE Z68 series motherboards put users in the driver seat, allowing them to take total control over how their system operates and performs to best match their individual computing needs.

Features:

• Supports for LGA1155 2nd Generation Intel Core Processors
• Touch BIOS delivers the innovative new way to modify BIOS.
• 4X performance boost with mSATA Intel Smart Response
• TechnologyUltra Durable 2 technology with 4 Phase Power VRM design
• GIGABYTE 3x USB Power ports
• CrossFireX support for ultimate graphics performance
• XHD technology accelerating hard drive performance with ease
• Features high speed Gigabit Ethernet connection










Specifications:

CPU
Support for Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1155 package
L3 cache varies with CPU
Chipset
Intel Z68 Express Chipset
Memory
4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
Dual channel memory architecture
Support for DDR3 2133/1866/1600/1333/1066 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 1920x1200
Audio
Realtek ALC889 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
LAN
1 x Realtek RTL8111E chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
(All PCI Express slots conform to PCI Express 2.0 standard.)
2 x PCI slots
Storage Interface
Chipset:
2 x SATA 6Gb/s connectors (SATA3_0, SATA3_1) supporting up to 2 SATA 6Gb/s devices
4 x SATA 3Gb/s connectors (SATA2_2~SATA2_5) supporting up to 4 SATA 3Gb/s devices
* The SATA2_5 connector will become unavailable when the mSATA connector is installed with a solid-state drive.
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
Multi-Graphics Technology
Support for AMD CrossFireX technology
* The PCIEX16 slot operates at up to x4 mode when AMD CrossFireX is enabled.
USB
Chipset:
Up to 12 USB 2.0/1.1 ports (6 ports on the back panel, 6 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
4 x SATA 3Gb/s connectors
1 x mSATA connector
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
3 x USB 2.0/1.1 headers
1 x clearing CMOS jumper
1 x Trusted Platform Module (TPM) header

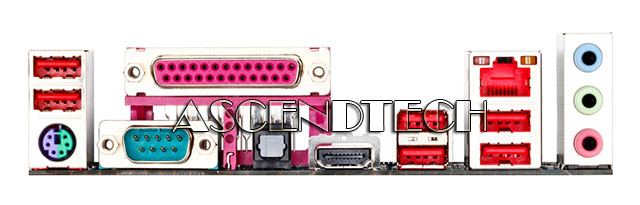

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x parallel port
1 x serial port
1 x optical S/PDIF Out connector
1 x HDMI port
6 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
I/O Controller
iTE IT8728 chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU/System fan speed control
* Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
BIOS
2 x 32 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
Support for BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
Support for Smart 6
Support for Auto Green
Support for eXtreme Hard Drive (X.H.D)
Support for ON/OFF Charge
Support for Cloud OC
Support for 3TB+ Unlock
Support for TouchBIOS
Support for Q-Share
Operating System
Support for Microsoft Windows 8/7/Vista/XP
Form Factor
ATX Form Factor; 30.5cm x 21.5cm
