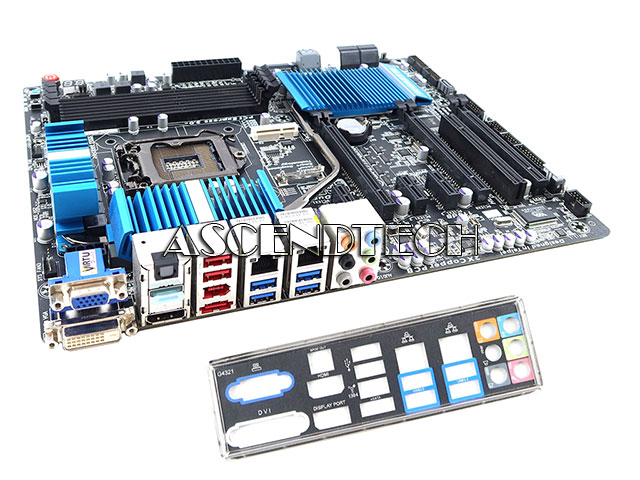

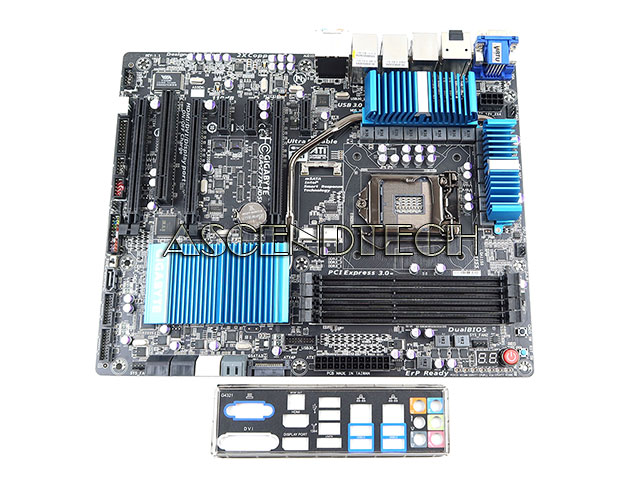

*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBDKGAZ77XUD5HA
Brand Gigabyte
Model GA-Z77X-UD5H
Category Intel Lga1155 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard comes with I/O Shield, only! No cables, fan’s bracket, fan’s mounting backplate or any other accessories!

Description

GIGABYTE GA-Z77X-UD5H Intel Chipset Z77 Socket LGA1155 DDR3 HDMI DisplayPort DVI-D D-Sub SATA 6.0Gb/s ATX Desktop Motherboard.

Chipset: Intel Z77
Socket: Intel LGA1155
Compatible/Supported CPU: Support for 2nd/3rd Generation Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/ Intel Celeron / Intel Xeon processors
Max Supported Memory: 32GB
Number of Memory Slots: 4
Memory Type: DDR3 SDRAM
Speed: 2800MHz, 1600MHz, 1333MHz, 1066MHz
Storage Interface: SATA 6.0Gb/s
RAID Support: 0, 1, 5, 10
Network/Communications: 1x Intel GbE LAN 10/100/1000Mb/s, 1x Atheros GbE LAN chip 10/100/1000Mb/s
Audio: Realtek ALC898 Codec, Support for X-Fi Xtreme Fidelity and EAX Advanced HD 5.0 technologies, High Definition Audio 2/4/5.1/7.1-channel
Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x PCIe power connector, 5x SATA 6Gb/s connectors, 4x SATA 3Gb/s connectors, 1x mSATA connector, 1x CPU fan header, 4x system fan headers, 1x front panel header, 1x front panel audio header, 1x S/PDIF Out header, 3x USB 3.0/2.0 headers, 2x USB 2.0/1.1 headers, 1x Clear CMOS jumper, 1x Trusted Platform Module (TPM) header, 1x power button, 1x reset button, 1x Clear CMOS button, 1x heatsink LED power connector, 1x BIOS Switch, Voltage Measurement Points
Input/Output Ports: 1x D-Sub port, 1x DVI-D port, 1x optical S/PDIF Out connector, 1x HDMI port, 1x DisplayPort, 1x eSATA 6Gb/s connector, 4x USB 3.0/2.0 ports, 2x USB 2.0/1.0 ports, 1x IEEE 1394a port, 2x RJ-45 ports, 6x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In/Mic In, Line Out)
Expansion Slots: 1x PCI Express x16 slot, running at x16, 1x PCI Express x16 slot, running at x8, 1x PCI Express x16 slot, running at x4, 3x PCI Express x1 slots, 1x PCI slot
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 8 64-bit, Windows 7 32-bit/64-bits, Windows XP

Additional Specifications:

Onboard Graphics
1.1x D-Sub port
2.1x DVI-D port, supporting a maximum resolution of 1920x1200
The DVI-D port does not support D-Sub connection by adapter.
3.1x HDMI port, supporting a maximum resolution of 1920x1200
4.1x DisplayPort, supporting a maximum resolution of 2560x1600

Multi-Graphics Technology
Support for AMD CrossFireX / NVIDIA SLI technology

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
1.System voltage detection
2.CPU/System temperature detection
3.CPU/System fan speed detection
4.CPU overheating warning
5.CPU/System fan fail warning
6.CPU/System fan speed control
Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install

BIOS
1.2x 64 Mbit flash
2.Use of licensed AMI EFI BIOS
3.Support for DualBIOS
4.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
1.Support for @BIOS
2.Support for Q-Flash
3.Support for Xpress Install
4.Support for Xpress Recovery2
5.Support for EasyTune
Available functions in EasyTune may differ by motherboard model.
6.Support for eXtreme Hard Drive (X.H.D)
7.Support for Auto Green
8.Support for ON/OFF Charge
9.Support for Q-Share
10.Support for 3D Power
11.Support for EZ Setup
12.Support for LAN Optimizer (Intelligent optimization network management tool)



CPU Support:

Socket LGA1155
VendorCPU ModelCPU FrequencyL3 CacheProcessCore NameSteppingWattage
IntelCore i7-3770K3.50GHz8MB22nmIvy BridgeE177W
IntelCore i7-37703.40GHz8MB22nmIvy BridgeE177W
IntelCore i7-3770S3.10GHz8MB22nmIvy BridgeE165W
IntelCore i7-3770T2.50GHz8MB22nmIvy BridgeE145W
IntelCore i5-35703.40GHz6MB22nmIvy BridgeN077W
IntelCore i5-3570K3.40GHz6MB22nmIvy BridgeE177W
IntelCore i5-3570S3.10GHz6MB22nmIvy BridgeN065W
IntelCore i5-3570T2.30GHz6MB22nmIvy BridgeE145W
IntelCore i5-3550S3.00GHz6MB22nmIvy BridgeE165W
IntelCore i5-35503.30GHz6MB22nmIvy BridgeE177W
IntelCore i5-3475S2.90GHz6MB22nmIvy BridgeE165W
IntelCore i5-34703.20GHz6MB22nmIvy BridgeN077W
IntelCore i5-3470S2.90GHz6MB22nmIvy BridgeN065W
IntelCore i5-3470T2.90GHz3MB22nmIvy BridgeL135W
IntelCore i5-34503.10GHz6MB22nmIvy BridgeE177W
IntelCore i5-3450S2.80GHz6MB22nmIvy BridgeE165W
IntelCore i5-3350P3.10GHz6MB22nmIvy BridgeN069W
IntelCore i5-3350P3.10GHz6MB22nmIvy BridgeE169W
IntelCore i5-33403.10GHz6MB22nmIvy BridgeN077W
IntelCore i5-33403.10GHz6MB22nmIvy BridgeE177W
IntelCore i5-3340S2.80GHz6MB22nmIvy BridgeE165W
IntelCore i5-33303.00GHz6MB22nmIvy BridgeN077W
IntelCore i5-33303.00GHz6MB22nmIvy BridgeE177W
IntelCore i5-3330S2.70GHz6MB22nmIvy BridgeE165W
IntelCore i3-32403.40GHz3MB22nmIvy BridgeP055W
IntelCore i3-32403.40GHz3MB22nmIvy BridgeL155W
IntelCore i3-3240T2.90GHz3MB22nmIvy BridgeP035W
IntelCore i3-3240T2.90GHz3MB22nmIvy BridgeL135W
IntelCore i3-32253.30GHz3MB22nmIvy BridgeL155W
IntelCore i3-32203.30GHz3MB22nmIvy BridgeN055W
IntelCore i3-32203.30GHz3MB22nmIvy BridgeP055W
IntelCore i3-32203.30GHz3MB22nmIvy BridgeE155W
IntelCore i3-32203.30GHz3MB22nmIvy BridgeL155W
IntelCore i3-3220T2.80GHz3MB22nmIvy BridgeL135W
IntelCore i3-3220T2.80GHz3MB22nmIvy BridgeP035W
IntelCore i3-32103.20GHz3MB22nmIvy BridgeP055W
IntelCore i7-2700K3.50GHz8MB32nmSandy BridgeD295W
IntelCore i7-26003.40GHz8MB32nmSandy BridgeD295W
IntelCore i7-2600K3.40GHz8MB32nmSandy BridgeD295W
IntelCore i7-2600S2.80GHz8MB32nmSandy BridgeD265W
IntelCore i5-2550K3.40GHz6MB32nmSandy BridgeD295W
IntelCore i5-25003.30GHz6MB32nmSandy BridgeD295W
IntelCore i5-2500K3.30GHz6MB32nmSandy BridgeD295W
IntelCore i5-2500S2.70GHz6MB32nmSandy BridgeD265W
IntelCore i5-2500T2.30GHz6MB32nmSandy BridgeD245W
IntelCore i5-2450P3.20GHz6MB32nmSandy BridgeD295W
IntelCore i5-2405S2.50GHz6MB32nmSandy BridgeD265W
IntelCore i5-24003.10GHz6MB32nmSandy BridgeD295W
IntelCore i5-2400S2.50GHz6MB32nmSandy BridgeD265W
IntelCore i5-2390T2.70GHz3MB32nmSandy BridgeQ035W
IntelCore i5-2380P3.10GHz6MB32nmSandy BridgeD295W
IntelCore i5-23203.00GHz6MB32nmSandy BridgeD295W
IntelCore i5-23102.90GHz6MB32nmSandy BridgeD295W
IntelCore i5-23002.80GHz6MB32nmSandy BridgeD295W
IntelCore i3-21303.40GHz3MB32nmSandy BridgeD265W
IntelCore i3-21253.30GHz3MB32nmSandy BridgeD265W
IntelCore i3-21203.30GHz3MB32nmSandy BridgeQ065W
IntelCore i3-2120T2.60GHz3MB32nmSandy BridgeQ035W
IntelCore i3-21053.10GHz3MB32nmSandy BridgeD265W
IntelCore i3-2100T2.50GHz3MB32nmSandy BridgeQ035W
IntelCore i3-21003.10GHz3MB32nmSandy BridgeQ065W
IntelPentium G21403.30GHz3MB22nmIvy BridgeP055W
IntelPentium G21303.20GHz3MB22nmIvy BridgeP055W
IntelPentium G21203.10GHz3MB22nmIvy BridgeP055W
IntelPentium G2120T2.70GHz3MB22nmIvy BridgeP035W
IntelPentium G20303.00GHz3MB22nmIvy BridgeP055W
IntelPentium G2030T2.60GHz3MB22nmIvy BridgeP035W
IntelPentium G2100T2.60GHz3MB22nmIvy BridgeP035W
IntelPentium G20202.90GHz3MB22nmIvy BridgeE155W
IntelPentium G20202.90GHz3MB22nmIvy BridgeN055W
IntelPentium G20202.90GHz3MB22nmIvy BridgeL155W
IntelPentium G20202.90GHz3MB22nmIvy BridgeP055W
IntelPentium G2020T2.50GHz3MB22nmIvy BridgeP035W
IntelPentium G20102.80GHz3MB22nmIvy BridgeP055W
IntelPentium G20102.80GHz3MB22nmIvy BridgeN055W
IntelPentium G8703.10GHz3MB32nmSandy BridgeQ065W
IntelPentium G8603.00GHz3MB32nmSandy BridgeQ065W
IntelPentium G860T2.60GHz3MB32nmSandy BridgeQ035W
IntelPentium G8502.90GHz3MB32nmSandy BridgeQ065W
IntelPentium G8402.80GHz3MB32nmSandy BridgeQ065W
IntelPentium G6402.80GHz3MB32nmSandy BridgeQ065W
IntelPentium G640T2.40GHz3MB32nmSandy BridgeQ035W
IntelPentium G6302.70GHz3MB32nmSandy BridgeQ065W
IntelPentium G630T2.30GHz3MB32nmSandy BridgeQ035W
IntelPentium G6202.60GHz3MB32nmSandy BridgeQ065W
IntelPentium G620T2.20GHz3MB32nmSandy BridgeQ035W
IntelPentium G6452.90GHz3MB32nmSandy BridgeQ065W
IntelPentium G645T2.50GHz3MB32nmSandy BridgeQ035W
IntelCeleron G16302.80GHz2MB22nmIvy BridgeP055W
IntelCeleron G16202.70GHz2MB22nmIvy BridgeP055W
IntelCeleron G1620T2.40GHz2MB22nmIvy BridgeP035W
IntelCeleron G16102.60GHz2MB22nmIvy BridgeP055W
IntelCeleron G1610T2.30GHz2MB22nmIvy BridgeP035W
IntelCeleron G5552.70GHz2MB32nmSandy BridgeQ065W
IntelCeleron G550T2.20GHz2MB32nmSandy BridgeQ035W
IntelCeleron G5502.60GHz2MB32nmSandy BridgeQ065W
IntelCeleron G5402.50GHz2MB32nmSandy BridgeQ065W
IntelCeleron G5302.40GHz2MB32nmSandy BridgeQ065W
IntelCeleron G530T2.00GHz2MB32nmSandy BridgeQ035W
IntelCeleron G4651.90GHz1.5MB32nmSandy BridgeQ035W
IntelCeleron G4601.80GHz1.5MB32nmSandy BridgeQ035W
IntelCeleron G4401.60GHz1MB32nmSandy BridgeQ035W
IntelXeon E3-1290v23.70GHz8MB22nmIvy BridgeE187W
IntelXeon E3-1280v23.60GHz8MB22nmIvy BridgeE169W
IntelXeon E3-1275v23.50GHz8MB22nmIvy BridgeE177W
IntelXeon E3-1270v23.50GHz8MB22nmIvy BridgeE169W
IntelXeon E3-1265Lv22.50GHz8MB22nmIvy BridgeE145W
IntelXeon E3-1245v23.40GHz8MB22nmIvy BridgeE177W
IntelXeon E3-1240v23.40GHz8MB22nmIvy BridgeE169W
IntelXeon E3-1230v23.30GHz8MB22nmIvy BridgeE169W
IntelXeon E3-1225v23.20GHz8MB22nmIvy BridgeE177W
IntelXeon E3-1220Lv22.30GHz3MB22nmIvy BridgeL117W
IntelXeon E3-1220v23.10GHz8MB22nmIvy BridgeE169W
IntelXeon E3-12753.40GHz8MB32nmSandy BridgeD295W
IntelXeon E3-12453.30GHz8MB32nmSandy BridgeD295W
IntelXeon E3-12353.20GHz8MB32nmSandy BridgeD295W
IntelXeon E3-12253.10GHz6MB32nmSandy BridgeD295W
IntelXeon E3-12903.60GHz8MB32nmSandy BridgeD295W
IntelXeon E3-12803.50GHz8MB32nmSandy BridgeD295W
IntelXeon E3-12703.40GHz8MB32nmSandy BridgeD280W
IntelXeon E3-12403.30GHz8MB32nmSandy BridgeD280W
IntelXeon E3-12303.20GHz8MB32nmSandy BridgeD280W
IntelXeon E3-1220L2.20GHz3MB32nmSandy BridgeD220W
IntelXeon E3-12203.10GHz8MB32nmSandy BridgeD280W
