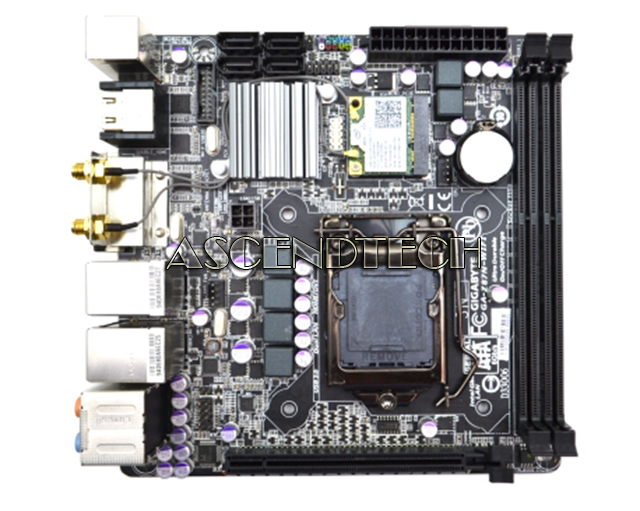

Gigabyte GA-Z87N-WIFI rev.1.1 MB No I/O

Gigabyte GA-Z87N-WIFI rev.1.1 Intel Chipset Z87 Socket LGA1150 DDR3 Mini-ITX Motherboard. GIGABYTE 8 Series motherboards support the latest 4th Generation Intel Core processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable digital power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, gold plated hardware connectors and of course, killer good looks, GIGABYTE 8 series motherboards are in a class of their own.


Features:

• Supports 4th Generation Intel Core processors
• Mini ITX Form Factor (17*17cm)
• GIGABYTE Ultra Durable 4 Plus Technology
• Supports Intel WiFi/ WIDI technology
• Integrated Bluetooth 4.0 and Intel Wi-Fi module
• GIGABYTE Hybrid Digital Power Engine
• GIGABYTE UEFI DualBIOS
• GIGABYTE 333 Onboard Acceleration (USB 3.0, SATA 3.0 & 3x USB Power)
• GIGABYTE On/Off Charge for USB devices
• Dual LAN with high ESD Protection
• Dual HDMI 1.4, DVI-I










Specifications:

CPU
Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package
L3 cache varies with CPU
Chipset
Intel Z87 Express Chipset
Memory
2 x DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 1600/1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor - Intel HD Graphics support:
1 x DVI-I port, supporting a maximum resolution of 1920x1200
2 x HDMI ports, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
* Support for HDMI 1.4a version.
Support for up to 3 displays at the same time
* To set up a triple-display configuration, you must connect a D-Sub monitor using a DVI-to-D-Sub adapter.
Maximum shared memory of 1 GB
Audio
Realtek ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
Intel GbE LAN chip (10/100/1000 Mbit)(LAN1)
Atheros GbE LAN chip (10/100/1000 Mbit)(LAN2)
* Teaming is not supported.
Wireless Communication Module
Wi-Fi 802.11 b/g/n, supporting 2.4 GHz Single-Band
Bluetooth 4.0, 3.0+HS, 2.1+EDR
Expansion Slots
1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x mini-PCI Express slot for the wireless communication module
Storage Interface
Chipset:
4 x SATA 6Gb/s connectors supporting up to 4 SATA 6Gb/s devices
Support for RAID 0, RAID 1, RAID 5, and RAID 10
USB
Chipset:
Up to 4 USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Up to 6 USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.0/2.0 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x S/PDIF Out header
1 x Clear CMOS jumper

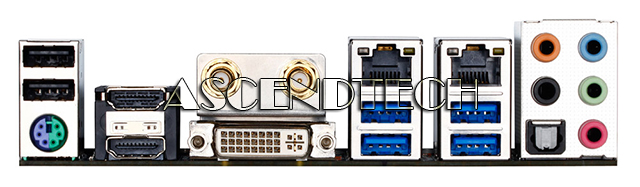

Back Panel Connectors
1 x PS/2 keyboard/mouse port
2 x HDMI ports
2 x antenna connectors
1 x DVI-I port
4 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 x 64 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for Q-Flash
Support for Xpress Install
Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
BIOS
EasyTune
EZ Setup
Smart TimeLock
USB Blocker
Support for ON/OFF Charge
Support for Wi-Fi Share
Support for Cloud Station
Operating System
Support for Windows 10/8.1/8/7
Form Factor
Mini-ITX Form Factor; 17.0cm x 17.0cm
