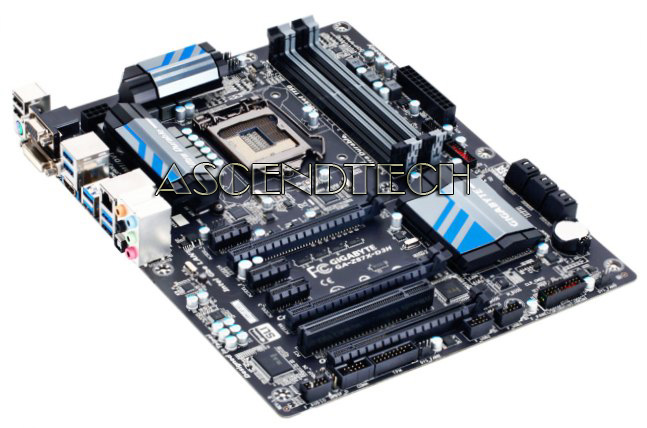

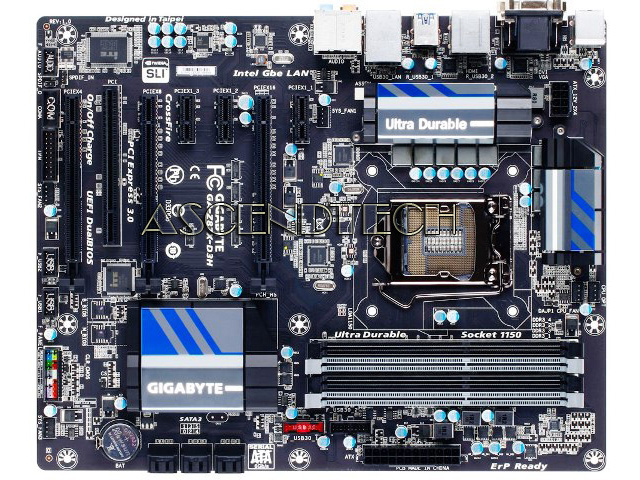

GIGABYTE GA-Z87X-D3H Z87 DDR3 SATA3 USB3

GIGABYTE GA-Z87X-D3H LGA 1150 Intel Z87 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard. The latest Intel 8 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel Core processors and Intel Z87 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel processor graphics provide native 4K resolution playback over standard HDMI connectivity, with significantly higher frame rates in the latest DX11 3D game titles.


Features:

• Supports 4th Generation Intel® Core processors
• GIGABYTE Ultra Durable 5 Plus Technology
• All IR Digital Power design
• GIGABYTE UEFI DualBIOS
• 15µ gold plated CPU socket
• Multi-GPU Support
• All solid capacitors
• GIGABYTE On/Off Charge 2 for USB devices
• Intel® LAN with high ESD Protection
• Supports CFOS Speed Internet Accelerator Software
  10 USB 3.0 ports

Overview:

GIGABYTE Ultra Durable™ 5 Plus
GIGABYTE Ultra Durable 5 Plus debuts on GIGABYTE 8 Series motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.

Ultra Performance
All IR® Digital CPU Power Design
GIGABYTE Ultra Durable™ 5 Plus motherboards use industry-leading PWM controllers and PowIRstage™ ICs and from International Recifier®. These components are 100% digital, offering incredible precision in delivering power to your 4th Generation Intel® processor. Designed from the ground up to complement each other, these industry-leading PWM controllers and PowIRstage™ ICs from IR® are optimized for cool and efficient operation, allowing users to get the absolute maximum performance from their next PC build.

Ultra Cool
All New Heat Sink Design
GIGABYTE motherboards feature new heatsink designs that offer uncompromisingly efficient cooling on key areas of the motherboard including the PWM area and chipset (PCH). GIGABYTE 8 Series motherboards offer both passive, active and water cooling support of the crucial PWM area so even the most aggressive and extreme configurations will be kept well within optimal thermal parameters..

Ultra USB3+
10 USB 3.0 Ports
GIGABYTE motherboards offer more high speed connectivity than ever before, packing up to 10 USB 3.0 ports per board. Each of these 10 USB 3.0 ports are also provided with a dedicated fuse, ensuring that an unexpected malfunction on one port, will affect only that port, isolating potential damage and protecting other connected devices.

High ESD Protection for USB and LAN
GIGABYTE 8 Series motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port is paired with a dedicated protection filter that can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.

Intel® Gigabit LAN
The latest GIGABYTE 8 Series motherboards come equipped with Intel® Gigabit LAN networking, a popular choice with gamers that features several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets.

GIGABYTE OPT Fan Support
Many of today's 3rd party water cooling systems require CPU fan power support for both the cooling fan and the water pump. GIGABYTE 8 Series motherboards feature OPT fan support, an additional CPU fan pin header that can be used to connect a water pump and configured for continuous full speed operation. The OPT Fan is also useful for high performance coolers employing two fans.

Multi-display support with AMD CrossFire™
AMD CrossFire™ delivers the ultimate graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

DVI Support
DVI (Digital Visual Interface) is a video interface standard designed for carrying uncompressed digital video data and to maximize the visual quality of digital display devices, such as LCD monitors, digital projectors, and so on. In addition, the DVI interface is compatible with HDCP (High-bandwidth Digital Content Protection).

GIGABYTE App Center
GIGABYTE App Center gives you easy access to wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE App Center allows you to launch all GIGABYTE apps installed on your system.

GIGABYTE @BIOS
The new and updated GIGABYTE @BIOS app allows you to update your system's BIOS from within Windows using a simple and slick graphical user interface by automatically downloading the latest version from the GIGABYTE servers.

GIGABYTE EZ Setup
GIGABYTE EZ Setup combines several key utilities designed to simplify install and configuration procedures for several exclusive GIGABYTE apps including Disk Mode Switch, Smart Connect, EZ Rapid Start and EZ Smart response.

GIGABYTE UEFI DualBIOS™
• Take control of how your BIOS looks and feels with a fully customizable UI
• Adjust overclocking and performance settings in real-time
• Smooth mouse control and shortcuts for fast navigation
GIGABYTE's new Dashboard mode allows users to have complete access to all data related to your motherboards key components including CPU, graphics and memory clocks, temperatures and voltages.
For the first time ever, overclockers can adjust CPU clock, frequency and voltage settings in real-time within BIOS. This massively saves time, allowing users to find optimal settings without having to reboot.

Specifications:

CPU Support List:
