GIGABYTE GA-Z87X-OC Desktop Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

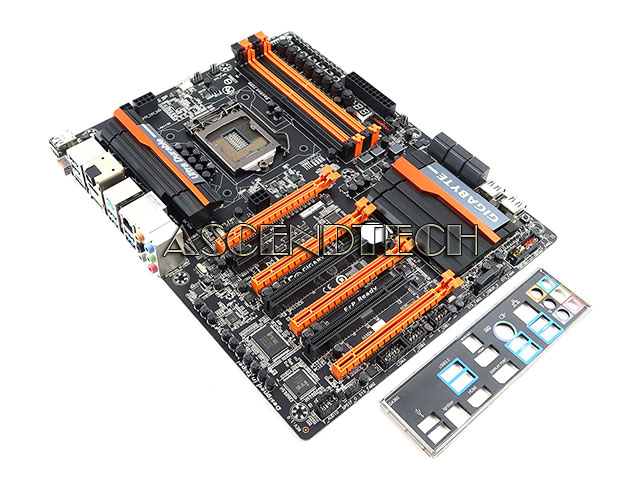

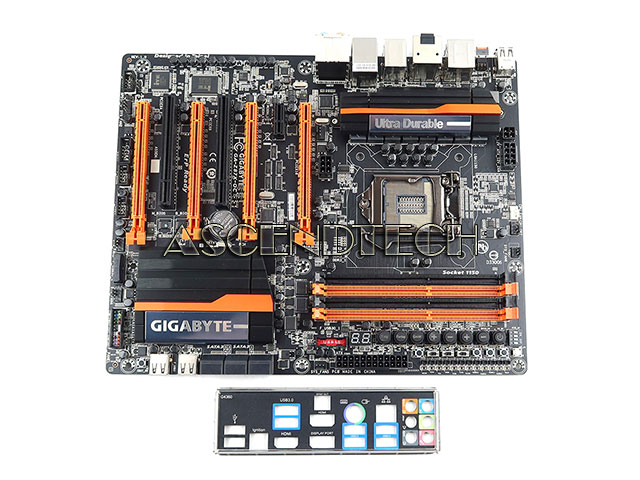

Gigabyte Ga-Z87x-Oc Desktop Motherboard
  Enlarge
Gigabyte Ga-Z87x-Oc Desktop Motherboard
Gigabyte Ga-Z87x-Oc Desktop Motherboard
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBDSKGGAZ87XOCA
Brand Gigabyte
Model GA-Z87X-OC
Category Intel Lga1150 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard comes with I/O Shield, only! No cables, fan’s bracket, fan’s mounting backplate or any other accessories!

Description

GIGABYTE GA-Z87X-OC Intel Chipset Z87 Socket LGA1150 DDR3 HDMI DisplayPort SATA 6.0Gb/s ATX Desktop Motherboard.

Chipset: Intel Z87
Socket: Intel LGA1150
Compatible/Supported CPU: Support for 4th Generation Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron / Intel Xeon processors
Max Supported Memory: 32GB
Number of Memory Slots: 4
Memory Type: DDR3 SDRAM
Speed: 3000MHz, 2933MHz, 2800MHz, 2666MHz, 2600MHz, 2500MHz, 2400MHz, 2200MHz, 2133MHz, 2000MHz, 1866MHz, 1800MHz, 1600MHz, 1333MHz
Storage Interface: SATA 6.0Gb/s
RAID Support: 0, 1, 5, 10
Network/Communications: 1x Intel GbE LAN 10/100/1000Mb/s
Audio: Realtek ALC892 Codec, High Definition Audio 2/4/5.1/7.1-channel
Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x 4-pin ATX 12V power connector, 1x OC PEG power connector, 6x SATA 6Gb/s connectors, 1x CPU fan header, 1x water cooling fan header (CPU_OPT), 6x system fan headers, 1x front panel header, 1x front panel audio header, 1x S/PDIF Out header, 1x S/PDIF In header, 2x USB 3.0/2.0 headers, 2x USB 2.0/1.1 headers, 2x USB 2.0/1.1 ports, 1x serial port header, 1x Clear CMOS jumper, 1x power button, 1x reset button, 1x Clear CMOS button, 1x Gear button, 1x OC Turbo button, 1x OC Tag button, 1x CPU BCLK Down button, 1x CPU BCLK Up button, 1x CPU Ratio Down button, 1x CPU Ratio Up button, 1x Memory Safe button, 1x Settings Lock button, 1x Direct to BIOS button, 1x OC Trigger switch, 1x OC PCIe switch, 1x Clear Battery button, 2x BIOS switches, 1x onboard voltage measurement module
Input/Output Ports: 2x USB 2.0/1.1 ports, 1x OC Ignition button, 6x USB 3.0/2.0 ports, 1x optical S/PDIF Out connector, 2x HDMI ports, 1x DisplayPort, 1x PS/2 keyboard/mouse port, 1x RJ-45 port, 6x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
Expansion Slots: 1x PCI Express x16 slot, running at x16, 1x PCI Express x16 slot, running at x8, 2x PCI Express x16 slots, running at x4, 1x PCI Express x1 slot, 2x PCI slots
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 8 64-bit, Windows 7 32-bit/64-bits, Windows XP

Additional Specifications:

Onboard Graphics
2x HDMI ports, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
Support for HDMI 1.4a version.
1x DisplayPort port, supporting a maximum resolution of 3840 x 2160 @ 60 Hz / 2560 x 1600 @ 60 Hz
Support for DisplayPort 1.2 version.
Maximum shared memory of 1 GB

Multi-Graphics Technology
Support for 4-Way/3-Way/2-Way AMD CrossFire/2-Way NVIDIA SLI Technology

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
System voltage detection
CPU/System/Chipset temperature detection
CPU/CPU OPT/System fan speed detection
CPU/System overheating warning
CPU/CPU OPT/System fan fail warning
CPU/CPU OPT/System fan speed control
Whether the fan speed control function is supported will depend on the cooler you install

BIOS
2x 128 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for Q-Flash
Support for Xpress Install
Support for APP Center
Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
@BIOS
EasyTune
EZ Setup
ON/OFF Charge2
USB Blocker



CPU Support:

Socket LGA1150
VendorCPU ModelCPU FrequencyL3 CacheProcessCore NameSteppingWattage
IntelCore i7-4790K4.00GHz8MB22nmHaswell RefreshC088W
IntelCore i7-47903.60GHz8MB22nmHaswell RefreshC084W
IntelCore i7-4790S3.20GHz8MB22nmHaswell RefreshC065W
IntelCore i7-4790T2.70GHz8MB22nmHaswell RefreshC045W
IntelCore i7-4785T2.20GHz8MB22nmHaswell RefreshC035W
IntelCore i7-47713.50GHz8MB22nmHaswellC084W
IntelCore i7-47703.40GHz8MB22nmHaswellC084W
IntelCore i7-4770K3.50GHz8MB22nmHaswellC084W
IntelCore i7-4770S3.10GHz8MB22nmHaswellC065W
IntelCore i7-4770T2.50GHz8MB22nmHaswellC045W
IntelCore i7-4765T2.00GHz8MB22nmHaswellC035W
IntelCore i5-46903.50GHz6MB22nmHaswell RefreshC084W
IntelCore i5-4690K3.50GHz6MB22nmHaswell RefreshC088W
IntelCore i5-4690S3.20GHz6MB22nmHaswell RefreshC065W
IntelCore i5-4690T2.50GHz6MB22nmHaswell RefreshC045W
IntelCore i5-46703.40GHz6MB22nmHaswellC084W
IntelCore i5-4670K3.40GHz6MB22nmHaswellC084W
IntelCore i5-4670S3.10GHz6MB22nmHaswellC065W
IntelCore i5-4670T2.30GHz6MB22nmHaswellC045W
IntelCore i5-45903.30GHz6MB22nmHaswell RefreshC084W
IntelCore i5-4590S3.00GHz6MB22nmHaswell RefreshC065W
IntelCore i5-4590T2.00GHz6MB22nmHaswell RefreshC035W
IntelCore i5-45703.20GHz6MB22nmHaswellC084W
IntelCore i5-4570S2.90GHz6MB22nmHaswellC065W
IntelCore i5-4570T2.90GHz4MB22nmHaswellC035W
IntelCore i5-44603.20GHz6MB22nmHaswell RefreshC084W
IntelCore i5-4460S2.90GHz6MB22nmHaswell RefreshC065W
IntelCore i5-4460T1.90GHz6MB22nmHaswell RefreshC035W
IntelCore i5-44403.10GHz6MB22nmHaswellC084W
IntelCore i5-4440S2.80GHz6MB22nmHaswellC065W
IntelCore i5-44303.00GHz6MB22nmHaswellC084W
IntelCore i5-4430S2.70GHz6MB22nmHaswellC065W
IntelCore i3-43703.80GHz4MB22nmHaswell RefreshC054W
IntelCore i3-4370T3.30GHz4MB22nmHaswell RefreshC035W
IntelCore i3-43603.70GHz4MB22nmHaswell RefreshC054W
IntelCore i3-4360T3.20GHz4MB22nmHaswell RefreshC035W
IntelCore i3-43503.60GHz4MB22nmHaswell RefreshC054W
IntelCore i3-4350T3.10GHz4MB22nmHaswell RefreshC035W
IntelCore i3-43403.60GHz4MB22nmHaswellC054W
IntelCore i3-43303.50GHz4MB22nmHaswellC054W
IntelCore i3-4330T3.00GHz4MB22nmHaswellC035W
IntelCore i3-41703.70GHz3MB22nmHaswell RefreshC054W
IntelCore i3-4170T3.20GHz3MB22nmHaswell RefreshC035W
IntelCore i3-41603.60GHz3MB22nmHaswell RefreshC054W
IntelCore i3-4160T3.10GHz3MB22nmHaswell RefreshC035W
IntelCore i3-41503.50GHz3MB22nmHaswell RefreshC054W
IntelCore i3-4150T3.00GHz3MB22nmHaswell RefreshC035W
IntelCore i3-41303.40GHz3MB22nmHaswellC054W
IntelCore i3-4130T2.90GHz3MB22nmHaswellC035W
IntelPentium G34703.60GHz3MB22nmHaswell RefreshC053W
IntelPentium G34603.50GHz3MB22nmHaswell RefreshC053W
IntelPentium G3460T3.00GHz3MB22nmHaswell RefreshC035W
IntelPentium G34503.40GHz3MB22nmHaswell RefreshC053W
IntelPentium G3450T2.90GHz3MB22nmHaswell RefreshC035W
IntelPentium G34403.30GHz3MB22nmHaswell RefreshC053W
IntelPentium G3440T2.80GHz3MB22nmHaswell RefreshC035W
IntelPentium G34303.30GHz3MB22nmHaswellC054W
IntelPentium G34203.20GHz3MB22nmHaswellC054W
IntelPentium G3420T2.70GHz3MB22nmHaswellC035W
IntelPentium G32603.30GHz3MB22nmHaswellC053W
IntelPentium G3260T2.90GHz3MB22nmHaswellC035W
IntelPentium G32583.20GHz3MB22nmHaswell RefreshC053W
IntelPentium G32503.20GHz3MB22nmHaswell RefreshC053W
IntelPentium G3250T2.80GHz3MB22nmHaswell RefreshC035W
IntelPentium G32403.10GHz3MB22nmHaswell RefreshC053W
IntelPentium G3240T2.70GHz3MB22nmHaswell RefreshC035W
IntelPentium G32203.00GHz3MB22nmHaswellC054W
IntelPentium G3220T2.60GHz3MB22nmHaswellC035W
IntelCeleron G18502.90GHz2MB22nmHaswell RefreshC053W
IntelCeleron G18402.80GHz2MB22nmHaswell RefreshC053W
IntelCeleron G1840T2.40GHz2MB22nmHaswell RefreshC035W
IntelCeleron G18302.80GHz2MB22nmHaswellC053W
IntelCeleron G18202.70GHz2MB22nmHaswellC053W
IntelCeleron G1820T2.40GHz2MB22nmHaswellC035W
IntelXeon E3-1286 V33.70GHz8MB22nmHaswell RefreshC084W
IntelXeon E3-1286L V33.20GHz8MB22nmHaswell RefreshC065W
IntelXeon E3-1285v33.60GHz8MB22nmHaswellC084W
IntelXeon E3-1285Lv33.10GHz8MB22nmHaswellC065W
IntelXeon E3-1276 V33.60GHz8MB22nmHaswell RefreshC084W
IntelXeon E3-1275v33.50GHz8MB22nmHaswellC084W
IntelXeon E3-1275L V32.70GHz4MB22nmHaswell RefreshC045W
IntelXeon E3-1265Lv32.50GHz8MB22nmHaswellC045W
IntelXeon E3-1246 V33.50GHz8MB22nmHaswell RefreshC084W
IntelXeon E3-1245v33.40GHz8MB22nmHaswellC084W
IntelXeon E3-1226 V33.30GHz8MB22nmHaswell RefreshC084W
IntelXeon E3-1225v33.20GHz8MB22nmHaswellC084W
IntelXeon E3-1281 V33.70GHz8MB22nmHaswell RefreshC080W
IntelXeon E3-1280v33.60GHz8MB22nmHaswellC080W
IntelXeon E3-1271 V33.60GHz8MB22nmHaswell RefreshC080W
IntelXeon E3-1270v33.50GHz8MB22nmHaswellC080W
IntelXeon E3-1241 V33.50GHz8MB22nmHaswell RefreshC080W
IntelXeon E3-1240v33.40GHz8MB22nmHaswellC080W
IntelXeon E3-1240L V32.00GHz8MB22nmHaswell RefreshC025W
IntelXeon E3-1231 V33.40GHz8MB22nmHaswell RefreshC080W
IntelXeon E3-1230v33.30GHz8MB22nmHaswellC080W
IntelXeon E3-1230Lv31.80GHz8MB22nmHaswellC025W
IntelXeon E3-1220v33.10GHz8MB22nmHaswellC080W
