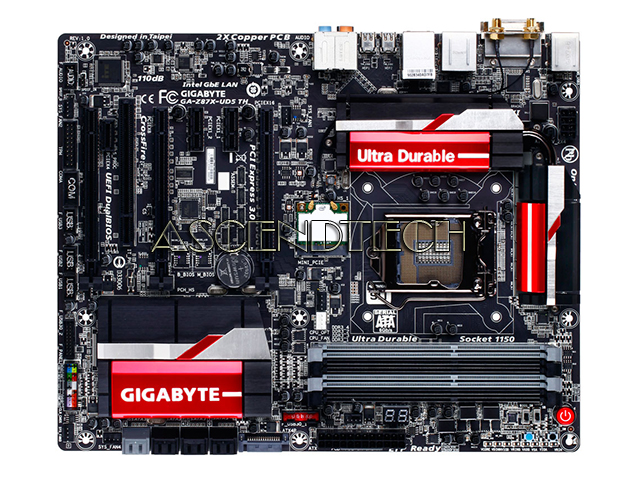

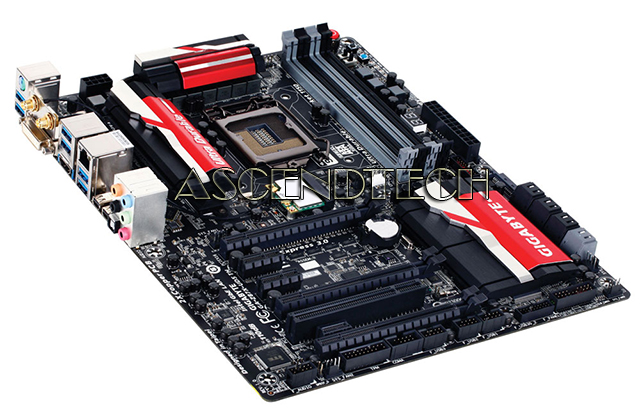

Gigabyte GA-Z87X-UD5 TH rev.1.1 No I/O

Gigabyte GA-Z87X-UD5 TH rev.1.1 Intel Chipset Z87 Express Socket LGA1150 DDR3 ATX Motherboard. GIGABYTE motherboards, the very first to offer fully certified dual onboard Thunderbolt ports. Capable of connecting up to 12 devices plus 3 digital displays simultaneously, with breathtaking data transfer speeds that can transfer 1TB of data in only five minutes, GIGABYTE Thunderbolt motherboards offer the fastest connection interface ever on the desktop PC.


Features:

• Supports 4th Generation Intel Core processors
• GIGABYTE Ultra Durable 5 Plus Technology
• Dual Thunderbolt technology support
• Integrated Wi-Fi IEEE802.11ac and BT 4.0 module
• IR Digital CPU Power Design
• GIGABYTE UEFI DualBIOS
• 15µ gold plated CPU socket
• Multi-GPU Support
• Durable black solid capacitors
• GIGABYTE On/Off Charge 2 for USB devices
• Intel LAN with high ESD Protection
• New Heatsink design with 7 onboard fan connectors
• Realtek ALC898 with High Quality 110dB SNR HD audio
• Onboard Quick Buttons
• Supports CFOS Speed Internet Accelerator Software
• 10 USB 3.0 ports








Specifications:

CPU
Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package
L3 cache varies with CPU
Chipset
Intel Z87 Express Chipset
Memory
4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor - Intel HD Graphics support:
1 x DVI-I port, supporting a maximum resolution of 1920x1200
1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
* Support for HDMI 1.4a version.
Maximum shared memory of 1 GB
? Intel DSL4510 chip:
2 Thunderbolt ports (MDP1/MDP2) support for Mini-DisplayPort and Thunderbolt monitor(s), and supporting a maximum resolution of 2560x1600.
* If a monitor is connected to the MDP2 Thunderbolt port , the DVI-I port will become unavailable.
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express and PCI devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," and Chapter 2, "Peripherals\Intel(R) Thunderbolt" for more information.)
Audio
Realtek ALC898 codec
Support for X-Fi Xtreme Fidelity and EAX Advanced HD 5.0 technologies
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF In/Out
LAN
Intel GbE LAN chip (10/100/1000 Mbit)
Wireless Communication Module
Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
Bluetooth 4.0, 3.0+HS, 2.1+EDR
Support for 11ac wireless standard and up to 867 Mbps data rate.
* Actual data rate may vary depending on environment and equipment.
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the PCIEX8 and PCIEX16 slots. When the PCIEX4 slot is populated, the PCIEX16 slot will operate at up to x8 mode and the PCIEX8 will operate at up to x4 mode.
* When installing a x8 or above card in the PCIEX4 slot, make sure to set PCIE Slot Configuration in BIOS Setup to x4. (Refer to Chapter 2, "BIOS Setup," "Peripherals," for more information.)
(The PCI Express x16 slots conform to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
1 x PCI slot
1 x mini-PCI Express slot for the wireless communication module
Storage Interface
Chipset:
6 x SATA 6Gb/s connectors (SATA3 0~5)
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Marvell 88SE9172 chip:
2 x SATA 6Gb/s connectors (GSATA3 6~7)
Support for RAID 0 and RAID 1
Multi-Graphics Technology
Support for 2-Way AMD CrossFire/2-Way NVIDIA SLI technology
USB
Chipset:
2 x USB 3.0/2.0 ports (available through the internal USB header)
6 x USB 2.0/1.1 ports (available through the internal USB headers)
Chipset + 2 Renesas uPD720210 USB 3.0 Hubs:
8 x USB 3.0/2.0 ports (6 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x PCIe power connector
8 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling fan header (CPU_OPT)
5 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF In header
1 x S/PDIF Out header
2 x USB 3.0/2.0 headers
3 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
1 x Trusted Platform Module (TPM) header
1 x power button
1 x reset button
1 x Clear CMOS button
2 x BIOS switches
Voltage measurement points

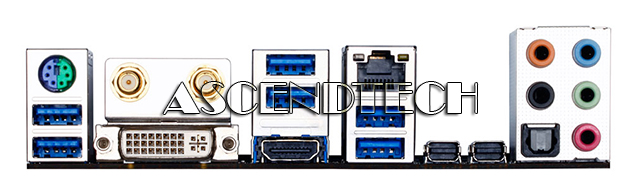

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x DVI-I port
1 x HDMI port
2 x antenna connectors
2 x Thunderbolt ports
1 x optical S/PDIF Out connector
6 x USB 3.0/2.0 ports
1 x RJ-45 port
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
System voltage detection
CPU/System/Chipset temperature detection
CPU/CPU OPT/System fan speed detection
CPU/System overheating warning
CPU/CPU OPT/System fan fail warning
CPU/CPU OPT/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 x 128 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for Q-Flash
Support for Xpress Install
Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
BIOS
EasyTune
EZ Setup
ON/OFF Charge2
USB Blocker
Smart TimeLock
Smart Recovery 2
Operating System
Support for Windows 10/8.1/8/7
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
