GIGABYTE GA-Z97X-SOC Desktop Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge

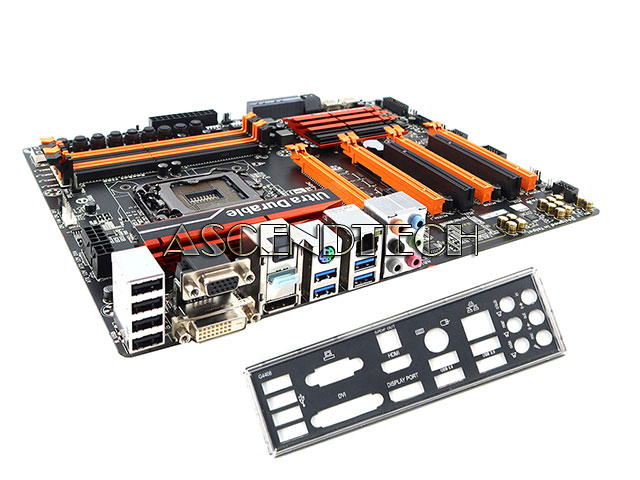

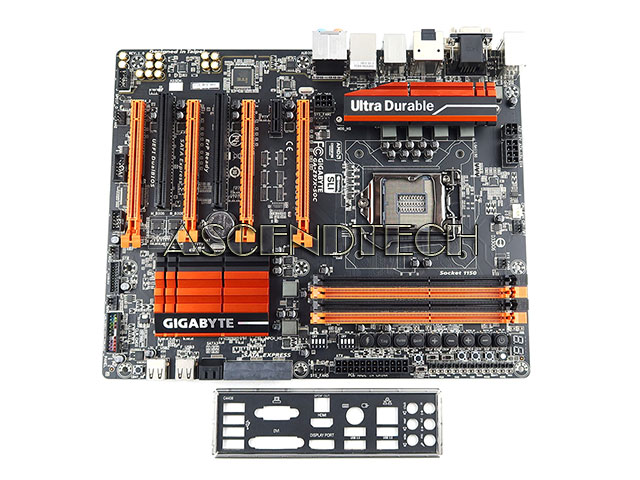

Gigabyte Ga-Z97x-Soc Desktop Motherboard
Gigabyte Ga-Z97x-Soc Desktop Motherboard
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeMBDSKGAZ97XSOCA
BrandGigabyte
ModelGA-Z97X-SOC
CategoryIntel Lga1150 Motherboard
ConditionLike New Grade A
Condition DescriptionPlease note, this motherboard comes with I/O Shield, only! No cables, fan’s bracket, fan’s mounting backplate or any other accessories!

Description

GIGABYTE GA-Z97X-SOC Intel Chipset Z97 Socket LGA1150 DDR3 HDMI DisplayPort DVI-D D-Sub SATA 6.0Gb/s ATX Desktop Motherboard.

Chipset: Intel Z97
Socket: Intel LGA1150
Compatible/Supported CPU: Support for 5th/4th Generation Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/ Intel Celeron / Intel Xeon processors
Max Supported Memory: 32GB
Number of Memory Slots: 4
Memory Type: DDR3 SDRAM
Speed: 3300(O.C.), 3200(O.C.), 3100(O.C.), 3000(O.C.), 2933(O.C.), 2800(O.C.), 2666(O.C.), 2600(O.C.), 2500(O.C.), 2400(O.C.), 2200(O.C.), 2133(O.C.), 2000(O.C.), 1866(O.C.), 1800(O.C.), 1600, 1333 MHz
Storage Interface: SATA 6.0Gb/s
RAID Support: 0, 1, 5, 10
Network/Communications: Intel GbE LAN 10/100/1000Mb/s
Audio: Realtek ALC1150 Codec, High Definition Audio 2/4/5.1/7.1-channel
Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x 4-pin ATX 12V power connector, 1x OC PEG power connector, 1x SATA Express connector, 6x SATA 6Gb/s connectors, 1x CPU fan header, 1x water cooling fan header (CPU_OPT), 6x system fan headers, 1x front panel header, 1x front panel audio header, 1x S/PDIF Out header 1x USB 3.0/2.0 header, 1x USB 2.0/1.1 header, 2x USB 2.0/1.1 ports, 1x serial port header, 1x Clear CMOS jumper, 1x power button, 1x reset button, 1x Clear CMOS button, 1x Gear button, 1x OC Turbo button, 1x OC Tag button, 1x OC Trigger switch, 1x CPU BCLK Down button, 1x CPU BCLK Up button, 1x CPU Ratio Down button, 1x CPU Ratio Up button, 1x Memory Safe button, 1x Settings Lock button, 1x Direct to BIOS button, 1x OC DIMM switch, 1x OC PCIe switch, 1x OC Ignition button, 1x Clear Battery button, 2x BIOS switches, 1x onboard voltage measurement module
Input/Output Ports: 4x USB 2.0/1.1 ports, 4x USB 3.0/2.0 ports, 1x optical S/PDIF Out connector, 1x D-Sub port, 1x DVI-D port, 1x HDMI port, 1x DisplayPort, 1x PS/2 keyboard/mouse port, 1x RJ-45 port, 6x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
Expansion Slots: 1x PCI Express x16 slot, running at x16, 1x PCI Express x16 slot, running at x8, 2x PCI Express x16 slots, running at x4, 1x PCI Express x1 slot, 2x PCI slots
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit, Windows 8.1 64-bit, Windows 7 32-bit/64-bits

Additional Specifications:

Onboard Graphics
1.1x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz
2.1x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz
The DVI-D port does not support D-Sub connection by adapter.
3.1x HDMI port, supporting a maximum resolution of 4096x2160@24Hz or 2560x1600@60Hz
Support for HDMI 1.4a version.
4.1x DisplayPort, supporting a maximum resolution of 4096x2160@24Hz or 3840x2160@60Hz
Support for DisplayPort 1.2 version.
5.Support for up to 3 displays at the same time
6.Maximum shared memory of 512MB

Multi-Graphics Technology
Support for 4-Way/3-Way/2-Way AMD CrossFire/2-Way NVIDIA SLI technology

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
1.System voltage detection
2.CPU/System/Chipset temperature detection
3.CPU/CPU OPT/System fan speed detection
4.CPU/System overheating warning
5.CPU/CPU OPT/System fan fail warning
6.CPU/CPU OPT/System fan speed control
Whether the fan speed control function is supported will depend on the cooler you install

BIOS
1.2x 128 Mbit flash
2.Use of licensed AMI UEFI BIOS
3.Support for DualBIOS
4.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
1.Support for APP Center
Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
@BIOS
EasyTune
EZ Setup
Fast Boot
ON/OFF Charge
Smart TimeLock
Smart Recovery 2
System Information Viewer
USB Blocker
2.Support for Q-Flash
3.Support for Smart Switch
4.Support for Xpress Install



CPU Support:

Socket LGA1150
VendorCPU ModelCPU FrequencyL3 CacheProcessCore NameSteppingWattage
IntelCore i7-5775C3.30GHz6MB14nmBroadwellG065W
IntelCore i5-5675C3.10GHz4MB14nmBroadwellG065W
IntelXeon E3-1285 V43.50GHz6MB14nmBroadwellG095W
IntelXeon E3-1285L V43.40GHz6MB14nmBroadwellG065W
IntelXeon E3-1265L V42.30GHz6MB14nmBroadwellG035W
IntelCore i7-4790K4.00GHz8MB22nmHaswell RefreshC088W
IntelCore i7-47903.60GHz8MB22nmHaswell RefreshC084W
IntelCore i7-4790S3.20GHz8MB22nmHaswell RefreshC065W
IntelCore i7-4790T2.70GHz8MB22nmHaswell RefreshC045W
IntelCore i7-4785T2.20GHz8MB22nmHaswell RefreshC035W
IntelCore i7-47713.50GHz8MB22nmHaswellC084W
IntelCore i7-47703.40GHz8MB22nmHaswellC084W
IntelCore i7-4770K3.50GHz8MB22nmHaswellC084W
IntelCore i7-4770S3.10GHz8MB22nmHaswellC065W
IntelCore i7-4770T2.50GHz8MB22nmHaswellC045W
IntelCore i7-4765T2.00GHz8MB22nmHaswellC035W
IntelCore i5-46903.50GHz6MB22nmHaswell RefreshC084W
IntelCore i5-4690K3.50GHz6MB22nmHaswell RefreshC088W
IntelCore i5-4690S3.20GHz6MB22nmHaswell RefreshC065W
IntelCore i5-4690T2.50GHz6MB22nmHaswell RefreshC045W
IntelCore i5-46703.40GHz6MB22nmHaswellC084W
IntelCore i5-4670K3.40GHz6MB22nmHaswellC084W
IntelCore i5-4670S3.10GHz6MB22nmHaswellC065W
IntelCore i5-4670T2.30GHz6MB22nmHaswellC045W
IntelCore i5-45903.30GHz6MB22nmHaswell RefreshC084W
IntelCore i5-4590S3.00GHz6MB22nmHaswell RefreshC065W
IntelCore i5-4590T2.00GHz6MB22nmHaswell RefreshC035W
IntelCore i5-45703.20GHz6MB22nmHaswellC084W
IntelCore i5-4570S2.90GHz6MB22nmHaswellC065W
IntelCore i5-4570T2.90GHz4MB22nmHaswellC035W
IntelCore i5-44603.20GHz6MB22nmHaswell RefreshC084W
IntelCore i5-4460S2.90GHz6MB22nmHaswell RefreshC065W
IntelCore i5-4460T1.90GHz6MB22nmHaswell RefreshC035W
IntelCore i5-44403.10GHz6MB22nmHaswellC084W
IntelCore i5-4440S2.80GHz6MB22nmHaswellC065W
IntelCore i5-44303.00GHz6MB22nmHaswellC084W
IntelCore i5-4430S2.70GHz6MB22nmHaswellC065W
IntelCore i3-43703.80GHz4MB22nmHaswell RefreshC054W
IntelCore i3-4370T3.30GHz4MB22nmHaswell RefreshC035W
IntelCore i3-43603.70GHz4MB22nmHaswell RefreshC054W
IntelCore i3-4360T3.20GHz4MB22nmHaswell RefreshC035W
IntelCore i3-43503.60GHz4MB22nmHaswell RefreshC054W
IntelCore i3-4350T3.10GHz4MB22nmHaswell RefreshC035W
IntelCore i3-43403.60GHz4MB22nmHaswellC054W
IntelCore i3-43303.50GHz4MB22nmHaswellC054W
IntelCore i3-4330T3.00GHz4MB22nmHaswellC035W
IntelCore i3-41703.70GHz3MB22nmHaswell RefreshC054W
IntelCore i3-4170T3.20GHz3MB22nmHaswell RefreshC035W
IntelCore i3-41603.60GHz3MB22nmHaswell RefreshC054W
IntelCore i3-4160T3.10GHz3MB22nmHaswell RefreshC035W
IntelCore i3-41503.50GHz3MB22nmHaswell RefreshC054W
IntelCore i3-4150T3.00GHz3MB22nmHaswell RefreshC035W
IntelCore i3-41303.40GHz3MB22nmHaswellC054W
IntelCore i3-4130T2.90GHz3MB22nmHaswellC035W
IntelPentium G34703.60GHz3MB22nmHaswell RefreshC053W
IntelPentium G34603.50GHz3MB22nmHaswell RefreshC053W
IntelPentium G3460T3.00GHz3MB22nmHaswell RefreshC035W
IntelPentium G34503.40GHz3MB22nmHaswell RefreshC053W
IntelPentium G3450T2.90GHz3MB22nmHaswell RefreshC035W
IntelPentium G34403.30GHz3MB22nmHaswell RefreshC053W
IntelPentium G3440T2.80GHz3MB22nmHaswell RefreshC035W
IntelPentium G34303.30GHz3MB22nmHaswellC054W
IntelPentium G34203.20GHz3MB22nmHaswellC054W
IntelPentium G3420T2.70GHz3MB22nmHaswellC035W
IntelPentium G32603.30GHz3MB22nmHaswellC053W
IntelPentium G3260T2.90GHz3MB22nmHaswellC035W
IntelPentium G32583.20GHz3MB22nmHaswell RefreshC053W
IntelPentium G32503.20GHz3MB22nmHaswell RefreshC053W
IntelPentium G3250T2.80GHz3MB22nmHaswell RefreshC035W
IntelPentium G32403.10GHz3MB22nmHaswell RefreshC053W
IntelPentium G3240T2.70GHz3MB22nmHaswell RefreshC035W
IntelPentium G32203.00GHz3MB22nmHaswellC054W
IntelPentium G3220T2.60GHz3MB22nmHaswellC035W
IntelCeleron G18502.90GHz2MB22nmHaswell RefreshC053W
IntelCeleron G18402.80GHz2MB22nmHaswell RefreshC053W
IntelCeleron G1840T2.40GHz2MB22nmHaswell RefreshC035W
IntelCeleron G18302.80GHz2MB22nmHaswellC053W
IntelCeleron G18202.70GHz2MB22nmHaswellC053W
IntelCeleron G1820T2.40GHz2MB22nmHaswellC035W
IntelXeon E3-1286 V33.70GHz8MB22nmHaswell RefreshC084W
IntelXeon E3-1286L V33.20GHz8MB22nmHaswell RefreshC065W
IntelXeon E3-1285v33.60GHz8MB22nmHaswellC084W
IntelXeon E3-1285Lv33.10GHz8MB22nmHaswellC065W
IntelXeon E3-1276 V33.60GHz8MB22nmHaswell RefreshC084W
IntelXeon E3-1275v33.50GHz8MB22nmHaswellC084W
IntelXeon E3-1275L V32.70GHz4MB22nmHaswell RefreshC045W
IntelXeon E3-1265Lv32.50GHz8MB22nmHaswellC045W
IntelXeon E3-1246 V33.50GHz8MB22nmHaswell RefreshC084W
IntelXeon E3-1245v33.40GHz8MB22nmHaswellC084W
IntelXeon E3-1226 V33.30GHz8MB22nmHaswell RefreshC084W
IntelXeon E3-1225v33.20GHz8MB22nmHaswellC084W
IntelXeon E3-1281 V33.70GHz8MB22nmHaswell RefreshC080W
IntelXeon E3-1280v33.60GHz8MB22nmHaswellC080W
IntelXeon E3-1271 V33.60GHz8MB22nmHaswell RefreshC080W
IntelXeon E3-1270v33.50GHz8MB22nmHaswellC080W
IntelXeon E3-1241 V33.50GHz8MB22nmHaswell RefreshC080W
IntelXeon E3-1240v33.40GHz8MB22nmHaswellC080W
IntelXeon E3-1240L V32.00GHz8MB22nmHaswell RefreshC025W
IntelXeon E3-1231 V33.40GHz8MB22nmHaswell RefreshC080W
IntelXeon E3-1230v33.30GHz8MB22nmHaswellC080W
IntelXeon E3-1230Lv31.80GHz8MB22nmHaswellC025W
IntelXeon E3-1220v33.10GHz8MB22nmHaswellC080W
