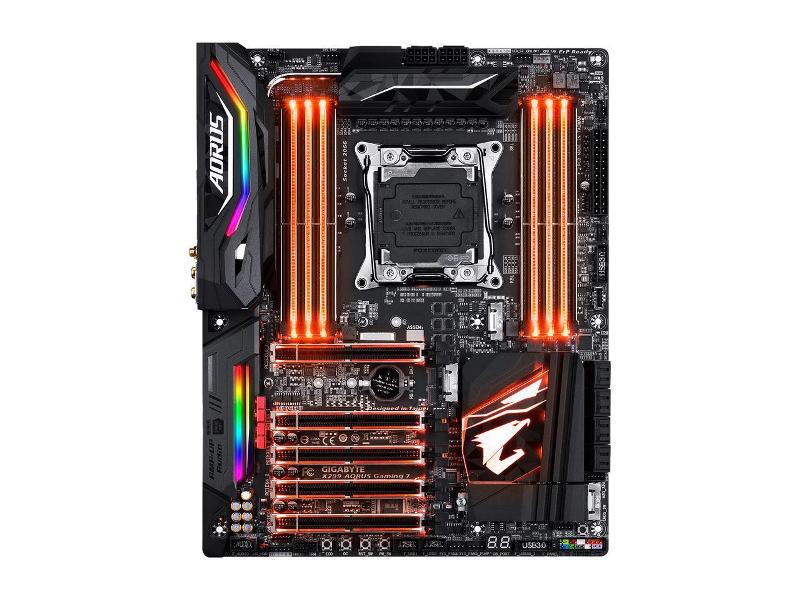

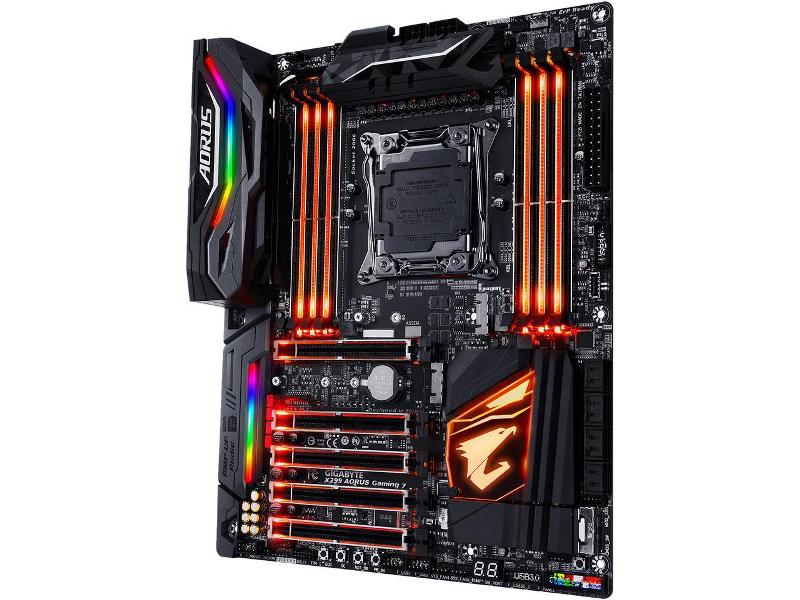

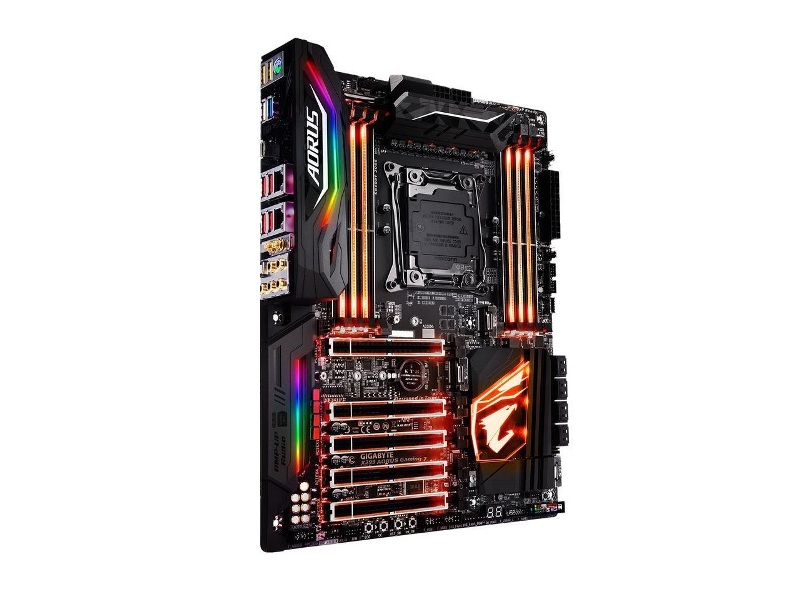

GIGABYTE X299 AORUS Gaming 7 LGA2066 MB

GIGABYTE AORUS X299 AORUS Gaming 7 (rev. 1.0) LGA 2066 Intel X299 SATA 6Gb/s USB 3.1 ATX Intel Motherboard. The AORUS X299 enthusiast motherboards are faster and more powerful than any motherboard the world has ever seen. With an aggressively redesigned armor and thermal heatsinks its sure to turn heads and catch eyes. Performance is no stranger to AORUS, with exotic cooling and an ability to be tuned to peak performance AORUS motherboards will exceed expectations.

Features:

Supports Intel® Core™ X-series Processor Family
Quad Channel Non-ECC Unbuffered DDR4, 8 DIMMs, DDR4333+(OC)
Intel® Optane™ Memory Ready
ASMedia 3142 USB 3.1 Gen 2 with USB Type-C™ and Type-A
Front USB 3.1 Gen 2 Header
3-Way Graphics Support with Dual Armor and Ultra Durable™ Design
Server-Class Digital Power Design
121dB SNR AMP-UP Audio with ALC1220 & High-End ESS SABRE 9018 DAC with WIMA audio capacitor
Sound BlasterX 720°, the top-of-the-line audio engine solution for 4K gaming and entertainment
Killer DoubleShot™ Pro for the best gaming networking experience possible
Killer 2x2 802.11ac Wireless – AC 1535
Intel® GbE LAN Gaming Network
RGB FUSION with Multi-Zone Digital LED Light Show design, support digital LED & RGB LED strips
Swappable Overlay for Accent LED
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
Triple Ultra-Fast M.2 with PCIe Gen3 x4 interface and Thermal Guard
NVMe PCIe Gen3 x4 U.2 support by optional adaptor
USB DAC-UP 2 with Adjustable Voltage
Precise Digital USB Fuse Design for Stronger Protection
Anti-Sulfur Resistor Design
Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
GIGABYTE UEFI DualBIOS™ with Q-Flash Plus USB port
APP Center Including EasyTune™ and Cloud Station™ Utilities

Specifications:

Brand: GIGABYTE
Model: X299 AORUS Gaming 7 (rev. 1.0)
Supported CPU Socket Type: LGA 2066
CPU Type: Core X series (LGA2066)
Chipset: Intel X299
Onboard Video Chipset: None
Number of Memory Slots:
8 x DDR4 DIMM sockets supporting up to 128GB of system memory.
* Support for up to 512GB of system memory when using Registered DIMMs.
* Supported when using a 44-lane or 28-lane CPU.
4 x DDR4 DIMM sockets supporting up to 64GB of system memory.
Memory Standard: DDR4 4333(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400/ 2133
Maximum Memory Supported: 128GB
Channel Supported: 4 channel memory architecture.
* Supported when using a 44-lane or 28-lane CPU.
Dual channel memory architecture.
Expansion Slots:
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
1 x PCI Express x16 slot, running at x8 (PCIEX8)
2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
* The PCIEX4_1 slot shares bandwidth with the M2M_32G connector. The PCIEX4_1 slot becomes unavailable when a device is installed in the M2M_32G connector.
* Refer to "1-6 Setting up AMD CrossFire/NVIDIA SLI Configuration," for the installation notices for the PCI Express x16 slots.
Storage Devices
8 x SATA 6Gb/s ports
M.2 slots
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M_32G)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q_32G)
0/1/5/10 SATA RAID
Onboard Audio Chipset: Dual Realtek ALC1220 Codec
Audio Channels: 2/4/5.1/7.1-channel
Onboard LAN Chipset: 1 x Intel GbE LAN chip
Second LAN Chipset: 1 x Rivet Networks Killer E2500 LAN chip
Max LAN Speed: Dual 10/100/1000Mbps
Wireless LAN:
iller Wireless-AC 1535
Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
Support for 11ac wireless standard and up to 867 Mbps data rate
* Actual data rate may vary depending on environment and equipment.
Bluetooth:
Supports Bluetooth 4.1

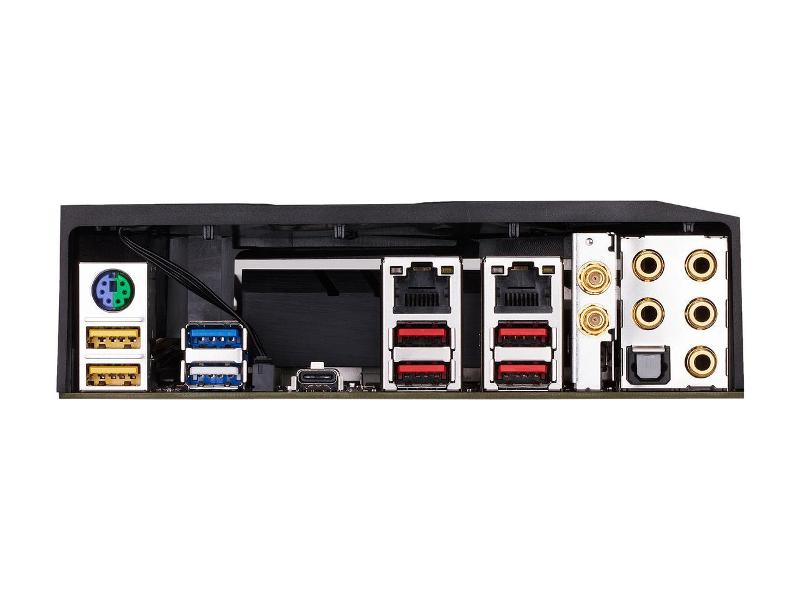

Rear Panel Ports
1 x PS/2 keyboard/mouse port
2 x RJ45
1 x USB Type-C port, with USB 3.1 Gen 2 support
4 x USB 3.1 Gen 2 Type-A ports (red)
4 x USB 3.1 Gen 1 ports
2 x Wi-Fi Antenna connectors (optional)
1 x Optical S/PDIF Out
5 Audio Ports (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
Internal I/O Connectors:
1 x USB 3.1 Gen 2 header
2 x USB 3.1 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
1 x system fan/water cooling pump header
1 x 3 Amp fan/water cooling pump header
1 x I/O shield audio LED power connector
1 x digital LED strip extension cable header
2 x RGB (RGBW) LED strip extension cable headers
1 x Intel VROC Upgrade Key header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Thunderbolt add-in card connector
1 x Trusted Platform Module (TPM) header
1 x power button
1 x reset button
1 x Clear CMOS button
1 x ECO button
1 x OC button
2 x temperature sensor headers
Form Factor: ATX
Dimensions (W x L): 12.0" x 9.6"
Power Pin:
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
