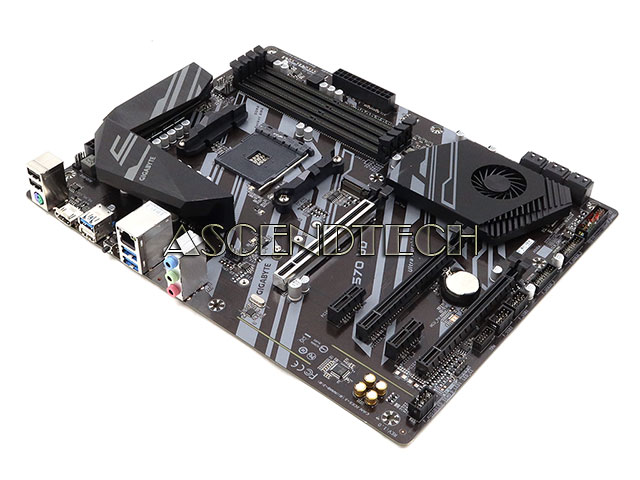

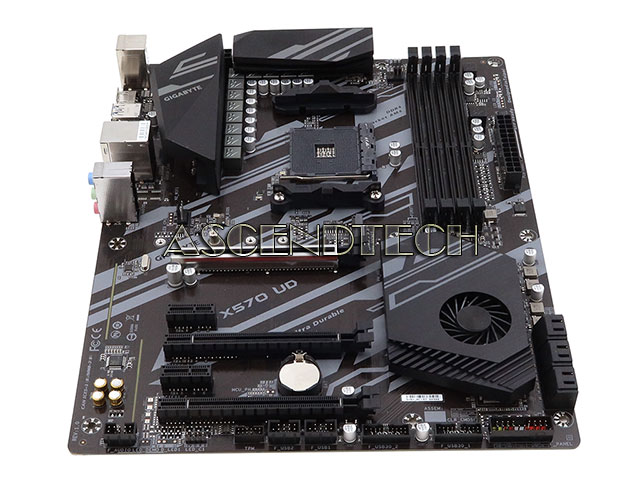

GIGABYTE X570 UD Motherboard No I/O
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MBDSKGIGX570UDA
Brand Gigabyte
Model X570 UD
Category Amd Socket Am4 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard does not include an I/O Shield, cables, or any other accessories!
Description
GIGABYTE X570 UD AMD Chipset X570 Socket AM4 DDR4 HDMI SATA 6Gb/s ATX Desktop Motherboard.
Chipset: AMD X570
Socket: AMD AM4
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 4733MHz
Storage Interface: SATA 6Gb/s
RAID Support: 0, 1, 10
Network/Communications: Realtek GbE LAN chip (10/100/1000 Mbit)
Audio: Realtek ALC887 codec
Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x CPU fan header, 1x water cooling CPU fan header, 2x system fan headers, 1x RGB LED strip header, 6x SATA 6Gb/s connectors, 1x M.2 Socket 3 connector, 1x front panel header, 1x front panel audio header, 2x USB 3.2 Gen 1 headers, 2x USB 2.0/1.1 headers, 1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1x Clear CMOS jumper
Input/Output Ports: 1x PS/2 keyboard/mouse port, 1x HDMI port, 4x USB 3.2 Gen 1 ports, 2x USB 2.0/1.1 ports, 1x Q-Flash Plus button, 1x RJ-45 port, 3x audio jacks
Expansion Slots: 1x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1), 2x PCI Express x16 slots, supporting PCIe 4.0/3.0 and running at x4 (PCIEX4), 2x PCI Express x1 slots, supporting PCIe 4.0/3.0, 6x SATA 6Gb/s connectors, 2x M.2 connectors
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit, Windows 11 64-bit
Additional Specifications:
Onboard Graphics
Integrated Graphics Processor:
1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.0 version, HDCP 2.2, and HDR.
Maximum shared memory of 16 GB
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Note: For AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen Processors only.
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
CPU Support:
| Socket AM4 | |||||||
|---|---|---|---|---|---|---|---|
| Vendor | CPU Model | CPU Frequency | L3 Cache | Process | Core Name | Stepping | Wattage |
| AMD | Ryzen 9 5950X | 3.4GHz / 4.9GHz | 64MB | 7nm | Vermeer | B0 | 105W |
| AMD | Ryzen 9 5900X | 3.7GHz / 4.8GHz | 64MB | 7nm | Vermeer | B0 | 105W |
| AMD | Ryzen 9 3950X | 3.5GHz / 4.7GHz | 64MB | 7nm | Matisse | B0 | 105W |
| AMD | Ryzen 9 3900XT | 3.8GHz / 4.7GHz | 64MB | 7nm | Matisse | B0 | 105W |
| AMD | Ryzen 9 3900X | 3.8GHz / 4.6GHz | 64MB | 7nm | Matisse | B0 | 105W |
| AMD | Ryzen 9 3900 | 3.1GHz / 4.3GHz | 64MB | 7nm | Matisse | B0 | 65W |
| AMD | Ryzen 9 PRO 3900 | 3.1GHz / 4.3GHz | 64MB | 7nm | Matisse | B0 | 65W |
| AMD | Ryzen 7 5800X3D | 3.4GHz / 4.5GHz | 96MB | 7nm | Vermeer | B0 | 105W |
| AMD | Ryzen 7 5800X | 3.8GHz / 4.7GHz | 32MB | 7nm | Vermeer | B0 | 105W |
| AMD | Ryzen 7 5700X | 3.4GHz / 4.6GHz | 32MB | 7nm | Vermeer | B0 | 65W |
| AMD | Ryzen 7 PRO 5750G | 3.8GHz / 4.6GHz | 16MB | 7nm | Cezanne | A0 | 65W |
| AMD | Ryzen 7 PRO 5750GE | 3.2GHz / 4.6GHz | 16MB | 7nm | Cezanne | A0 | 35W |
| AMD | Ryzen 7 5700G | 3.8GHz / 4.6GHz | 16MB | 7nm | Cezanne | A0 | 65W |
| AMD | Ryzen 7 5700GE | 3.2GHz / 4.6GHz | 16MB | 7nm | Cezanne | A0 | 35W |
| AMD | Ryzen 7 PRO 4750G | 3.6GHz / 4.4GHz | 8MB | 7nm | Renoir | A1 | 65W |
| AMD | Ryzen 7 PRO 4750GE | 3.1GHz / 4.3GHz | 8MB | 7nm | Renoir | A1 | 35W |
| AMD | Ryzen 7 4700G | 3.6GHz / 4.4GHz | 8MB | 7nm | Renoir | A1 | 65W |
| AMD | Ryzen 7 4700GE | 3.1GHz / 4.3GHz | 8MB | 7nm | Renoir | A1 | 35W |
| AMD | Ryzen 7 3800XT | 3.9GHz / 4.7GHz | 32MB | 7nm | Matisse | B0 | 105W |
| AMD | Ryzen 7 3800X | 3.9GHz / 4.5GHz | 32MB | 7nm | Matisse | B0 | 105W |
| AMD | Ryzen 7 3700X | 3.6GHz / 4.4GHz | 32MB | 7nm | Matisse | B0 | 65W |
| AMD | Ryzen 7 PRO 3700 | 3.6GHz / 4.4GHz | 32MB | 7nm | Matisse | B0 | 65W |
| AMD | Ryzen 7 2700X | 3.7GHz / 4.35GHz | 16MB | 12nm | Pinnacle Ridge | B2 | 105W |
| AMD | Ryzen 7 2700 | 3.2GHz / 4.1GHz | 16MB | 12nm | Pinnacle Ridge | B2 | 65W |
| AMD | Ryzen 5 5600X | 3.7GHz / 4.6GHz | 32MB | 7nm | Vermeer | B0 | 65W |
| AMD | Ryzen 5 5600 | 3.5GHz / 4.4GHz | 32MB | 7nm | Vermeer | B0 | 65W |
| AMD | Ryzen 5 PRO 5650G | 3.9GHz / 4.4GHz | 16MB | 7nm | Cezanne | A0 | 65W |
| AMD | Ryzen 5 PRO 5650GE | 3.4GHz / 4.4GHz | 16MB | 7nm | Cezanne | A0 | 35W |
| AMD | Ryzen 5 5600G | 3.9GHz / 4.4GHz | 16MB | 7nm | Cezanne | A0 | 65W |
| AMD | Ryzen 5 5600GE | 3.4GHz / 4.4GHz | 16MB | 7nm | Cezanne | A0 | 35W |
| AMD | Ryzen 5 5500 | 3.6GHz / 4.2GHz | 16MB | 7nm | Cezanne | A0 | 65W |
| AMD | Ryzen 5 4600G | 3.7GHz / 4.2GHz | 8MB | 7nm | Renoir | A1 | 65W |
| AMD | Ryzen 5 4600GE | 3.3GHz / 4.2GHz | 8MB | 7nm | Renoir | A1 | 35W |
| AMD | Ryzen 5 PRO 4650G | 3.7GHz / 4.2GHz | 8MB | 7nm | Renoir | A1 | 65W |
| AMD | Ryzen 5 PRO 4650GE | 3.3GHz / 4.2GHz | 8MB | 7nm | Renoir | A1 | 35W |
| AMD | Ryzen 5 4500 | 3.6GHz / 4.1GHz | 8MB | 7nm | Renoir | A1 | 65W |
| AMD | Ryzen 5 3600X | 3.8GHz / 4.4GHz | 32MB | 7nm | Matisse | B0 | 95W |
| AMD | Ryzen 5 3600XT | 3.8GHz / 4.5GHz | 32MB | 7nm | Matisse | B0 | 95W |
| AMD | Ryzen 5 3600 | 3.6GHz / 4.2GHz | 32MB | 7nm | Matisse | B0 | 65W |
| AMD | Ryzen 5 PRO 3600 | 3.6GHz / 4.2GHz | 32MB | 7nm | Matisse | B0 | 65W |
| AMD | Ryzen 5 3500X | 3.6GHz / 4.1GHz | 32MB | 7nm | Matisse | B0 | 65W |
| AMD | Ryzen 5 3500 | 3.6GHz / 4.1GHz | 16MB | 7nm | Matisse | B0 | 65W |
| AMD | Ryzen 5 3400G (YD340GC5M4MFH) | 3.7GHz / 4.2GHz | 4MB | 12nm | Picasso | B1 | 45-65W |
| AMD | Ryzen 5 3400G (YD340GC5M4MFI) | 3.7GHz / 4.2GHz | 4MB | 12nm | Picasso | B1 | 45-65W |
| AMD | Ryzen 5 3400G (YD3400C5M4MFH) | 3.7GHz / 4.2GHz | 4MB | 12nm | Picasso | B1 | 45-65W |
| AMD | Ryzen 5 PRO 3400G (YD340BC5M4MFI) | 3.7GHz / 4.2GHz | 4MB | 12nm | Picasso | B1 | 45-65W |
| AMD | Ryzen 5 PRO 3400G (YD340BC5M4MFH) | 3.7GHz / 4.2GHz | 4MB | 12nm | Picasso | B1 | 45-65W |
| AMD | Ryzen 5 3400GE | 3.3GHz / 4.0GHz | 4MB | 12nm | Picasso | B1 | 35W |
| AMD | Ryzen 5 PRO 3400GE | 3.3GHz / 4.0GHz | 4MB | 12nm | Picasso | B1 | 35W |
| AMD | Ryzen 5 3350G | 3.6GHz / 4.0GHz | 4MB | 12nm | Picasso | B1 | 45-65W |
| AMD | Ryzen 5 2600X | 3.6GHz / 4.2GHz | 16MB | 12nm | Pinnacle Ridge | B2 | 95W |
| AMD | Ryzen 5 2600 | 3.4GHz / 3.9GHz | 16MB | 12nm | Pinnacle Ridge | B2 | 65W |
| AMD | Ryzen 5 2400G | 3.6GHz / 3.9GHz | 4MB | 14nm | Raven Ridge | B0 | 45-65W |
| AMD | Ryzen 5 PRO 2400G | 3.6GHz / 3.9GHz | 4MB | 14nm | Raven Ridge | B0 | 45-65W |
| AMD | Ryzen 5 2400GE | 3.2GHz / 3.8GHz | 4MB | 14nm | Raven Ridge | B0 | 35W |
| AMD | Ryzen 5 PRO 2400GE | 3.2GHz / 3.8GHz | 4MB | 14nm | Raven Ridge | B0 | 35W |
| AMD | Ryzen 5 1600 (YD1600BBM6IAF) | 3.2GHz / 3.6GHz | 16MB | 12nm | Pinnacle Ridge | B2 | 65W |
| AMD | Ryzen 3 5300G | 4.0GHz / 4.2GHz | 8MB | 7nm | Cezanne | A0 | 65W |
| AMD | Ryzen 3 5300GE | 3.6GHz / 4.2GHz | 8MB | 7nm | Cezanne | A0 | 35W |
| AMD | Ryzen 3 5100 | 3.8GHz / 4.2GHz | 8MB | 7nm | Cezanne | A0 | 65W |
| AMD | Ryzen 3 4300G | 3.8GHz / 4.0GHz | 4MB | 7nm | Renoir | A1 | 65W |
| AMD | Ryzen 3 4300GE | 3.5GHz / 4.0GHz | 4MB | 7nm | Renoir | A1 | 35W |
| AMD | Ryzen 3 PRO 4350GE | 3.5GHz / 4.0GHz | 4MB | 7nm | Renoir | A1 | 35W |
| AMD | Ryzen 3 PRO 4350G | 3.8GHz / 4.0GHz | 4MB | 7nm | Renoir | A1 | 65W |
| AMD | Ryzen 3 4100 | 3.8GHz / 4.0GHz | 4MB | 7nm | Renoir | A1 | 65W |
| AMD | Ryzen 3 3300X | 3.8GHz / 4.3GHz | 16MB | 7nm | Matisse | B0 | 65W |
| AMD | Ryzen 3 3200G (YD320GC5M4MFH) | 3.6GHz / 4.0GHz | 4MB | 12nm | Picasso | B1 | 45-65W |
| AMD | Ryzen 3 3200G (YD320GC5M4MFI) | 3.6GHz / 4.0GHz | 4MB | 12nm | Picasso | B1 | 45-65W |
| AMD | Ryzen 3 3200G (YD3200C5M4MFH) | 3.6GHz / 4.0GHz | 4MB | 12nm | Picasso | B1 | 45-65W |
| AMD | Ryzen 3 PRO 3200G (YD320BC5M4MFH) | 3.6GHz / 4.0GHz | 4MB | 12nm | Picasso | B1 | 45-65W |
| AMD | Ryzen 3 PRO 3200G (YD320BC5M4MFI) | 3.6GHz / 4.0GHz | 4MB | 12nm | Picasso | B1 | 45-65W |
| AMD | Ryzen 3 3200GE | 3.3GHz / 3.8GHz | 4MB | 12nm | Picasso | B1 | 35W |
| AMD | Ryzen 3 PRO 3200GE | 3.3GHz / 3.8GHz | 4MB | 12nm | Picasso | B1 | 35W |
| AMD | Ryzen 3 3100 | 3.6GHz / 3.9GHz | 16MB | 7nm | Matisse | B0 | 65W |
| AMD | Ryzen 3 2200G | 3.5GHz / 3.7GHz | 4MB | 14nm | Raven Ridge | B0 | 45-65W |
| AMD | Ryzen 3 PRO 2200G | 3.5GHz / 3.7GHz | 4MB | 14nm | Raven Ridge | B0 | 45-65W |
| AMD | Ryzen 3 2200GE | 3.2GHz / 3.6GHz | 4MB | 14nm | Raven Ridge | B0 | 35W |
| AMD | Ryzen 3 PRO 2200GE | 3.2GHz / 3.6GHz | 4MB | 14nm | Raven Ridge | B0 | 35W |
| AMD | Ryzen 3 1200 (YD1200BBM4KAF) | 3.1GHz / 3.4GHz | 8MB | 12nm | Pinnacle Ridge | B2 | 65W |
